CAT6 Rackmount IDC Patch Panels

853.001UK CAT6-24IDC

19" rackmount patch panels for networking over CAT5, CAT5e or CAT6 cabling with 24 or 48 x RJ45 (8P8C) sockets connected via rear mounted IDC panels. Each block of 6 sockets can be removed for easi...

  • Cable management bars with punched tie-down points
  • Removable blocks of 6 sockets
Description Version Packed
853.001UK
24-Port CAT6 IDC Patch Panel 1U + Cable Management
24-port, 1U Box Label
853.002UK
48-Port CAT6 IDC Patch Panel 2U + Cable Management
48-port, 2U Box Label

CAT6 Rackmount IDC Patch Panels

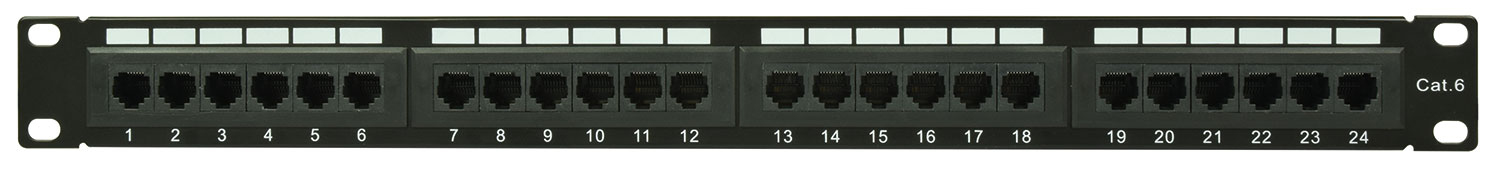

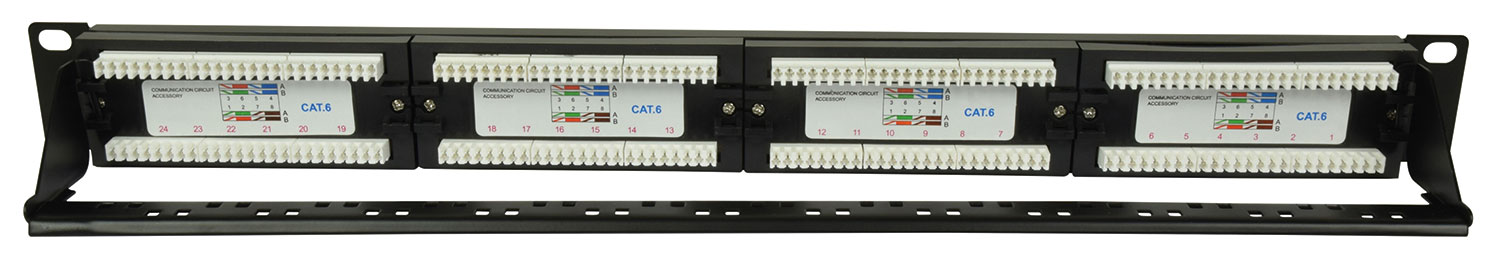

19" rackmount patch panels for networking over CAT5, CAT5e or CAT6 cabling with 24 or 48 x RJ45 (8P8C) sockets connected via rear mounted IDC panels. Each block of 6 sockets can be removed for easier handling during connection and cable management bars are supplied with cable ties for neat and secure installation.

  • Cable management bars with punched tie-down points
  • Removable blocks of 6 sockets

Versions

  853.001UK 853.002UK
Connections 24 x RJ45 (8P8C) 48 x RJ45 (8P8C)
Dimensions (assembled) 482 x 44 x 85mm 482 x 88 x 85mm
Weight 0.630kg 1.138kg
Rack height 1U 2U

In the box

The box for this item contains :

  • 19" rackmount patch panel
  • 1 or 2 cable management bars
  • Cable ties and rack mounting screws

Downloads

UK Declaration of conformity
For 853.001UK (248KB)
EU Declaration of conformity
For 853.001UK (236KB)
