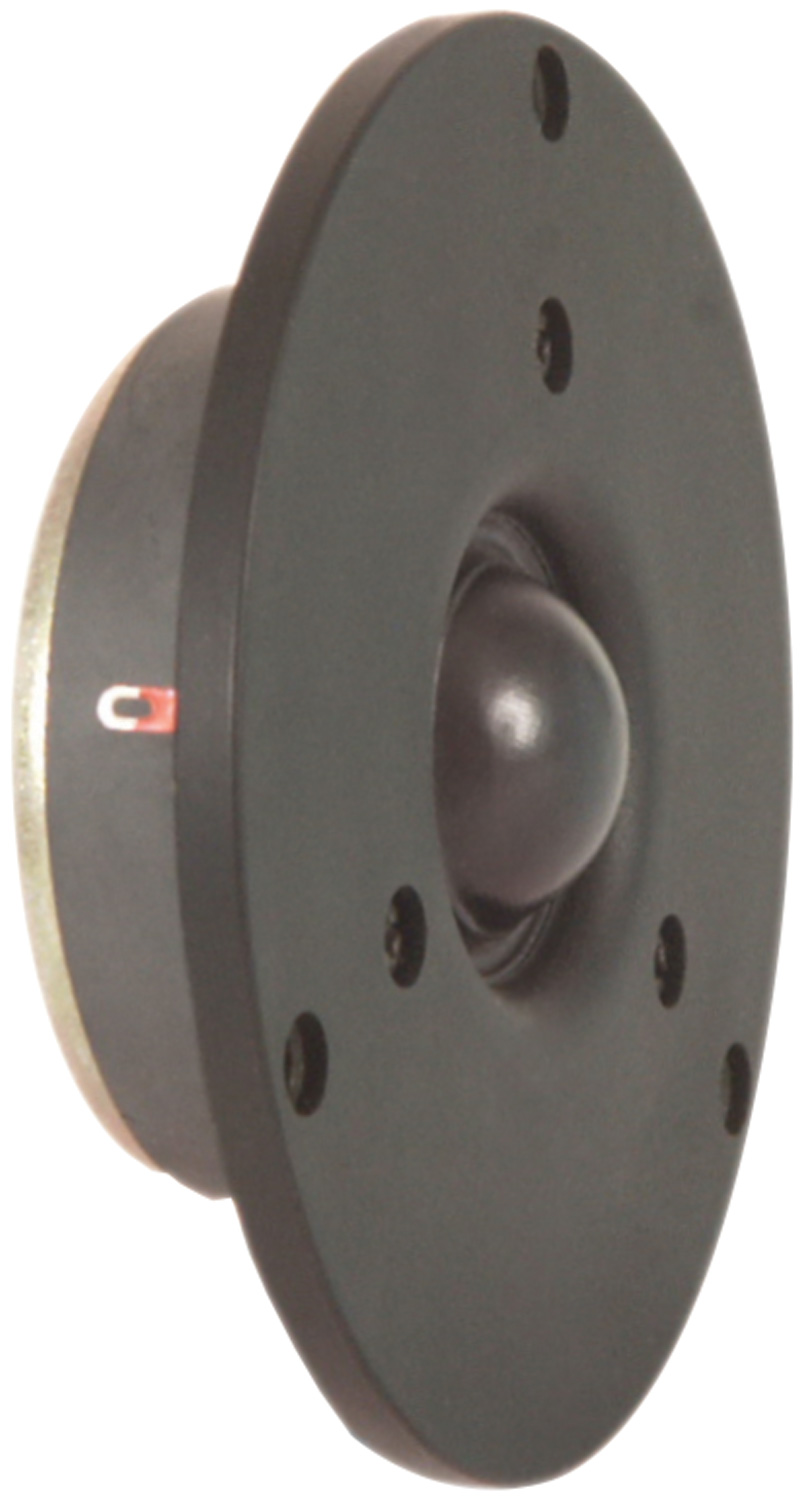

Silk Dome Tweeter

902.472UK

Special silk dome tweeter ensuring a perfect reproduction of the high frequencies, fitted with a 3cm (1.25") voice coil.

  • Strontium magnet
  • Aluminium voice coil
Full description Find retailer
Description Version Packed
902.472UK
Silk dome tweeter 		Box Label

Silk Dome Tweeter

Special silk dome tweeter ensuring a perfect reproduction of the high frequencies, fitted with a 3cm (1.25") voice coil.

  • Strontium magnet
  • Aluminium voice coil
  • Power max. 80W
  • Power rms 40W
  • Diameter 110mm (4.5")
  • Voice coil 1.25"
  • Frequency response 1.5kHz - 22kHz
  • Impedance 8 ohms
  • Magnet weight 284g (10 oz)
  • Magnet size 15 x 70mmØ
  • SPL @ 1W/1m 95dB

Downloads

UK Declaration of conformity
For 902.472UK (242KB)
EU Declaration of conformity
For 902.472UK (232KB)
