F40V Outdoor Fire-Rated Column Speaker IP66 EN54-24

952.244UK F40V

100V column speaker with a heavy-duty die-cast aluminium alloy housing & grille and fully rotatable rear wall-mount bracket. Water-resistant to IP66 for outdoor use and certified to EN54-24 for com...

  • EN54-24 certified for use in fire evacuation systems
  • IP66 weatherproof
  • Integral fully rotatable mounting bracket
Full description Find retailer
Description Version Packed
952.244UK
F40V Column Speaker 100V 40W IP66 EN54 		F40V Box Label

F40V Outdoor Fire-Rated Column Speaker IP66 EN54-24

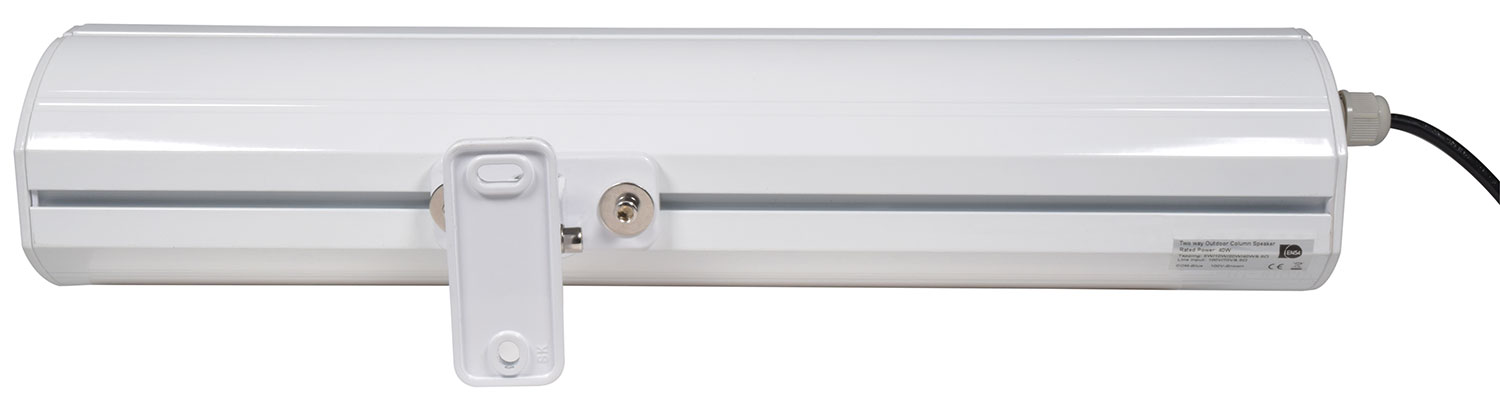

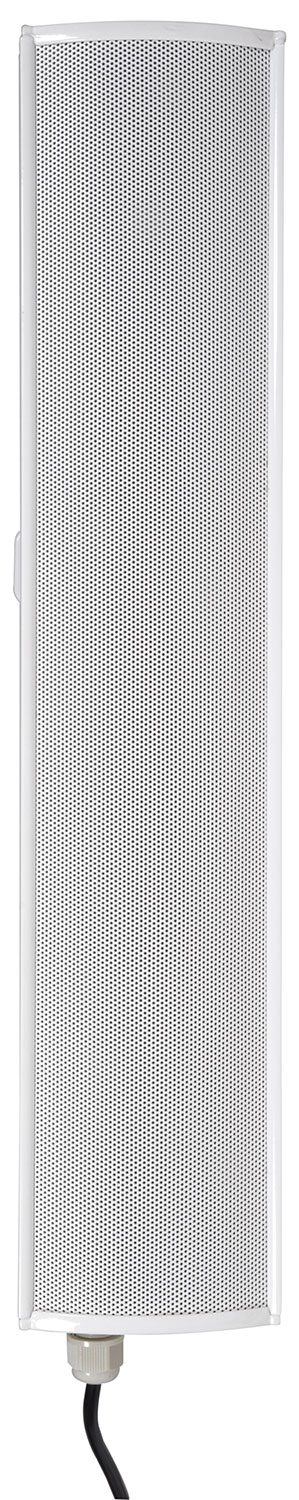

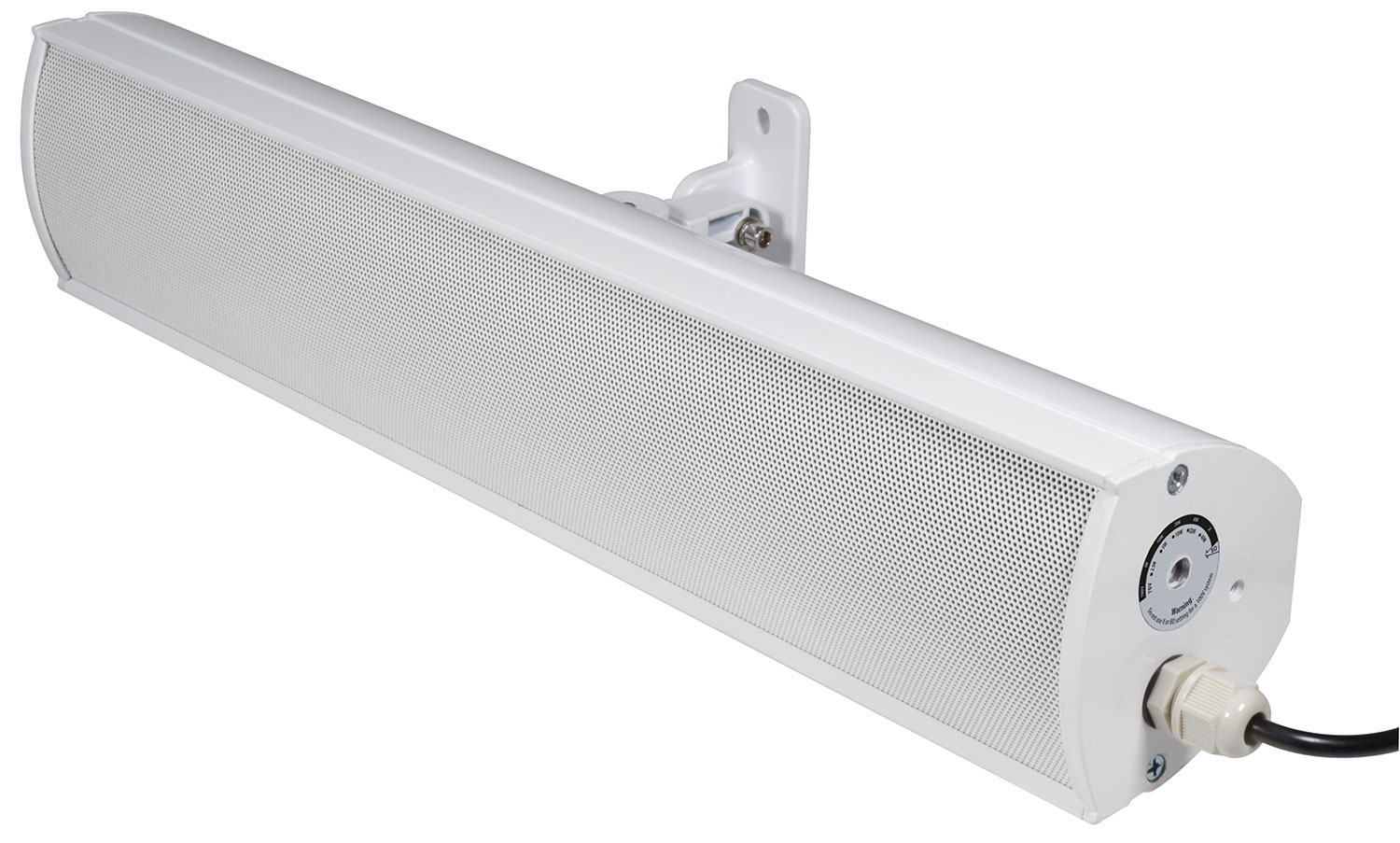

100V column speaker with a heavy-duty die-cast aluminium alloy housing & grille and fully rotatable rear wall-mount bracket. Water-resistant to IP66 for outdoor use and certified to EN54-24 for compliance with fire voice evacuation systems. Protection for use in these systems includes a fireproof cable and 95°C thermal fuse. Output has a frequency response suitabel for music playback in addition to voice announcements. The F40V can to be operated in 100V or 70.7V systems, as well as a standard 8 Ohm speaker. Designed to provide an uncompromised sound qualilty in PA systems that are relied upon for emergency and evacuation alerts.

  • EN54-24 certified for use in fire evacuation systems
  • IP66 weatherproof

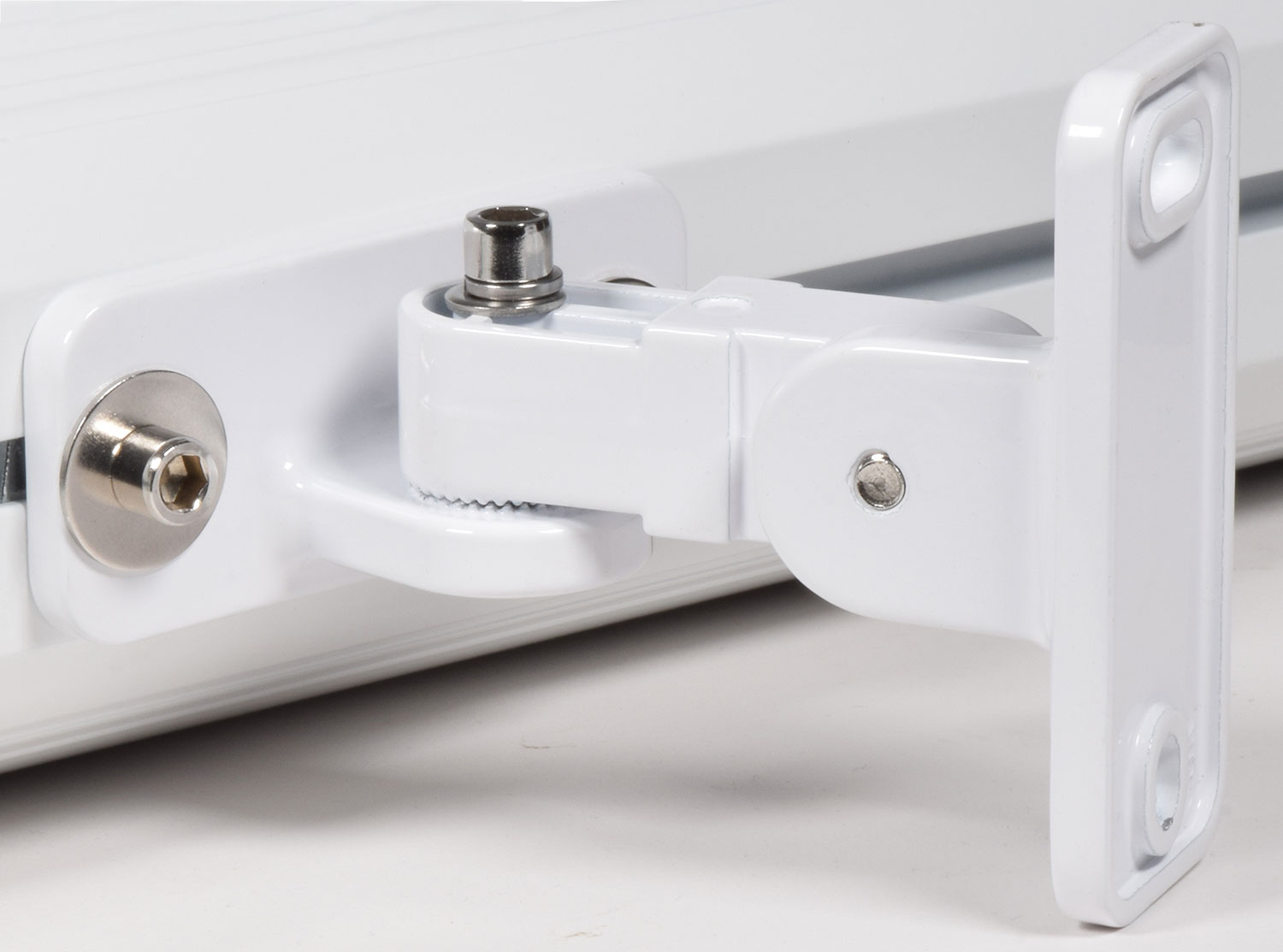

  • Integral fully rotatable mounting bracket
  • 100V, 70V or 8 Ohm operation
  • Construction Powder coated aluminium alloy housing and grille
  • IP rating IP66
  • Fire rating EN54-24 certified
  • Power rms : 8 Ohms 40W

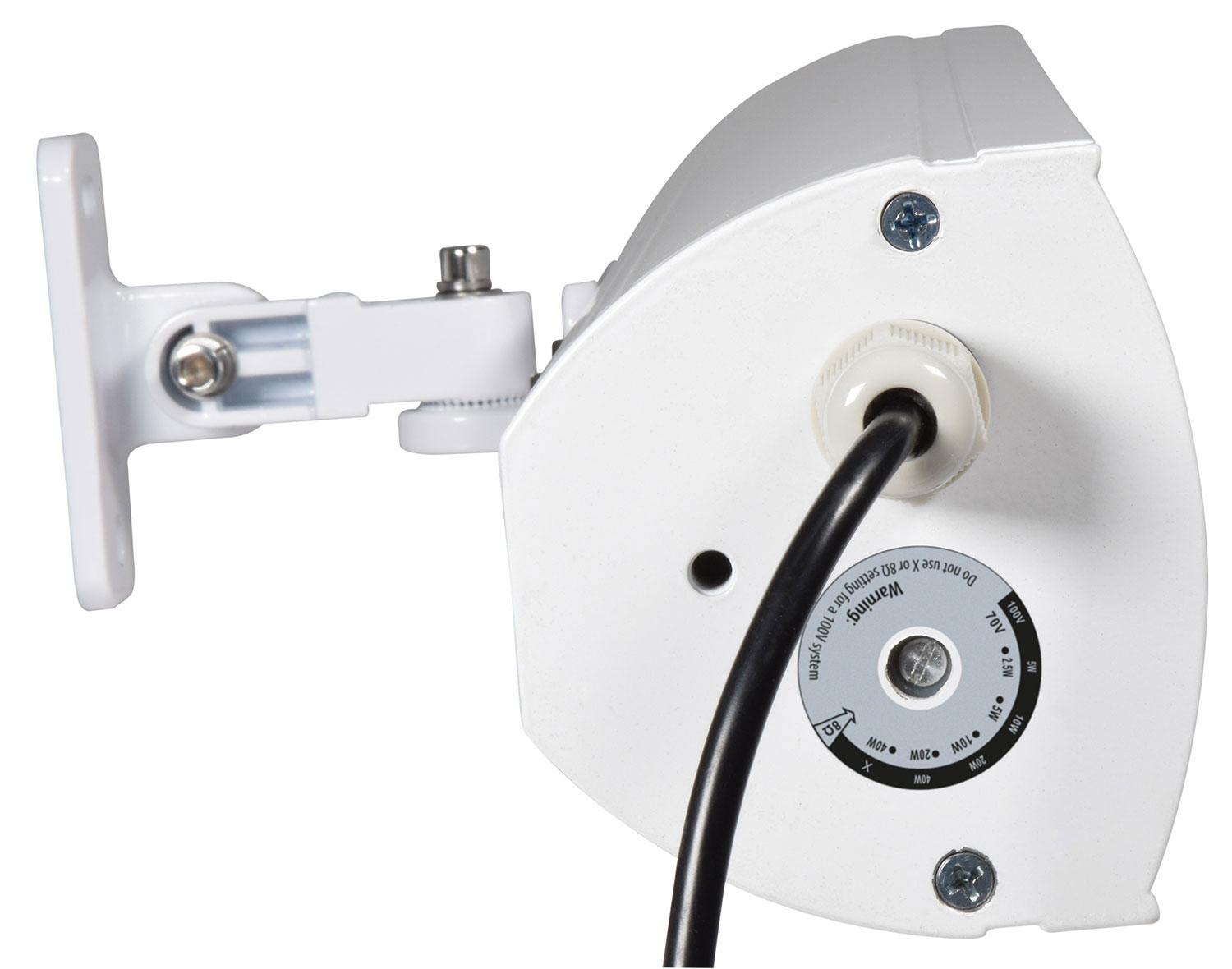

  • Tappings 5W, 10W, 20W, 40W (100V) & 8 Ohms
  • SPL @ 1W/1m 96dB
  • Frequency response 150Hz - 18kHz
  • LF drivers 4 x 75mmØ (3") woofers
  • HF driver 1 x 63mmØ (2.5") tweeter
  • Connection Hard-wired fire resistant cable via IP66 gland
  • Circuit protection Thermal fuse
  • Dimensions 500 x 175 x 97mm
  • Weight 3.87kg

Support : articles

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • F40V column speaker
  • Mounting bracket

Downloads

Instruction manual
For 952.244UK (84KB)
UK Declaration of conformity
For 952.244UK (249KB)
EU Declaration of conformity
For 952.244UK (236KB)
