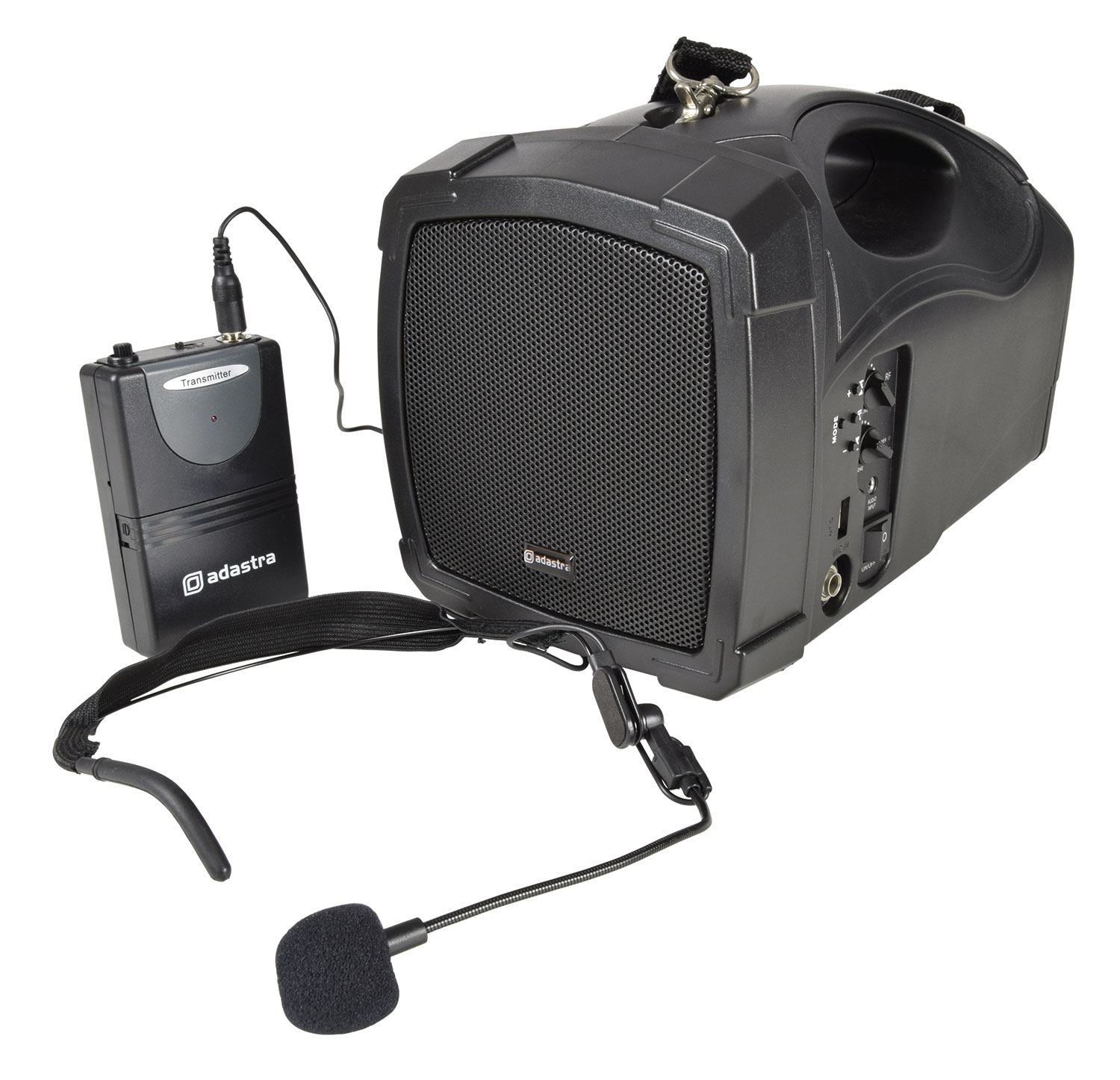

Handheld PA System with Neckband Mic and Bluetooth
952.412UK
H25B
The H25B is a fully integrated PA unit in an ergonomic ABS handheld housing. Power can be supplied from mains or the internal rechargeable battery to deliver up to 25W output. Hands-free vocal addr...
- Mains or battery operation
- Bluetooth Receiver
- Internal USB audio player
Handheld PA System with Neckband Mic and Bluetooth
The H25B is a fully integrated PA unit in an ergonomic ABS handheld housing. Power can be supplied from mains or the internal rechargeable battery to deliver up to 25W output. Hands-free vocal address is made easy and convenient with the supplied VHF wireless neckband system. Built-in Bluetooth receiver and USB media player provide background music playback options, including an FM radio tuner function. Applications include demonstrations, speech reinforcement in educational scenarios and mobile public address.
- Mains or battery operation
- Bluetooth Receiver
- Internal USB audio player
- FM radio tuner
- VHF neckband microphone system
- Power supply : main unit 230Vac, 50Hz or internal rechargeable battery
- Batteries : beltpack transmitter 9Vdc PP3
- Output power : max. 25W
- Battery life (hours) : voice 7 hours max.
- Battery life (hours) : signal 2 hours max.
- Audio source USB player, FM tuner, Bluetooth receiver
- Frequency response 100Hz - 12kHz
- S/N ratio >75dB
- SPL max. 80dB
- VHF operating distance 35m (max.)
- Carrier frequency 174.1MHz
- VHF tuning stability 0.005% quartz crystal locked
- Dimensions : VHF beltpack 205 x 68 x 25mm (ex. antenna)
- Weight : VHF beltpack 76g (no battery)
- Dimensions : main unit 155 x 183 x 285mm
- Weight : main unit 2.74kg
In the box
The box for this item contains :
- H25B handheld PA unit

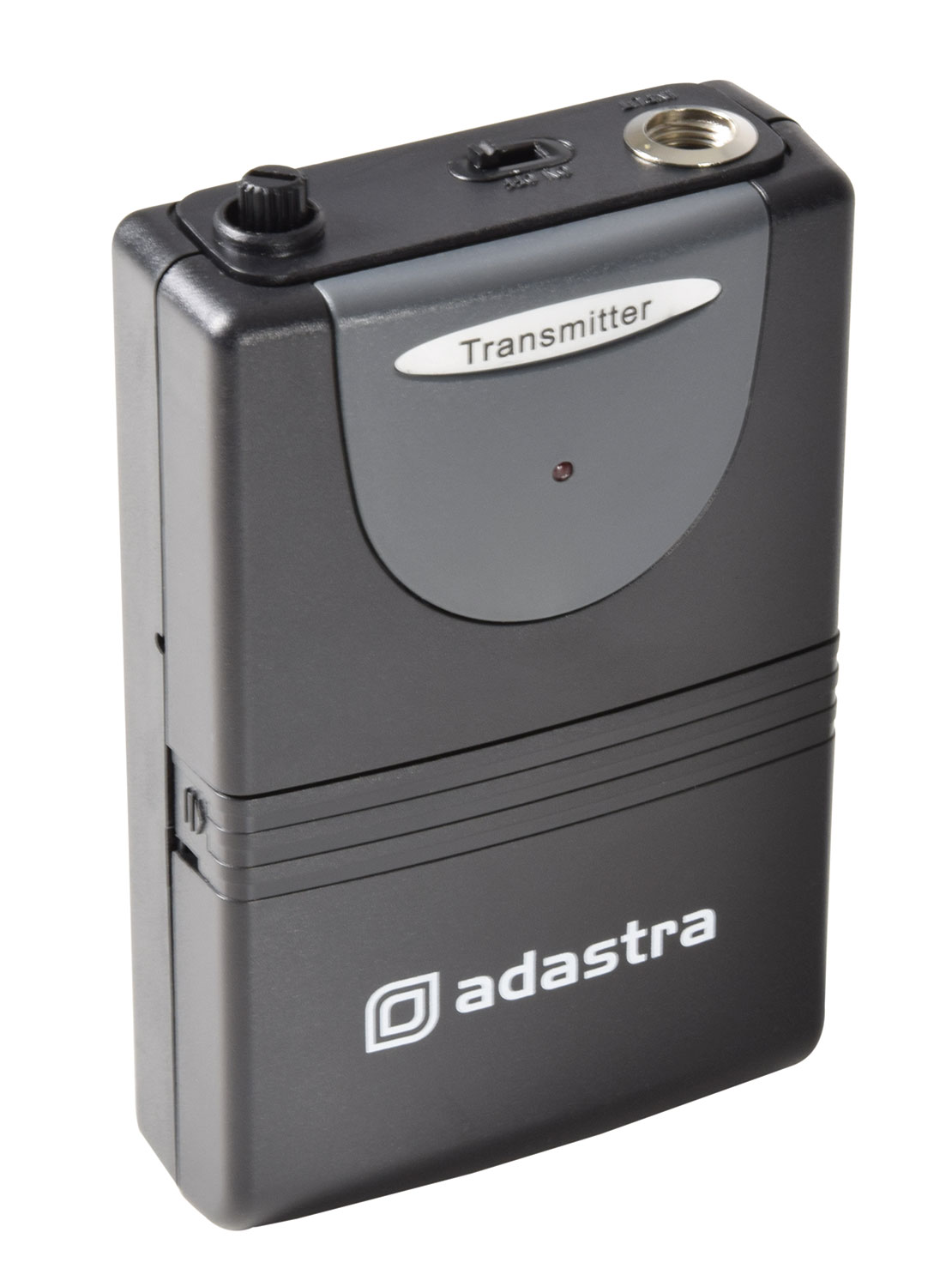

- VHF beltpack transmitter

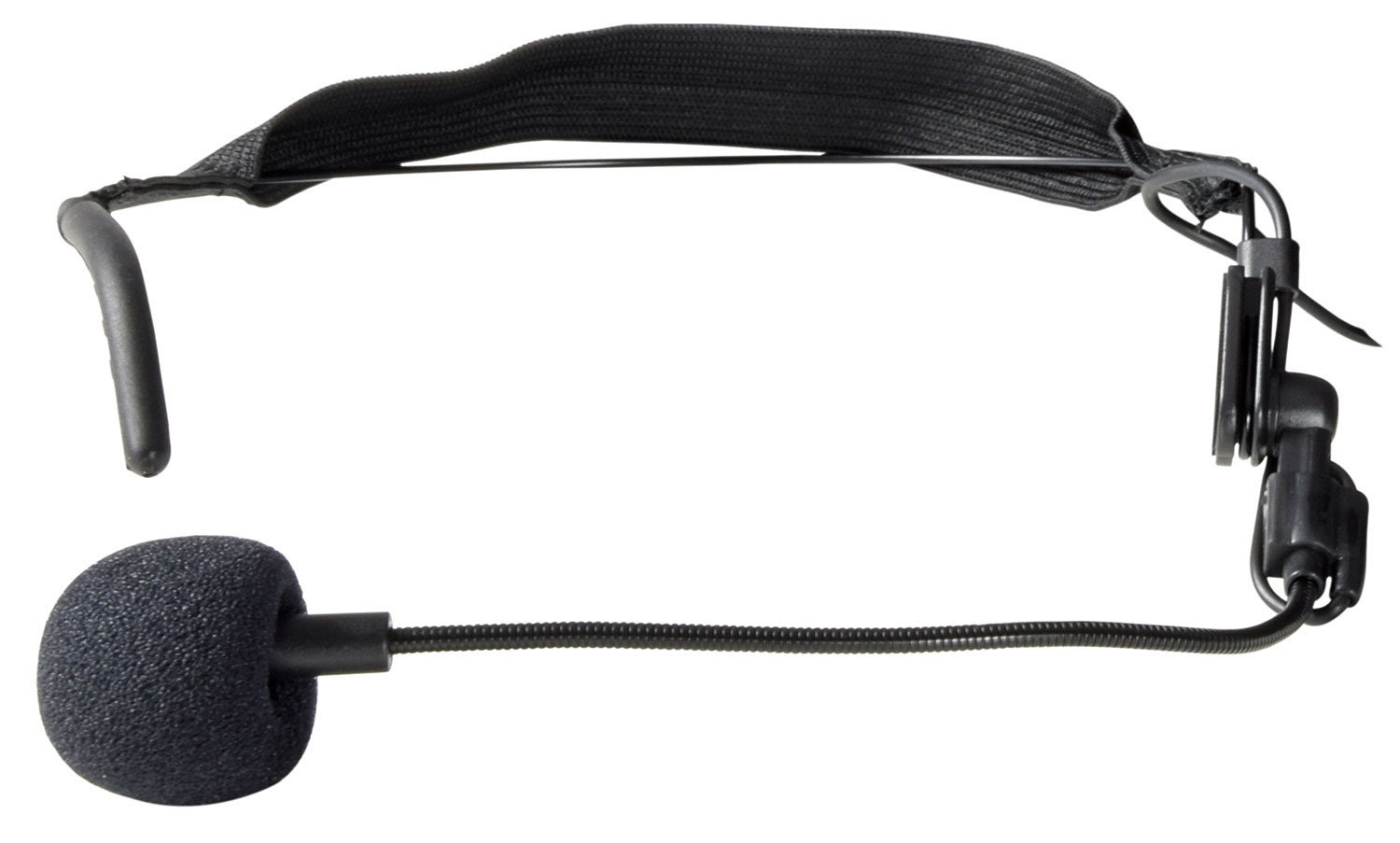

- Neckband microphone
Downloads
Instruction manual
For 952.412UK (260KB)
For 952.412UK (260KB)
UK Declaration of conformity
For 952.412UK (252KB)
For 952.412UK (252KB)
EU Declaration of conformity
For 952.412UK (240KB)
For 952.412UK (240KB)
