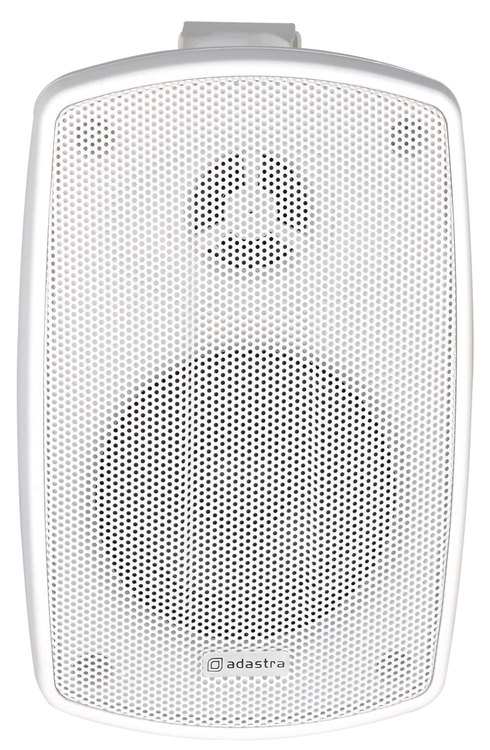

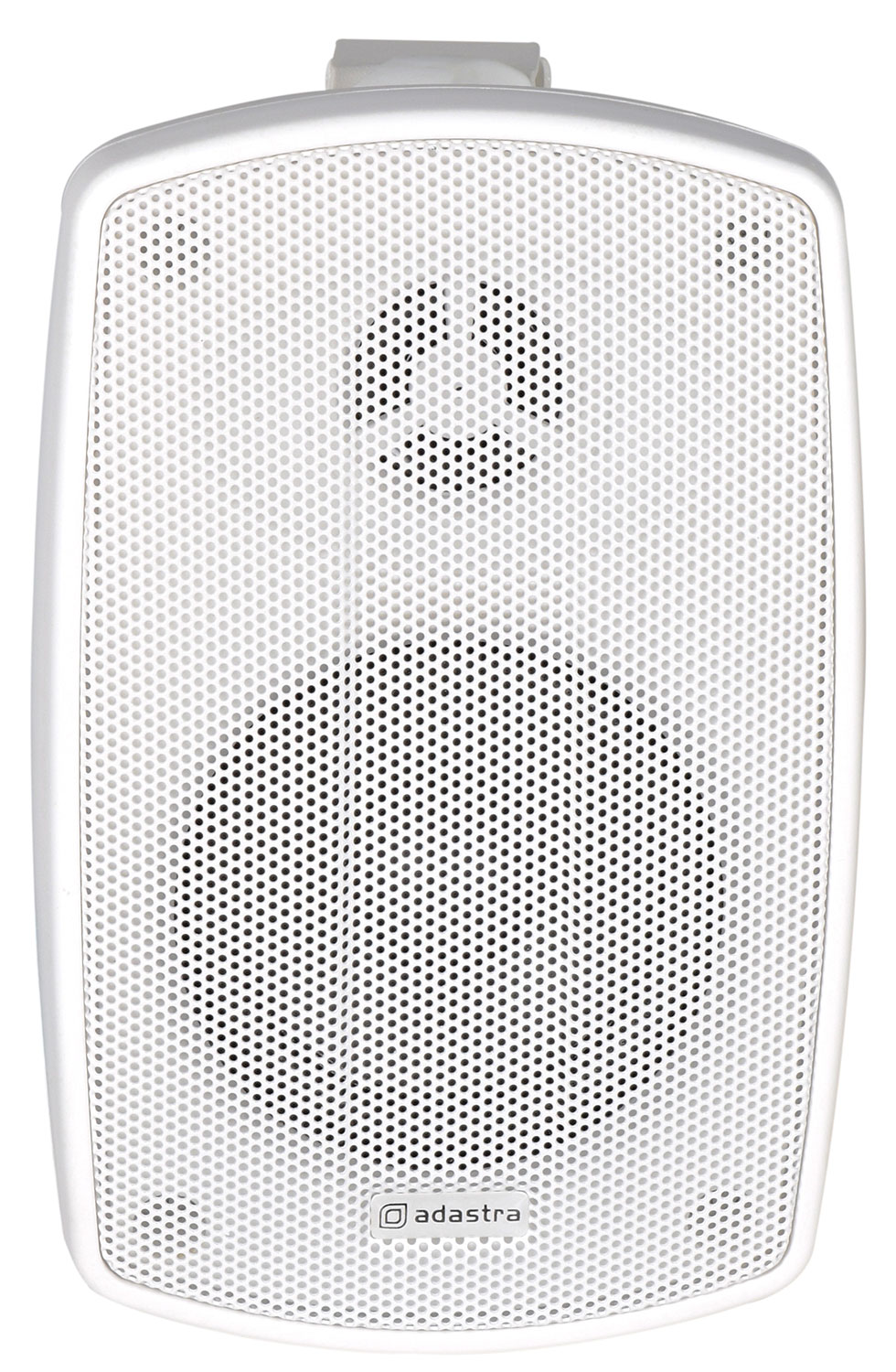

BHV Series IP44 Background Speakers 100V

952.610UK BH3V-W

Premium quality IP44 weather resistant 100V speakers with an extended low frequency driver and dome tweeter housed in an efficiently designed moulded cabinet. Spring terminals and a rotary volume t...

  • 100V or 16 Ohm operation
  • 2-way speaker system with crossover network
  • High quality sound reproduction
Full description Find retailer
Description Version Packed
952.610UK
BH3V-W 100V Background Speaker IP44 White 		3" white each Box Label
952.611UK
BH3V-W 100V Background Speaker IP44 Black 		3" black each Box Label
952.612UK
BH4V-W 100V Background Speaker IP44 White 		4" white each Box Label
952.613UK
BH4V-B 100V Background Speaker IP44 Black 		4" black each Box Label
952.614UK
BH5V-W 100V Background Speaker IP44 White 		5" white each Box Label
952.615UK
BH5V-B 100V Background Speaker IP44 Black 		5" black each Box Label
952.616UK
BH6V-W 100V Background Speaker IP44 White 		6" white each Box Label
952.617UK
BH6V-B 100V Background Speaker IP44 Black 		6" black each Box Label
952.618UK
BH8V-W 100V Background Speaker IP44 White 		8" white each Box Label
952.619UK
BH8V-B 100V Background Speaker IP44 Black 		8" black each Box Label

BHV Series IP44 Background Speakers 100V

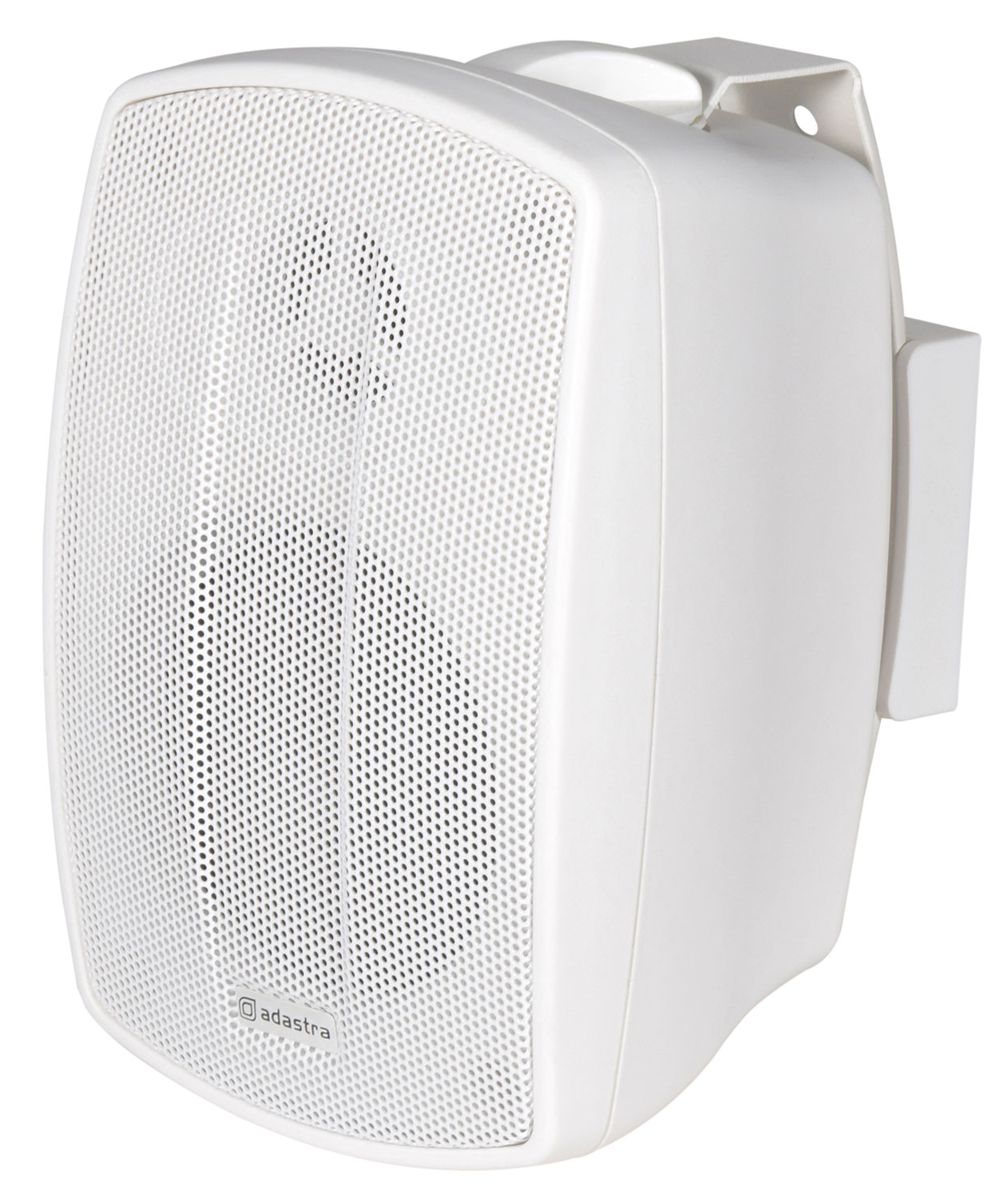

Premium quality IP44 weather resistant 100V speakers with an extended low frequency driver and dome tweeter housed in an efficiently designed moulded cabinet. Spring terminals and a rotary volume tapping switch are protected by a cover at the rear. Each speaker is supplied with a laterally adjustable wall mounting bracket that can also set to various tilt positions for efficient directivity. Designed to deliver high quality sound reproduction for indoor or outdoor background music and public address applications.

  • 100V or 16 Ohm operation
  • 2-way speaker system with crossover network
  • High quality sound reproduction

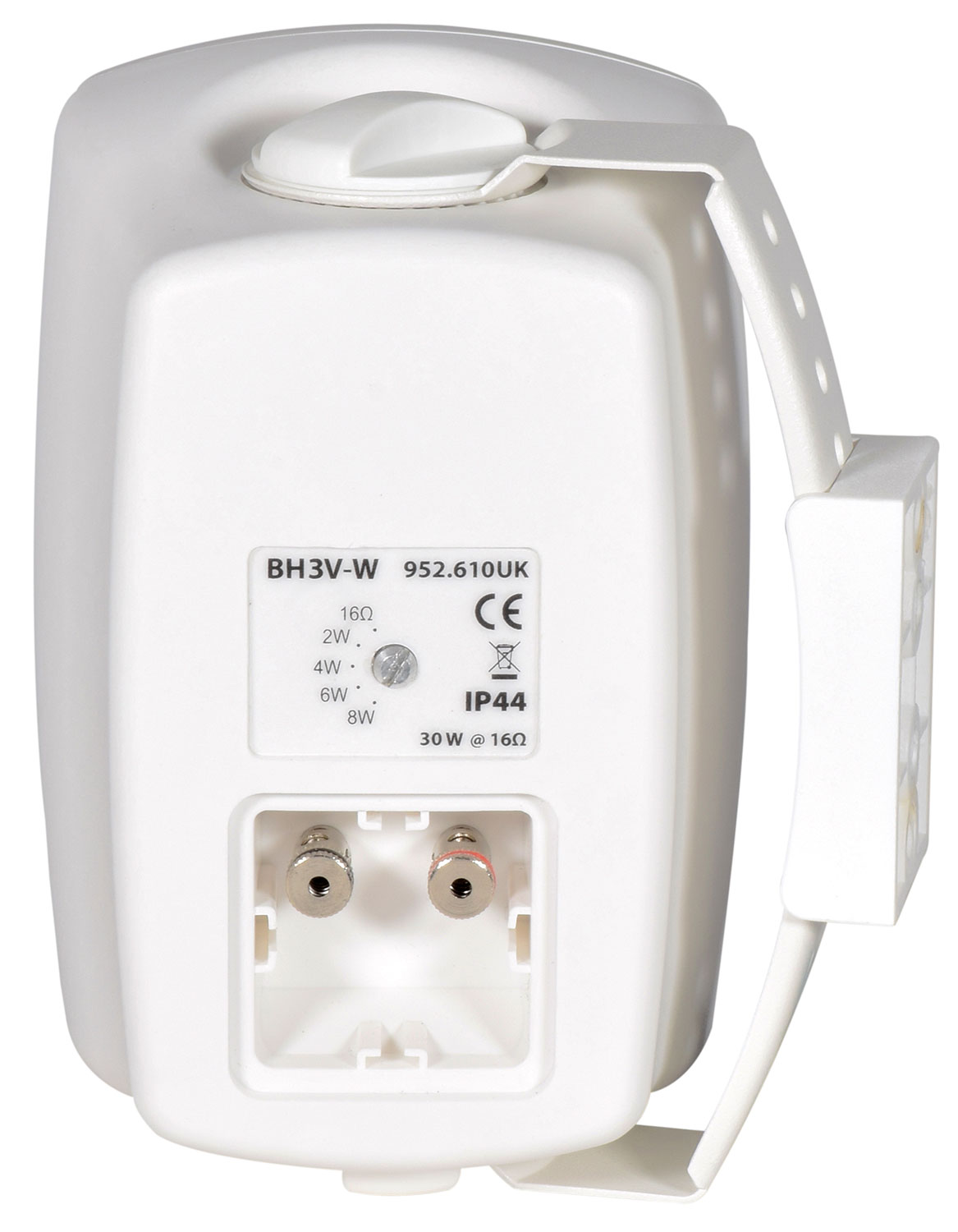

  • Protective cover for tapping switch and spring terminals
  • Pan & tilt mounting brackets included
  • Supplied singly
  • Construction Moulded PP cabinet with aluminium grille
  • Dispersion angle 120°
  • IP rating IP44

Versions

  952.610UK 952.611UK 952.612UK 952.613UK 952.614UK 952.615UK 952.616UK 952.617UK 952.618UK 952.619UK
Colour White Black White Black White Black White Black White Black
LF driver 75mmØ (3") 75mmØ (3") 100mmØ (4") 100mmØ (4") 135mmØ (5.25") 135mmØ (5.25") 165mmØ (6.5") 165mmØ (6.5") 200mmØ (8") 200mmØ (8")
HF driver 13mmØ (0.5") 13mmØ (0.5") 13mmØ (0.5") 13mmØ (0.5") 13mmØ (0.5") 13mmØ (0.5") 25mmØ (1") 25mmØ (1") 25mmØ (1") 25mmØ (1")
Power handling : rms 30W 30W 30W 30W 50W 50W 70W 70W 80W 80W
Power handling : max 60W 60W 60W 60W 100W 100W 140W 140W 160W 160W
Sensitivity 86dB 86dB 88dB 88dB 89dB 89dB 90dB 90dB 90dB 90dB
Frequency response 110Hz - 20kHz 110Hz - 20kHz 100Hz - 20kHz 100Hz - 20kHz 80Hz - 20kHz 80Hz - 20kHz 50Hz - 20kHz 50Hz - 20kHz 30Hz - 20kHz 30Hz - 20kHz
Tappings 8W, 6W, 4W, 2W + 16 Ohms 8W, 6W, 4W, 2W + 16 Ohms 20W, 10W, 5W, 2.5W + 16 Ohms 20W, 10W, 5W, 2.5W + 16 Ohms 30W, 20W, 10W, 5W + 16 Ohms 30W, 20W, 10W, 5W + 16 Ohms 40W, 30W, 20W, 10W + 16 Ohms 40W, 30W, 20W, 10W + 16 Ohms 50W, 40W, 30W, 20W + 16 Ohms 50W, 40W, 30W, 20W + 16 Ohms
Dimensions 164 x 107 x 102mm 164 x 107 x 102mm 195 x 125 x 125mm 195 x 125 x 125mm 255 x 163 x 160mm 255 x 163 x 160mm 290 x 195 x 190mm 290 x 195 x 190mm 378 x 244 x 240mm 378 x 244 x 240mm
Weight 1.06kg 1.06kg 1.64kg 1.64kg 2.45kg 2.45kg 3.27kg 3.27kg 4.67kg 4.67kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • BHV series 100V background speaker
  • Wall plate and 2-axis mounting bracket

Downloads

Instruction manual
For 952.610UK (135KB)
UK Declaration of conformity
For 952.610UK (242KB)
EU Declaration of conformity
For 952.610UK (233KB)
