BHV Series IP44 Background Speakers 100V

952.612UK BH4V-W

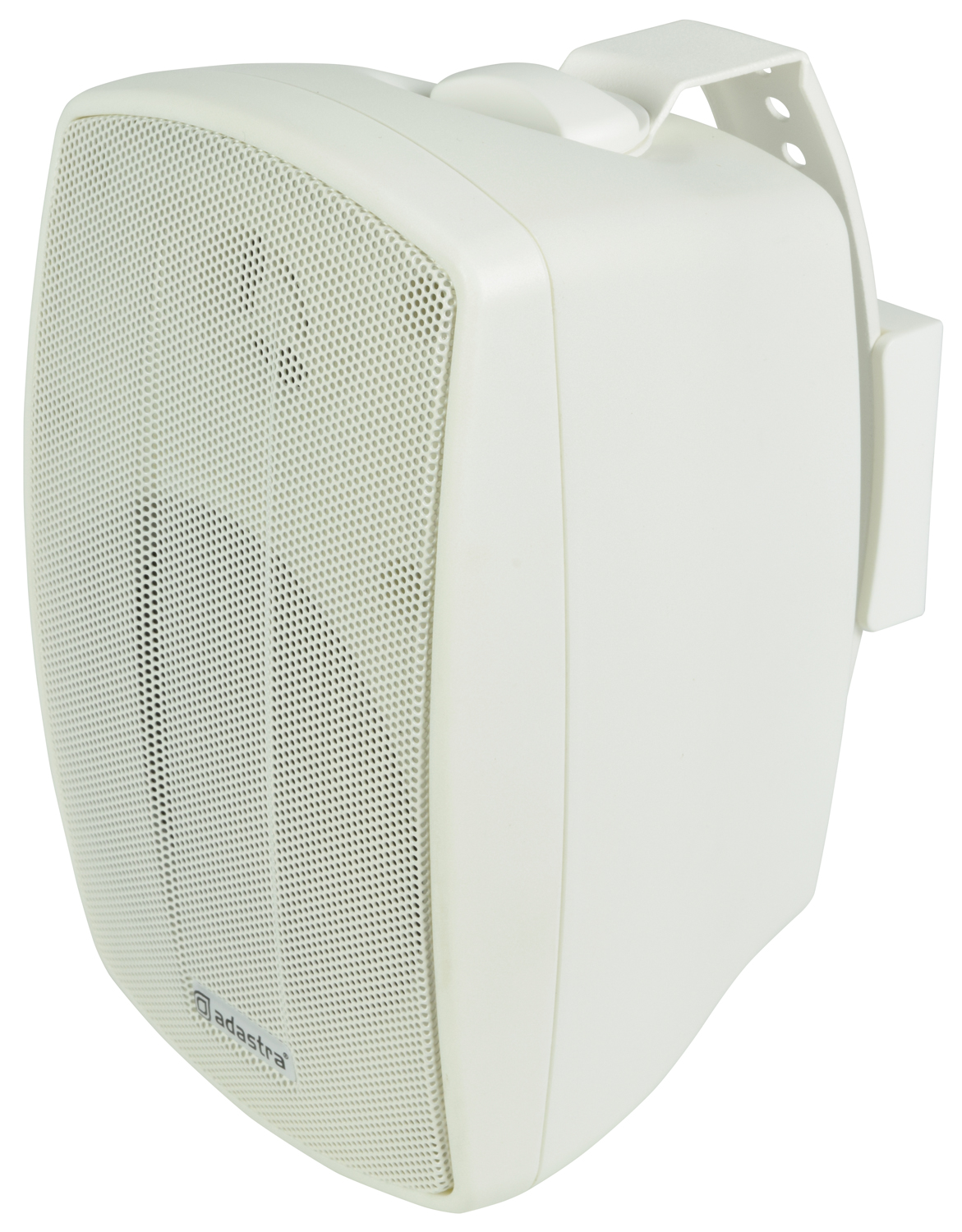

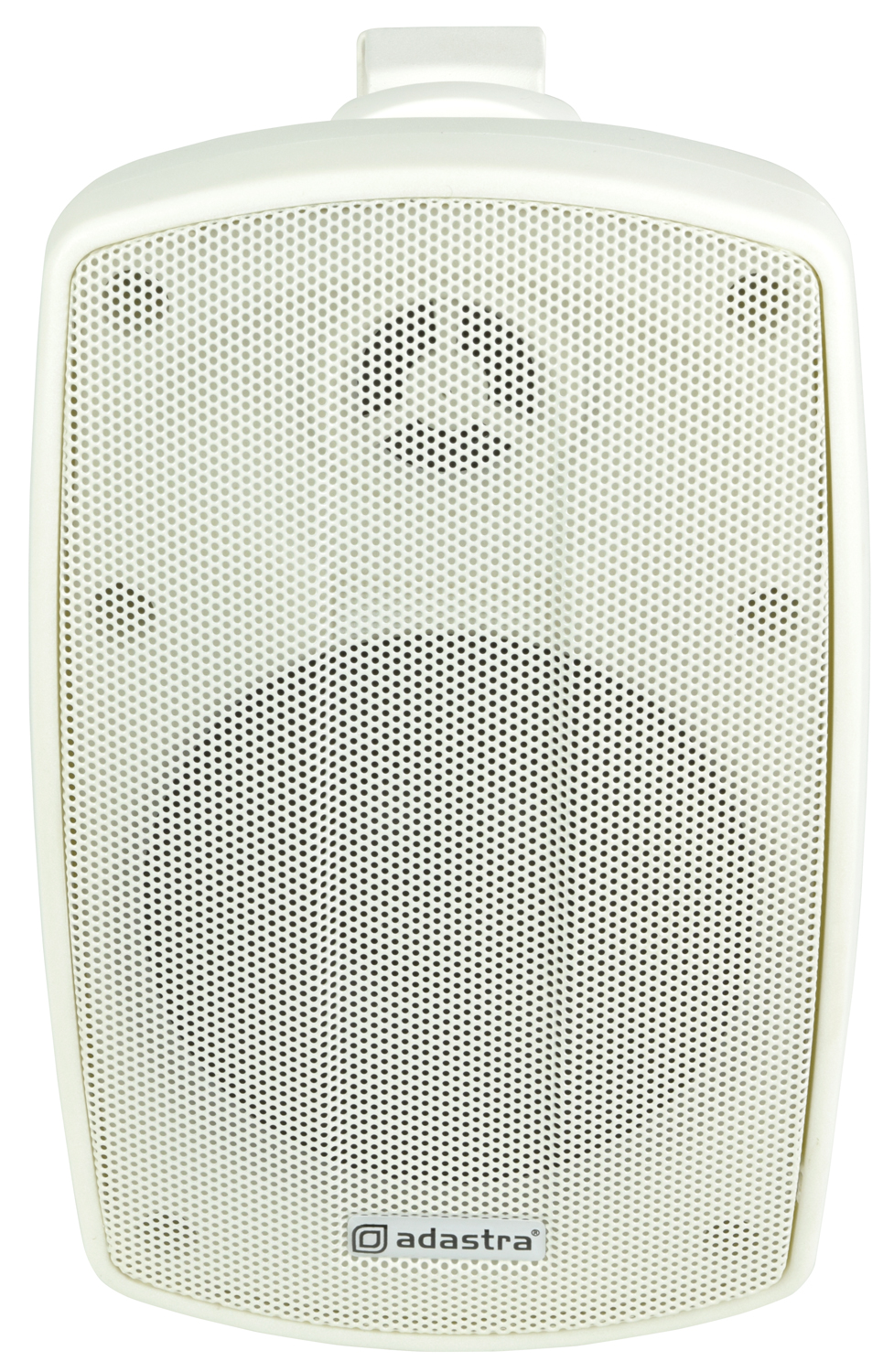

High quality IP44 weather resistant 100V speakers with an extended low frequency driver and dome tweeter housed in an efficiently designed moulded cabinet. Spring terminals and a rotary volume tapp...

  • 100V or 16 Ohm operation
  • 2-way speaker system with crossover network
  • High quality sound reproduction
Full description Find retailer
Description Version Packed
952.612UK
BH4V-W 100V Background Speaker IP44 White 		4" white each Gift Box
952.613UK
BH4V-B 100V Background Speaker IP44 Black 		4" black each Gift Box
952.614UK
BH5V-W 100V Background Speaker IP44 White 		5" white each Gift Box
952.615UK
BH5V-B 100V Background Speaker IP44 Black 		5" black each Gift Box
952.616UK
BH6V-W 100V Background Speaker IP44 White 		6" white each Gift Box
952.617UK
BH6V-B 100V Background Speaker IP44 Black 		6" black each Gift Box
952.618UK
BH8V-W 100V Background Speaker IP44 White 		8" white each Gift Box
952.619UK
BH8V-B 100V Background Speaker IP44 Black 		8" black each Gift Box

BHV Series IP44 Background Speakers 100V

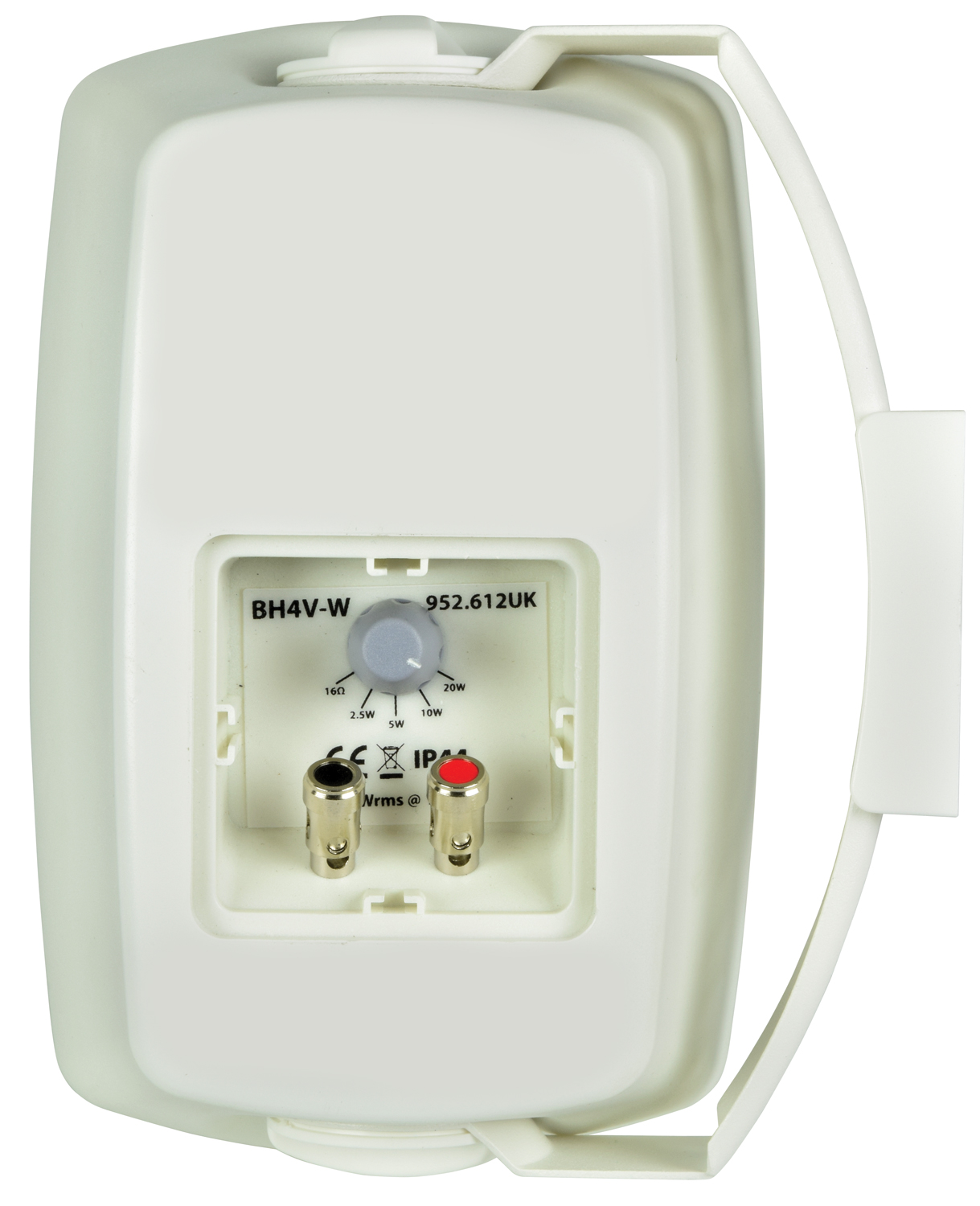

High quality IP44 weather resistant 100V speakers with an extended low frequency driver and dome tweeter housed in an efficiently designed moulded cabinet. Spring terminals and a rotary volume tapping switch are protected by a cover at the rear. Each speaker is supplied with a laterally adjustable wall mounting bracket that can also set to various tilt positions for efficient directivity. Designed for indoor or outdoor background music and public address applications.

  • 100V or 16 Ohm operation
  • 2-way speaker system with crossover network
  • High quality sound reproduction
  • Protective cover for tapping switch and spring terminals
  • Pan & tilt mounting brackets included
  • Supplied singly

Specification : Common

  • Dispersion angle 120°
  • IP rating IP44

Specification : Versions

  952.612UK 952.613UK 952.614UK 952.615UK 952.616UK 952.617UK 952.618UK 952.619UK
Colour White Black White Black White Black White Black
LF driver 100mmØ (4") 100mmØ (4") 135mmØ (5.25") 135mmØ (5.25") 165mmØ (6.5") 165mmØ (6.5") 200mmØ (8") 200mmØ (8")
HF driver 13mmØ (0.5") 13mmØ (0.5") 13mmØ (0.5") 13mmØ (0.5") 25mmØ (1") 25mmØ (1") 25mmØ (1") 25mmØ (1")
Power handling : max 60W 60W 100W 100W 140W 140W 160W 160W
Power handling : rms 30W 30W 50W 50W 70W 70W 80W 80W
Sensitivity 88dB 88dB 89dB 89dB 90dB 90dB 90dB 90dB
Frequency response 100Hz - 20kHz 100Hz - 20kHz 80Hz - 20kHz 80Hz - 20kHz 50Hz - 20kHz 50Hz - 20kHz 30Hz - 20kHz 30Hz - 20kHz
Tappings 20W, 10W, 5W, 2.5W + 16 Ohms 20W, 10W, 5W, 2.5W + 16 Ohms 30W, 20W, 10W, 5W + 16 Ohms 30W, 20W, 10W, 5W + 16 Ohms 40W, 30W, 20W, 10W + 16 Ohms 40W, 30W, 20W, 10W + 16 Ohms 50W, 40W, 30W, 20W + 16 Ohms 50W, 40W, 30W, 20W + 16 Ohms
Dimensions 195 x 125 x 125mm 195 x 125 x 125mm 255 x 163 x 160mm 255 x 163 x 160mm 290 x 195 x 190mm 290 x 195 x 190mm 378 x 244 x 240mm 378 x 244 x 240mm
Weight 1.64kg 1.64kg 2.45kg 2.45kg 3.27kg 3.27kg 4.67kg 4.67kg

Trade information

  952.612UK 952.613UK 952.614UK 952.615UK 952.616UK 952.617UK 952.618UK 952.619UK
Barcode / EAN 5015972213056 5015972213070 5015972213094 5015972213117 5015972213131 5015972213155 5015972213179 5015972213193
Package type Gift Box Gift Box Gift Box Gift Box Gift Box Gift Box Gift Box Gift Box
Package dimensions 190 x 217 x 154mm 190 x 217 x 154mm 240 x 275 x 195mm 240 x 275 x 195mm 286 x 329 x 223mm 210 x 270 x 195mm 333 x 410 x 285mm 333 x 410 x 285mm
Package weight 1.91kg 1.91kg 2.92kg 2.92kg 3.96kg 3.96kg 5.70kg 5.70kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 385 x 444 x 313mm 385 x 444 x 313mm 485 x 560 x 400mm 485 x 560 x 400mm 471 x 577 x 335mm 471 x 577 x 335mm 575 x 671 x 415mm 575 x 671 x 415mm
Carton weight 16.50kg 16.50kg 24.50kg 24.50kg 17.00kg 17.00kg 24.50kg 24.50kg
Carton quantity 8 packages 8 packages 8 packages 8 packages 4 packages 4 packages 4 packages 4 packages

In the box

The box for this item contains :

  • BHV series 100V background speaker
  • Wall plate and 2-axis mounting bracket
