2-way Counter Top Intercom

952.828UK TGM4

Intercom for conversation through a glass partition comprising a desktop speaker unit with gooseneck microphone and an extension speakerphone unit, which can be positioned horizontally or verticall...

  • Desktop main speaker unit with gooseneck microphone

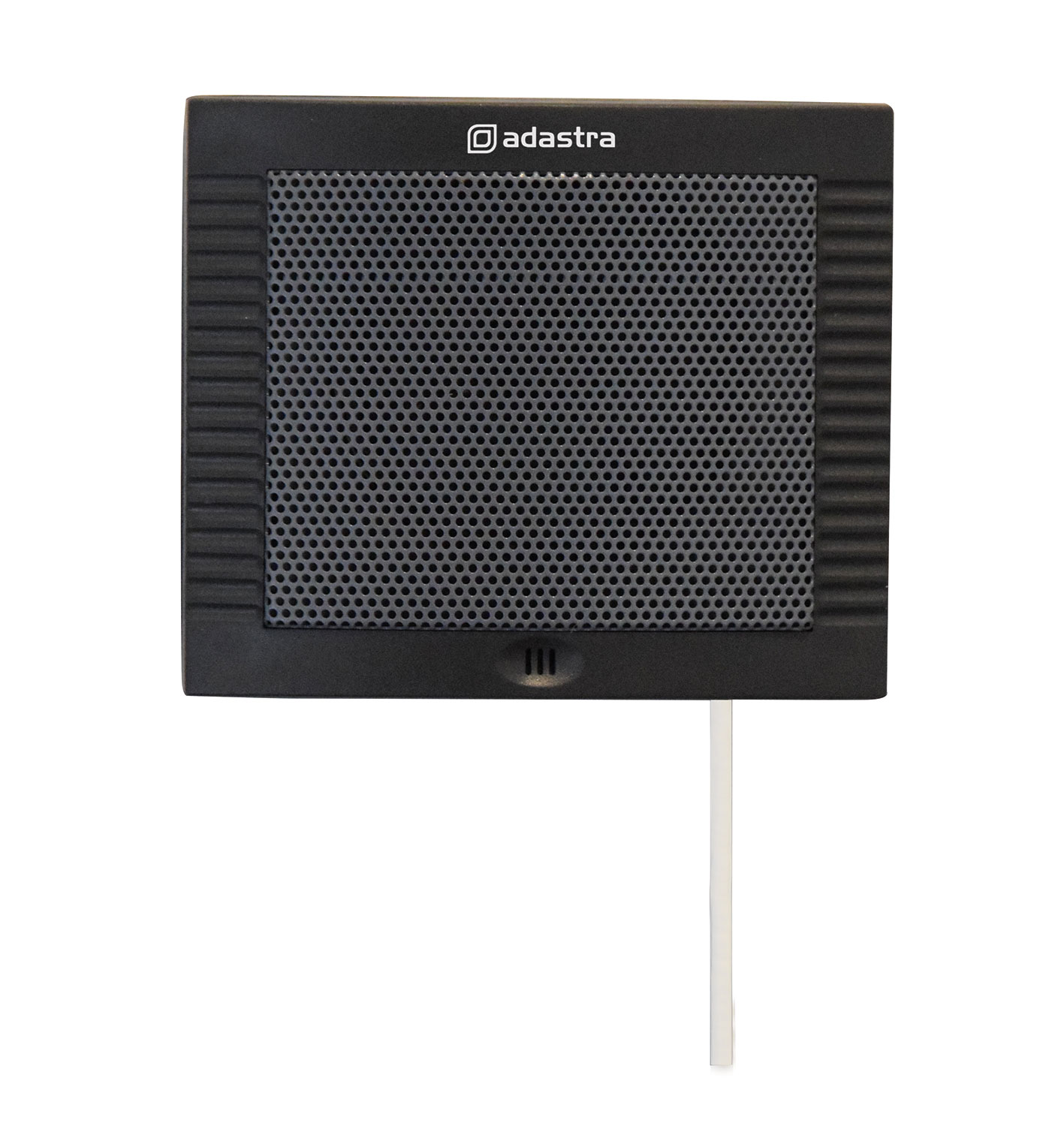

  • Glass or counter mount client speakerphone
  • Hands-free operation
Description Version Packed
952.828UK
Through Glass Microphone Intercom
TGM4 Gift Box

2-way Counter Top Intercom

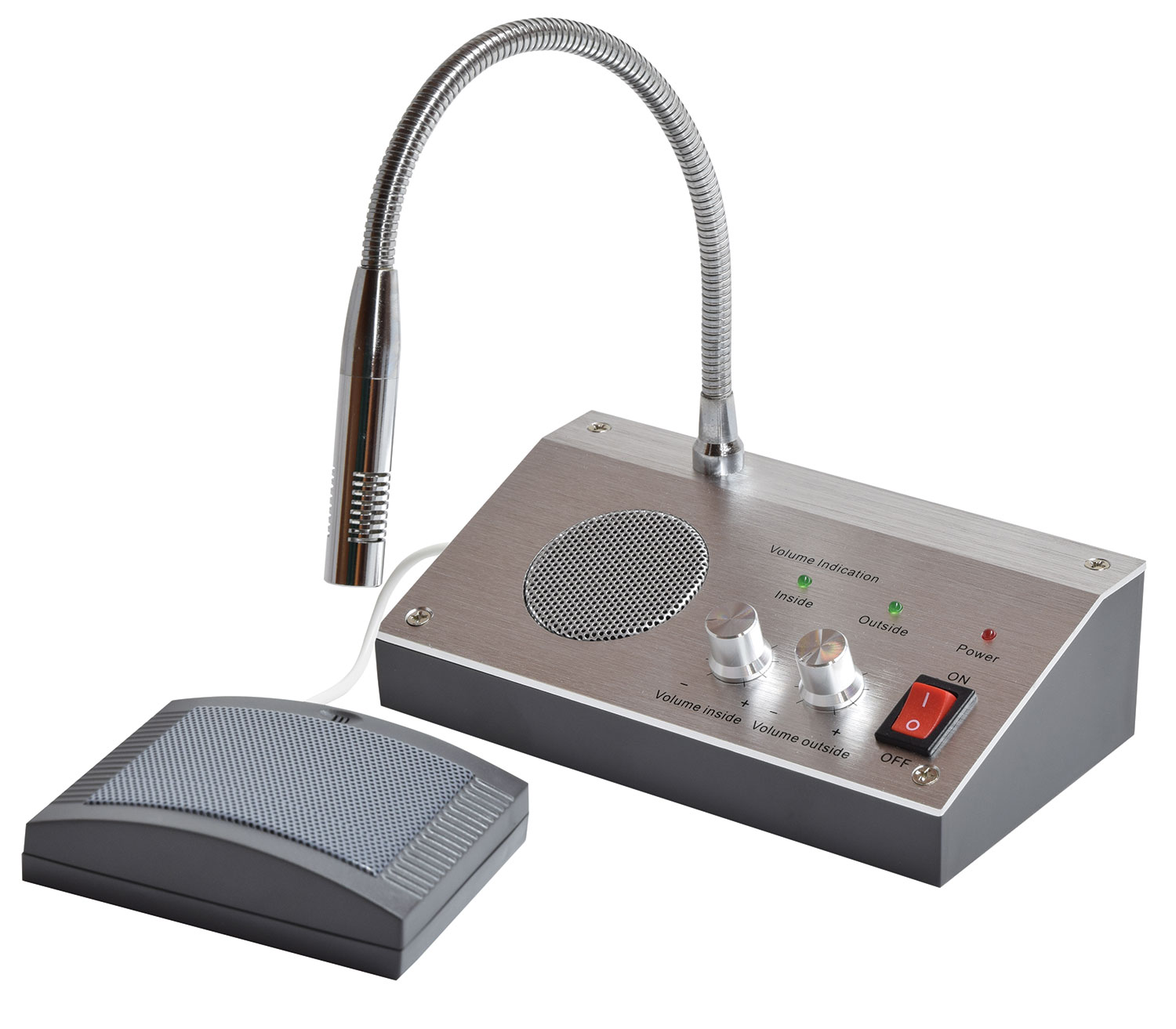

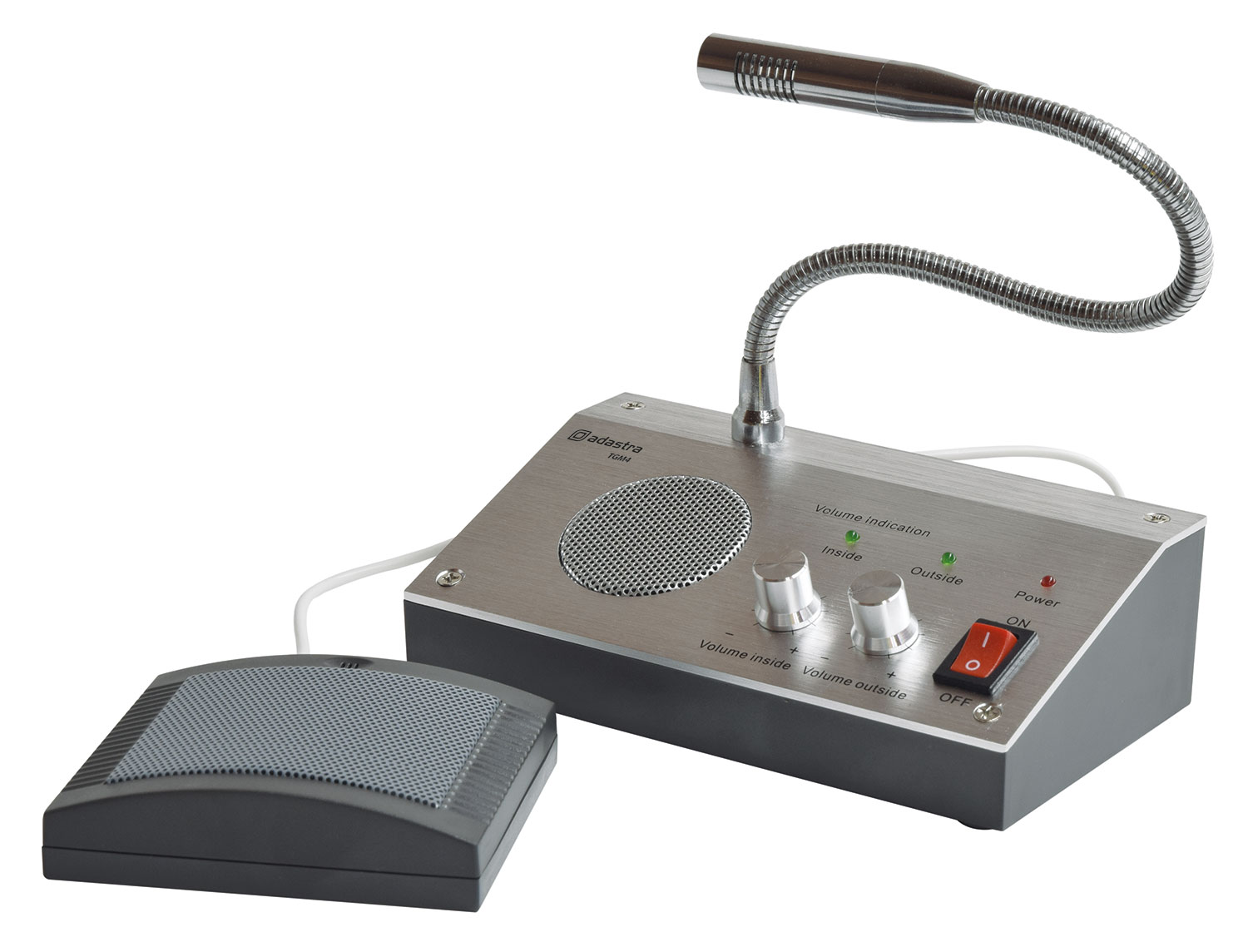

Intercom for conversation through a glass partition comprising a desktop speaker unit with gooseneck microphone and an extension speakerphone unit, which can be positioned horizontally or vertically in the client area. Independent level controls for the main unit and client speakerphone provide tailored adjustment to overcome the ambient noise level, with muting and anti-feedback circuitry to make two-way conversation clear and intelligible. an additional output is provided for recording both sides of the conversation. Applications include ticket booths, bank counters, petrol stations and receptions.

  • Desktop main speaker unit with gooseneck microphone
  • Glass or counter mount client speakerphone
  • Hands-free operation
  • Volume control and signal indicator for each microphone
  • 1.6m connection lead
  • Supplied with 9Vdc power adaptor

Specification

  • Power supply 9Vdc 300mA min. (adaptor supplied)
  • Controls 2 x volume control & power on/off

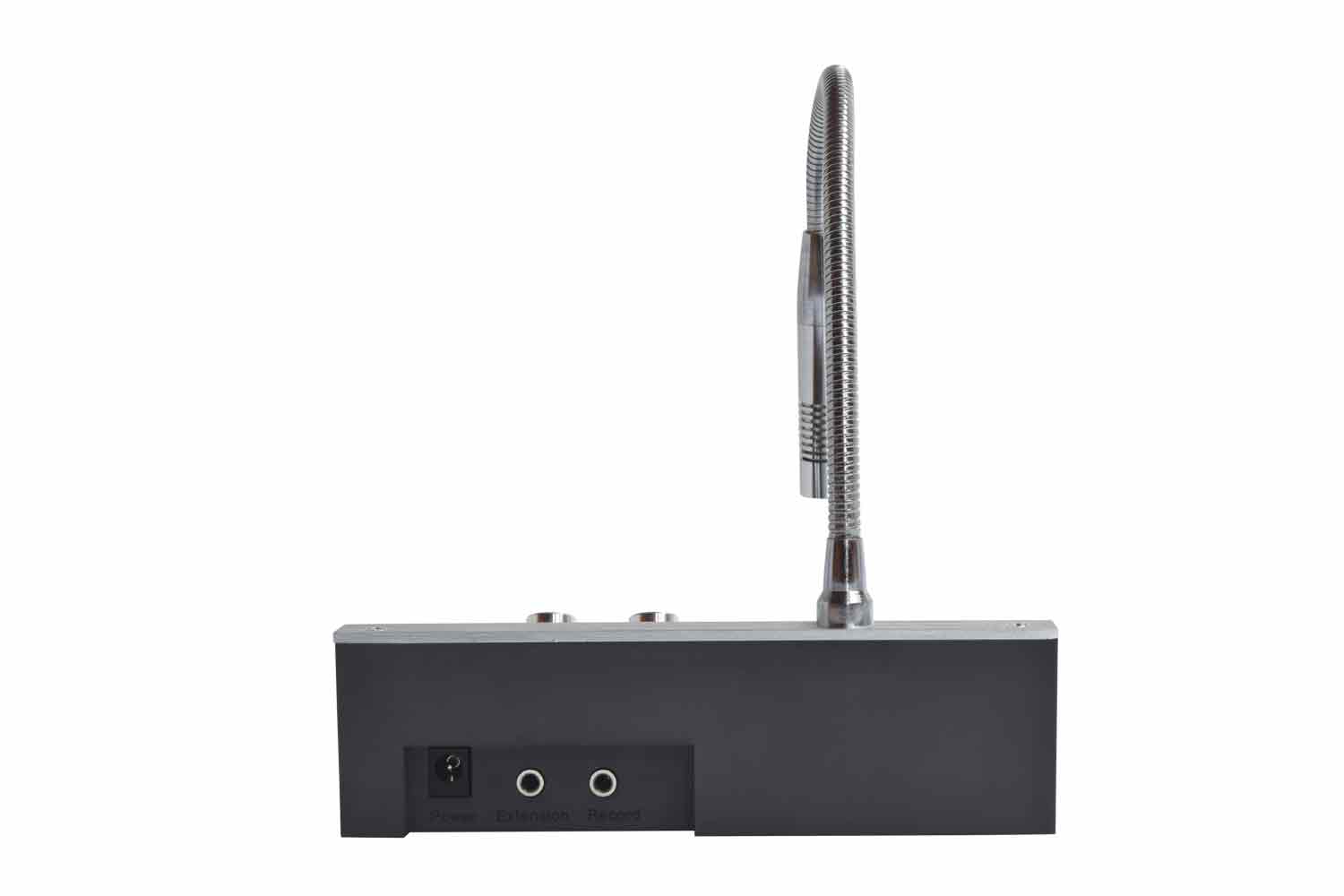

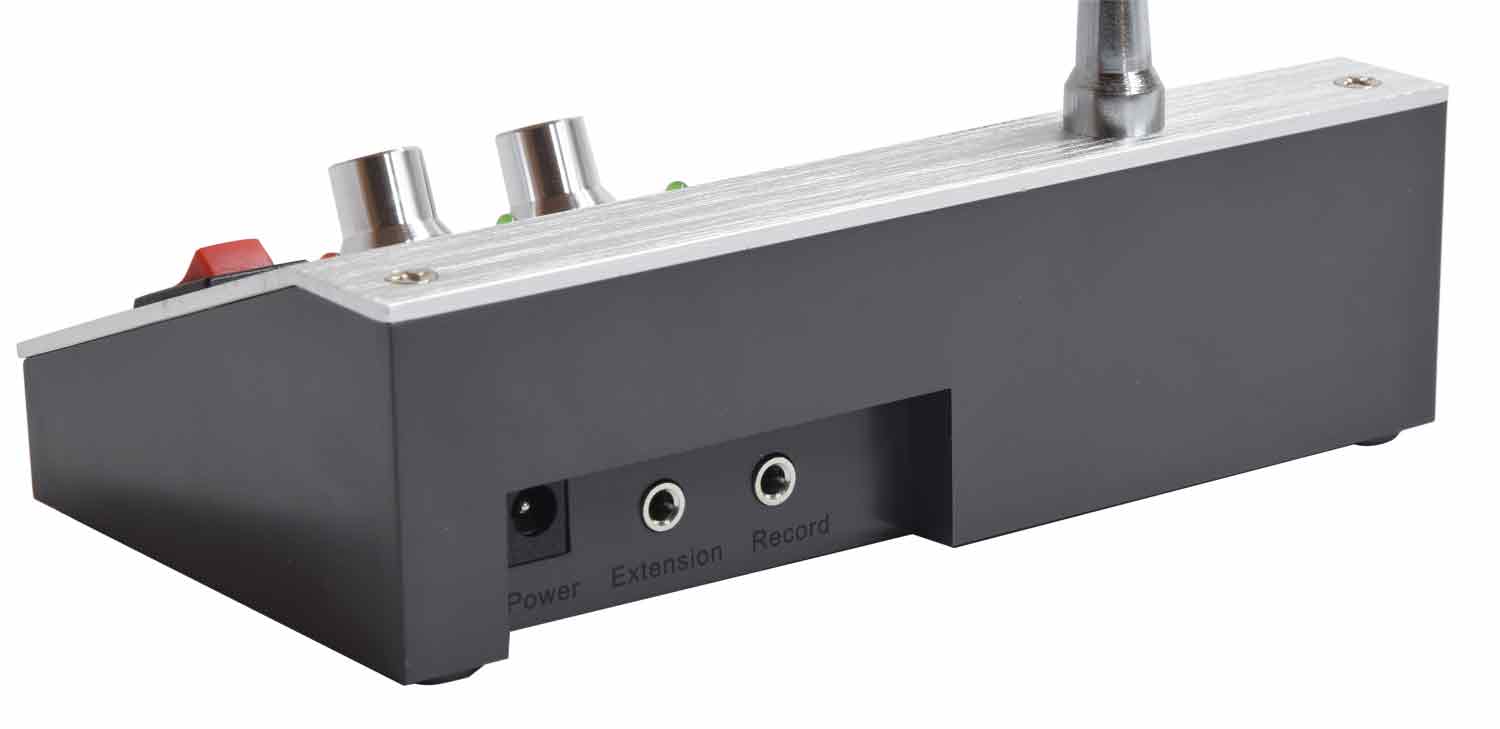

  • Connectors 3.5mm TRS speakerphone, 3.5mm stereo record out
  • Lead length 1.6m (hard-wired to speakerphone)
  • Dimensions : main unit 158 x 87 x 46mm
  • Dimensions : microphone 285 x 113mmØ (fixed to main unit)
  • Weight : main unit 347g (inc. microphone)
  • Dimensions : client speakerphone 91 x 77 x 23mm
  • Weight : client speakerphone 87g (inc. lead)

Trade information

  952.828UK
Barcode / EAN 5015972217689
Package type Gift Box
Package dimensions 150 x 170 x 100mm
Package weight 0.55kg
Package quantity 1 unit
Carton dimensions 365 x 530 x 340mm
Carton weight 12.00kg
Carton quantity 20 packages

In the box

The box for this item contains :

  • Main intercom unit with integral gooseneck microphone

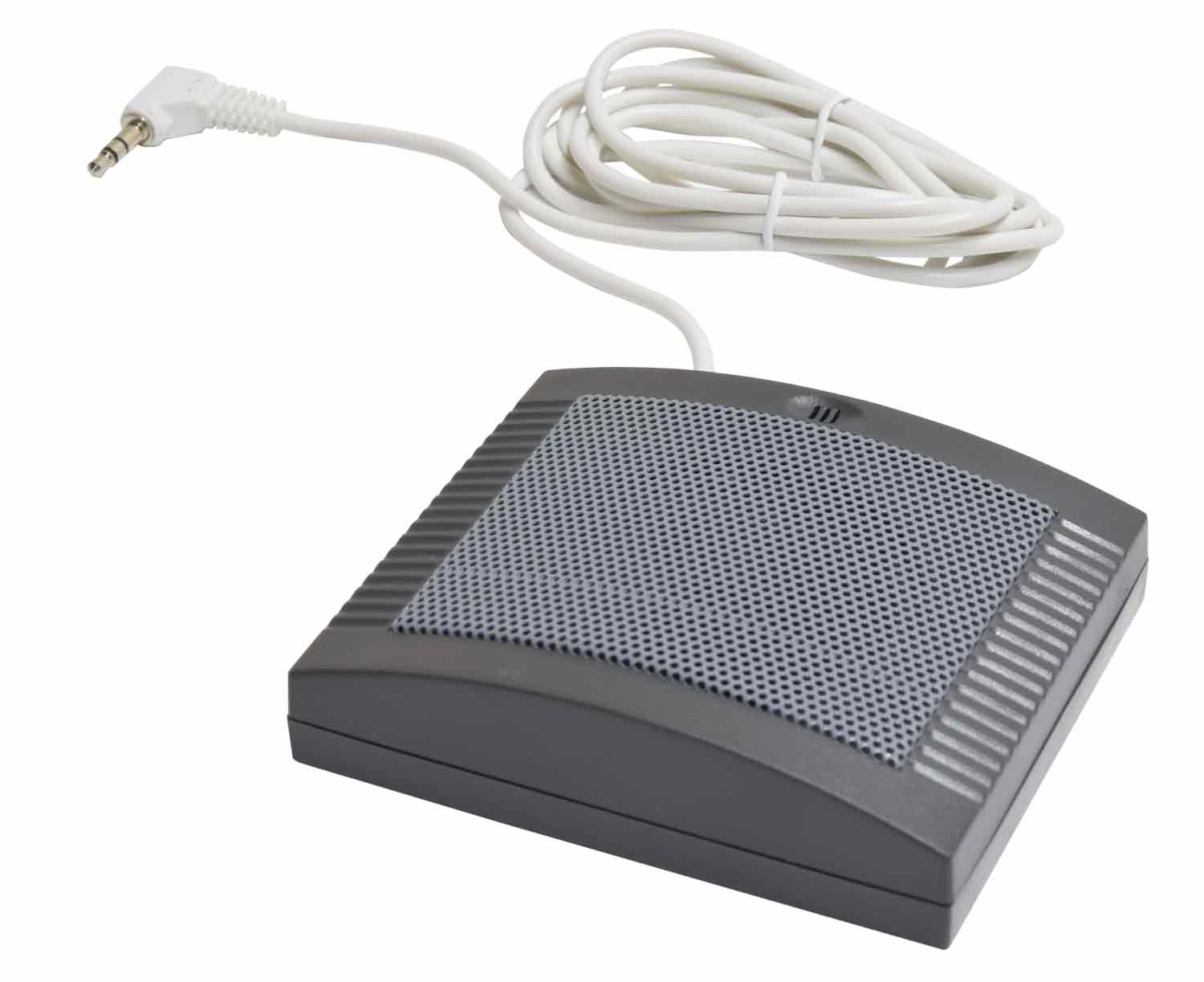

  • Client speakerphone with hard-wired connection lead
  • 9Vdc power adaptor
  • Mounting accessories pack

Support

Instruction manual
For 952.828UK (202KB)

Support : articles

Dynamic vs condenser microphones

The way that a microphones picks up sound determines how useful the resulting audio output is for different applications. There are 2 main types of capsule used in microphones – dynamic and condenser.
