100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.
100V Line Background Speakers 4 Inch
952.888UK
B30V-W

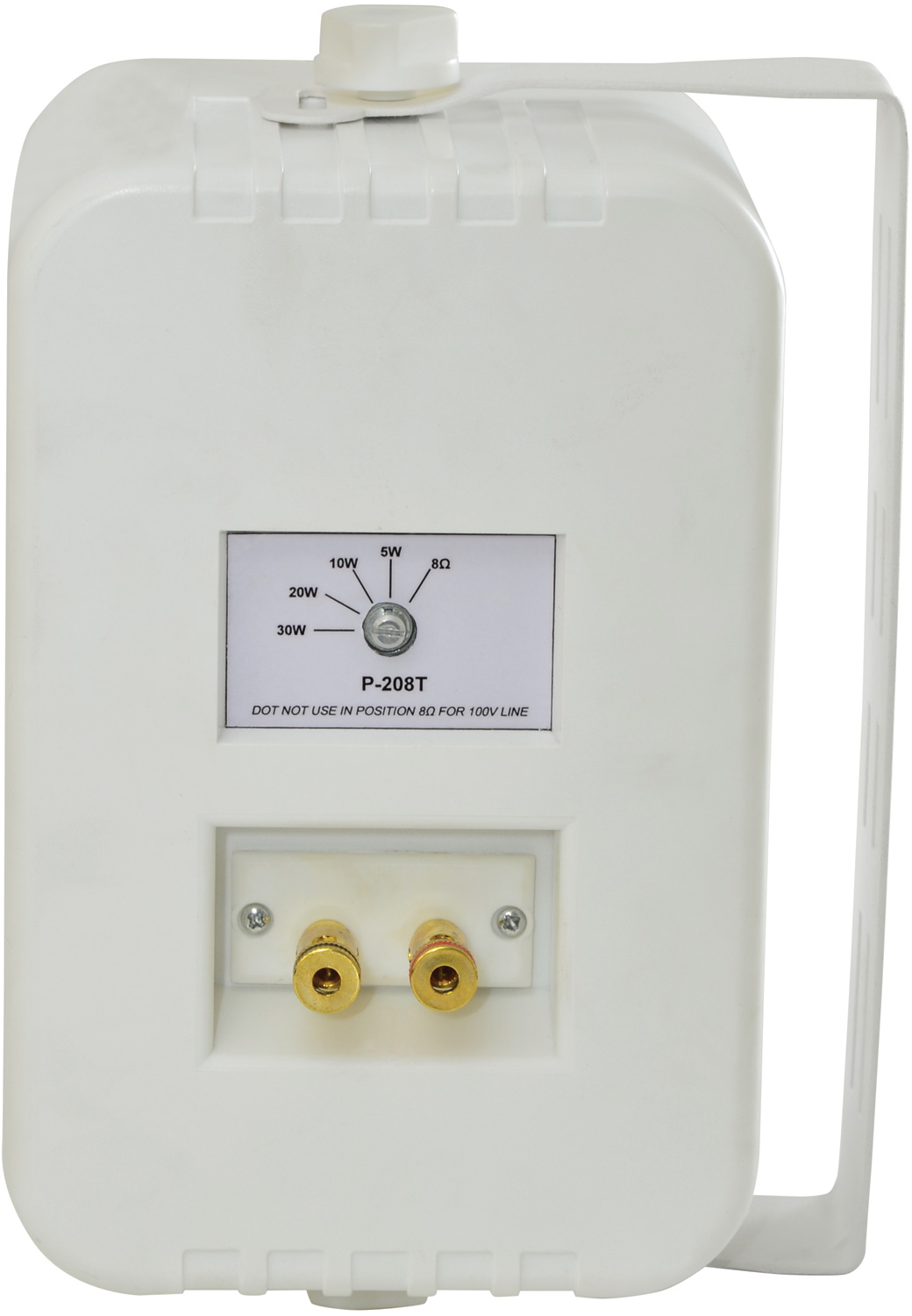

A powerful 3-way speaker set for surround and monitoring applications. Fitted with a rotary switch for 4 x 100V line tappings or 8 Ohms operation.
- Supplied in pairs with mounting brackets for horizontal or vertical use
- 3-way speaker design with bass reflex
- 4 x 100V settings or 8 Ohms operation
100V Line Background Speakers 4 Inch
A powerful 3-way speaker set for surround and monitoring applications. Fitted with a rotary switch for 4 x 100V line tappings or 8 Ohms operation.
- Supplied in pairs with mounting brackets for horizontal or vertical use
- 3-way speaker design with bass reflex
- 4 x 100V settings or 8 Ohms operation
- Available in black or white

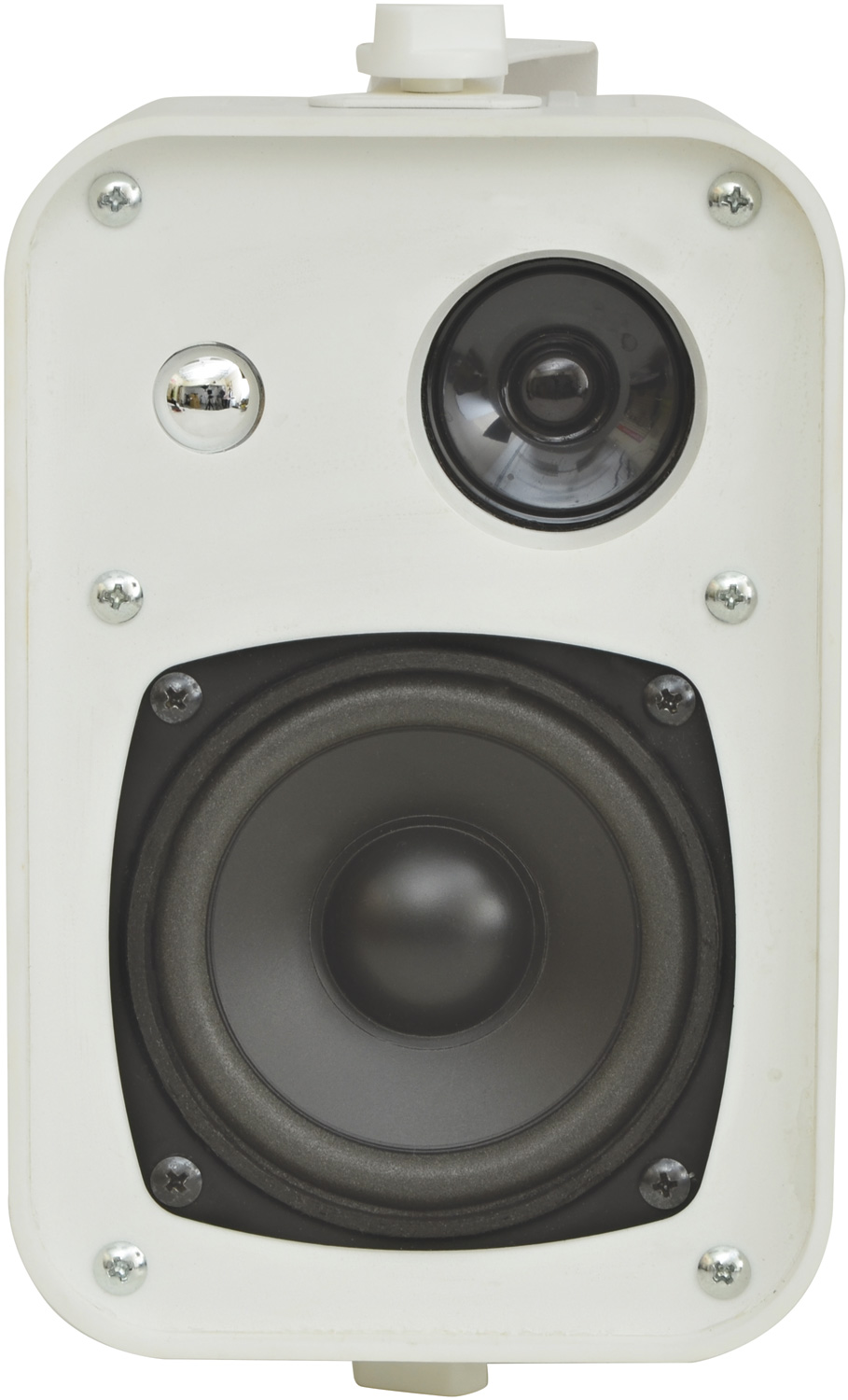

- Woofer 100mm (4") PP cone
- Mid driver 50mmØ (2") PP cone
- Power handling : max. 60W
- Impedance 8 Ohms
- Impedance : 100V 333, 500, 1k, 2k Ohms
- Tappings 30W, 20W, 10W, 5W + 8 Ohms
- Tweeter 13mm (0.5") dome
- Sensitivity 87dB
- Frequency response 120Hz-20kHz

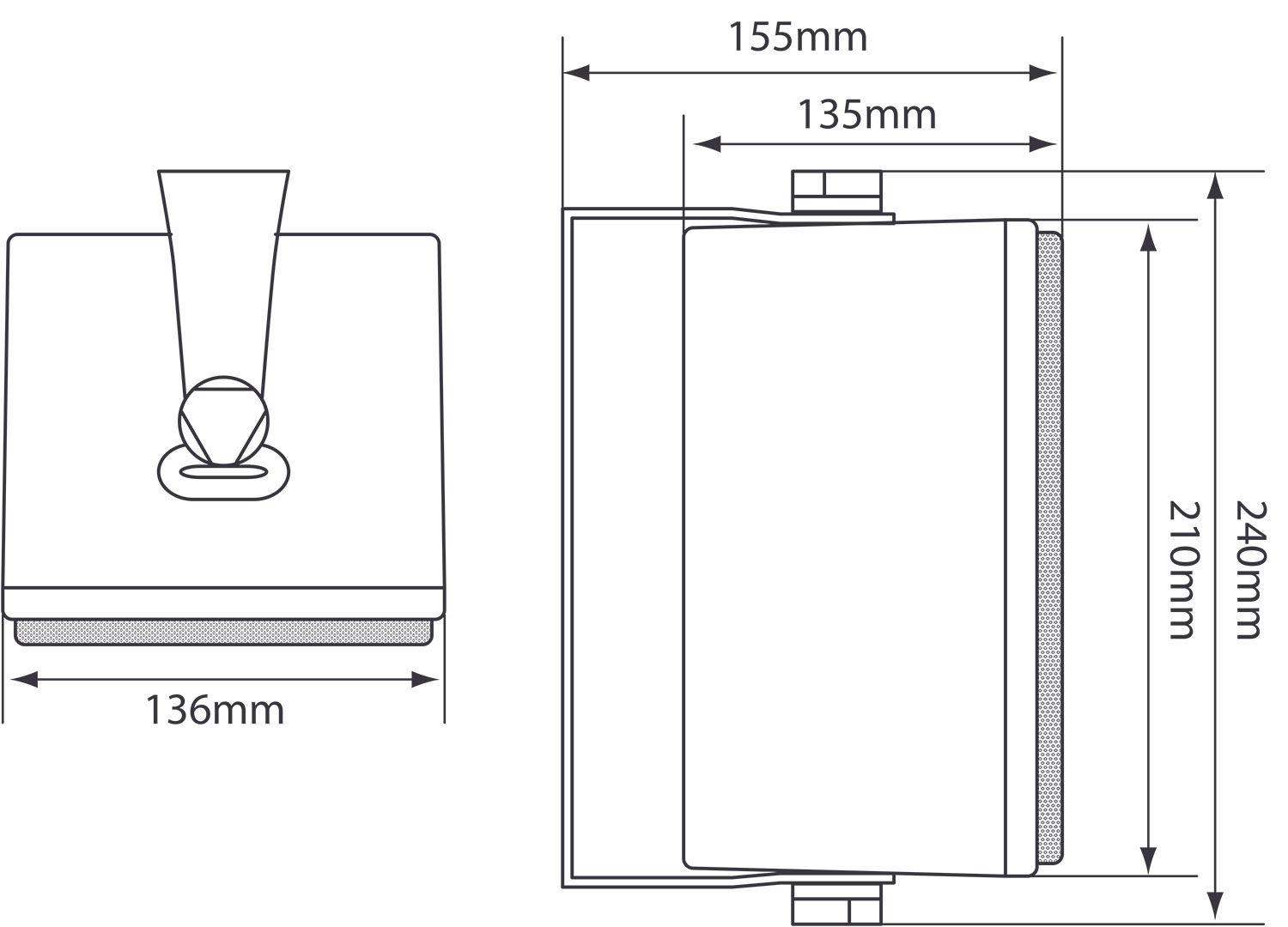

- Dimensions (each) 136 x 240 x 155mm
- Weight (per set) 3.26kg
Versions
| 952.887UK | 952.888UK | |
|---|---|---|
| Colour | Black | White |
