Sound Projectors

952.943UK WSP25-B

Weatherproof sound projectors with injection-moulded body and coated steel grille. Suitable for indoor or outdoor music and speech applications. The hard-wired input cable has 4-cores to enable con...

  • Adjustable steel mounting bracket
  • Weatherproof ABS enclosure
Description Version Packed
952.940UK
Sound projector 10W - white
10W white Box Label
952.941UK
Sound projector 10W - black
10W black Box Label
952.942UK
Sound projector 25W - white
25W white Box Label
952.943UK
Sound projector 25W - black
25W Black Box Label

Sound Projectors

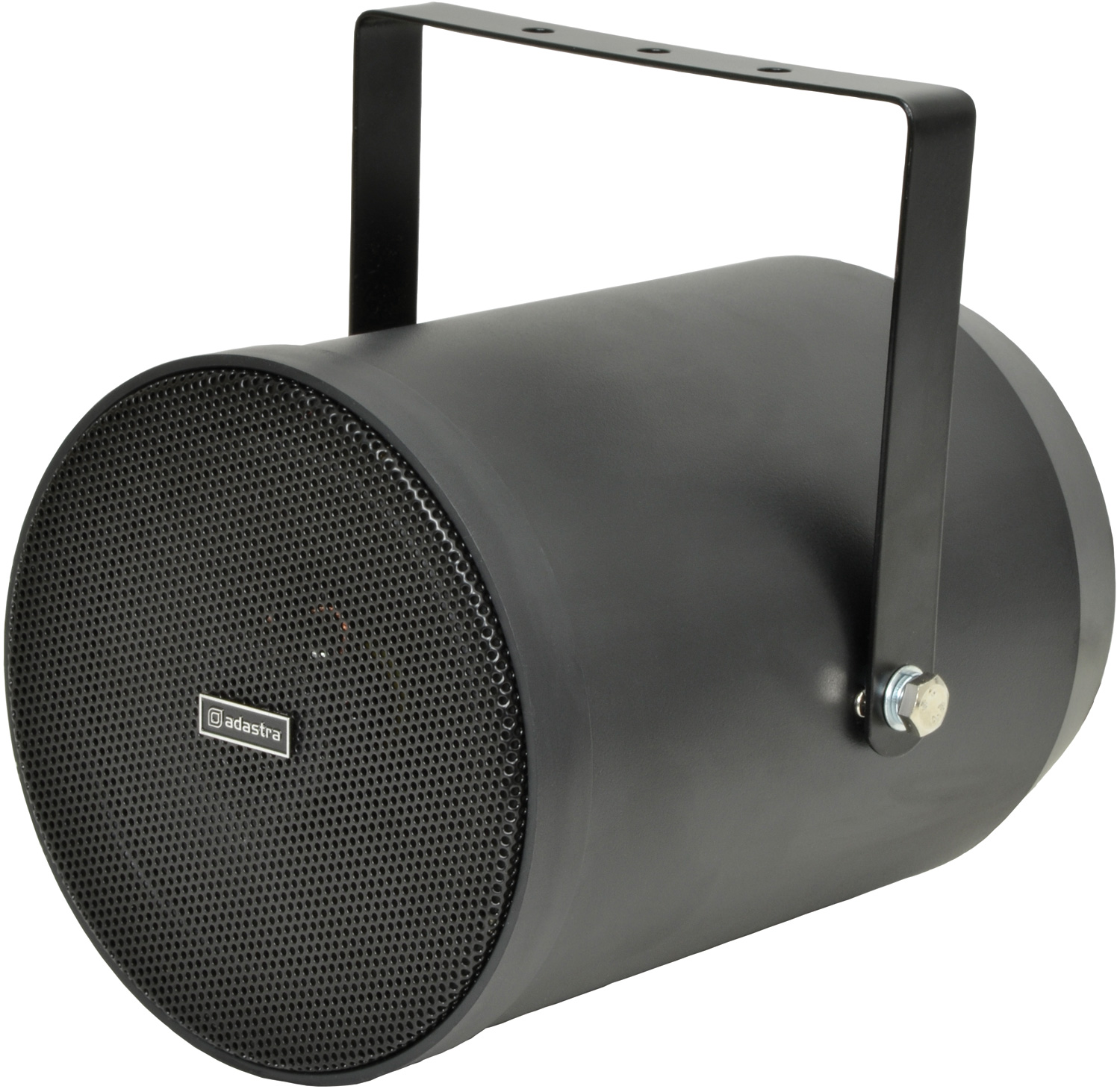

Weatherproof sound projectors with injection-moulded body and coated steel grille. Suitable for indoor or outdoor music and speech applications. The hard-wired input cable has 4-cores to enable connection for different power tappings. If necessary, the transformer may be bypassed internally to give an 8 Ohms load.

  • Adjustable steel mounting bracket
  • Weatherproof ABS enclosure
  • Housing material ABS

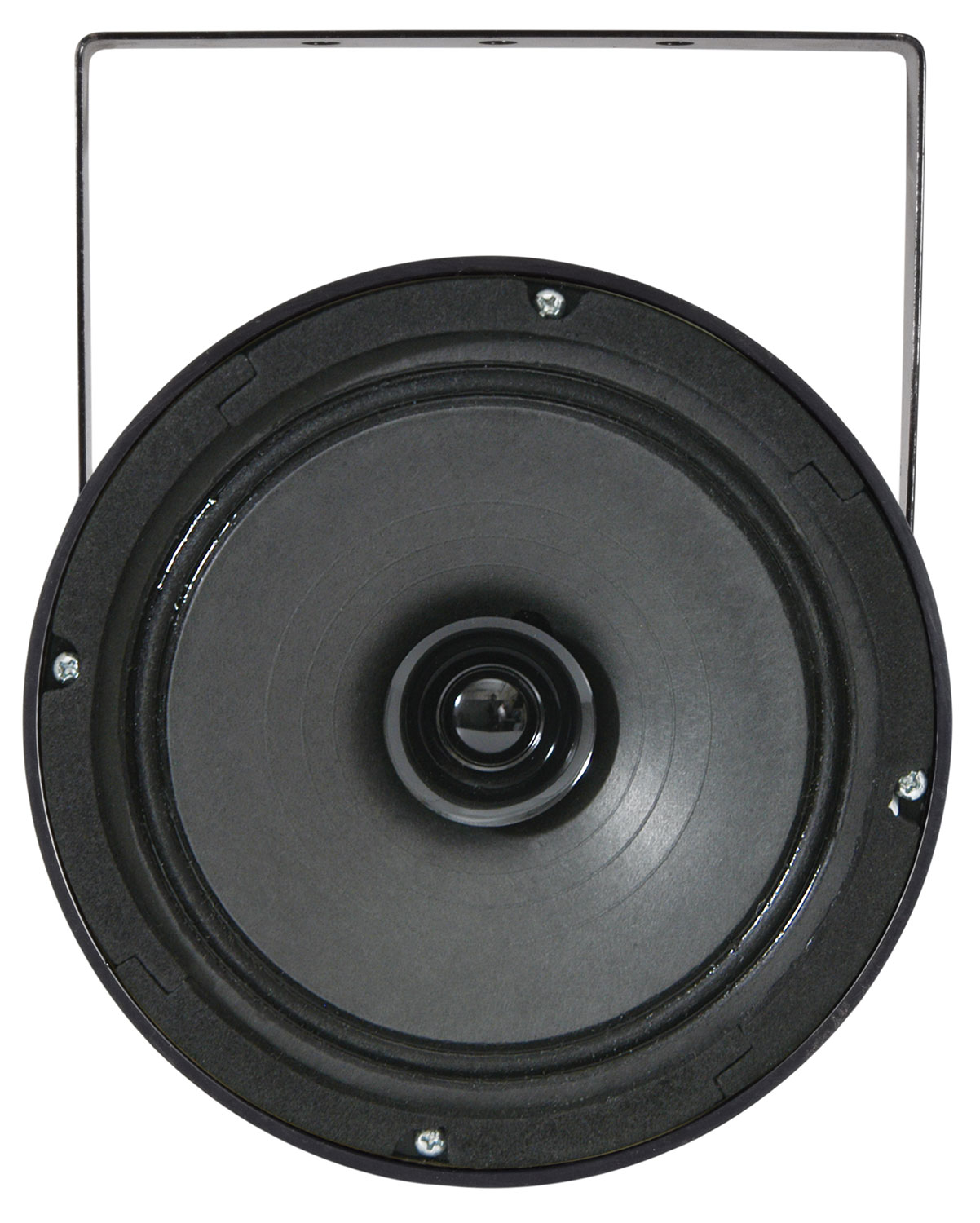

  • Tweeter Concentric 12mm (0.5") mylar dome
  • IP rating IPX5
  • Cable : length 350mm

Versions

  952.940UK 952.941UK 952.942UK 952.943UK
SPL @ 1W/1m 90dB 90dB 92dB 92dB
Frequency response 130Hz - 17kHz 130Hz - 17kHz 100Hz - 17kHz 100Hz - 17kHz
Main driver 135mmØ (5.25") polypropylene cone 135mmØ (5.25") polypropylene cone 165mmØ (6.5") polypropylene cone 165mmØ (6.5") polypropylene cone

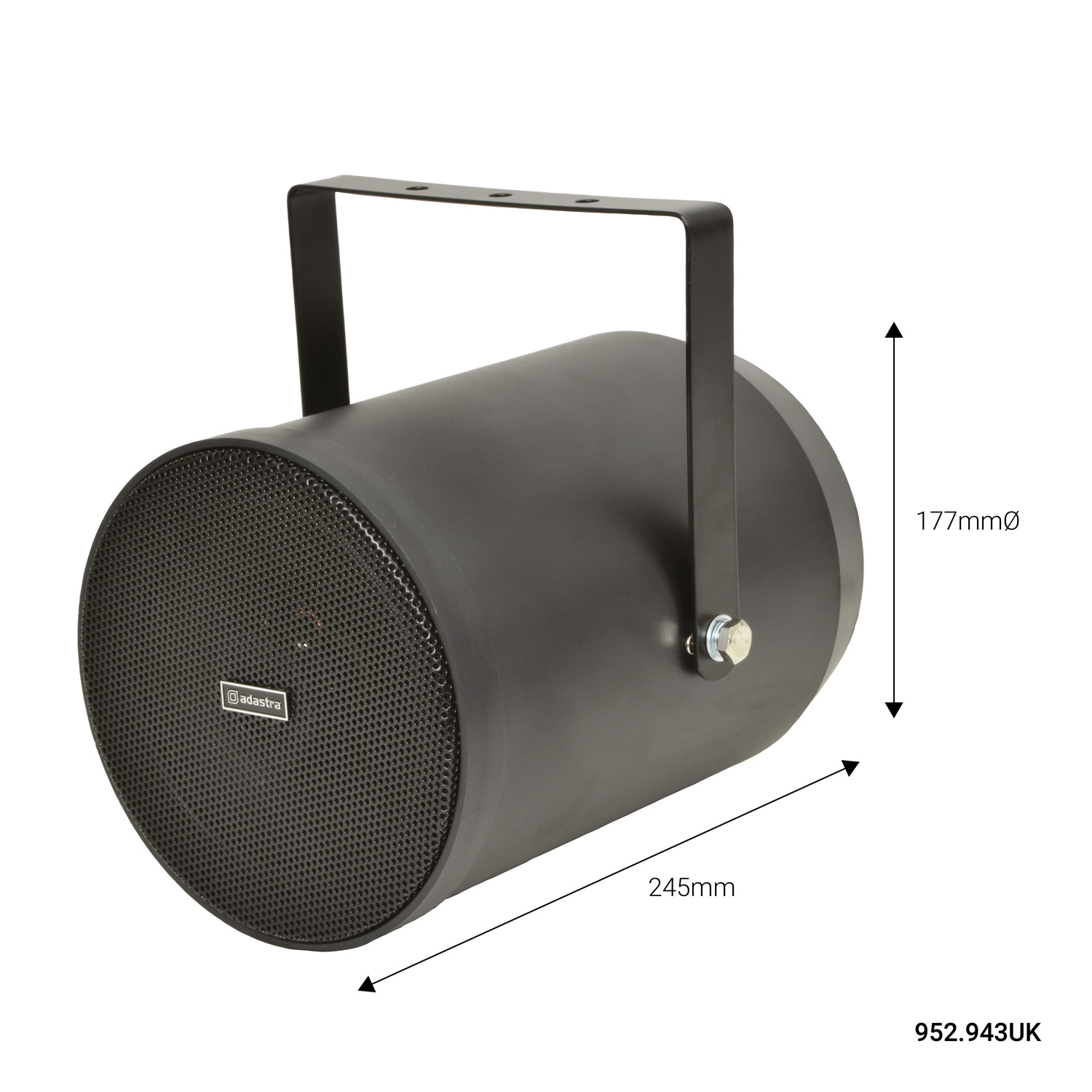

Dimensions 225 x 136mmØ 225 x 136mmØ 245 x 177mmØ 245 x 177mmØ
Weight 1.304kg 1.304kg 2.020kg 2.020kg
Power max. : 8 Ohms 10W 10W 25W 25W

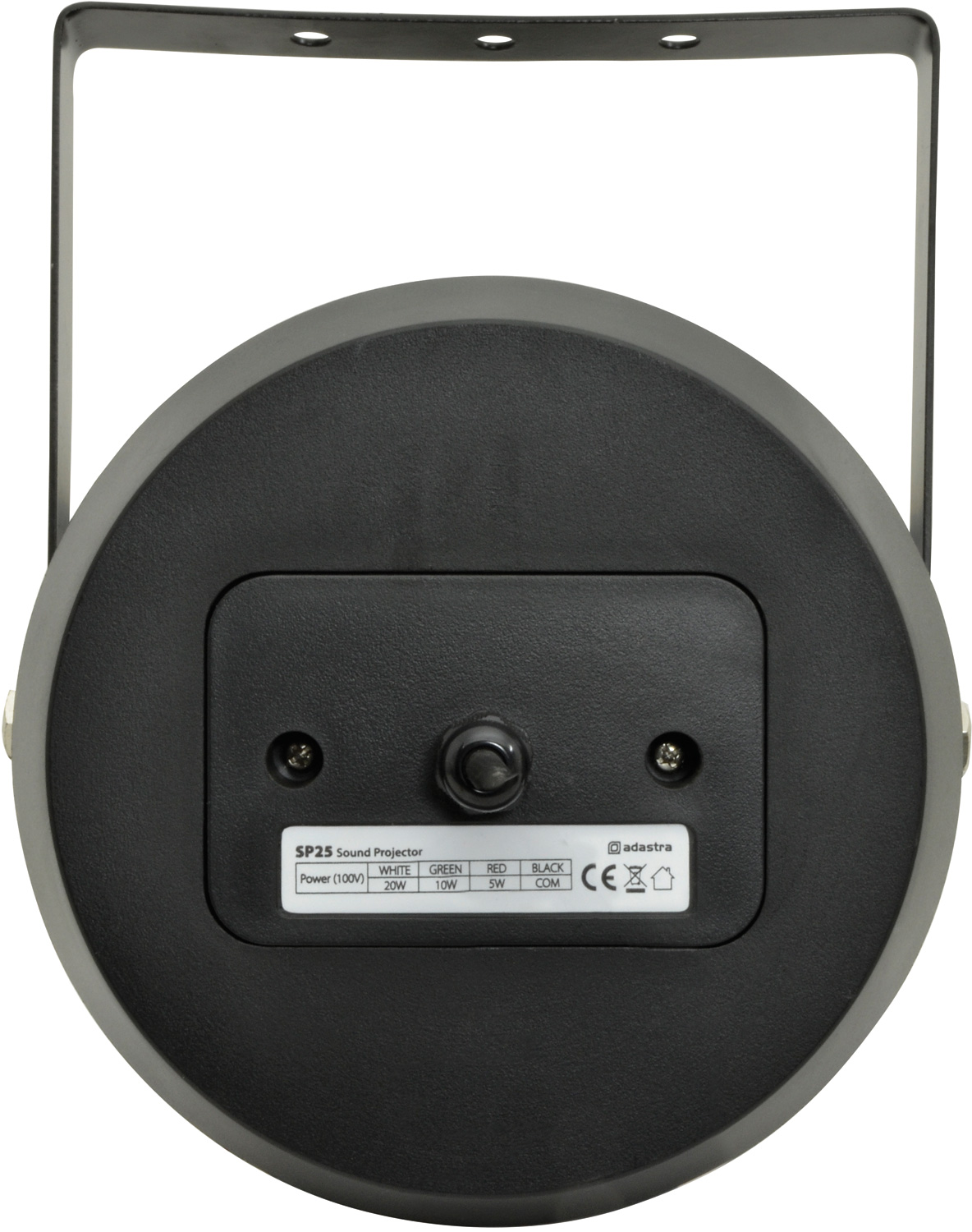

Tappings 2.5W, 5W, 10W (100V line) 2.5W, 5W, 10W (100V line) 5W, 10W, 20W (100V line) 5W, 10W, 20W (100V line)
Colour White Black White Black

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

IP ratings

IP (or "Ingress Protection") ratings are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • Weatherproof sound projector
  • Wall-mounting bracket

Downloads

UK Declaration of conformity
For 952.943UK (245KB)
EU Declaration of conformity
For 952.943UK (233KB)
