WA-215 In-Wall Amplifier & Ceiling Speaker Set
953.137UK
WA-215-SET
Complete installation set comprising a WA-215 wall amplifier with inbuilt media player and Bluetooth, and a pair of 165mmØ (6.5”) 15W ceiling speakers with 10m speaker cable. Provides a full backgr...
- Bluetooth connectivity
- Touch operated control panel
- Audio playback from USB or microSD
| Description | |
|---|---|
|
953.137UK
WA-215 Amplifier + Ceiling Speakers Set |
WA-215 In-Wall Amplifier & Ceiling Speaker Set

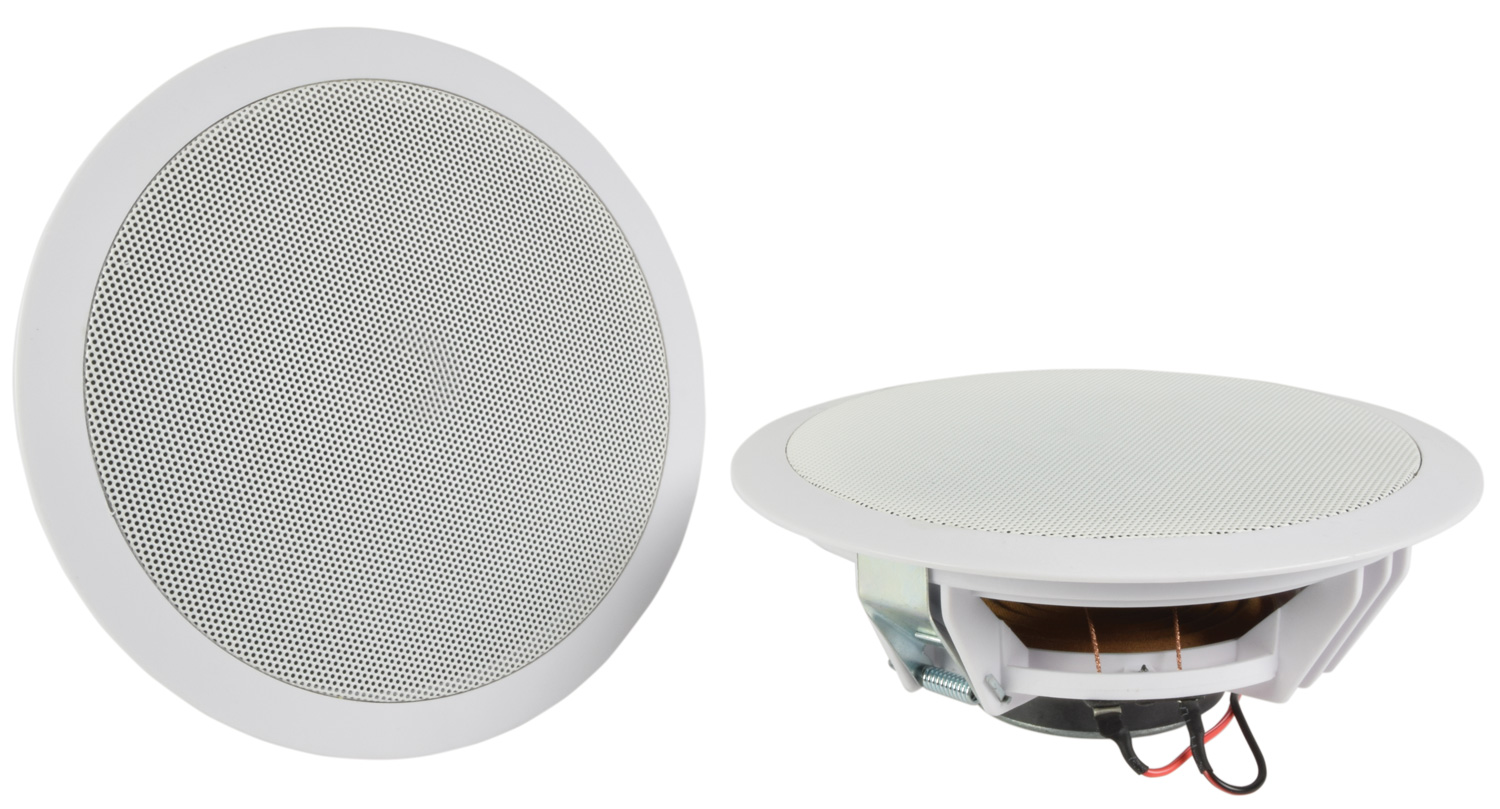

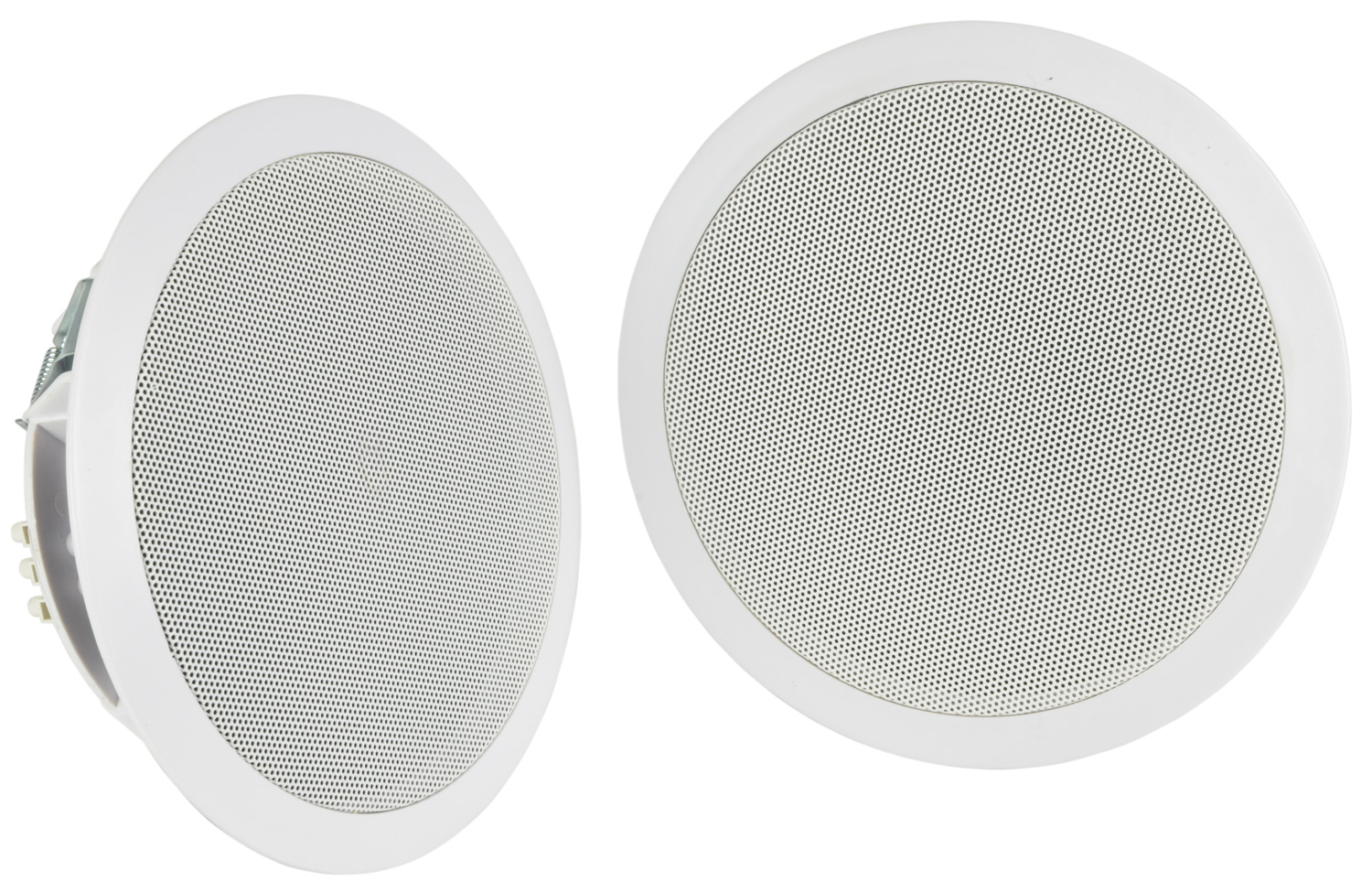

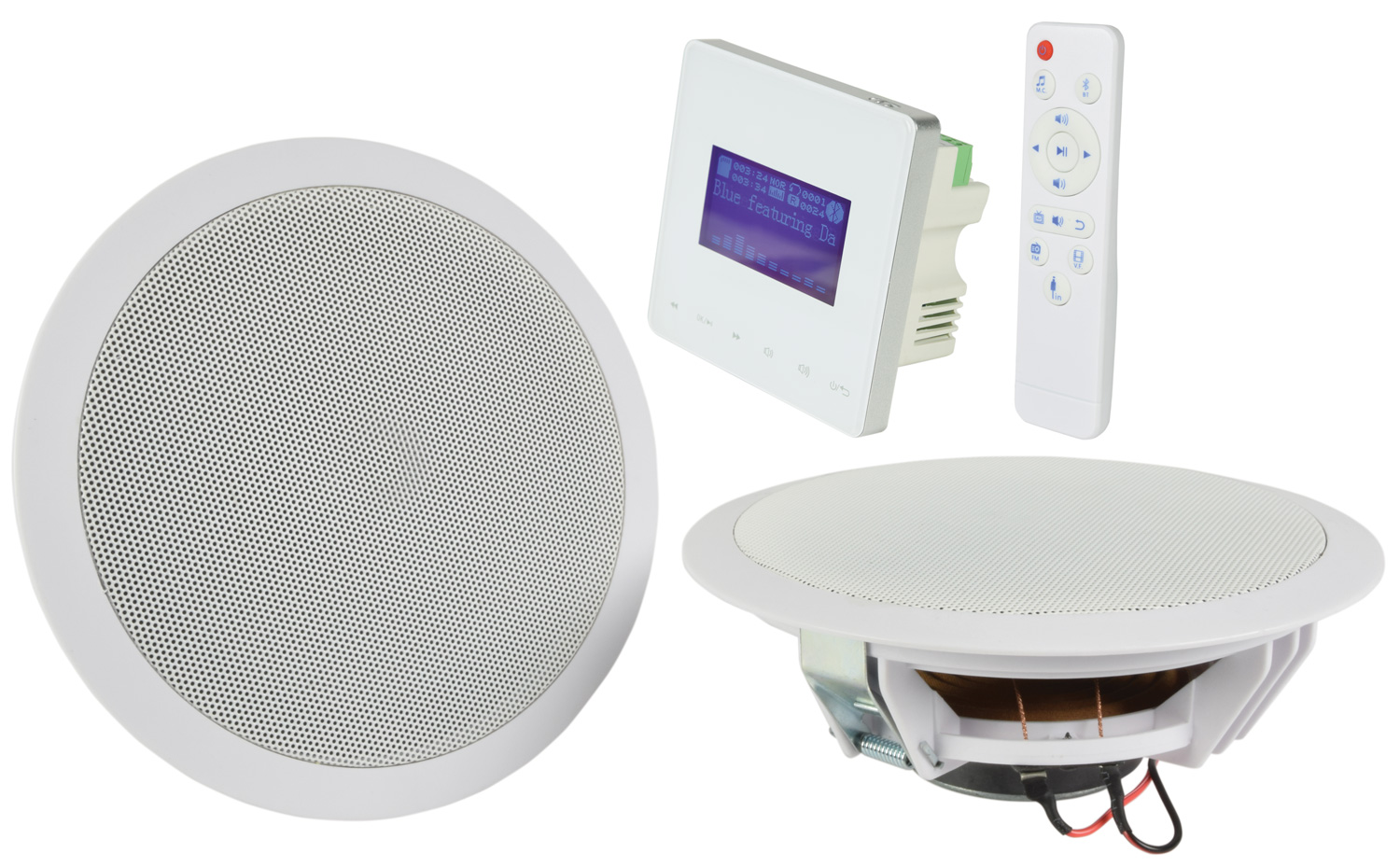

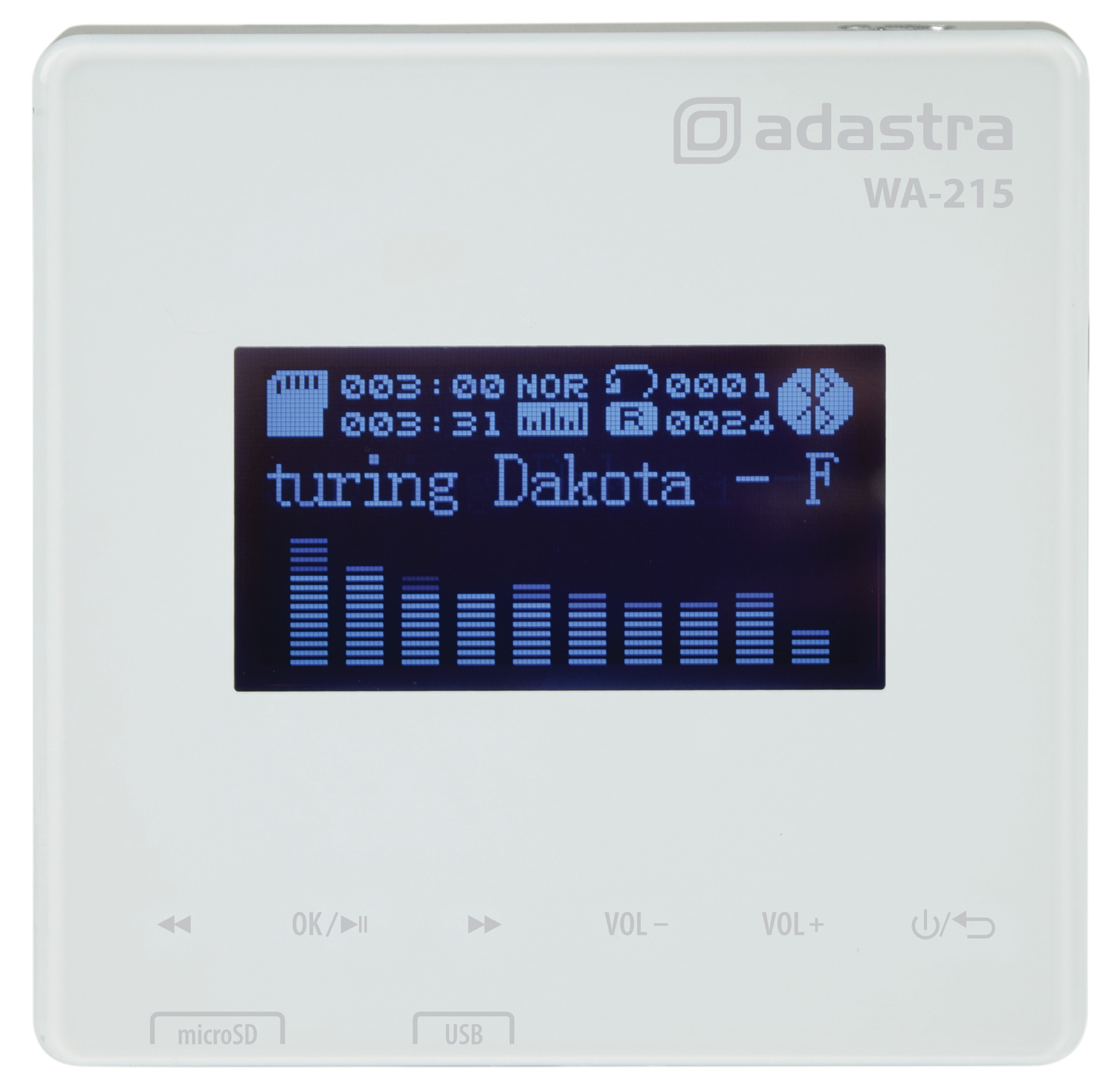

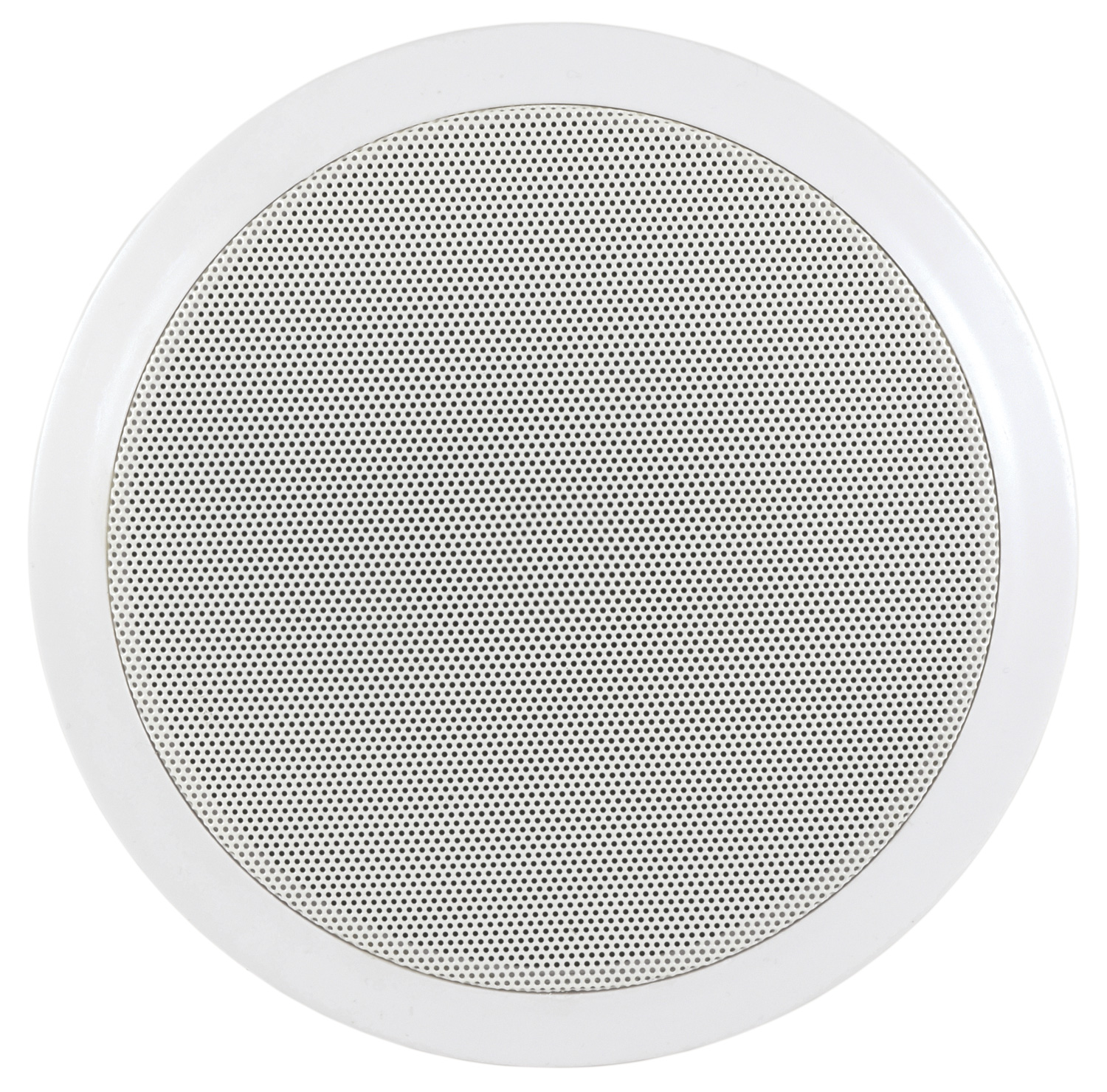

Complete installation set comprising a WA-215 wall amplifier with inbuilt media player and Bluetooth, and a pair of 165mmØ (6.5”) 15W ceiling speakers with 10m speaker cable. Provides a full background music system for discreet installation in the home or commercial premises.
- Bluetooth connectivity
- Touch operated control panel
- Audio playback from USB or microSD
- Inbuilt FM tuner
- IR remote control
- Power supply 100-240Vac, 50/60Hz (Euroblock terminal)
- Rated output power 2 x 15W @ 8 Ohms
- Minimum impedance 8 Ohms (each output)
- Bluetooth version 4.1
- Cutout 170mmØ (each speaker)
- SPL 98dB (1W, 1m)
- Mounting depth 47mm (amplifier), 80mm (speakers)
- THD <0.03% @ 1kHz, 1W
- SNR >98dB
- Frequency response 100Hz - 15kHz (speakers)
- Remote : battery 2 x AAA
- Audio format mp3, wma, wav
- Dimensions 76 x 188mmØ (each speaker), 86 x 86 x 50mm (amplifier)
- Weight 700g (each speaker), 152g (amplifier)
Support : articles
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
Amplifier Classes
There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
Wireless Audio
A description of various wireless technologies available to musicians, presenters and performers
In the box
The box for this item contains :
- WA-215 wall amplifier
- Mounting plate & back box
- IR remote control
- A pair of 165mm (6.5") 15W ceiling speakers
- 10m of speaker cable
