CC Series 2 Way 100V Ceiling Speakers

952.184UK CC5V

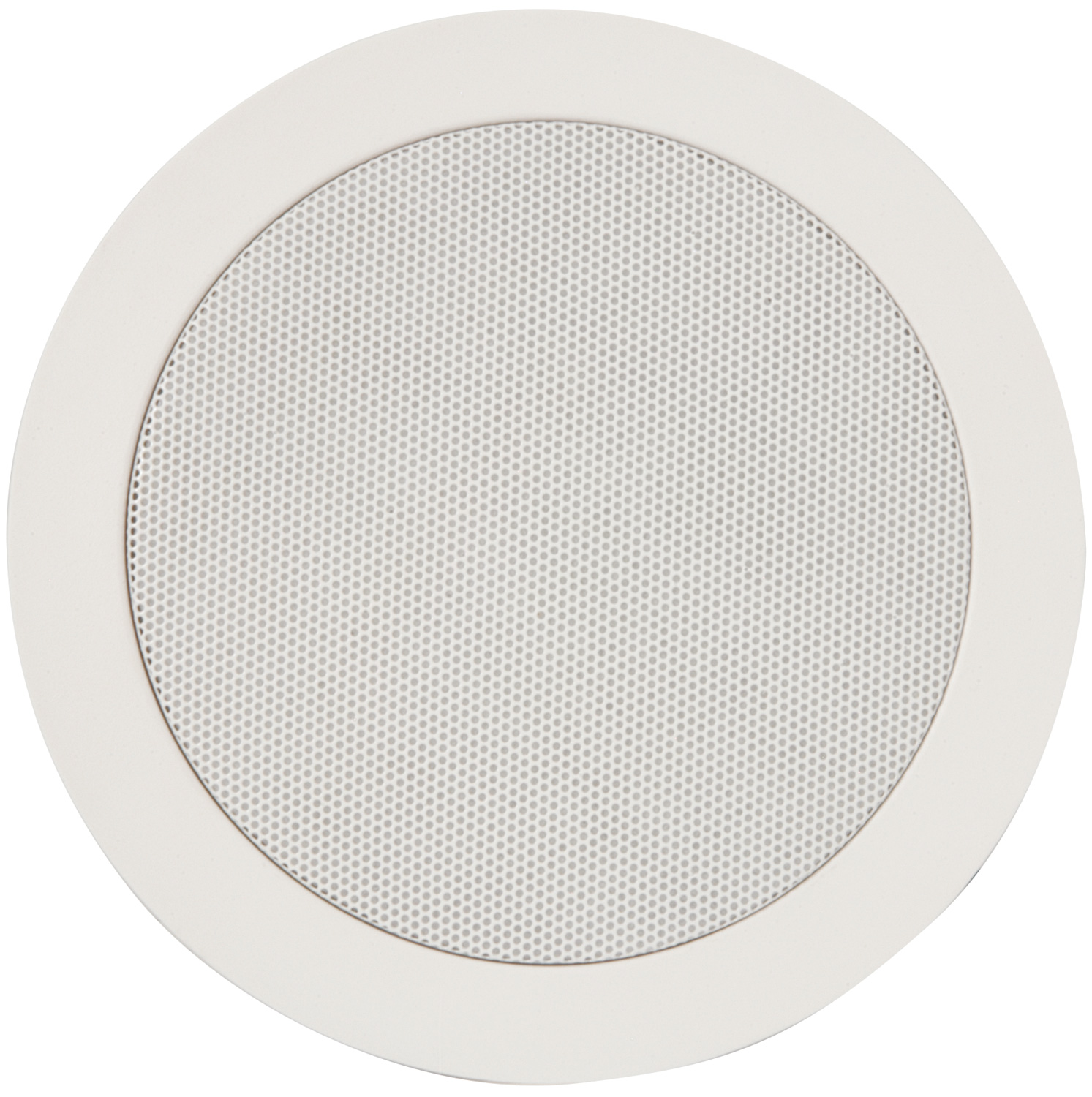

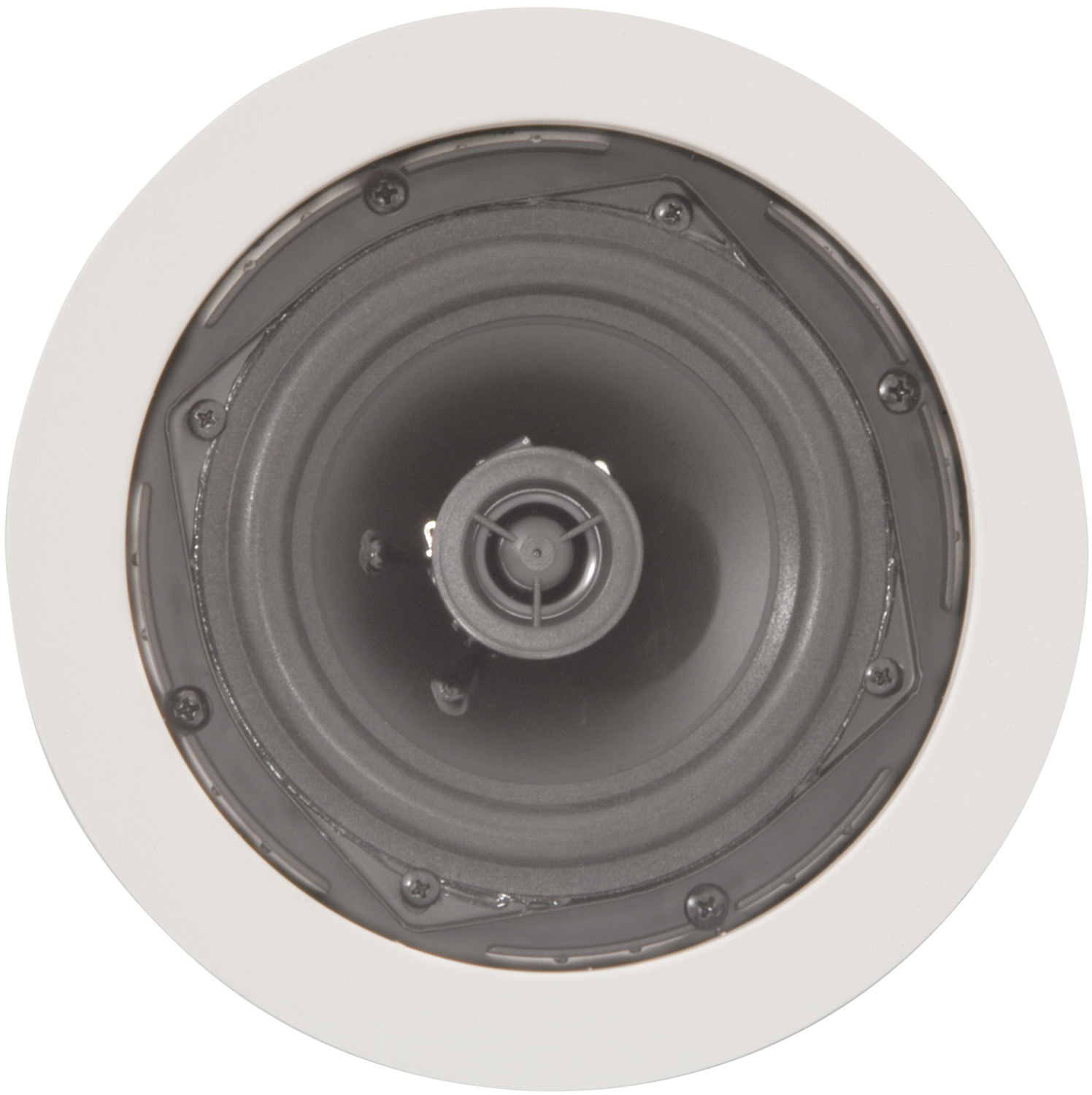

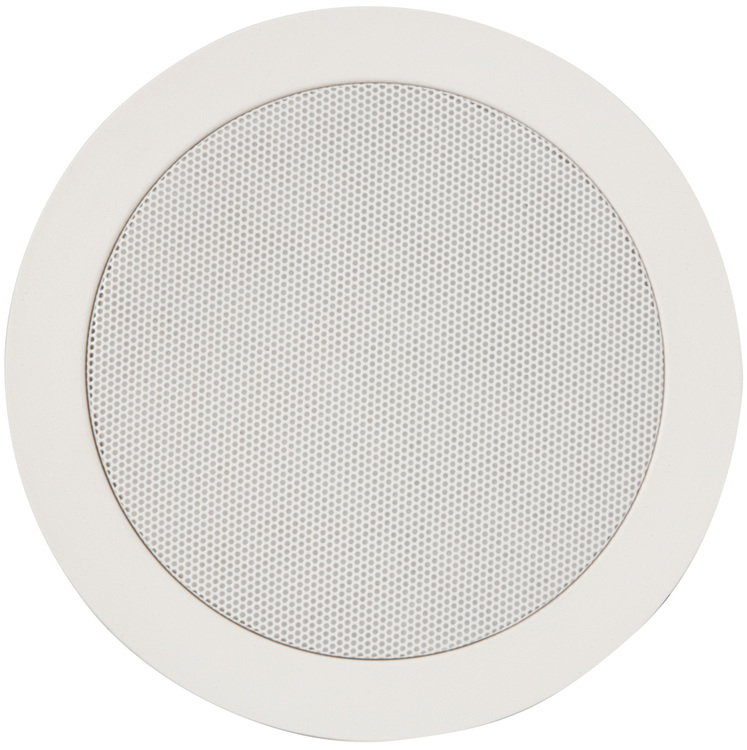

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

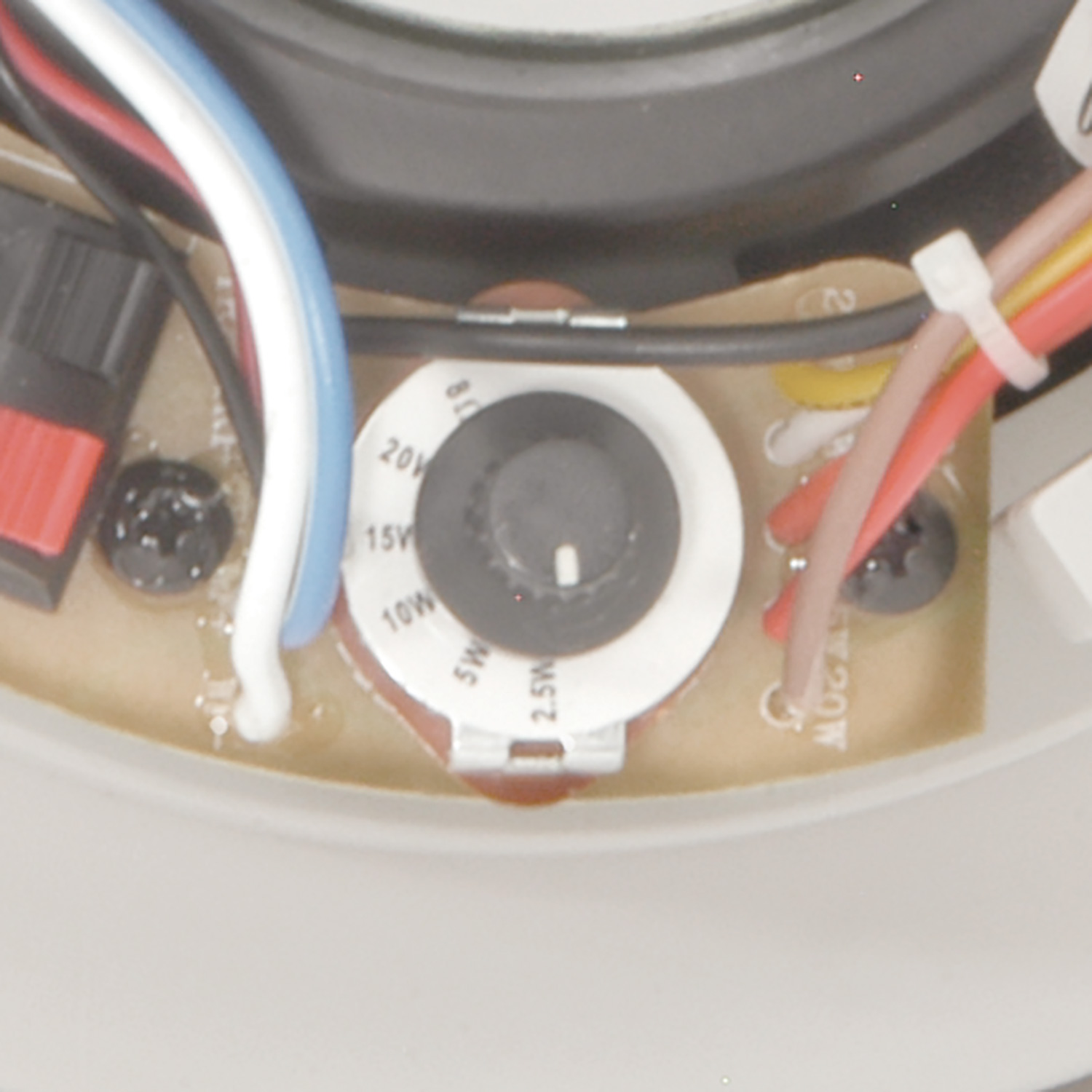

  • Rotary selector switch for 100V line tappings or 8 Ohms
  • Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness

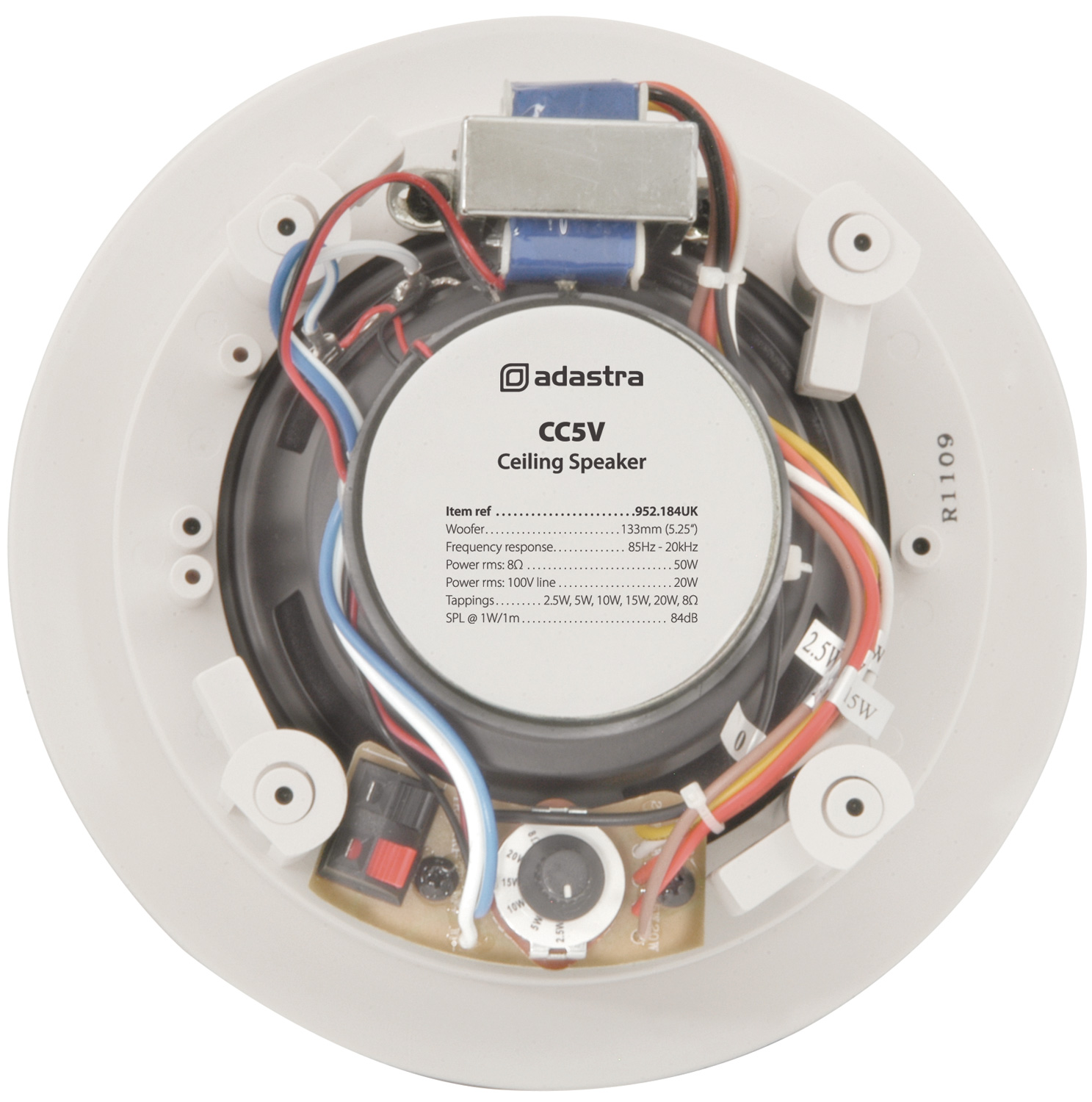

  • Spring loaded terminals for easy connection
Description Version Packed
952.184UK
CC5V 100V Ceiling Speaker with Control 5.25 Inch

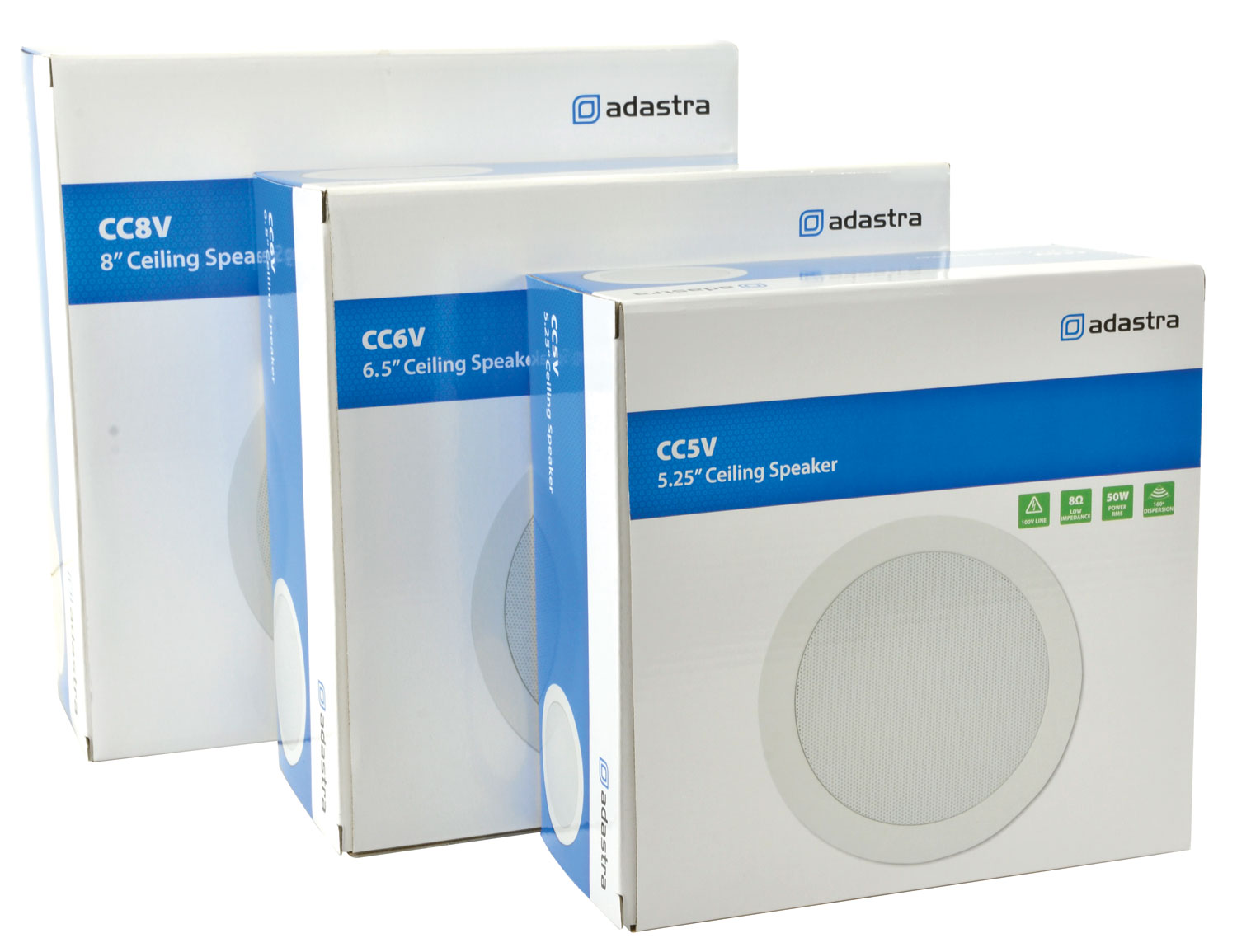

5.25" Box Label
952.153UK
CC6V 100V Ceiling Speaker with Control 6.5 Inch
6.5" Box Label
952.155UK
CC8V 100V Ceiling Speaker with Control 8 Inch
8" Box Label

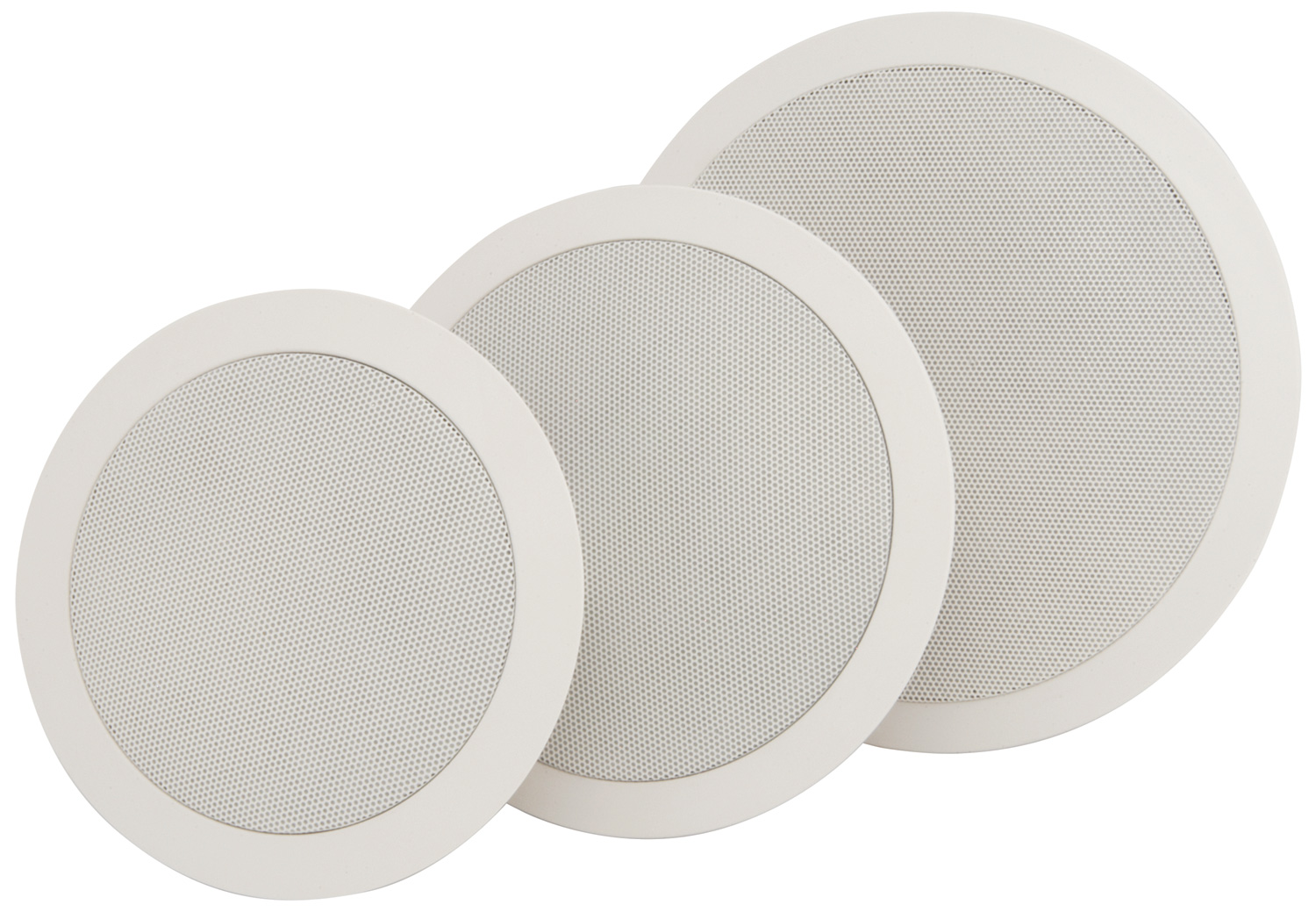

CC Series 2 Way 100V Ceiling Speakers

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

  • Rotary selector switch for 100V line tappings or 8 Ohms
  • Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
  • Spring loaded terminals for easy connection
  • Dispersion angle 160°

Versions

  952.184UK 952.153UK 952.155UK
Woofer 133mmØ (5.25") 165mmØ (6.5") 200mmØ (8")
Tweeter 38mmØ (1.5") 38mmØ (1.5") 44mmØ (1.75")
Frequency response 85Hz - 20kHz 70Hz - 20kHz 60Hz - 20kHz
Power max. : 8 Ohms 80W 100W 120W
Power rms : 8 Ohms 40W 50W 60W
Power rms : 100V line 20W 20W 50W

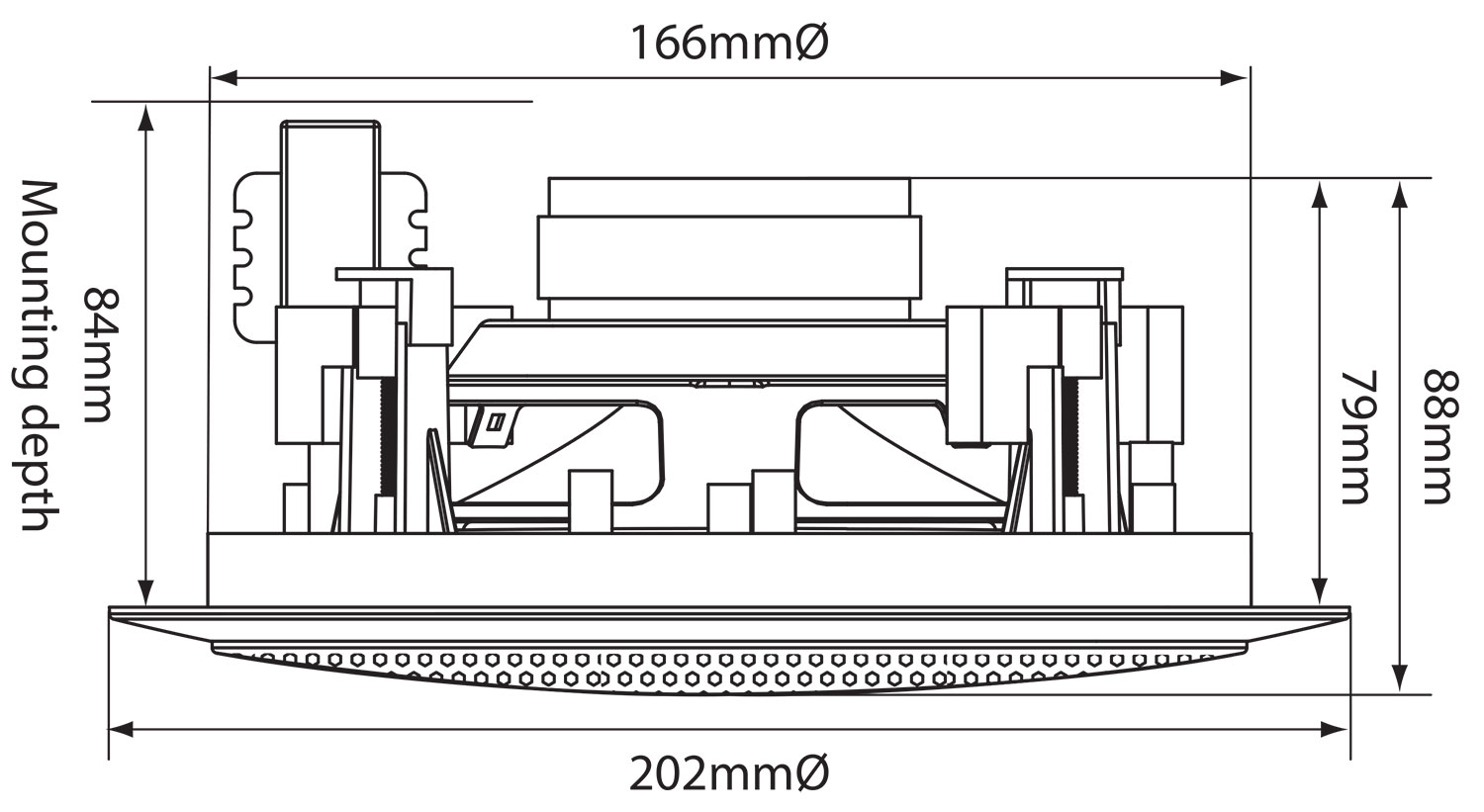

Cutout 166mmØ 193mmØ 238mmØ
Mounting depth 84mm 90mm 95mm
SPL @ 1W/1m 84dB (±2dB) 87dB (±2dB) 89dB (±2dB)
Tappings 2.5, 5, 10, 15, 20W & 8 Ohms 2.5, 5, 10, 15, 20W & 8 Ohms 10, 20, 30, 40, 50W & 8 Ohms
Dimensions 88 x 202mmØ 100 x 227mmØ 102 x 271mmØ
Weight 1.15kg 1.25kg 1.85kg
