Zoning systems are flexible sound systems that provide control for the sound that is delivered to different areas, called “zones”.
RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD
953.224UK
RM120D
5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switc...
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB/SD audio player
RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD

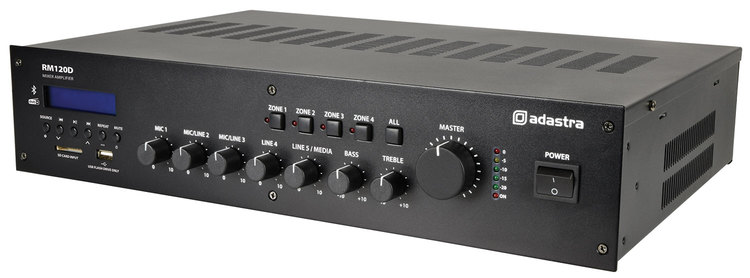

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminla are via 4 switchable zones with a separate "always on" output for priority alert speakers.
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB/SD audio player
- 4 switchable 100V outputs and 1 unswitched output
- Optional 4-16 Ohm output
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
- Switchable VOX voiceover feature
- 2U 19" rack mountable (rack ears supplied)

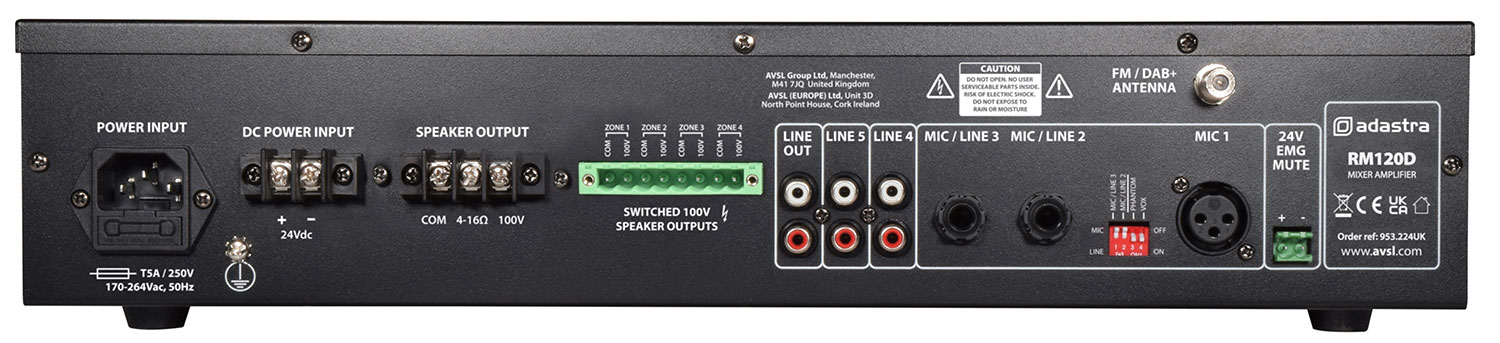

- 24V emergency mute contacts
- Mains 230Vac or 24Vdc power option
- Power supply 170-264Vac, 50Hz (IEC)
- DC power 24Vdc (screw terminals)
- Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced) -53dBV
- Input impedance : mic 1 5k Ohms
- Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-5 1k Ohms
- Line output RCA
- Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM

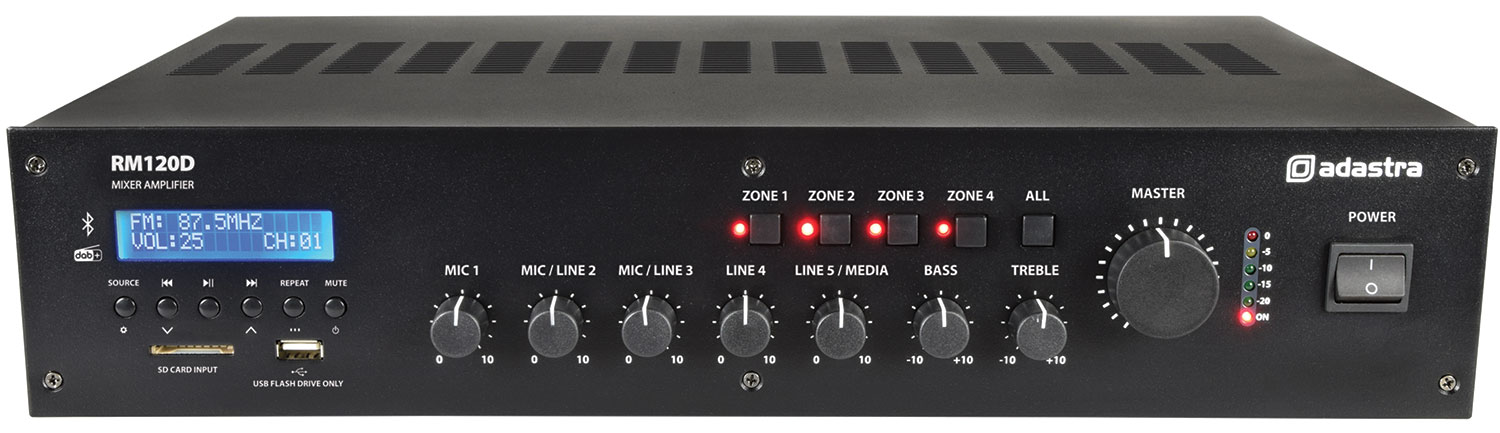

- Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser : bass 100Hz ±10dB
- Equaliser : treble 10kHz ±10dB
- Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
- Phantom power +20V (mic 1 XLR, switchable)
- Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
- Emergency control 24V contacts - mute all except Mic.1 when triggered
- Bluetooth version 5.0
- THD <1.0%
Versions
| 953.223UK | 953.224UK | 953.225UK | 953.226UK | |
|---|---|---|---|---|
| Output power : rms | 60W | 120W | 240W | 360W |
| Fuse | T2A | T3.15A | T5A | T5A |
| Dimensions | 433 x 320 x 88mm | 433 x 320 x 88mm | 433 x 320 x 88mm | 433 x 410 x 88mm |
| Weight | 4.98kg | 6.36kg | 7.37kg | 9.14kg |
Support : articles
Amplifier Classes
There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :
- RM-series 100V mixer-amplifier
- Rack-mounting ears & hardware
- IEC power lead(s)
