19" Rack Cabinets

953.518UK RC18U450

Cabinets for 19" rack-mount equipment with removable side panels and lockable front door. Constructed from cold-rolled steel with folded edges for strength and stability. Front and rear rack strip ...

  • Durable epoxy powder coated finish
  • Supplied with glass door, lock and 2 keys
  • Clip-in side panels for easy access
Description Version Packed
953.504UK
Rack Cabinet 4U x 450mm Deep
4U x 450mm Deep Box Label BW
953.506UK
Rack Cabinet 6U x 450mm Deep
6U x 450mm Deep Box Label BW
953.509UK
Rack Cabinet 9U x 450mm Deep
9U x 450mm Deep Box Label BW
953.512UK
Rack Cabinet 12U x 450mm Deep
12U x 450mm Deep Box Label BW
953.518UK
Rack Cabinet 18U x 450mm Deep
18U x 450mm Deep Box Label BW
953.522UK
Rack Cabinet 22U x 450mm Deep
22U x 450mm Deep Box Label BW
953.604UK
Rack Cabinet 4U x 600mm Deep
4U x 600mm Deep Box Label BW
953.606UK
Rack Cabinet 6U x 600mm Deep
6U x 600mm Deep Box Label BW
953.609UK
Rack Cabinet 9U x 600mm Deep
9U x 600mm Deep Box Label BW
953.612UK
Rack Cabinet 12U x 600mm Deep
12U x 600mm Deep Box Label BW
953.615UK
Rack Cabinet 15U x 600mm Deep
15U x 600mm Deep Box Label BW
953.618UK
Rack Cabinet 18U x 600mm Deep
18U x 600mm Deep Box Label BW
953.622UK
Rack Cabinet 22U x 600mm Deep
22U x 600mm Deep Box Label BW

19" Rack Cabinets

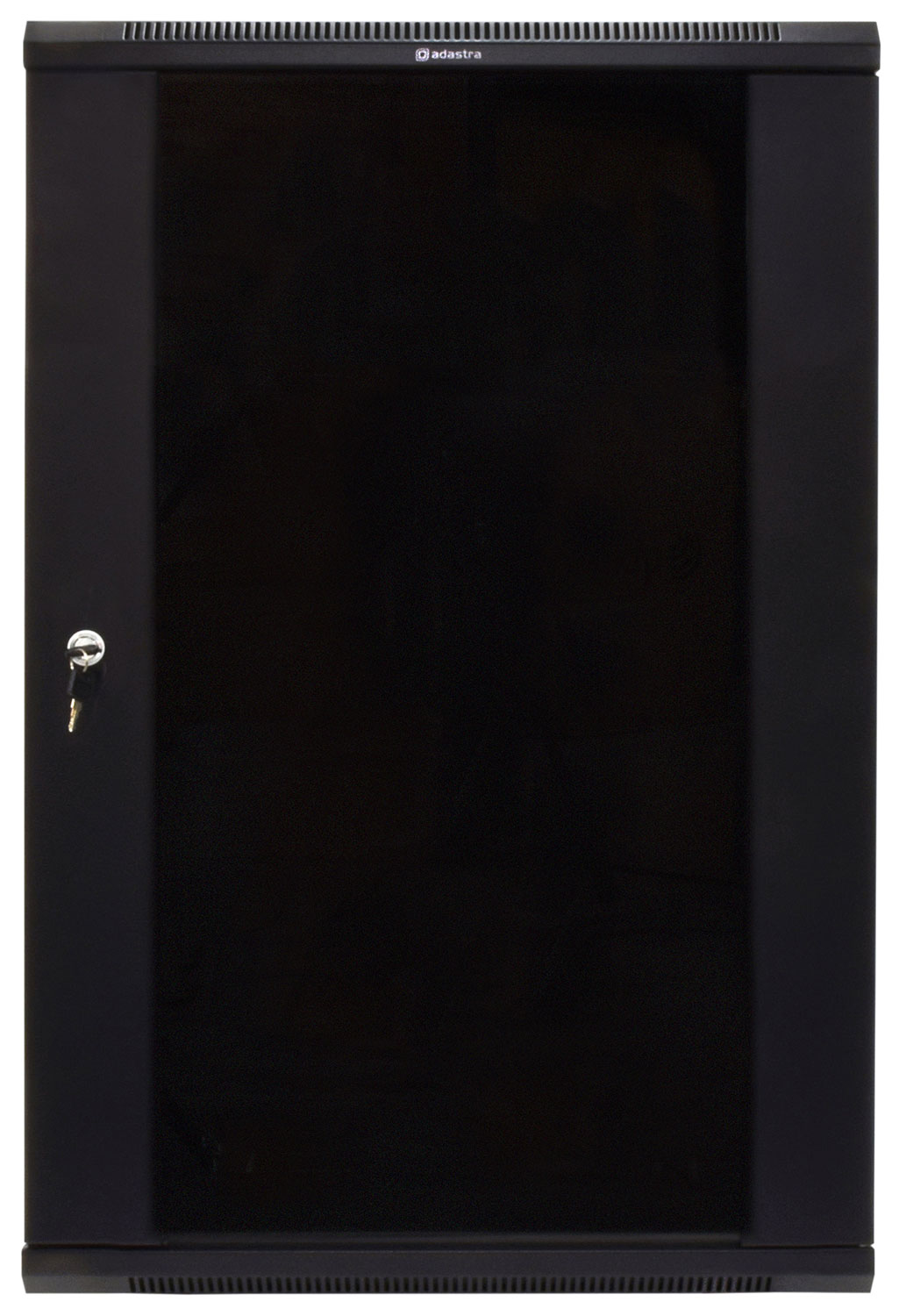

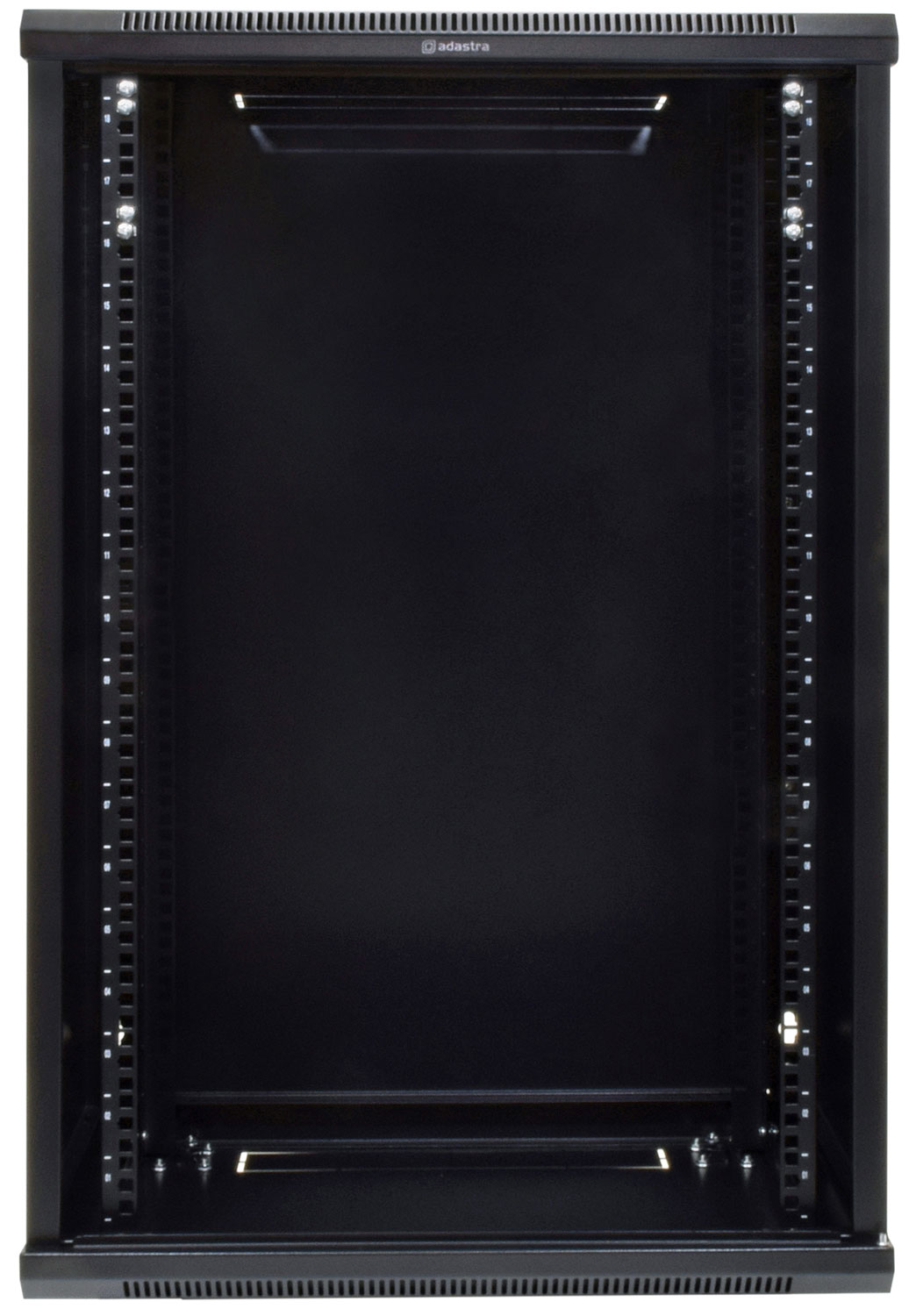

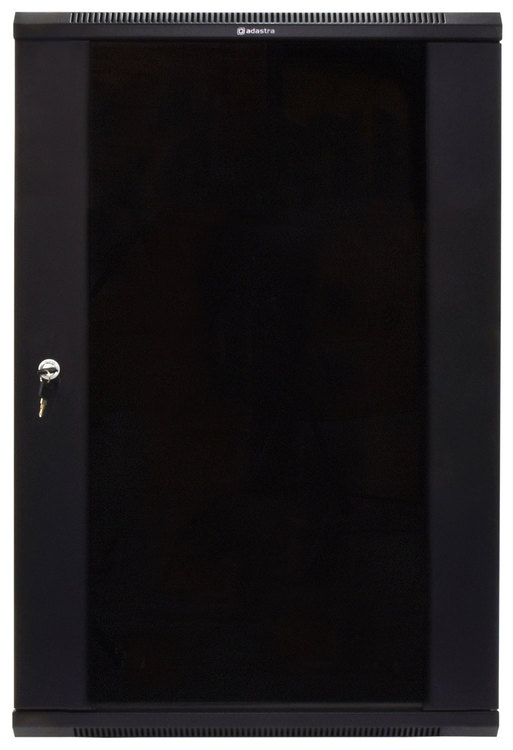

Cabinets for 19" rack-mount equipment with removable side panels and lockable front door. Constructed from cold-rolled steel with folded edges for strength and stability. Front and rear rack strip is supplied and mounted to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required. The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. The rear panel has fixing apertures for wall mounting or alternatively, the cabinet can be free-standing. Superbly designed, secure containment for professional rack installations.

  • Durable epoxy powder coated finish
  • Supplied with glass door, lock and 2 keys
  • Clip-in side panels for easy access

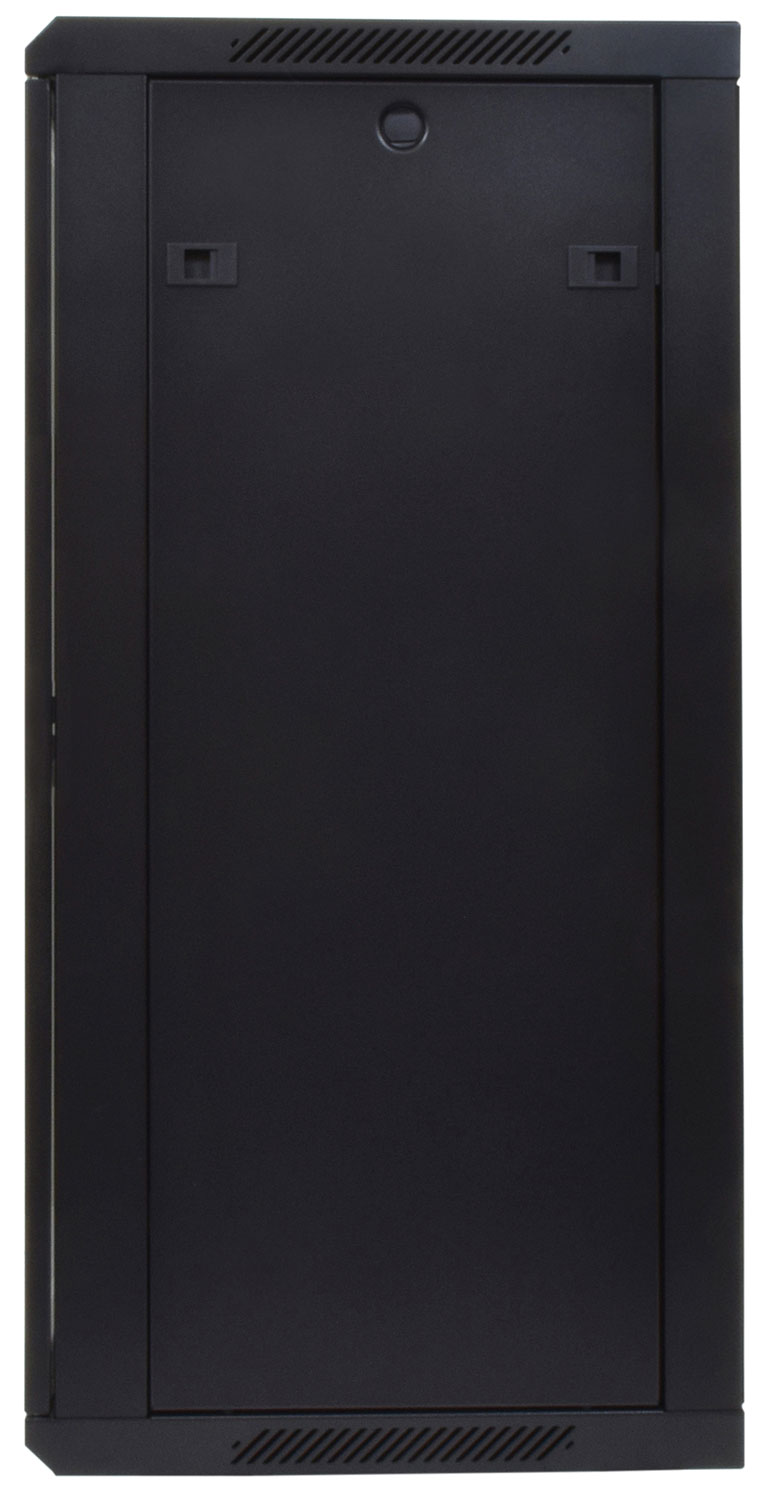

  • Wall mountable or free-standing
  • Easy to assemble with adjustable front & rear rack strips
  • Top and bottom knock-outs for cable feeds
  • Available in 2 depths and various rack heights

Specification : Common

  • Material 1.2mm cold rolled steel & 5mm tempered glass
  • Finish Epoxy powder coated RAL9004
  • Maximum load 100kg static (total)
  • Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant

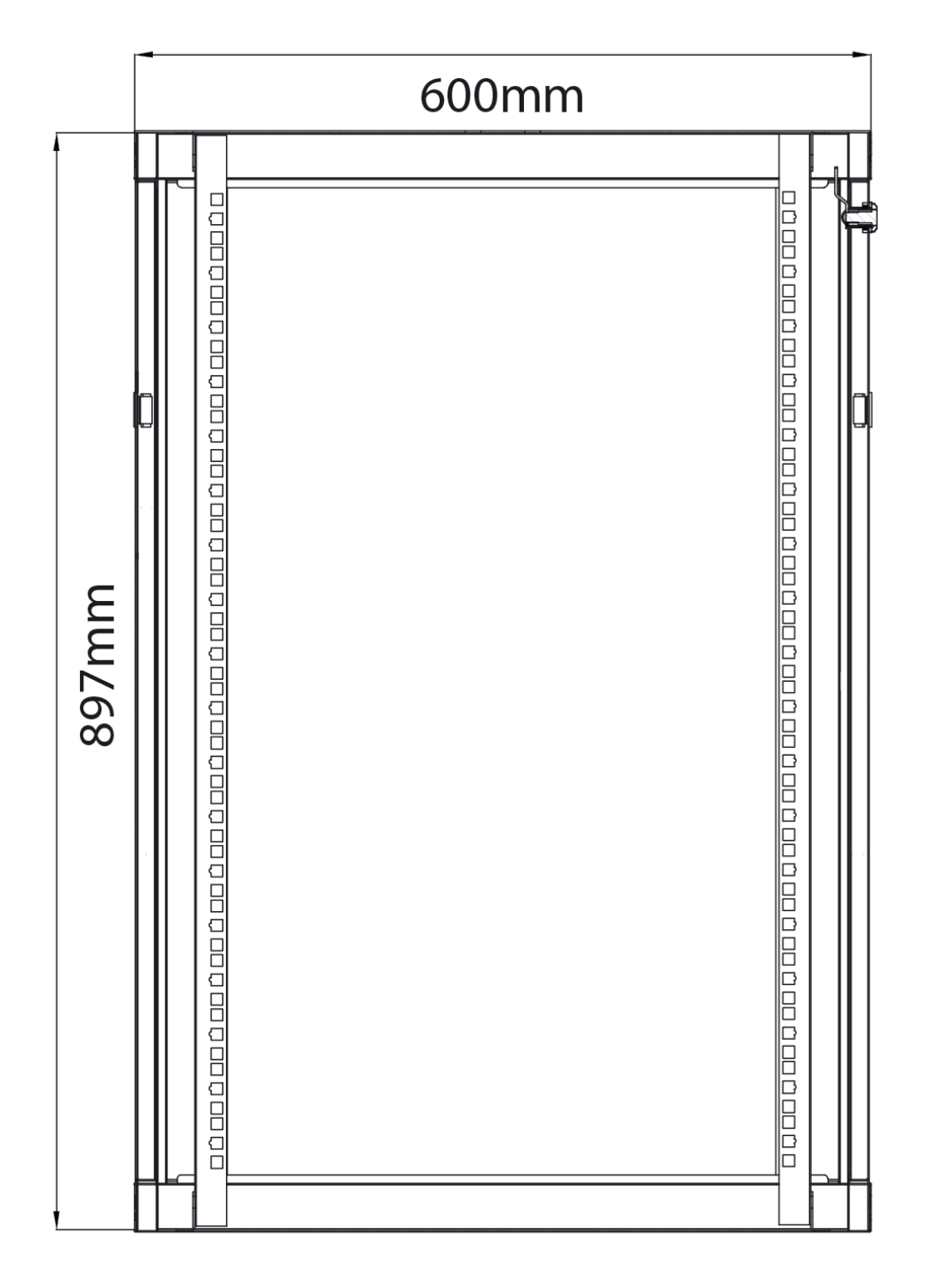

  • Width 600mm

Specification : Versions

  953.504UK 953.506UK 953.509UK 953.512UK 953.518UK 953.522UK 953.604UK 953.606UK 953.609UK 953.612UK 953.615UK 953.618UK 953.622UK

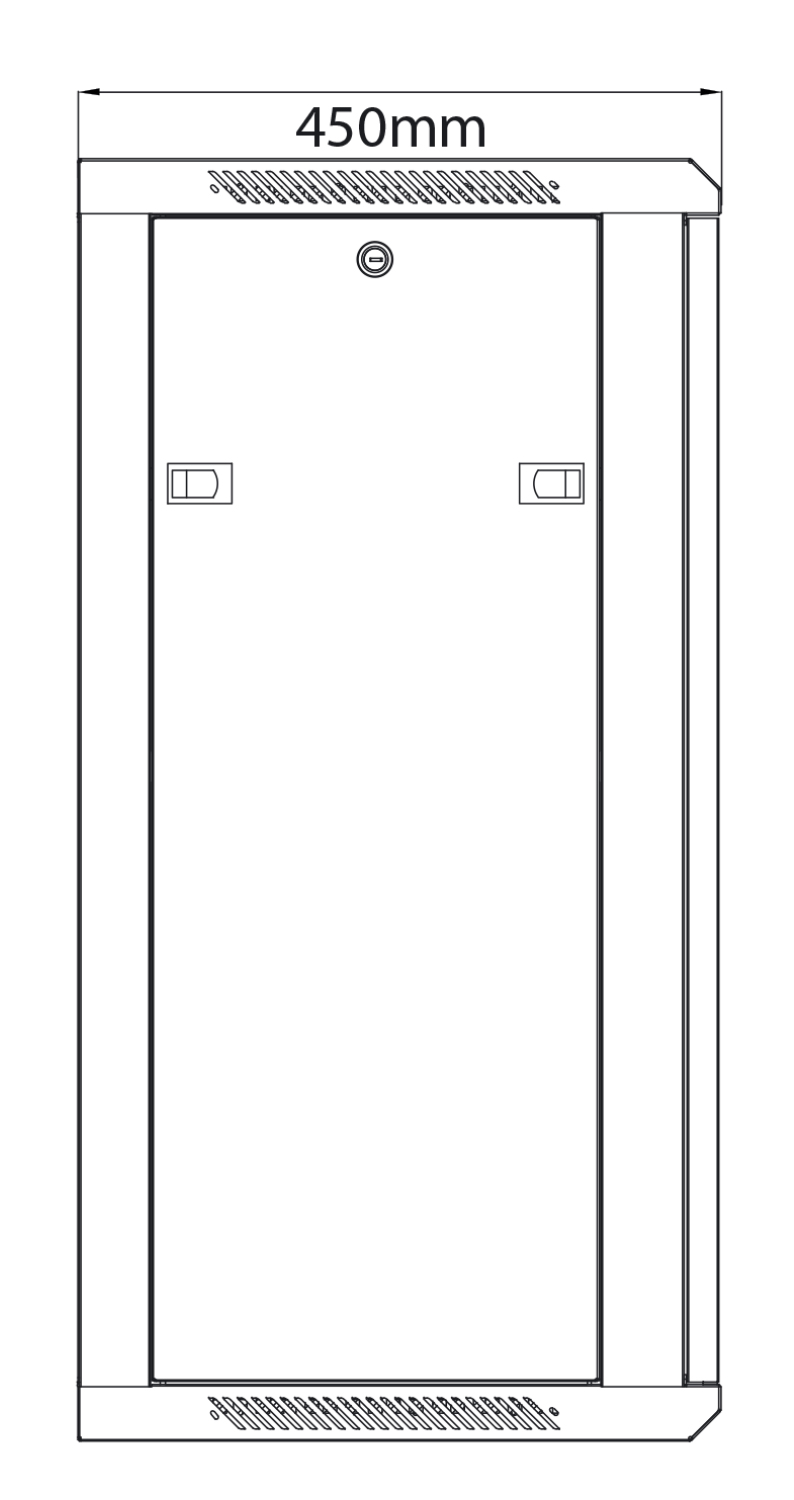

Depth 450mm 450mm 450mm 450mm 450mm 450mm 600mm 600mm 600mm 600mm 600mm 600mm 600mm
Mounting depth 370mm 370mm 370mm 370mm 370mm 370mm 500mm 500mm 500mm 500mm 500mm 500mm 500mm
Height 279mm 367mm 500mm 634mm 897mm 1081mm 279mm 367mm 500mm 634mm 767mm 897mm 1081mm
Rack height 178mm (4U) 267mm (6U) 400mm (9U) 534mm (12U) 800mm (18U) 978mm (22U) 178mm (4U) 267mm (6U) 400mm (9U) 534mm (12U) 667mm (15U) 800mm (18U) 978mm (22U)

Trade information

  953.504UK 953.506UK 953.509UK 953.512UK 953.518UK 953.522UK 953.604UK 953.606UK 953.609UK 953.612UK 953.615UK 953.618UK 953.622UK
Barcode / EAN 5015972217061 5015972217085 5015972217092 5015972216989 5015972217115 5015972217078 5015972217139 5015972217146 5015972217153 5015972217160 5015972217177 5015972217184 5015972217191
Package type Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW Box Label BW
Package dimensions 475 x 635 x 245mm 475 x 635 x 245mm 525 x 635 x 245mm 665 x 635 x 245mm 925 x 635 x 245mm 1105 x 635 x 245mm 625 x 635 x 225mm 625 x 635 x 225mm 625 x 635 x 225mm 665 x 635 x 225mm 795 x 635 x 225mm 925 x 635 x 225mm 1105 x 635 x 225mm
Package weight 15.25kg 17.70kg 20.80kg 24.60kg 32.00kg 36.80kg 18.80kg 20.60kg 24.10kg 28.10kg 31.70kg 35.80kg 40.60kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 475 x 635 x 245mm 475 x 635 x 245mm 525 x 635 x 245mm 665 x 635 x 245mm 925 x 635 x 245mm 1105 x 635 x 245mm 625 x 635 x 225mm 625 x 635 x 225mm 625 x 635 x 225mm 665 x 635 x 225mm 795 x 635 x 225mm 925 x 635 x 225mm 1105 x 635 x 225mm
Carton weight 15.25kg 17.70kg 20.80kg 24.60kg 32.00kg 36.80kg 18.80kg 20.60kg 24.10kg 28.10kg 31.70kg 35.80kg 40.60kg
Carton quantity 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package 1 package

In the box

The box for this item contains :

  • Top panel
  • Base panel
  • Front frame
  • Rear frame
  • Rear plate
  • 4 x rack strips (2 left + 2 right)
  • 4 side panel plastic locator studs
  • Glass door
  • Assembly hardware
  • Door lock + 2 keys
  • Rack mounting captive nuts & screws
