8K HDMI Audio Extractor
128.518UK
State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies… more
- Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device
- Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
- Supports Variable Refresh Rate (VRR) and HDR10
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
128.518UK
8K HDMI Audio Extractor |
Gift Box |

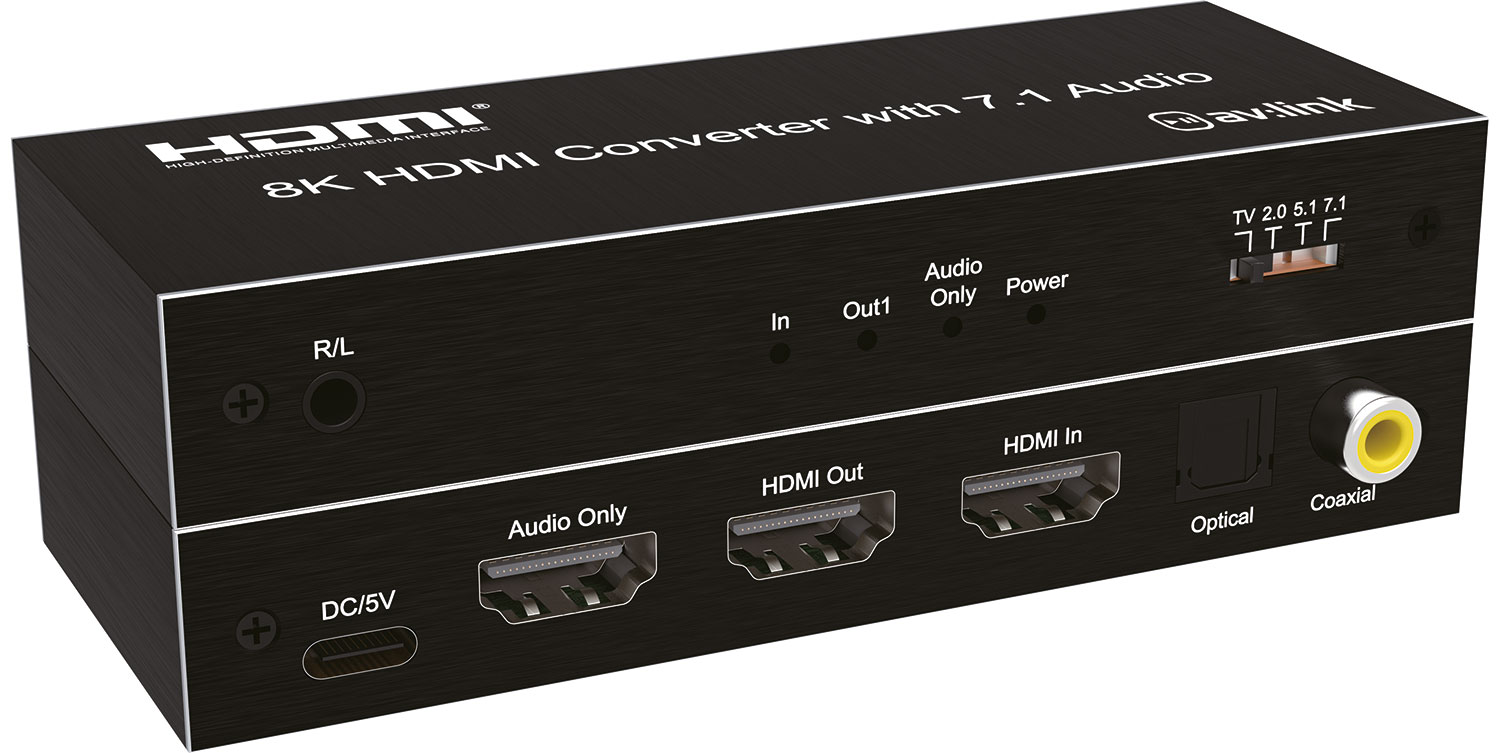

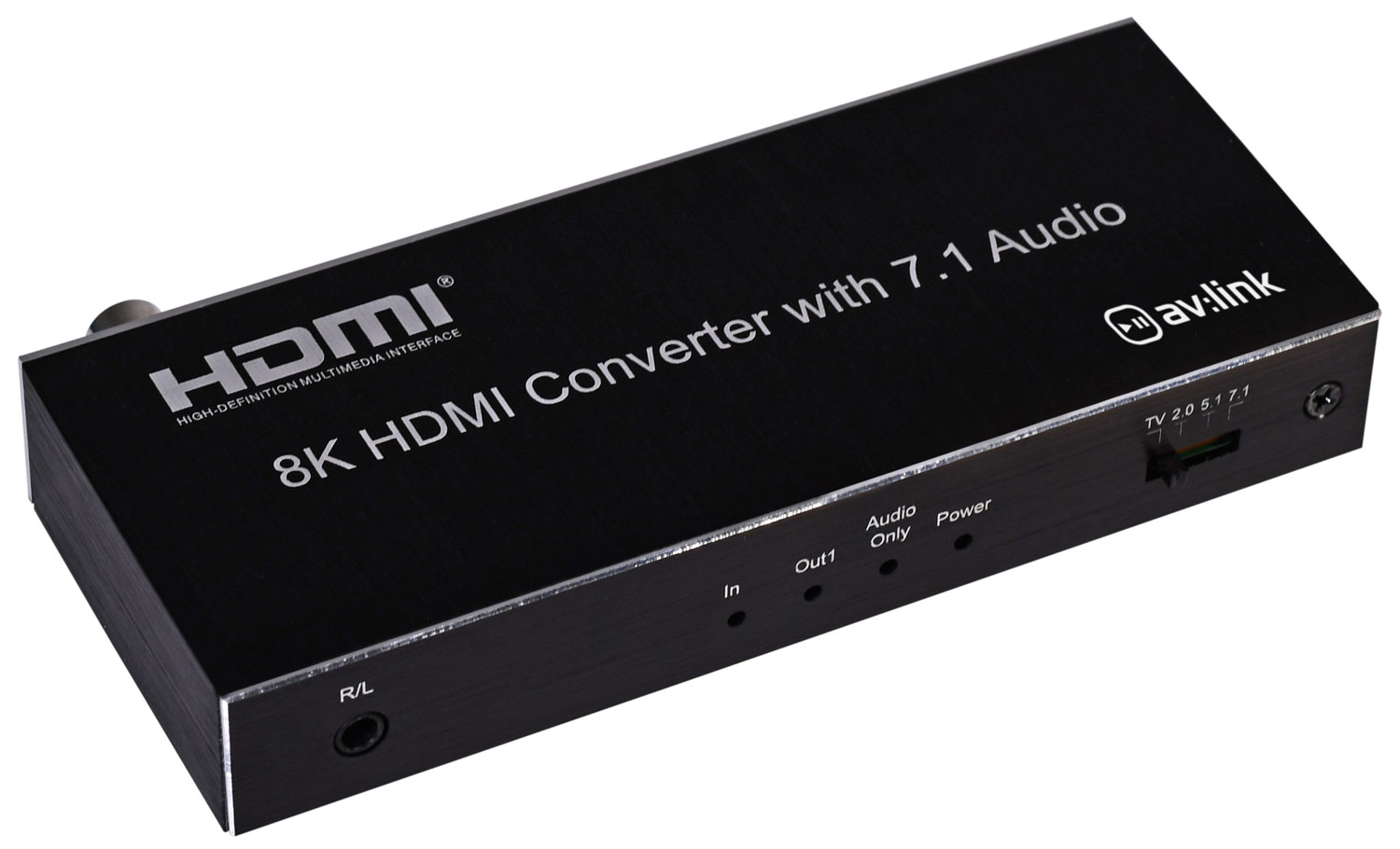

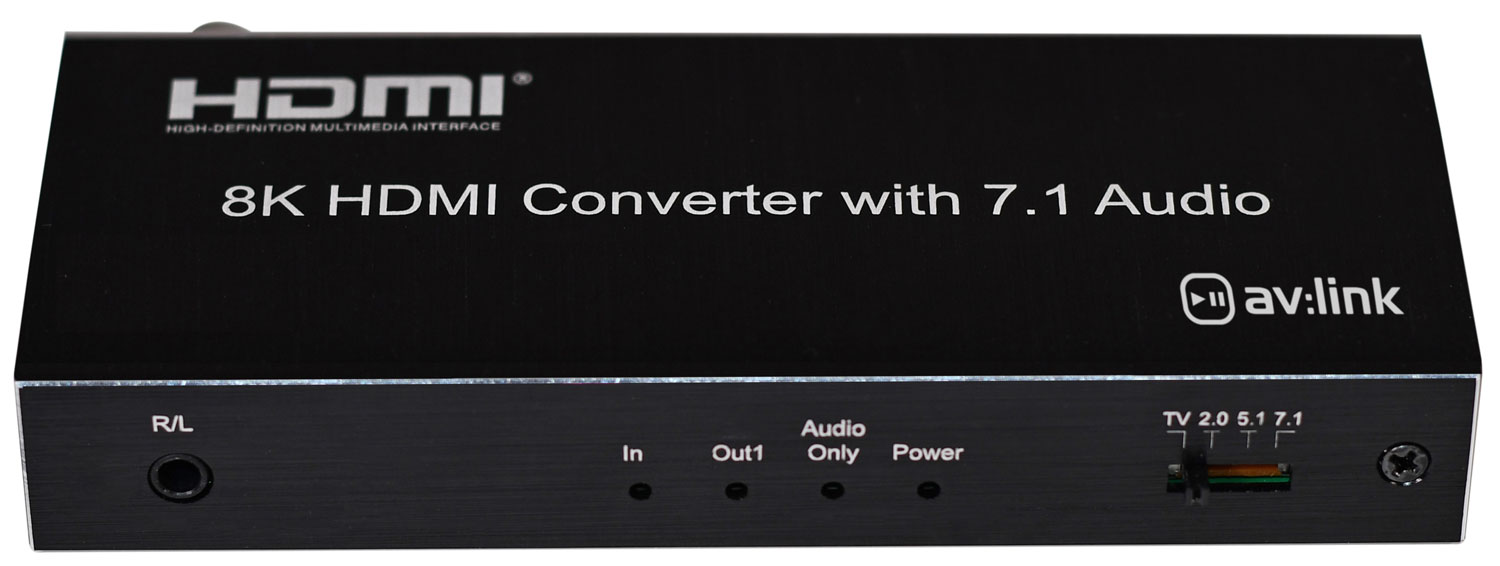

8K HDMI Audio Extractor
State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.
- Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device
- Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
- Supports Variable Refresh Rate (VRR) and HDR10
- Simple plug and play installation and instant synchronisation without delay
- Attractive brushed metal finish
- UK mains adaptor supplied (DC5V/1A)
- Input connections HDMI (8K), USB-C (DC/5V power input)

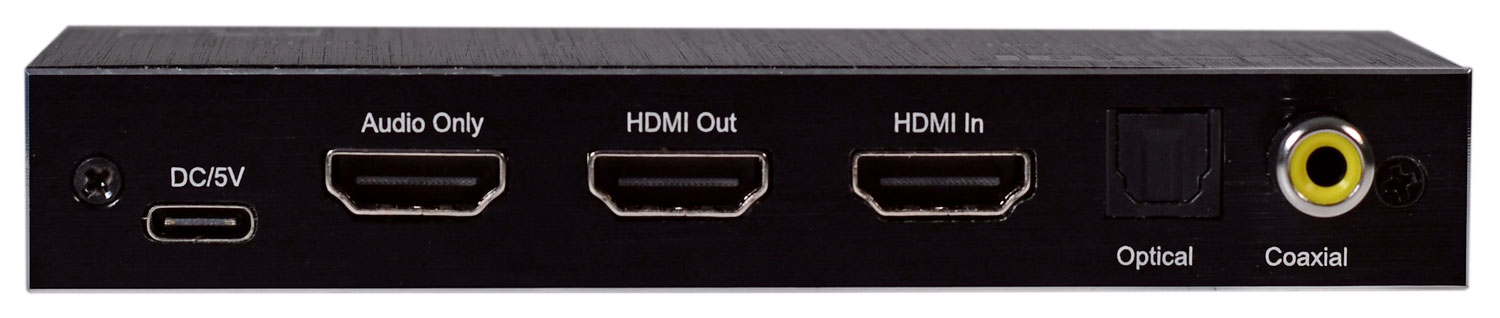

- Output connections HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
- Video resolution Up to 7680 × 4320 @ 60Hz
- Video format 8/10/12 bit deep colour
- Max. baud rate 40Gbps
- Audio output HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
- Audio output SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
- Audio output 3.5mm Jack: Analogue stereo 2.0ch
- Max. cable length Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m
- Power supply Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Dimensions 121 x 57 x 19mm
- Weight 118g
In the Box
- 8K audio extractor

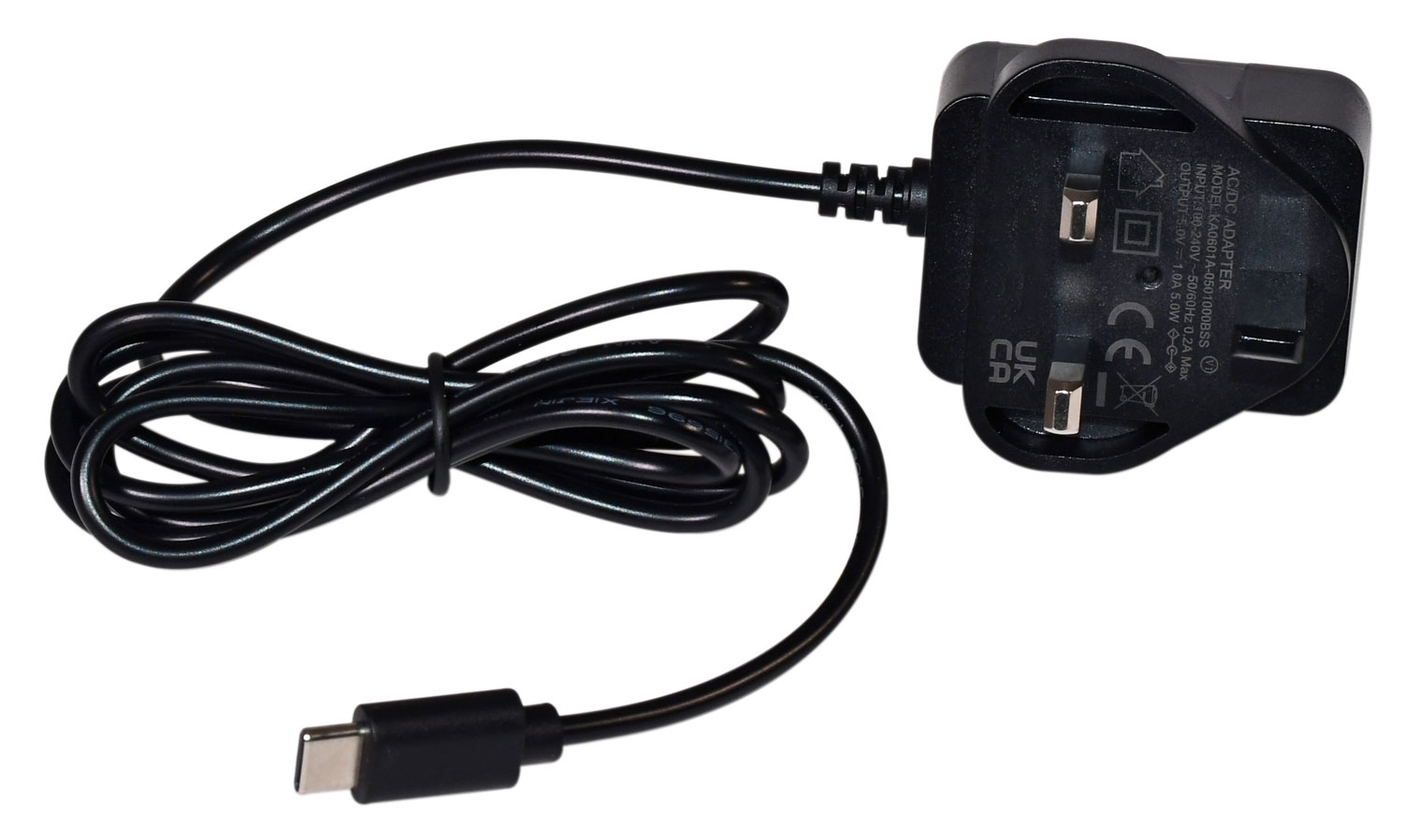

- 5V DC USB power supply
- 4pcs self-adhesive rubber feet
- User manual
