8K HDMI Splitter with EDID
1x4
128.862UK
4KS14
Slimline 8K HDMI splitters to easily connect a single HDMI source to multiple displays at the same time. This up to the minute version will support HDMI resolutions up to 7680 x 4320 @ 60Hz,… more
- Supports HDMI resolutions up to 7680 x 4320 @ 60Hz for compatibility with the latest 8K technology
- 8-mode EDID switch for precise video and audio selection
- Simple connection and installation

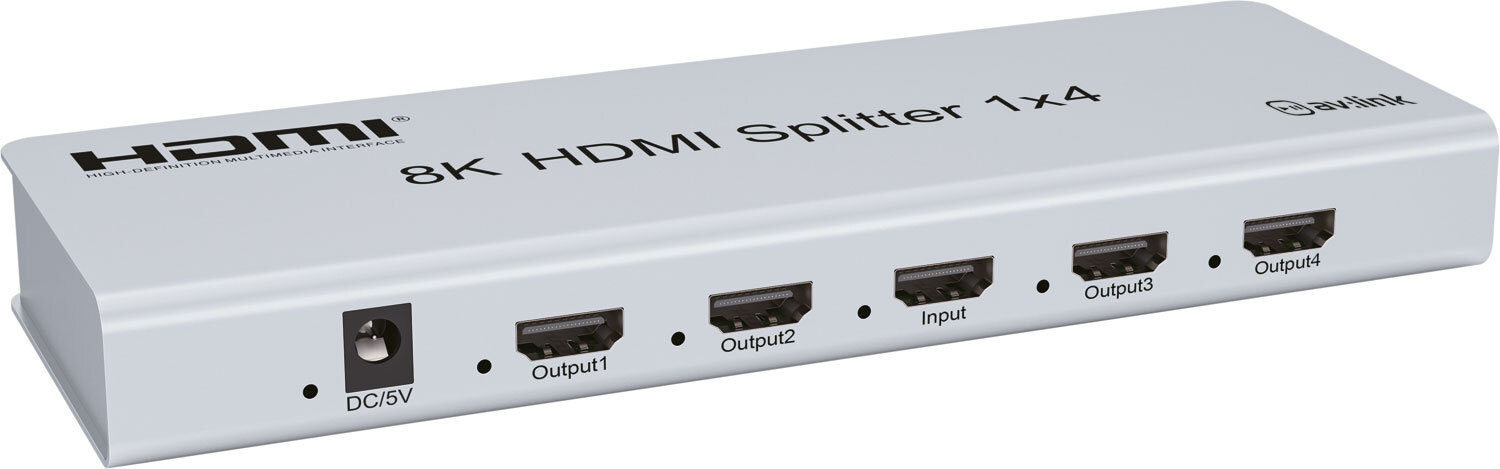

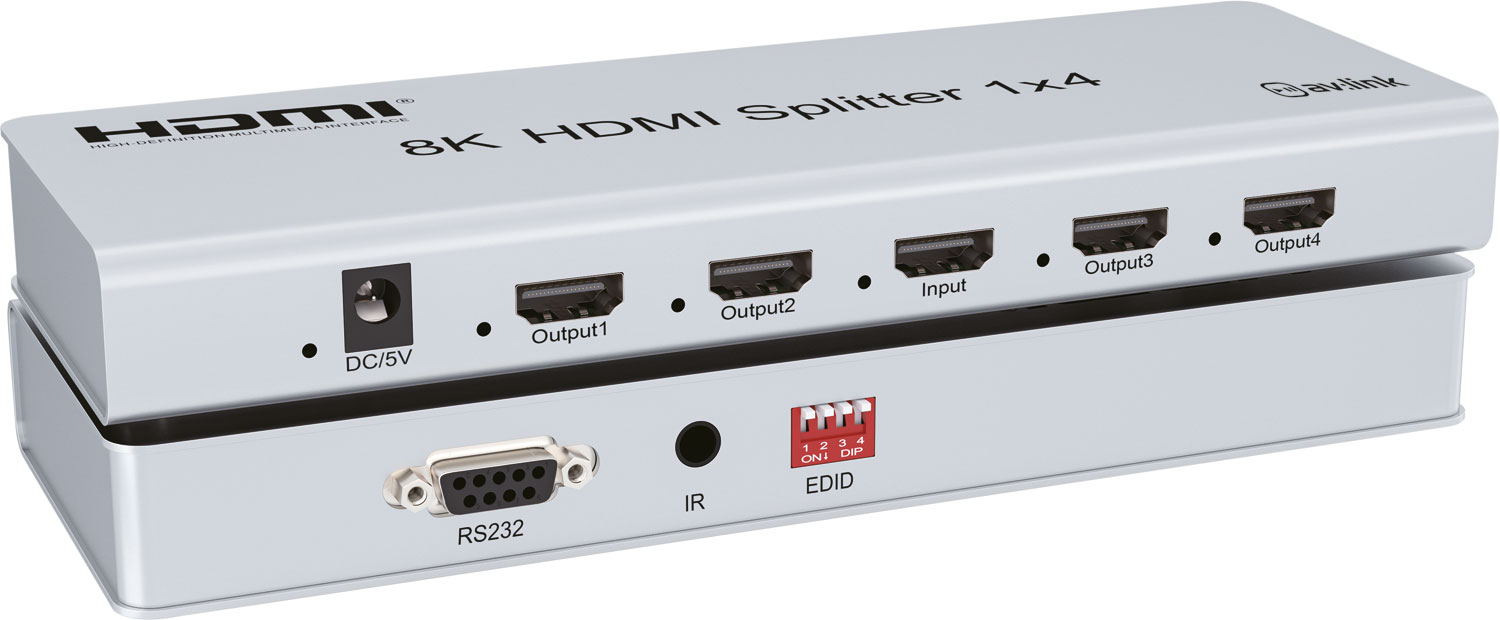

8K HDMI Splitter with EDID
Slimline 8K HDMI splitters to easily connect a single HDMI source to multiple displays at the same time. This up to the minute version will support HDMI resolutions up to 7680 x 4320 @ 60Hz, compatible with the latest technology and comes equipped with an 8-mode EDID switch allowing precise selection of the required video and audio formats.
- Supports HDMI resolutions up to 7680 x 4320 @ 60Hz for compatibility with the latest 8K technology
- 8-mode EDID switch for precise video and audio selection
- Simple connection and installation
- Tough metal chassis with attractive satin silver finish
- Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
- Ideal for gaming, entertainment, hospitality and other commercial venues requiring multiple display feeds from a single HDMI source
- Output connections 4x HDMI, 3.5mm IR Extension Socket (not supplied)
- Max. working current 0.7A
- Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/2A
- Dimensions 211 x 78 x 27mm
- Weight 504g
- Video resolution Up to 7680 x 4320 @ 60Hz
- Display colours 8/10/12bit deep colour
- Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
- Input connections HDMI, RS232 Serial (online firmware updates only)
- Max. baud rate 40Gbps
- Transmission distance 10m max 8K @ 60Hz
- Operating temperature range -15°C to +55°C
In the Box
- 8K HDMI Splitter

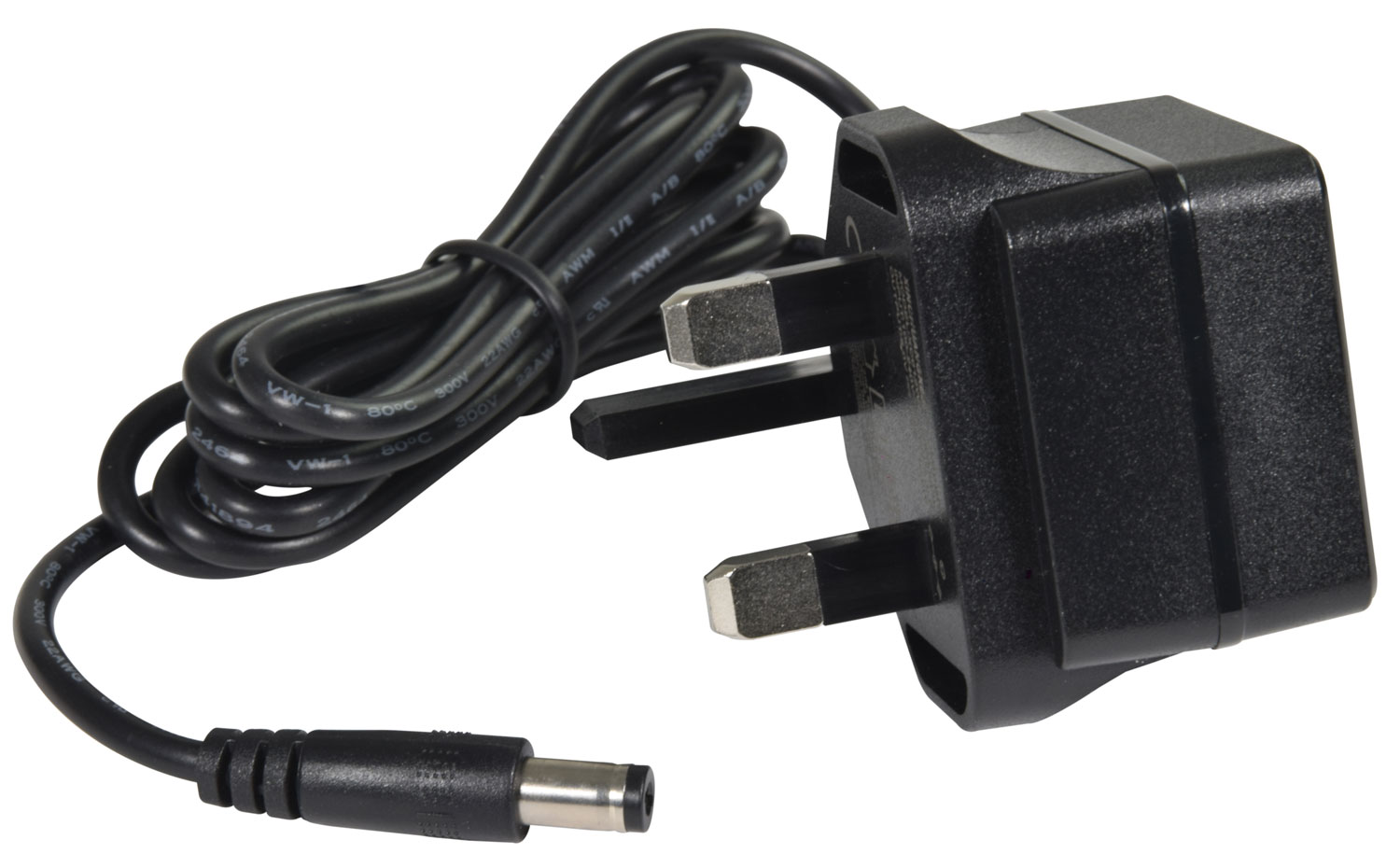

- UK power adaptor
- User guide
