4K HDMI Video Capture Card

A handy device for capturing both HDMI video and audio signals and sending them to computers and smart devices for preview and storage. Simple plug and play operation requires no additional drivers and is compatible with various acquisition software packages such as VLC, OBS and Amcap. With a maximum input resolution of 3840×2160@30Hz and output resolution of 1920×1080@30Hz this compact unit is ideal for transferring camcorder or action cam footage, video games, live streams or office meetings to hard disk or flash media. This updated version has USB3.0 connectivity for both USB Type-A and the latest USB3.0 Type-C devices.

• Captures HDMI video and audio signals and sends them to a PC, laptop or smart device for preview and storage
• New updated version with USB3.0 connectivity for both USB Type-A and Type-C devices
• Compact plug and play device that requires no external power source
• Compatible with acquisition software such as VLC, OBS, Amcap and more

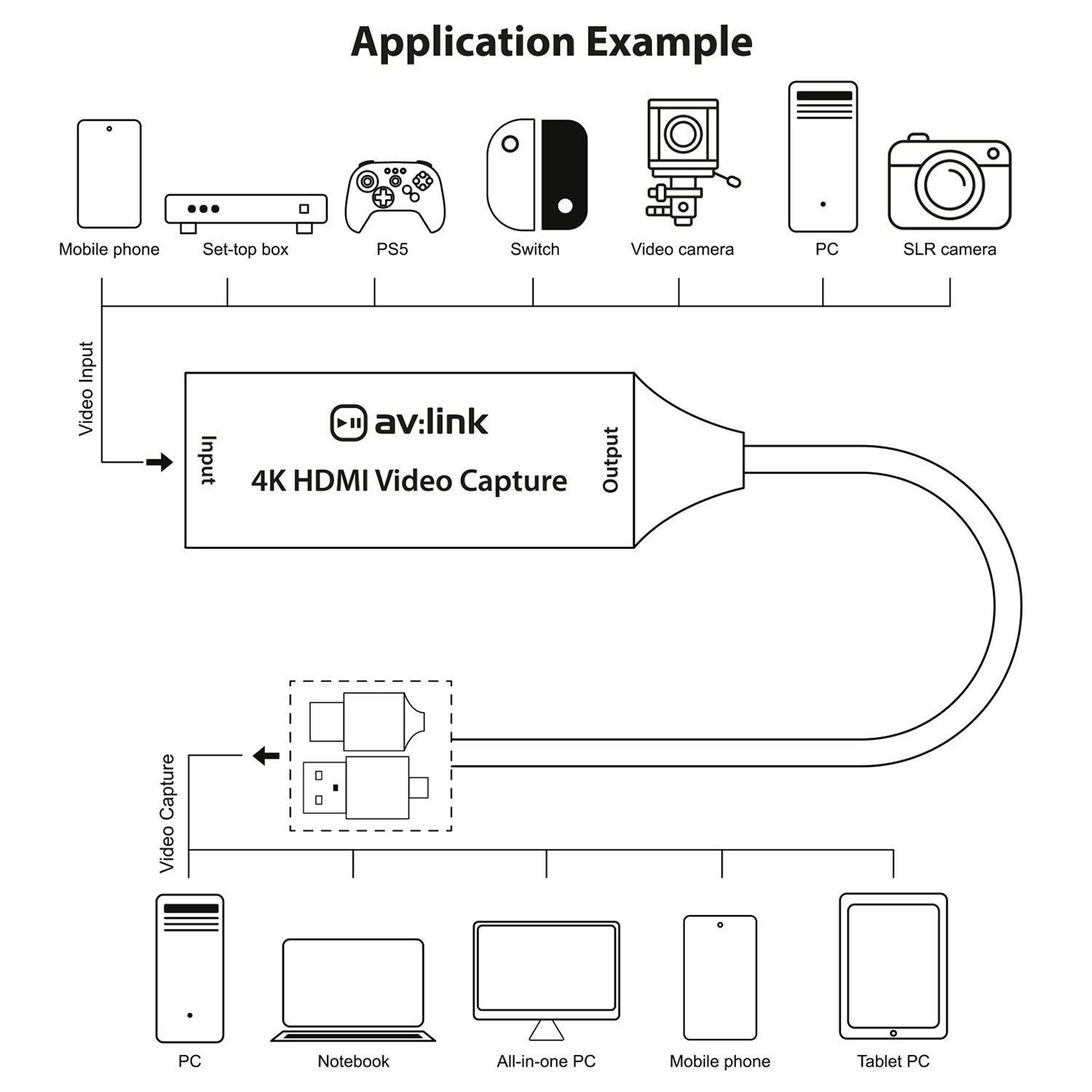

• Ideal for transferring video and audio footage from camcorders, action cams, video games, live streams and more to hard disks or flash media
• Easy connection and installation

• Connections HDMI (Input), USB3.0 Type-A, USB3.0 Type-C (output)
• Max. resolution Input: 4K@30Hz, Output: 1080p@60Hz
• Video format 24/30/36bit Deep colour
• Video format YUY2, MJPEG
• Audio format L-PCM
• Max. cable length ≤15m AWG26 HDMI standard cable
• Max. working current 0.2A/5VDC
• Operating system compatibility Windows, Android and Apple IOS
• Dimensions 11 x 23 x 240mm
• Weight 27g
