4K HDMI Multi-viewer 4x1
This high-performance 4x1 HDMI Multi-viewer offers seamless display of up to four 4K input sources simultaneously on a single 4K UHD display. Unlike many comparable devices that downscale multiple… more
- Seamlessly displays and switches up to four 4K HDMI inputs to a single HDMI output
- Provides a number of display options ideal for CCTV and security applications
- Simple setup and operation
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
128.855UK
4K HDMI Multiviewer 4x1 |
Gift Box |

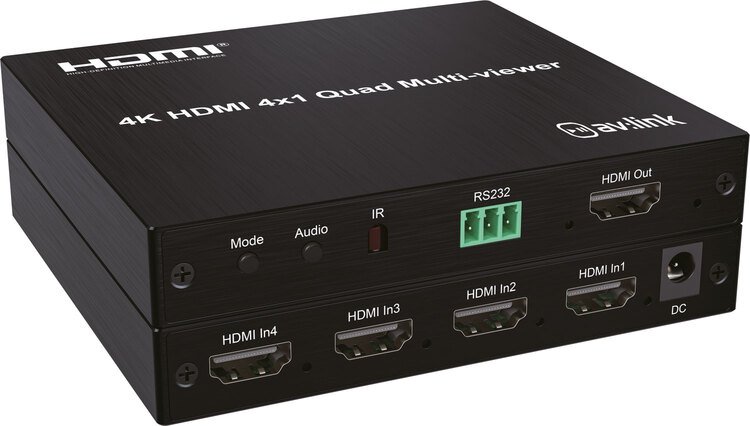

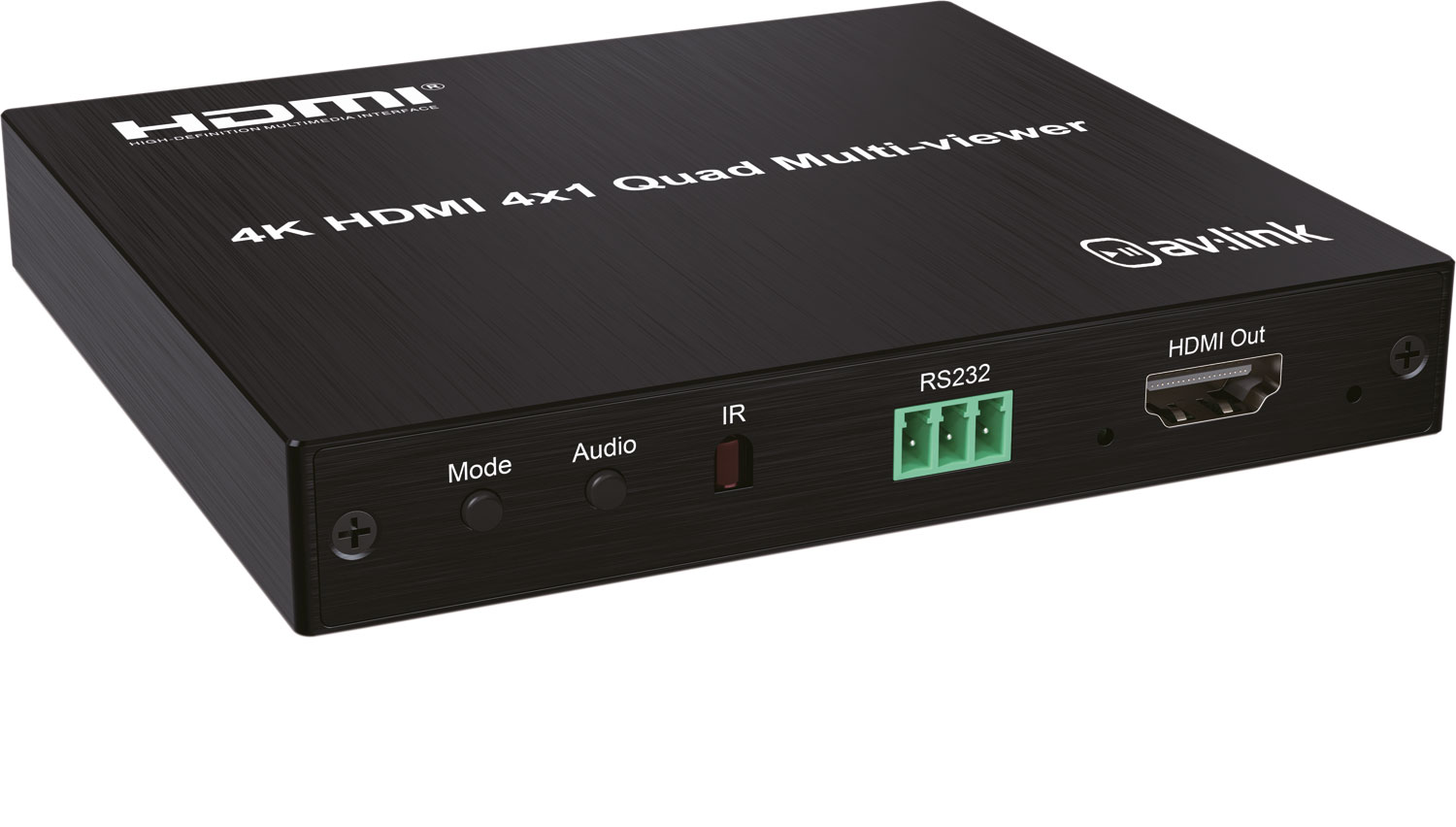

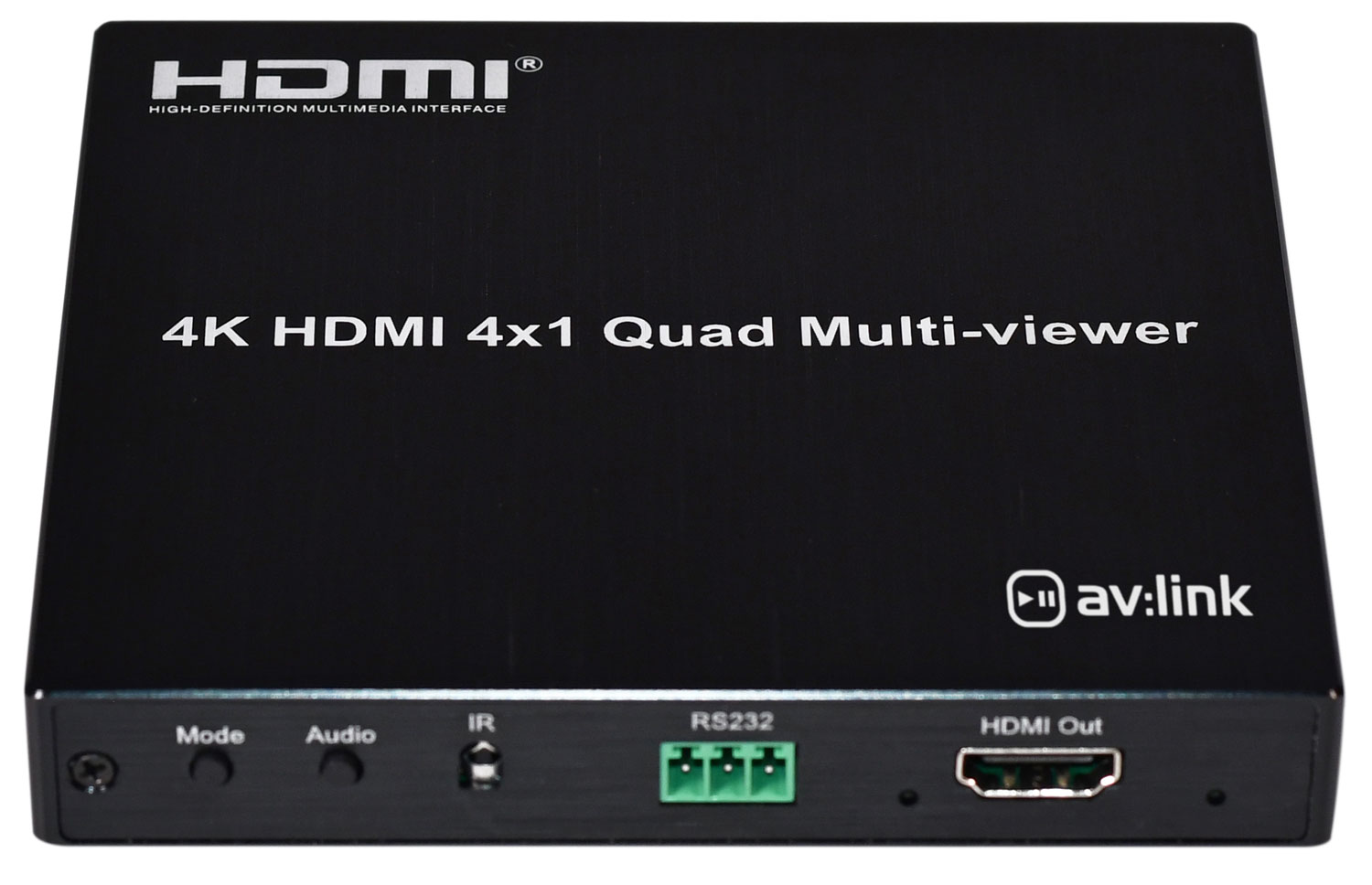

4K HDMI Multi-viewer 4x1
This high-performance 4x1 HDMI Multi-viewer offers seamless display of up to four 4K input sources simultaneously on a single 4K UHD display. Unlike many comparable devices that downscale multiple inputs to a lower-resolution output, this unit preserves the full input resolution. Ideal for professional surveillance, broadcasting, control rooms, or any application requiring multiple video feeds on one screen, the Multi-viewer ensures that each input retains its original detail and clarity. CCTV operators, in particular, benefit from significantly improved visual quality—no more compromised or compressed multi-channel displays. Key features include multiple viewing modes (quad-view, picture-in-picture, and full-screen), seamless switching, and easy operation via IR remote or front panel controls. Built with reliability and performance in mind, this compact unit is a versatile solution for modern AV setups.
- Seamlessly displays and switches up to four 4K HDMI inputs to a single HDMI output
- Provides a number of display options ideal for CCTV and security applications
- Simple setup and operation
- Supports video resolutions up to 3840 x 2160 @ 30Hz
- Attractive brushed metal finish
- IR remote control and UK power adaptor supplied
- Max. resolution 3840 x 2160 @ 30Hz
- Audio format LPCM2.0

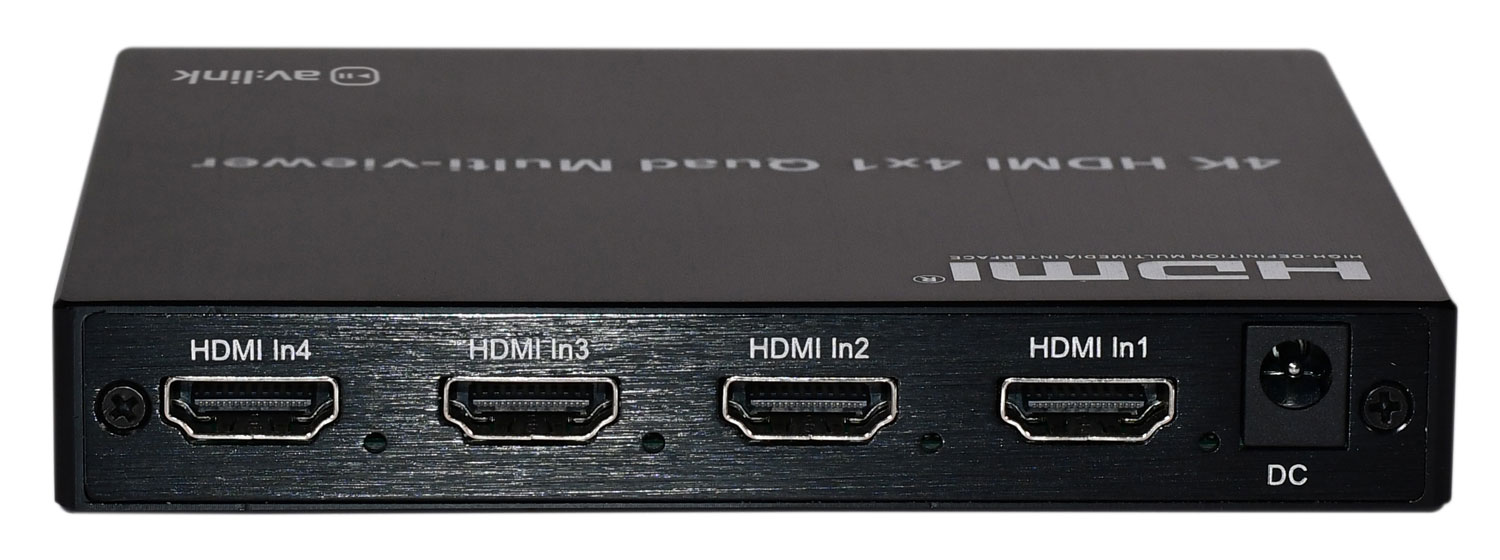

- Input connections 4x HDMI, DC5V/1A (power)
- Output connections HDMI, RS232
- Max. baud rate 3.4 x 3Gbps
- Max. bandwidth 340Mhz
- Max. cable length Input: 4K/30Hz≤10m, Output: 4K/30Hz≤10m
- Max. working current 0.6A
- Operating temperature range -10°C to +45°C
- Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
- Remote : battery 2x AAA (not supplied)
- Dimensions 121 x 102 x 19mm
- Weight 220g
In the Box
- 4K HDMI Multiviewer

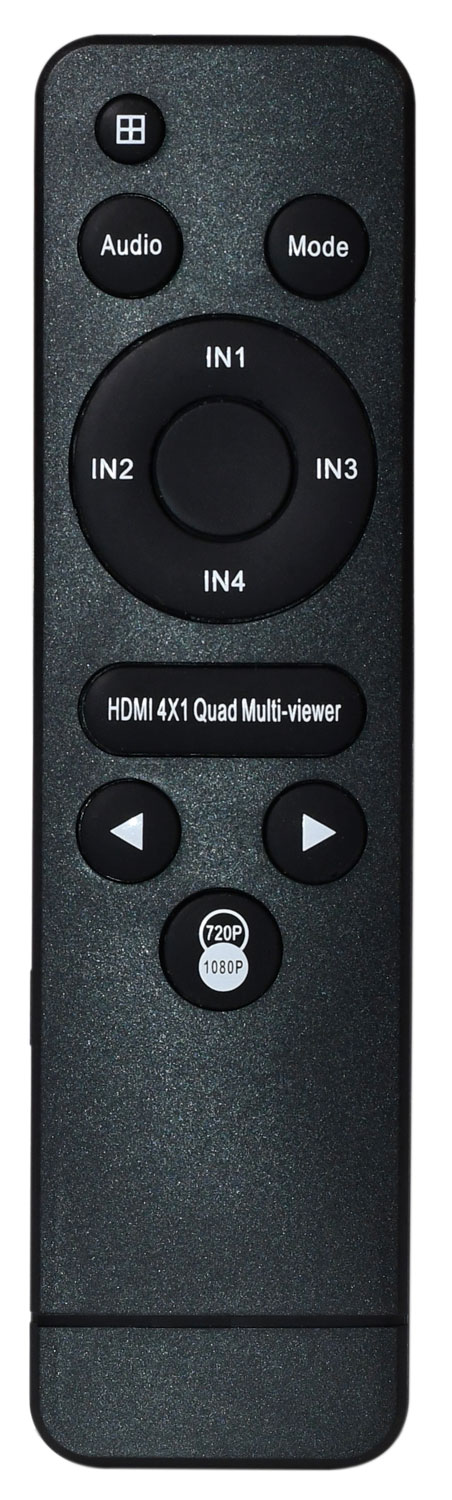

- IR remote control

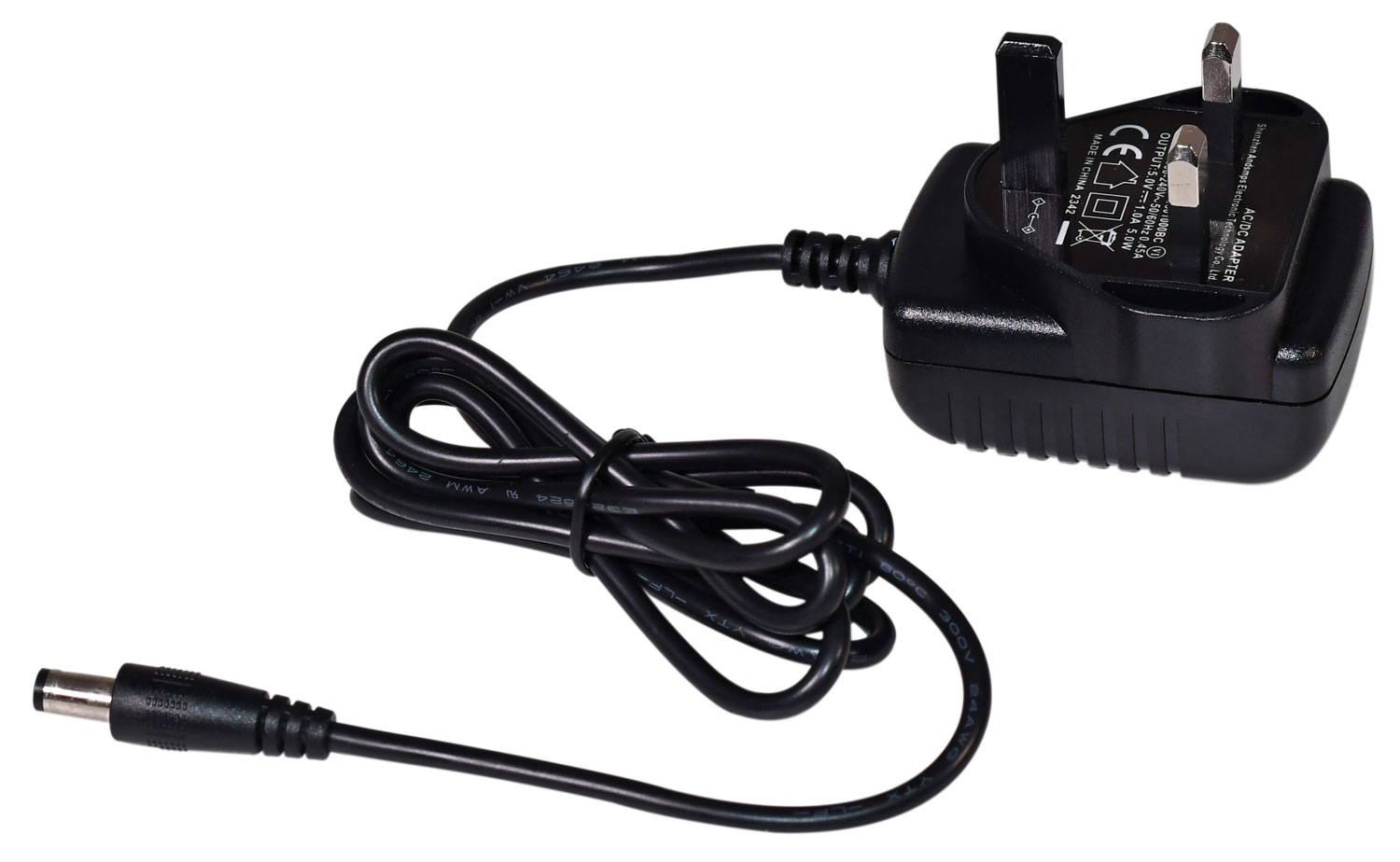

- UK power supply
- RS232 Lead
- 4pcs self-adhesive rubber feet
- User guide
