Flexible Links for LED Tape

156.150UK RGB12-F

Packs of 5 flexible links comprising 150mm wire with a snap connector at each end for connecting lengths of LED tape to extend runs or negotiate corners. Snap connectors fit onto connection pads on...

  • Solderless connection for LED tapes
Description Version Packed
156.147UK
DIY Single Colour Flexible Link - Pack of 5
8mm single colour Bag Resealable
156.148UK
DIY RGB Flexible Link - Pack of 5
10mm RGB Bag Resealable
156.149UK
Professional Single Colour Flexible Link - Pack of 5
10mm single colour Bag Resealable
156.150UK
Professional RGB Flexible Link - Pack of 5
12mm RGB Bag Resealable

Flexible Links for LED Tape

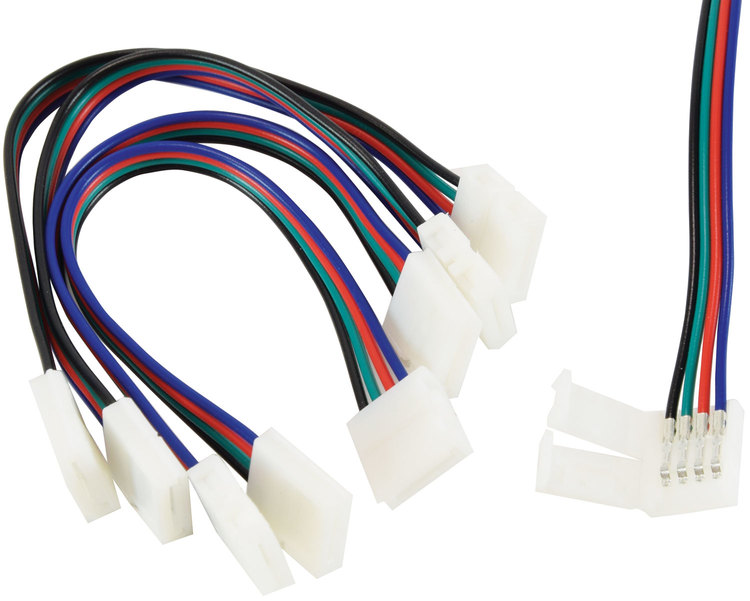

Packs of 5 flexible links comprising 150mm wire with a snap connector at each end for connecting lengths of LED tape to extend runs or negotiate corners. Snap connectors fit onto connection pads on the tape after paring back any silicone or waterproof coating to make an electrical connection without the need for solder. Where needed, these links can also be cut in half to provide bare wire connection to power supplies with screw terminals. A quick and mess-free solution for in-line connection in LED tape installations.

  • Solderless connection for LED tapes
  • IP rating IP20
  • Wire length 150mm

Versions

  156.147UK 156.148UK 156.149UK 156.150UK
Tape version 8mm single colour 10mm RGB 10mm single colour 12mm RGB
Cores 2 (red + black) 4 (blue, red, green, black) 2 (red + black) 4 (blue, red, green, black)
Weight (each) 3g 5g 3g 5g
Dimensions (each) 165 x 13 x 5mm 165 x 15 x 5mm 165 x 15 x 5mm 165 x 17 x 5mm

In the box

The box for this item contains :

  • 5 x 150mm wires with snap connectors

Downloads

UK Declaration of conformity
For 156.150UK (241KB)
EU Declaration of conformity
For 156.150UK (231KB)
