IP65 24V Seamless COB LED Strip 5m

156.676UK

Seamless COB LED Strip provides a continuous 'no spot' linear lighting solution. The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating which ...

  • Self-adhesive backing for easy installation
  • Seamless 'no spot' finish
  • 528 LED's/m
Description Version Packed
156.675UK
IP65 24V COB LED Strip 5m Cool White
IP65 CW Poly Bag
156.676UK
IP65 24V COB LED Strip 5m Warm White
IP65 WW Poly Bag

IP65 24V Seamless COB LED Strip 5m

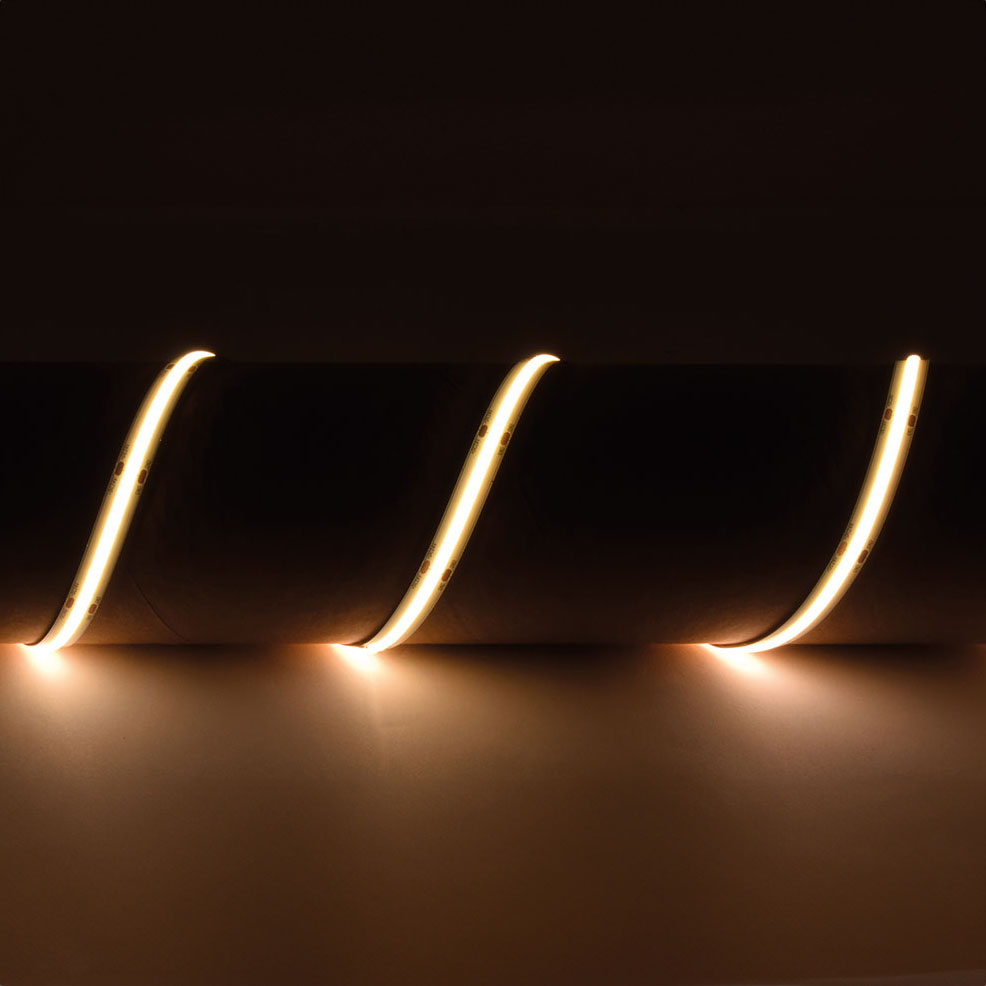

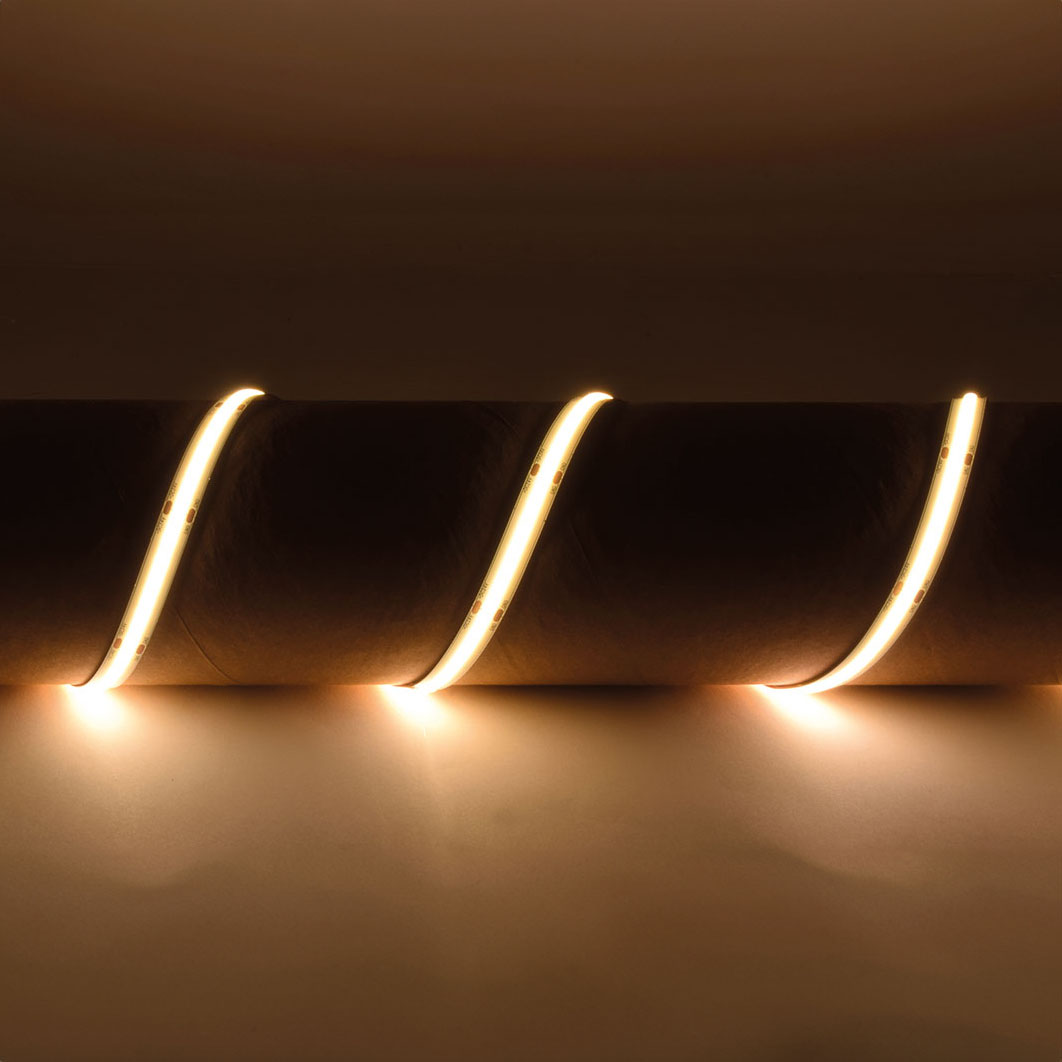

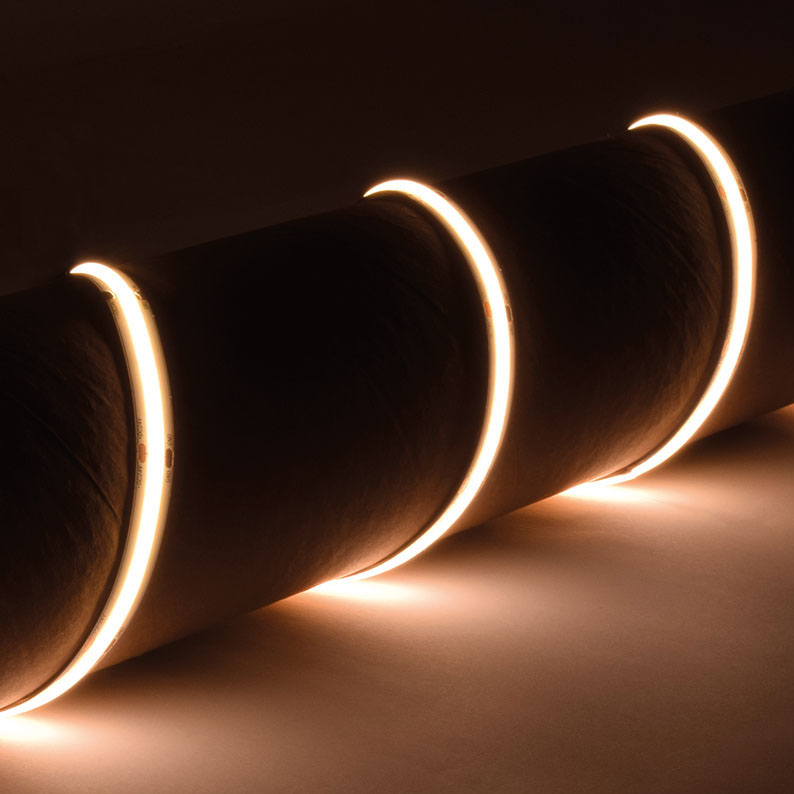

Seamless COB LED Strip provides a continuous 'no spot' linear lighting solution. The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating which diffuses the LED's into a seamless array of light. The flexible COB strip is supplied on a 5m reel and can be cut to desired length along the designated cutting points, the strip is equipped with an adhesive backing for easy installation. Seamless COB strip is suitable for a wide variety of applications, such as in restaurants and bars, retail, offices, displays, exhibitions and more. This tape is IP65 rated and therefore is water-resistant and can be used in an outdoor setting.

  • Self-adhesive backing for easy installation
  • Seamless 'no spot' finish
  • 528 LED's/m
  • Low voltage (24Vdc) and power consumption
  • Flexible and lightweight
  • IP65 rated, water-resistant
  • Beam angle 120°
  • Voltage 24Vdc
  • Reel length 5m
  • LED : type Sanan
  • LED : spacing 2mm
  • Cross-section 12x4mm
  • Current 500mA per metre
  • Power consumption per metre 12W/m
  • Colour rendering index (CRI, Ra) Ra>90
  • Number of LEDs 528/m
  • Cut intervals 45.45mm
  • IP rating IP65
  • Weight 300g

Versions

  156.675UK 156.676UK
Colour temperature 6500K 2700K

In the box

The box for this item contains :

  • 1 x IP65 24V Seamless COB LED Strip 5m
  • 1 x bag of screws, fixings and end caps

Downloads

Instruction manual
For 156.676UK (209KB)
UK Declaration of conformity
For 156.676UK (264KB)
EU Declaration of conformity
For 156.676UK (252KB)
