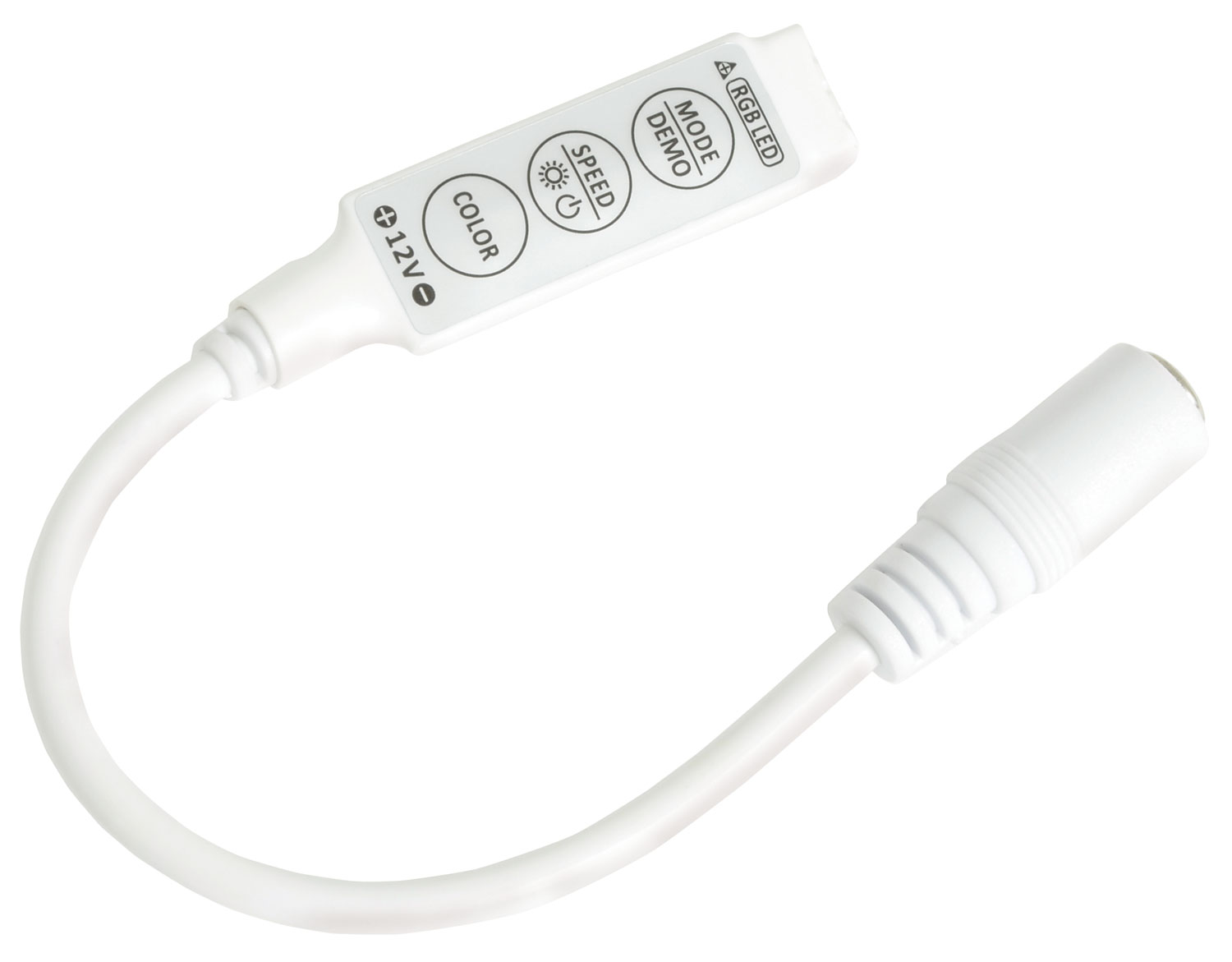

In-line RGB LED Tape Controller

153.797UK IMDC1

In-line low voltage RGB LED tape controller with 3 button control for static colours and internal sequence programs. Convenient DC jack power connection with 4-pin RGB output in a compact and easy-...

  • Compatible with RGB LED tape 5-24Vdc
  • Discreet, miniature design
Full description Find retailer
Description Version Packed
153.797UK
RGB LED Tape Controller DC 		Poly Bag

In-line RGB LED Tape Controller

In-line low voltage RGB LED tape controller with 3 button control for static colours and internal sequence programs. Convenient DC jack power connection with 4-pin RGB output in a compact and easy-to-use format.

  • Compatible with RGB LED tape 5-24Vdc
  • Discreet, miniature design
  • Power supply 5 - 24Vdc
  • Controls Mode/demo, speed (off), colour
  • Wire length 136mm
  • Input 5.5mm DC jack socket
  • Output 4-pin RGB+
  • Continuous current 3 x 2A
  • Current max. 3 x 4A
  • Dimensions : controller 42 x 13 x 5mm
  • Weight : controller 3g

Downloads

Instruction manual
For 153.797UK (1.3MB)
UK Declaration of conformity
For 153.797UK (248KB)
EU Declaration of conformity
For 153.797UK (238KB)
