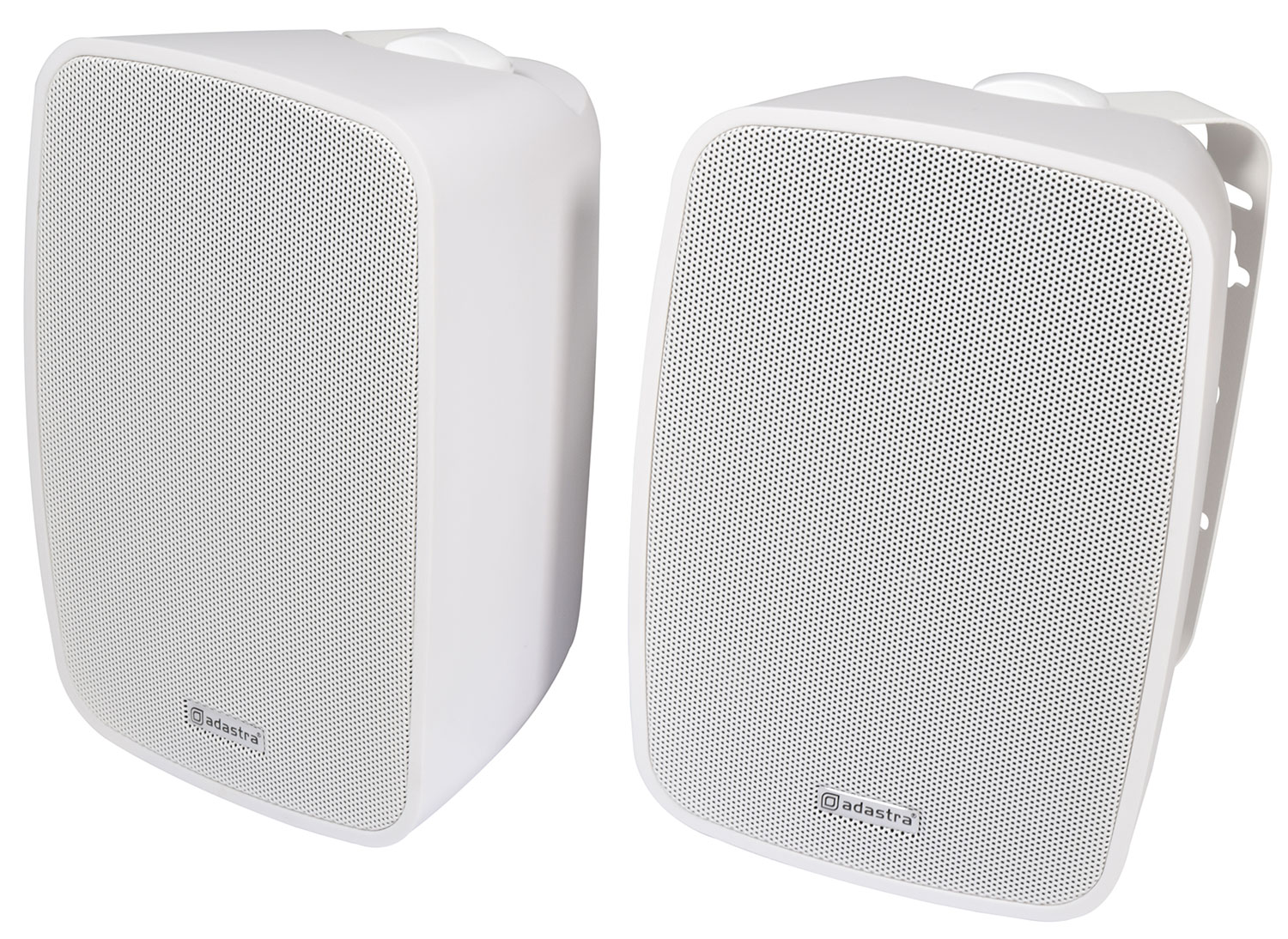

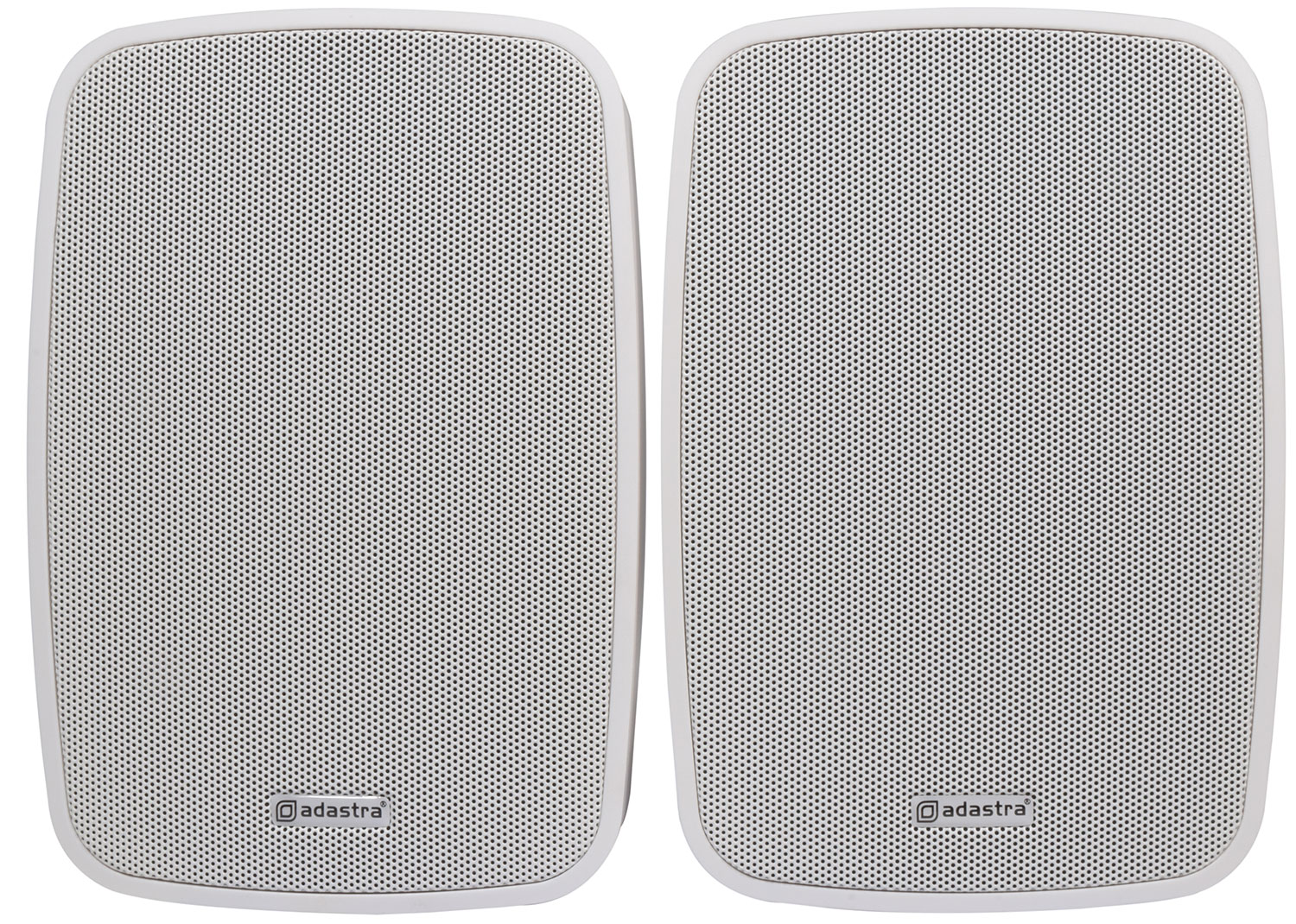

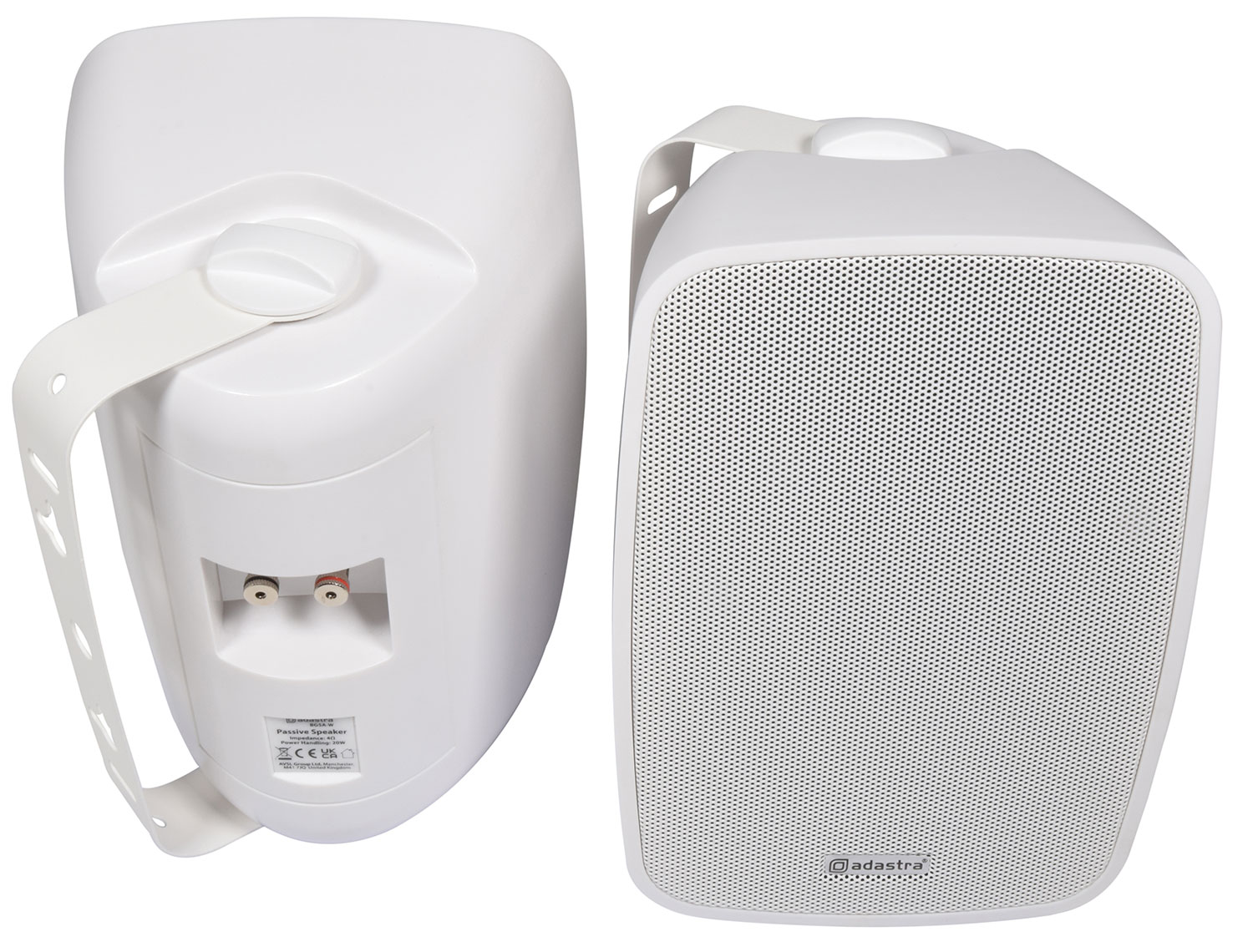

BG5A Active Stereo Speaker Set 2 x 20W

170.161UK BG5A-W

Active stereo indoor background speaker set, comprising an active main unit and satellite speaker with connecting lead. Both main and satellite units have a moulded ABS cabinet with powder-coated s...

  • L+R RCA or stereo 3.5mm input
  • Supplied with 12Vdc 3A in-line adaptor
  • Supplied with 3m speaker cable
Description Version Packed
170.161UK
BG5A Active Stereo Speaker Set - White
White 2 x 20W Box Label

BG5A Active Stereo Speaker Set 2 x 20W

Active stereo indoor background speaker set, comprising an active main unit and satellite speaker with connecting lead. Both main and satellite units have a moulded ABS cabinet with powder-coated steel grille and deliver up to 20W via a 5 inch full-range driver with smooth frequency response. Supplied with wall mounting brackets and hex screws with magnetic covers for neat installation or regular screw caps for quicker installation and angle adjustment. Low voltage operation with in-line mains power adaptor for safe and easy installation. A cost-effective and stylish solution for background music and smaller PA applications.

  • L+R RCA or stereo 3.5mm input
  • Supplied with 12Vdc 3A in-line adaptor
  • Supplied with 3m speaker cable
  • Power supply 12Vdc, 3A (in-line mains adaptor included)
  • Output power : rms 2 x 20W
  • DC input connection 5.5 x 2.5mm DC jack
  • Mains input Fig.8 (into 12Vdc adaptor)
  • Drivers 125mmØ (5") full-range (reinforced paper cone)
  • Frequency response 100Hz - 20kHz
  • Sensitivity @ 1W/1m 85dB
  • Impedance 8 ohms (each full-range driver)

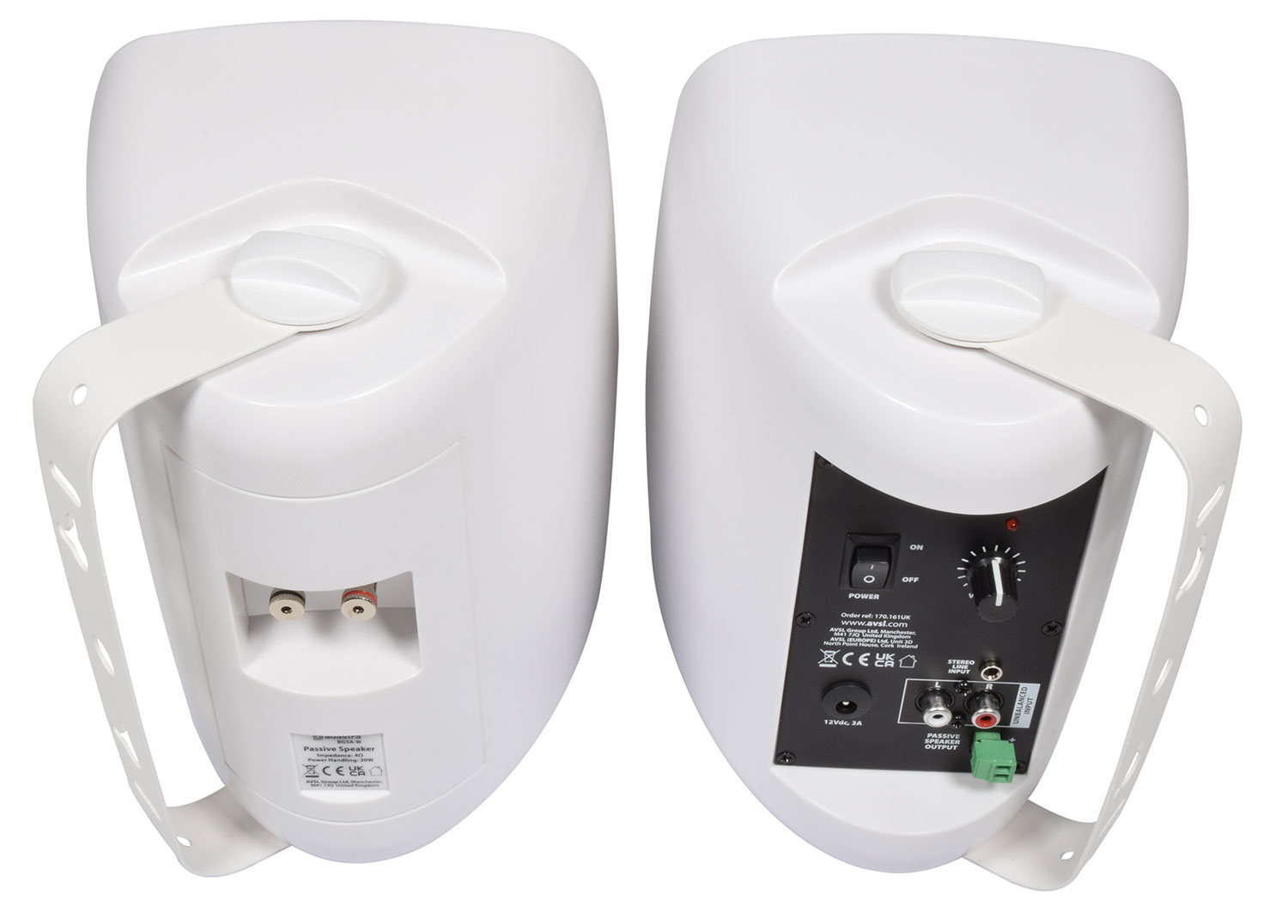

  • Input L+R RCA or 3.5mm stereo (line level)
  • Controls On/off switch, volume rotary
  • Dimensions : speaker 227.5 x 156 x 152.5mm (HxWxD) each
  • Weight (per set) 3.274kg

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • 1 x main active 5" background speaker
  • 1 x satellite passive 5" background speaker

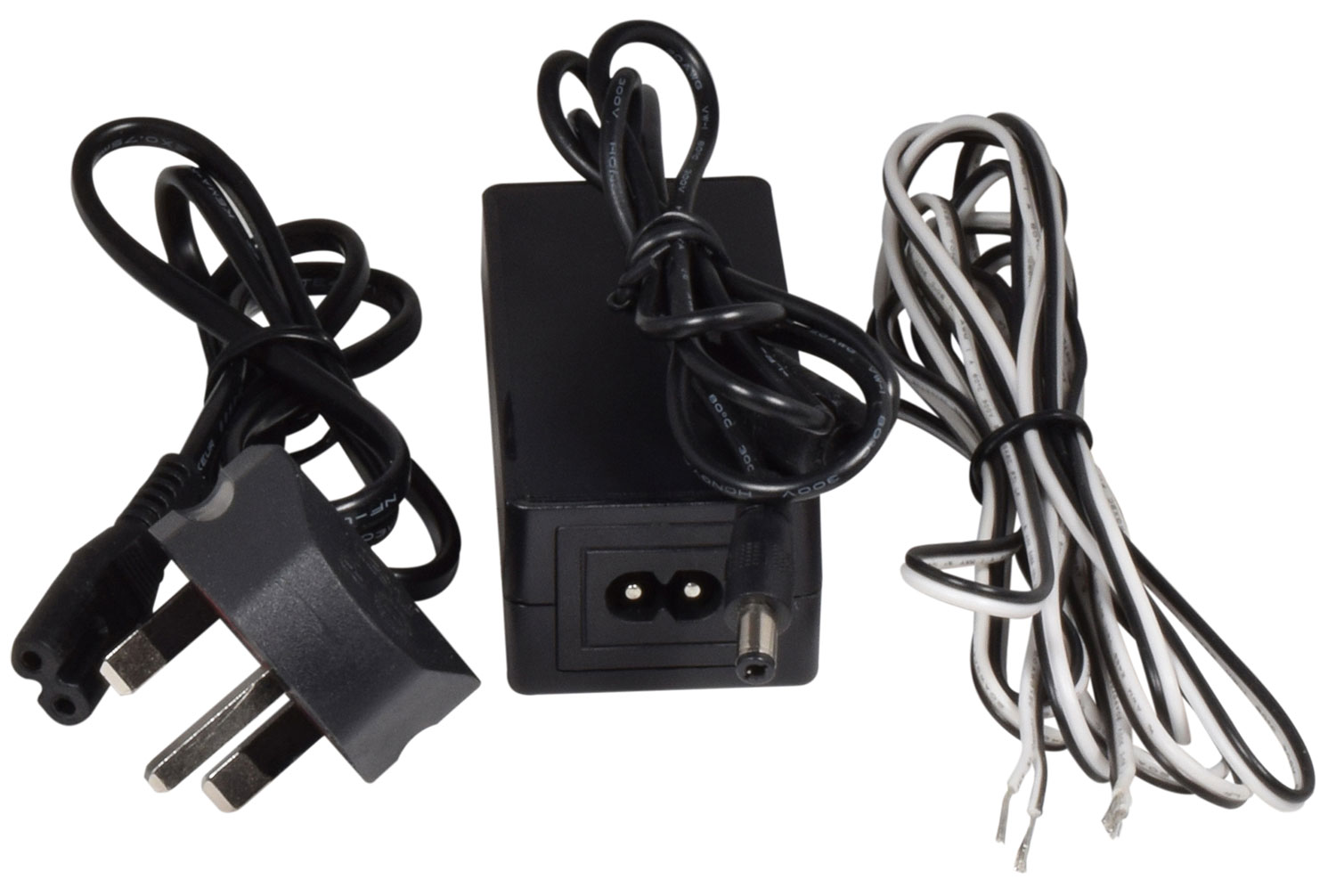

  • 12Vdc 3A in-line mains power adaptor
  • UK plug to fig.8 lead
  • 2 x wall-mounting brackets
  • 4 x M6 hex socket screws
  • 4 x magnetic screw covers
  • 4 x alternative M6 screw caps
  • 1 x hex key
