CSP Series Compact Powered Mixers with DSP

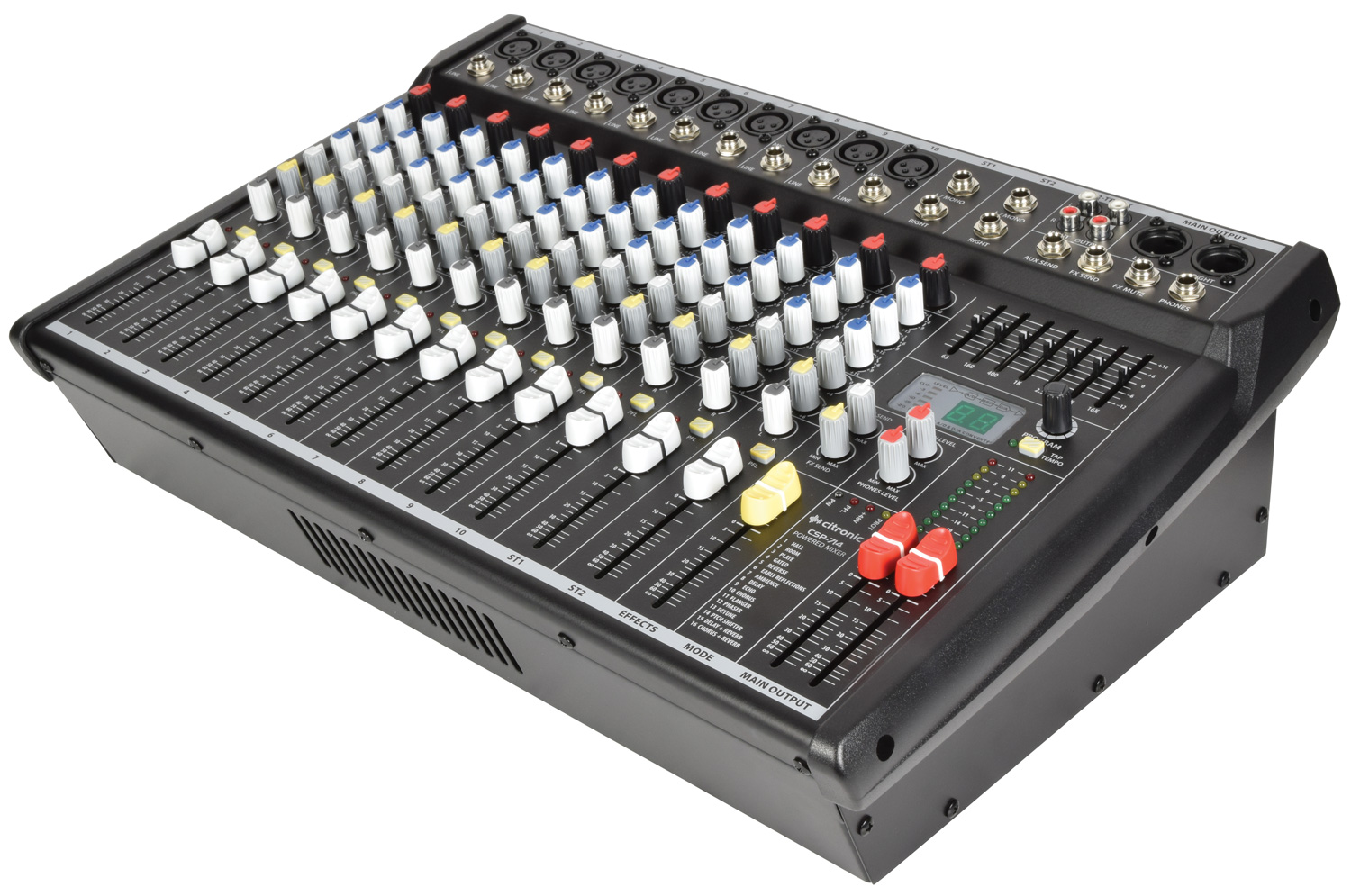

170.845UK CSP-714

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilita...

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
Description Version Packed
170.841UK
CSP-408 powered mixer 400W
8 input, 2 x 200W Box Label
170.843UK
CSP-410 powered mixer 400W
10 input, 2 x 200W Box Label
170.845UK
CSP-714 powered mixer 700W
14 input, 2 x 350W Box Label

CSP Series Compact Powered Mixers with DSP

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • Internal stereo power amplifier
  • Balanced main outputs
  • Power supply 230Vac 50Hz (IEC)

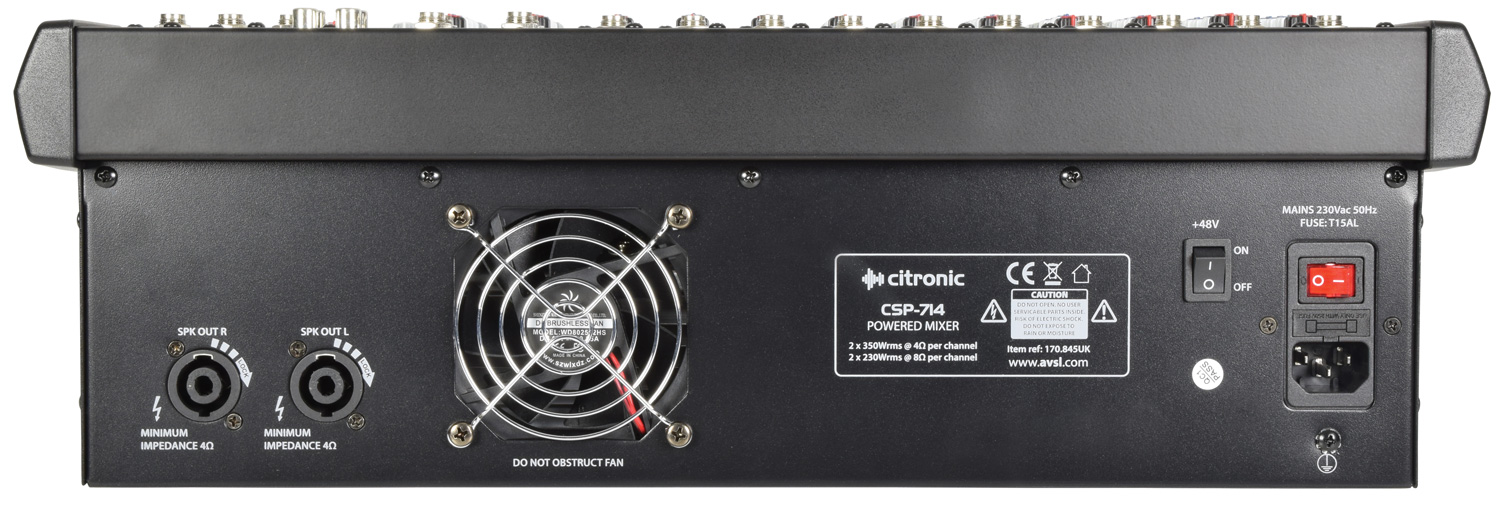

  • Speaker : outputs L+R SPK connectors
  • Effects 16 program DSP (24-bit sigma-delta, 40khz)
  • Phantom power +48V (XLR inputs)
  • Frequency response 20Hz-30kHz (0.5dB)
  • Input level +24dBu
  • Output level : line +26dBu
  • CMRR >74dB (mic 1kHz)
  • THD +N <0.01% (channel to main out)
  • Crosstalk >85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
  • EQ: high 12kHz ±15dB shelving
  • EQ: mid 2.5kHz ±15dB band pass
  • EQ: low 80Hz ±15dB shelving
  • Input impedance : mic (balanced) 2k Ohms
  • Input impedance : line (balanced) 10k Ohms
  • Sensitivity : mic -60 to +14dBu
  • Sensitivity : line -40 to +14dBu
  • 2-track 2 x RCA in & out (-2dBu)
  • Output impedance <75 Ohms
  • Headphone output 6.3mm jack, 30-600 Ohms

Versions

  170.841UK 170.843UK 170.845UK
Power consumption 600W 600W 1000W
Fuse T10A (5 x 20mm, 250V) T10A (5 x 20mm, 250V) T15A (5 x 20mm, 250V)
Output power @ 4 Ohms 2 x 200Wrms 2 x 200Wrms 2 x 350Wrms
Output power : 8 Ohms 2 x 130Wrms 2 x 130Wrms 2 x 230Wrms
Inputs : mic/line 4 x balanced XLRF/TRS jack 6 x balanced XLRF/TRS jack 10 x balanced XLRF/TRS jack

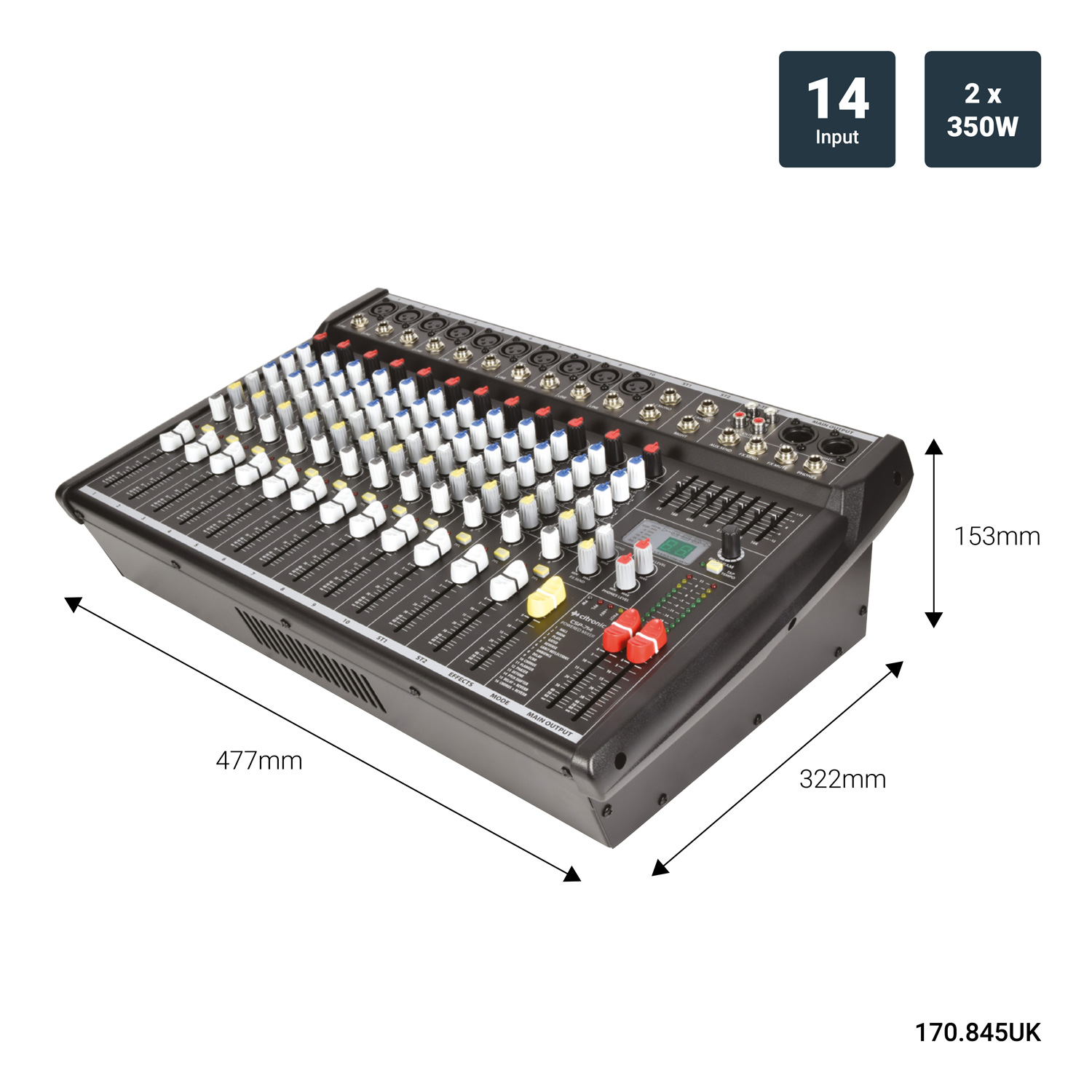

Dimensions 315 x 322 x 153mm 369 x 322 x 153mm 477 x 322 x 153mm
Weight 6.80kg 7.35kg 10.40kg

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

What is a DSP?

Tuesday, 24th March 2020

In the box

The box for this item contains :

  • CSP-series powered mixer
  • IEC power lead(s)

Downloads

Instruction manual
For 170.845UK (1.7MB)
UK Declaration of conformity
For 170.845UK (250KB)
EU Declaration of conformity
For 170.845UK (238KB)
