DJ Mixer 2 Channel
172.752UK
PRO-2 MKII
The PRO-2 MKII is a straightforward traditional two-channel mixer with a solid build quality and an uncluttered layout. It has high quality faders, sturdy rotaries and includes a dedicated micropho...
- 2 channel, 5 input mixer - 2 phono, 2 line, 1 mic
- Individual gain controls
- 2 band music EQ with up to 35dB cut per channel
| Description | |
|---|---|
|
172.752UK
Pro-2 MKII DJ Mixer 2-Channel |
DJ Mixer 2 Channel

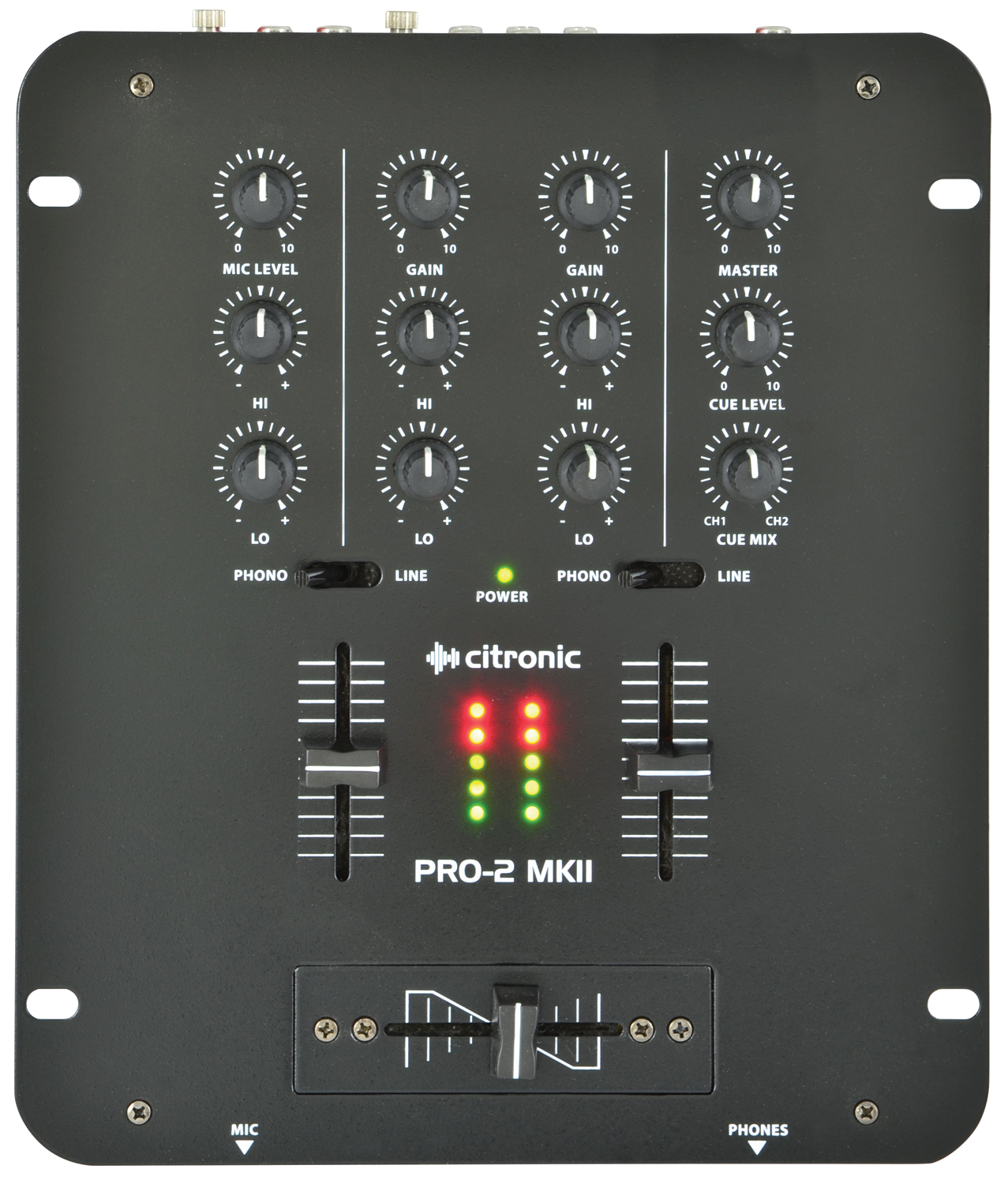

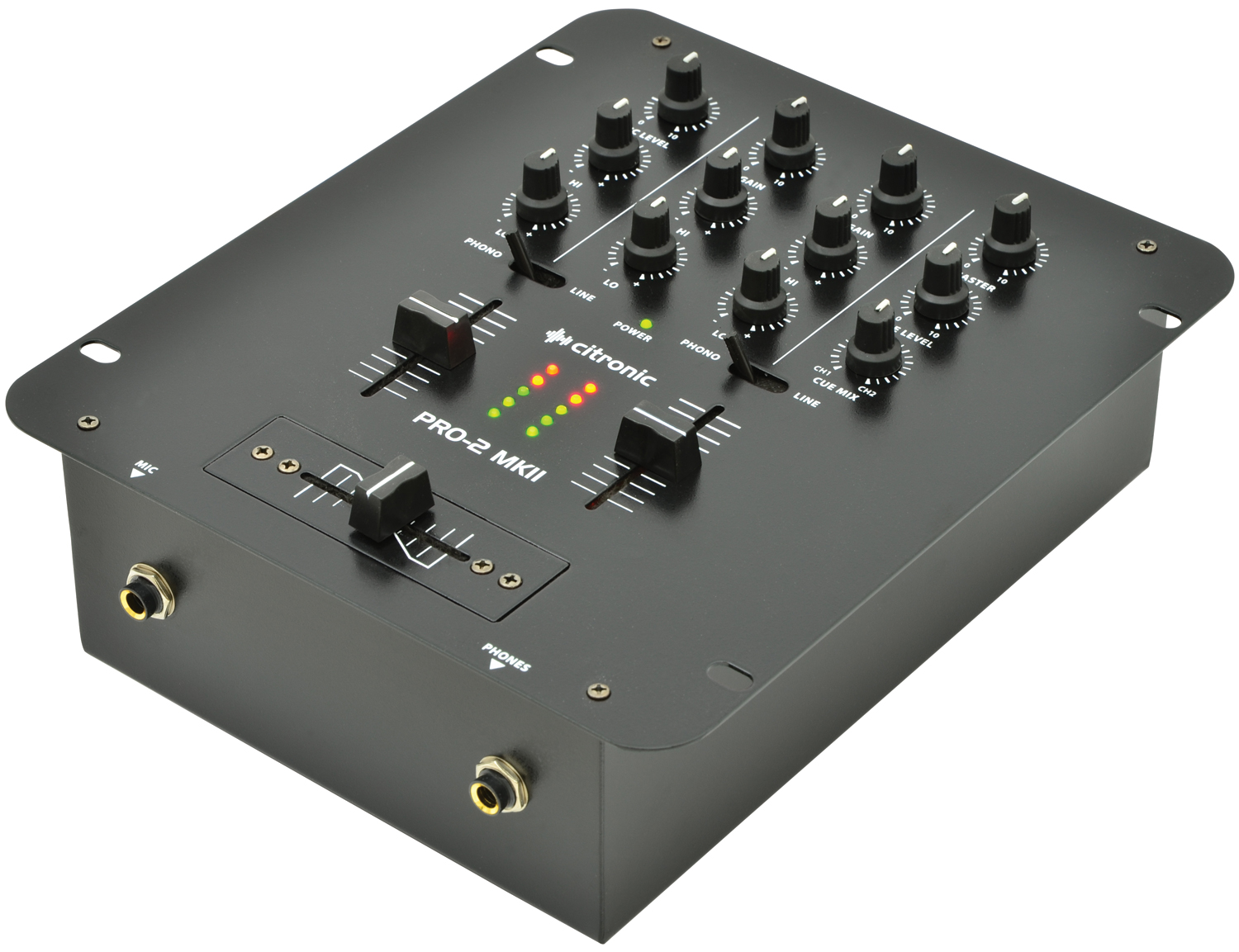

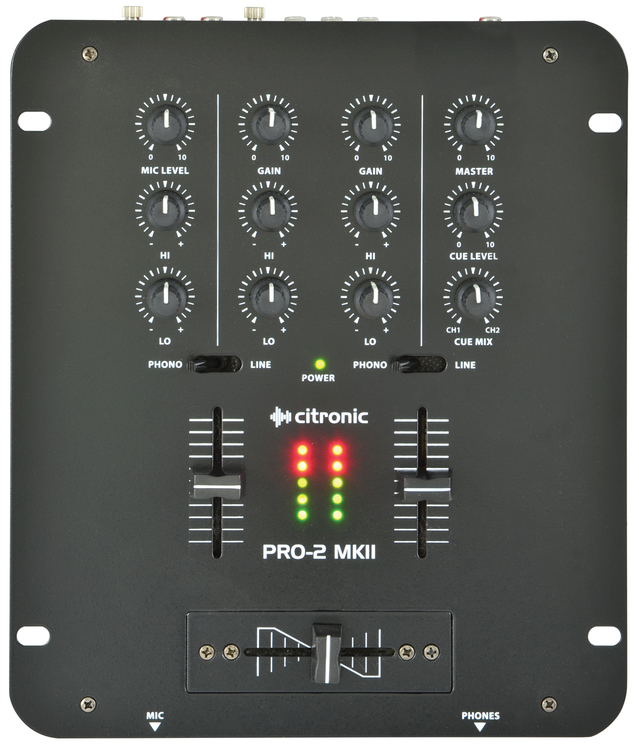

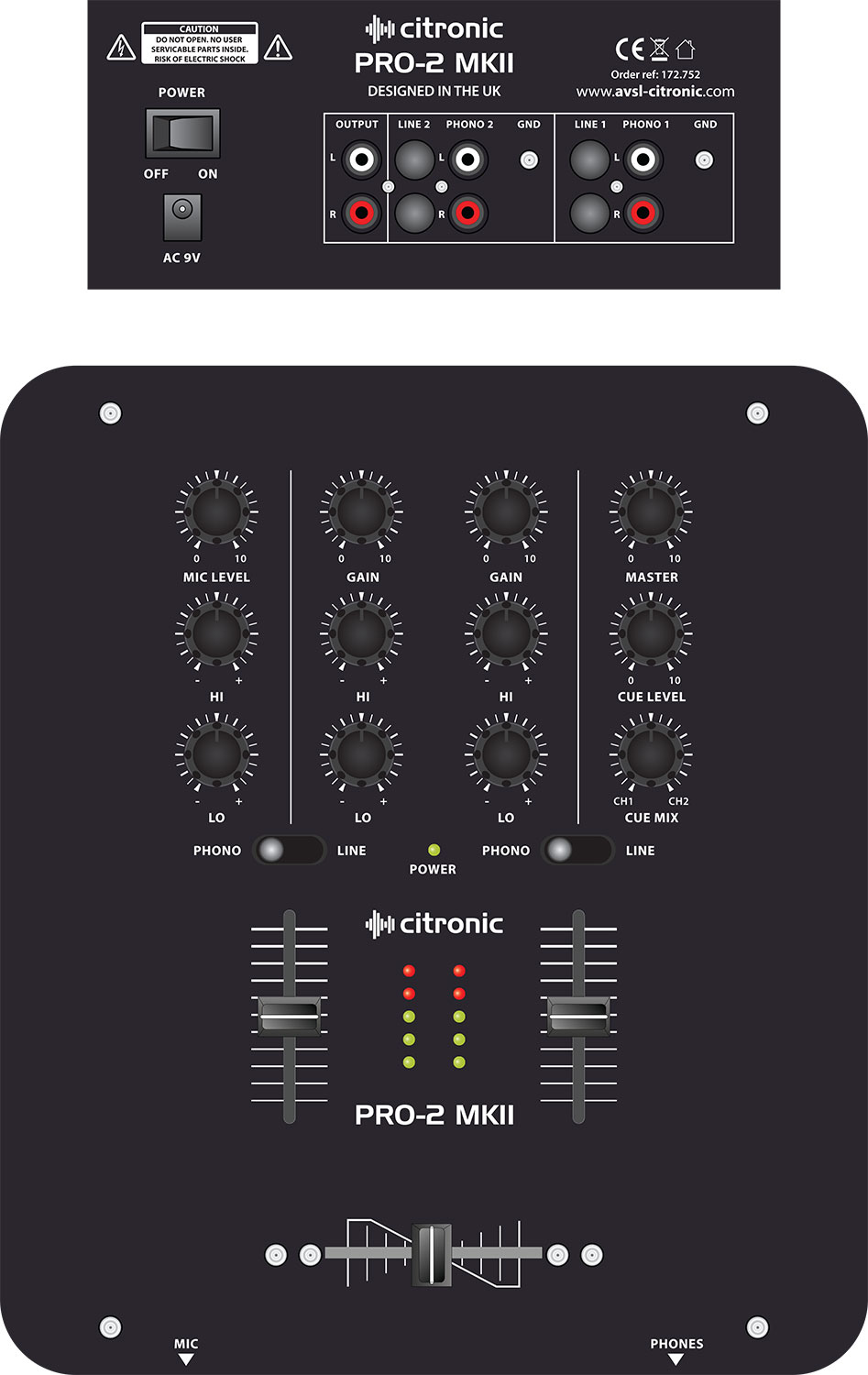

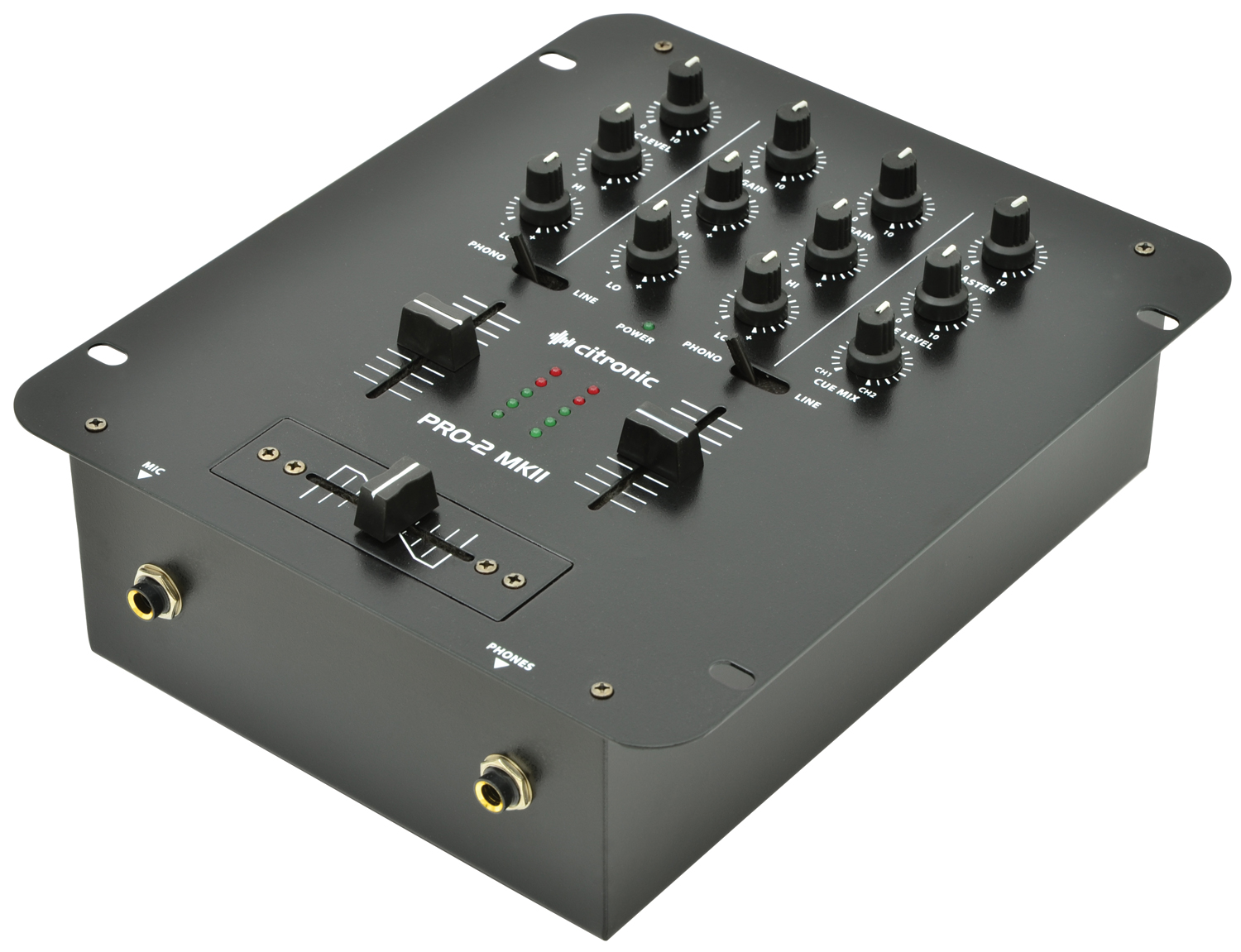

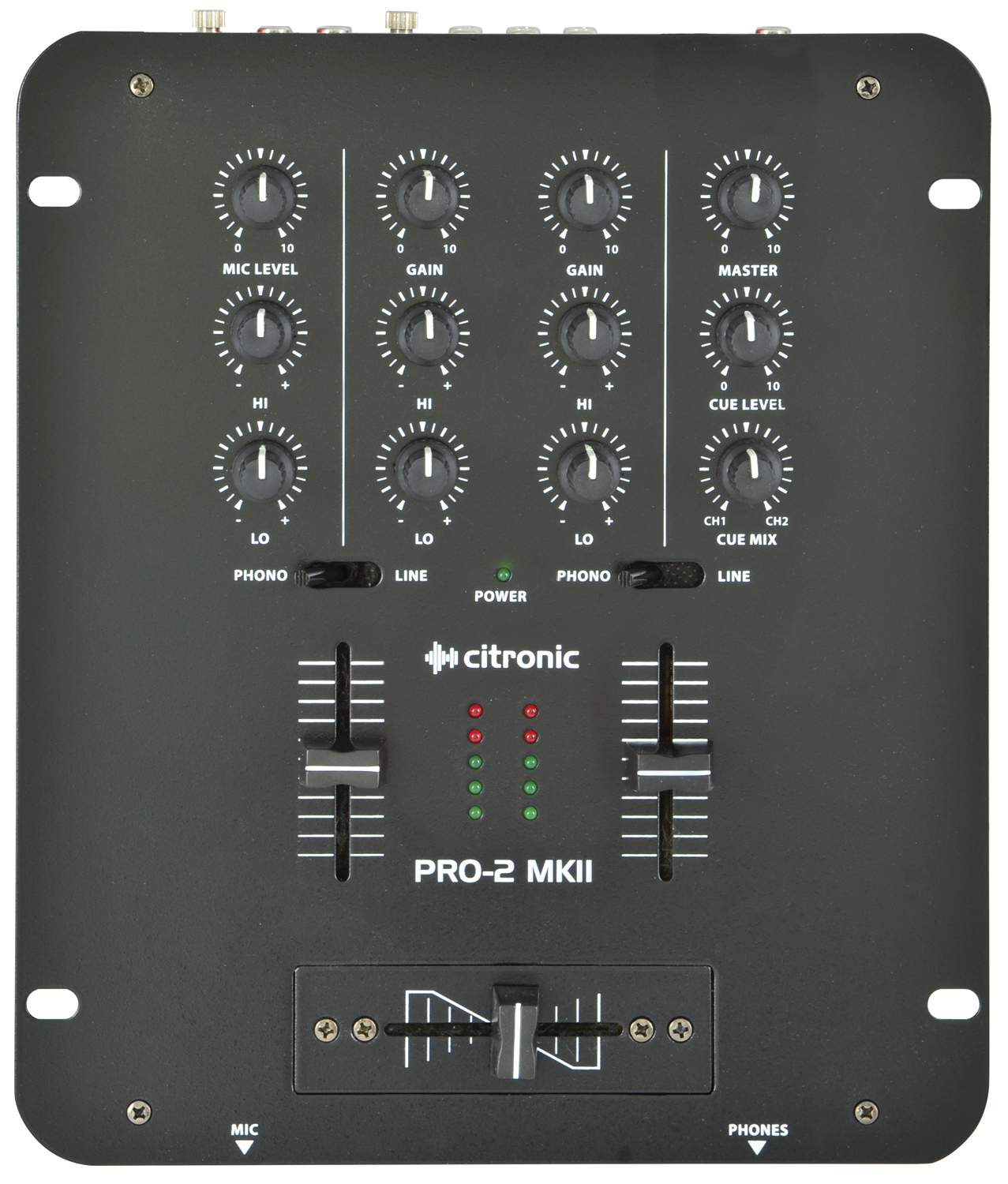

The PRO-2 MKII is a straightforward traditional two-channel mixer with a solid build quality and an uncluttered layout. It has high quality faders, sturdy rotaries and includes a dedicated microphone input with two-band EQ and level control. The monitor section features a rotary control to switch between channels 1 and 2 allowing the user to have a mix of both channels at the same time through the headphones.

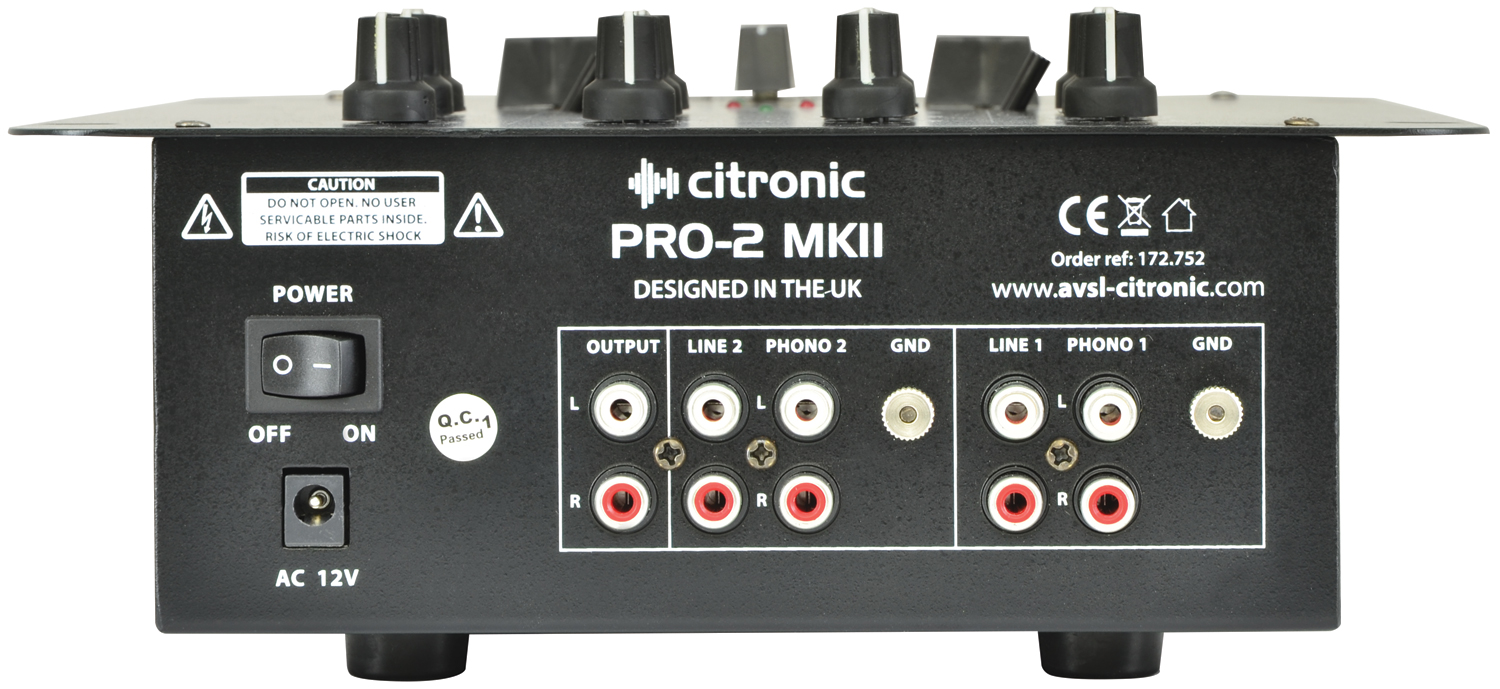

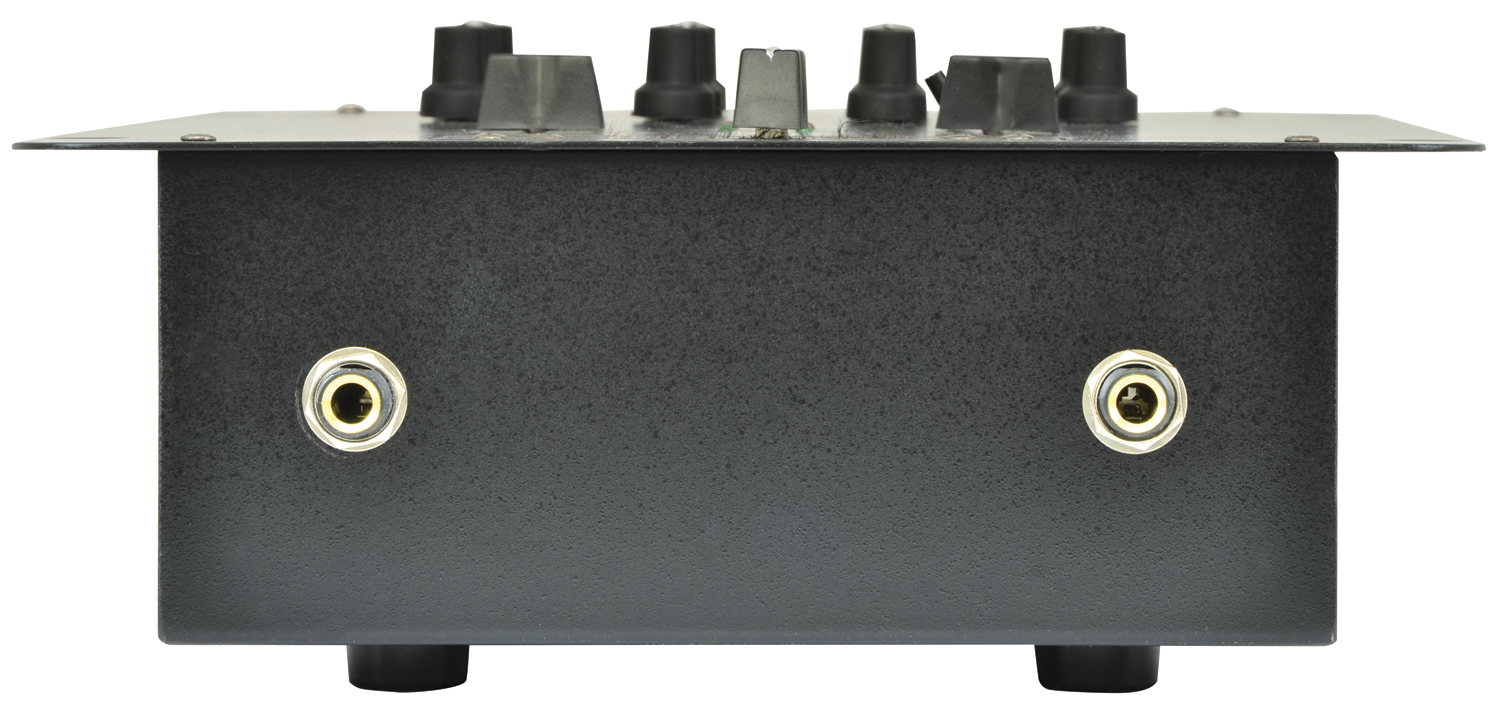

- 2 channel, 5 input mixer - 2 phono, 2 line, 1 mic
- Individual gain controls
- 2 band music EQ with up to 35dB cut per channel
- Dedicated mic channel with 2 band EQ
- Headphone cue mix
- 3-bar LED monitor
- Easy glide replaceable crossfader
Specification
- Power supply 12Vac, 500mA
- Headphone output 32 Ohms, 1.8V (>5dB)
- Input : line -13dB, 47k Ohms (±2dB)
- Input : phono -48dB, 47k Ohms (±2dB)
- Input : DJ Mic -53dB, 6k Ohms (±1dB)
- Output : master RCA 0dB, 470 Ohms (±2dB)
- Output : headphone -3dB/33 Ohms +5dB, ±2dB
- Frequency response : line 20Hz-20kHz ±2dB
- Frequency response : mic 20Hz-20kHz +2, -3dB
- Frequency response : phono 50Hz-20kHz ±1dB (RIAA)
- EQ line : hi +10/-30dB +2/-2dB @ 10kHz
- EQ line : low +10/-30dB +2/-2dB @ 100Hz
- EQ mic : high +12/-12dB +2/-2dB @ 10kHz
- EQ mic : low +12/-12dB +2/-2dB @ 100Hz
- THD >0.2%

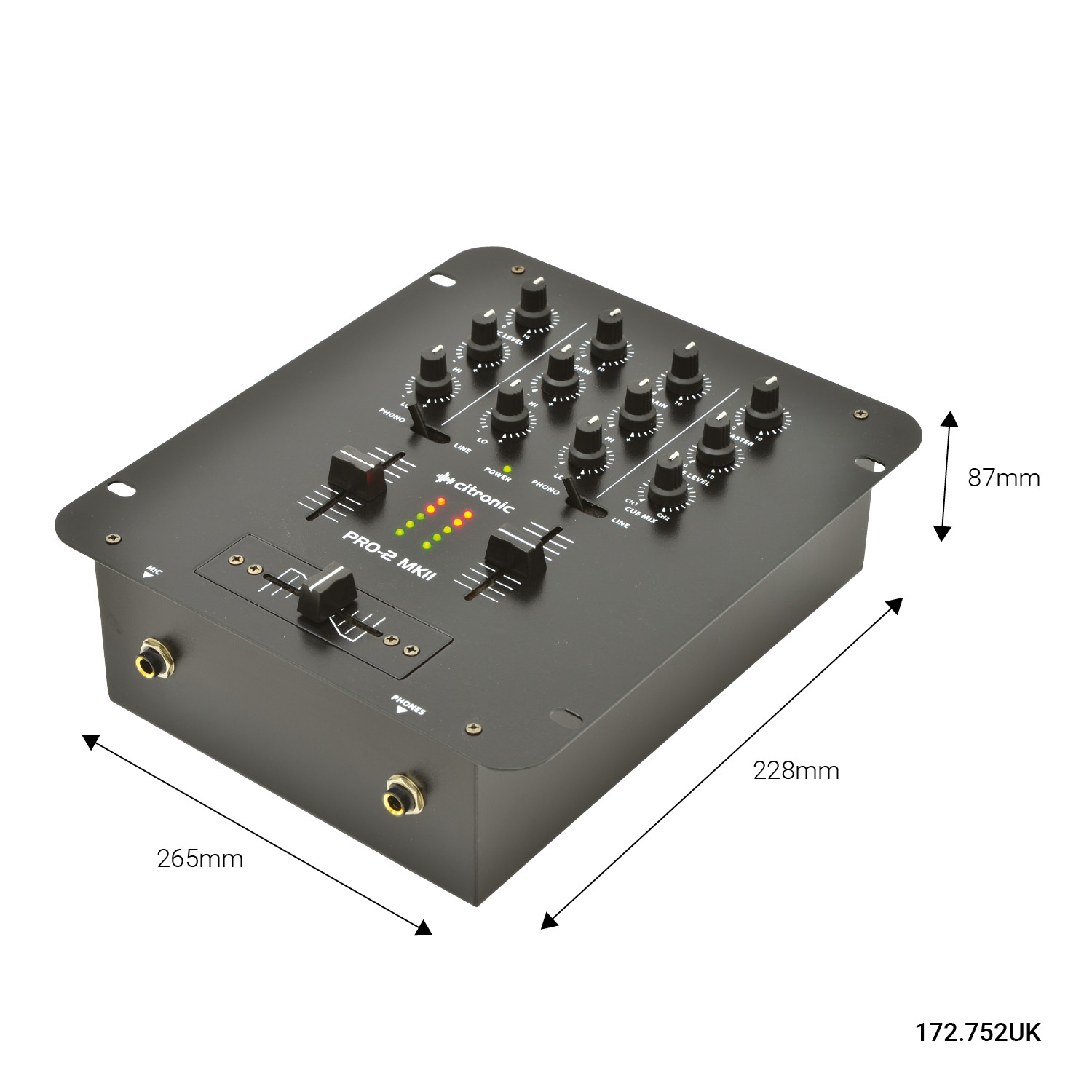

- Dimensions 228 x 265 x 87mm (6U)
- Weight 2.8kg
Trade information
| 172.752UK | |
|---|---|
| Barcode / EAN | 5015972117101 |
| Package type | Box Printed |
| Package dimensions | - |
| Package weight | 3.70kg |
| Package quantity | 1 unit |
| Carton dimensions | 329 x 335 x 155mm |
| Carton weight | 7.40kg |
| Carton quantity | 2 packages |
| Pack plastic weight | 0.05kg |
