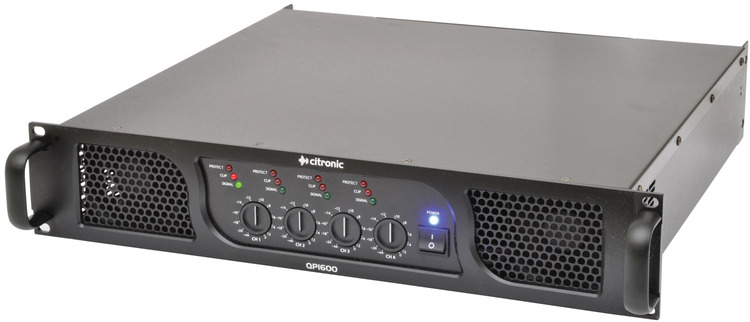

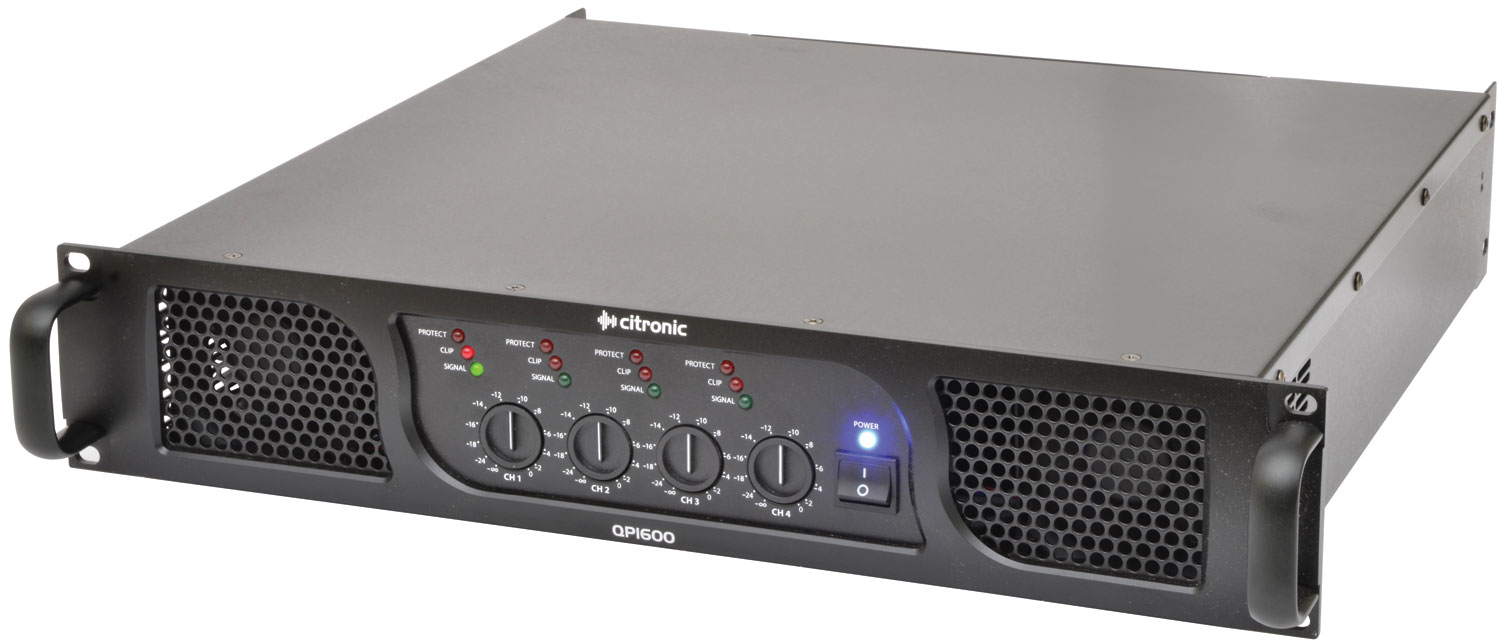

QP Series Quad Power Amplifiers

172.241UK QP1600

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers....

  • Fully balanced signal path
  • Stable down to 2 Ohms
  • 2U rack-mountable
Description Version Packed
172.241UK
QP1600 quad power amp 4 x 400W
4 x 400W Box Label
172.243UK
QP2320 quad power amp 4 x 580W
4 x 580W Box Label

QP Series Quad Power Amplifiers

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

  • Fully balanced signal path
  • Stable down to 2 Ohms
  • 2U rack-mountable

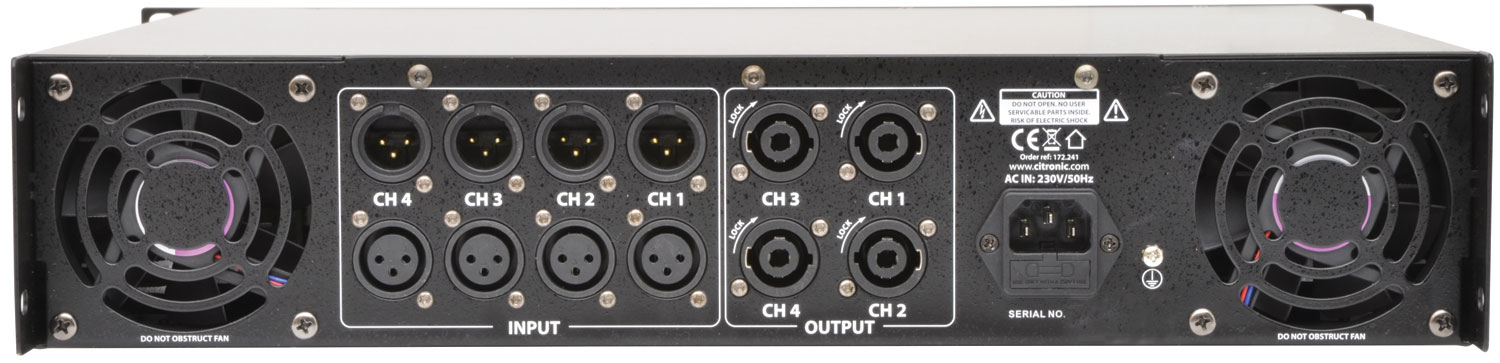

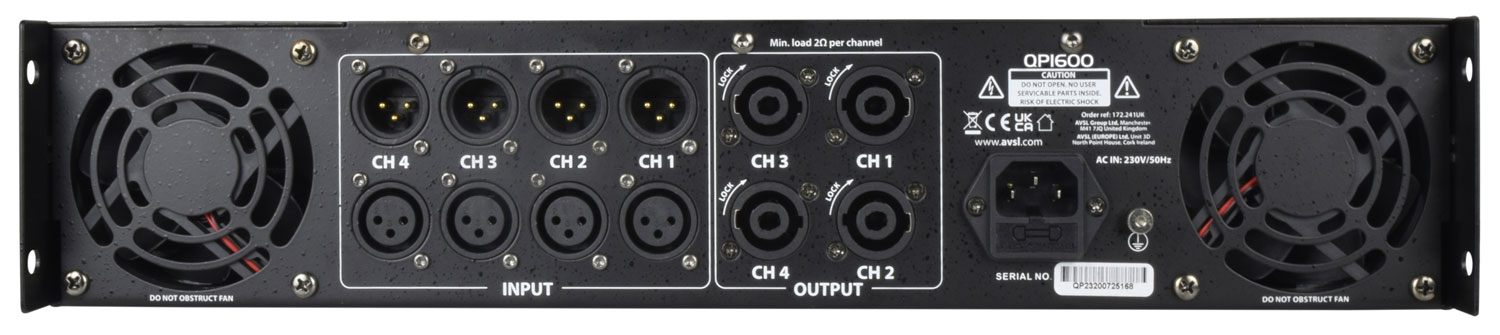

  • Speaker : outputs 4 x SPK connectors
  • Power supply 230Vac, 50Hz (IEC)
  • Input : line 4 x XLRF balanced
  • Output : line 4 x XLRM (parallel from inputs)
  • Input impedance 20k Ohms
  • Frequency response 5Hz - 50kHz
  • THD 0.05%
  • Slew rate 40V/usec
  • S/N ratio 103dB

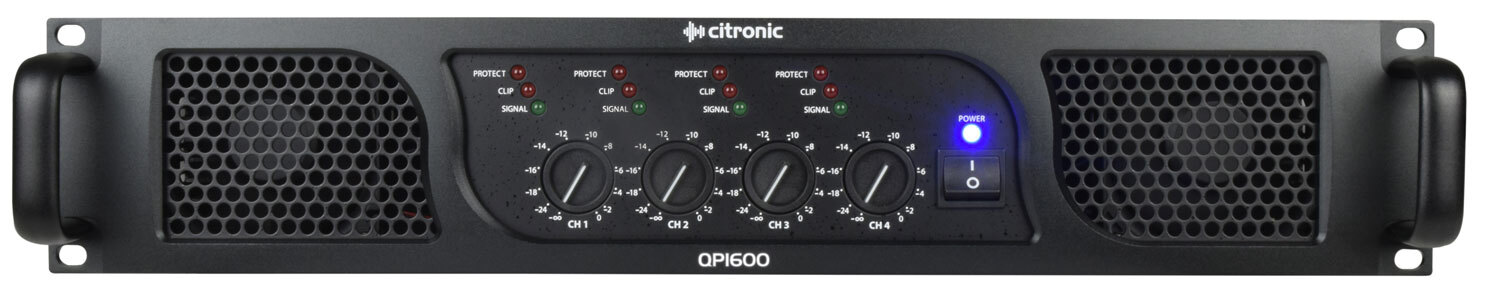

  • Controls 4 x channel gain
  • Circuit protection Short-circuit, DC, overload, soft-start
  • Dimensions 483 x 439 x 88mm
  • Input sensitivity 0dB @ 0.775Vrms

Versions

  172.241UK 172.243UK
Fuse rating F8A F12A
Power rms @ 8 Ohms 4 x 200W 4 x 300W
Power rms @ 4 Ohms 4 x 300W 4 x 450W
Power rms @ 2 Ohms 4 x 400W 4 x 580W
Weight 22kg 23.5kg
