Ace of Tone Dual Stacked Overdrive Pedal

173.376UK Ace of Tone

Ace of Tone is a dual stacked overdrive pedal, combining the Morning Star and Tubeman circuits into a single unit with independent controls and foot switches. Each overdrive has its own character, ...

  • Independent control and 2 stacking options
  • 18V multiplier option for greater dynamic range
  • Switchable true or buffered bypass
Description Version Packed
173.376UK
Ace of Tone Dual Overdrive Pedal
Ace of Tone Gift Box

Ace of Tone Dual Stacked Overdrive Pedal

Ace of Tone is a dual stacked overdrive pedal, combining the Morning Star and Tubeman circuits into a single unit with independent controls and foot switches. Each overdrive has its own character, with the Tubeman based on a classic overdrive circuit with a mid-focussed tone and the Morning Star having a more transparent natural sounding overdrive. Either drive section can be switched in independently or combined with 2 options for Tubeman stacked into Morning Star or Morning Star stacked into Tubeman. A switch on the rear panel selects buffered or true bypass and another can enable a voltage multiplier circuit to deliver 18V for increased dynamic range. Holding either foot switch activates an extra feature. Fat mode on the Tubeman produces increased bass. Shine mode on the Morning Star delivers increased treble. In summary, here are two classic overdrives which can combine in different ways to help you discover your own signature grit and lead tones.

  • Independent control and 2 stacking options
  • 18V multiplier option for greater dynamic range
  • Switchable true or buffered bypass
  • Power supply 9Vdc, 100mA (min) pin-negative (not included)

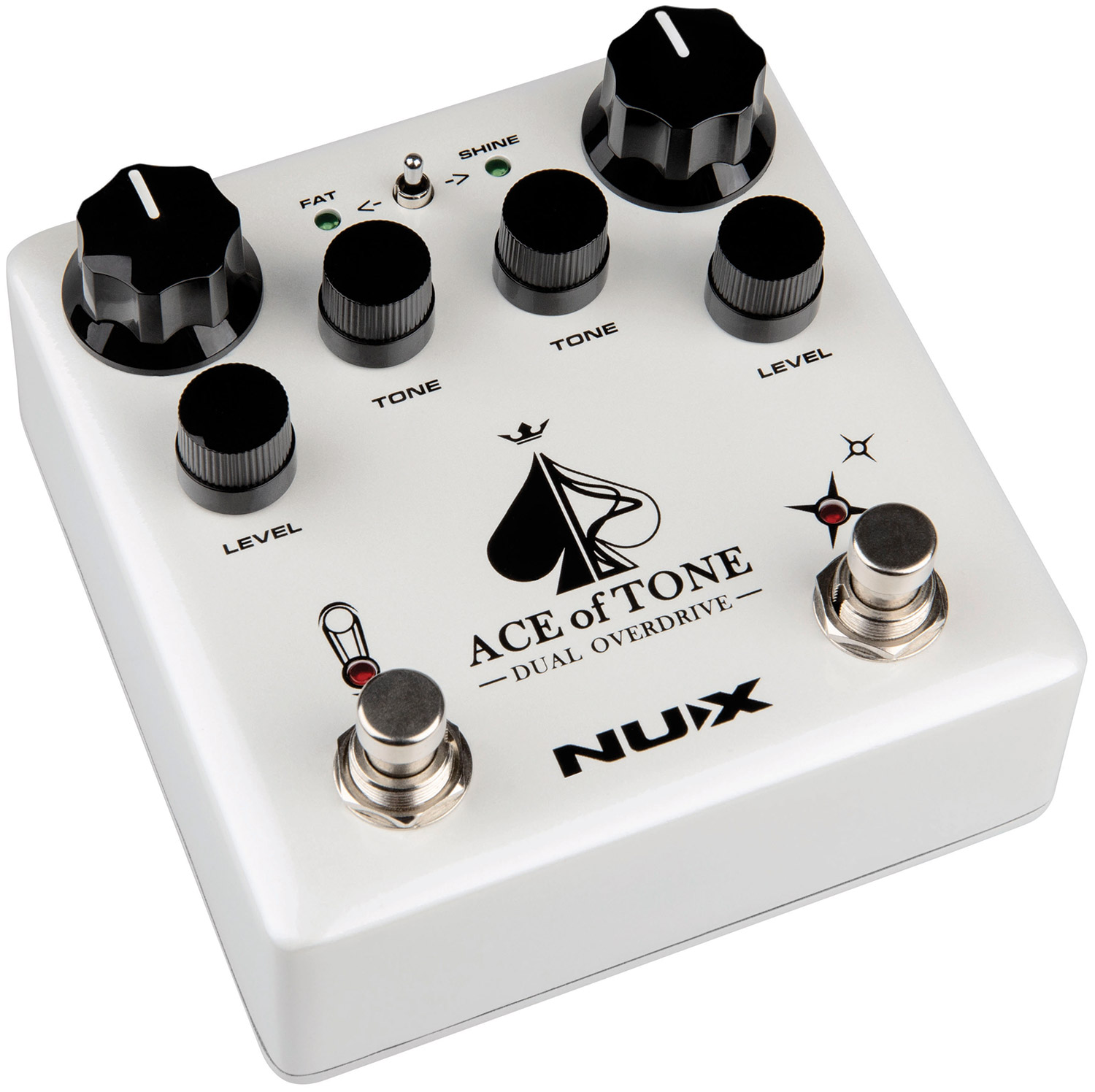

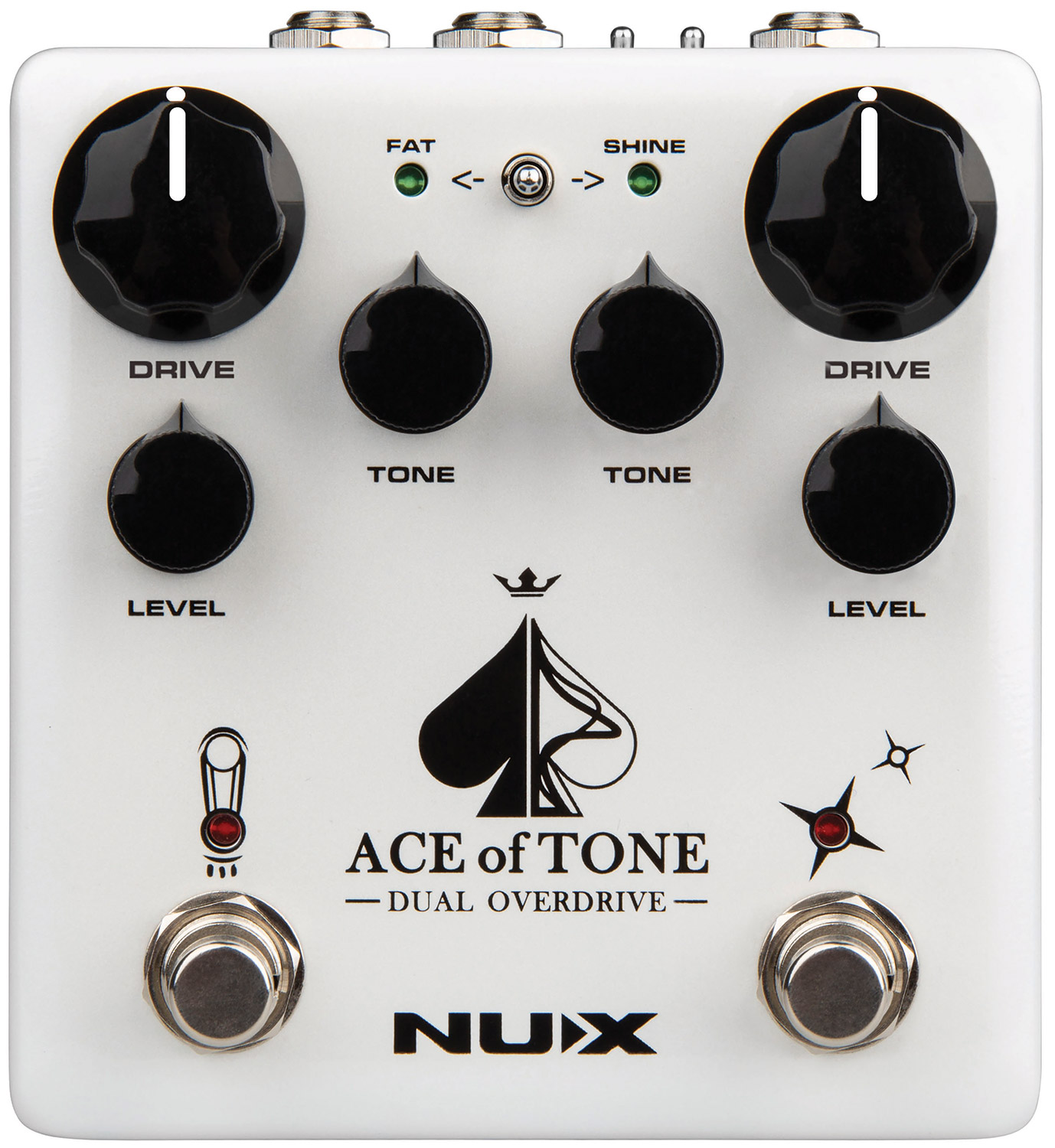

  • Controls Drive x 2, Level x 2, Tone x 2

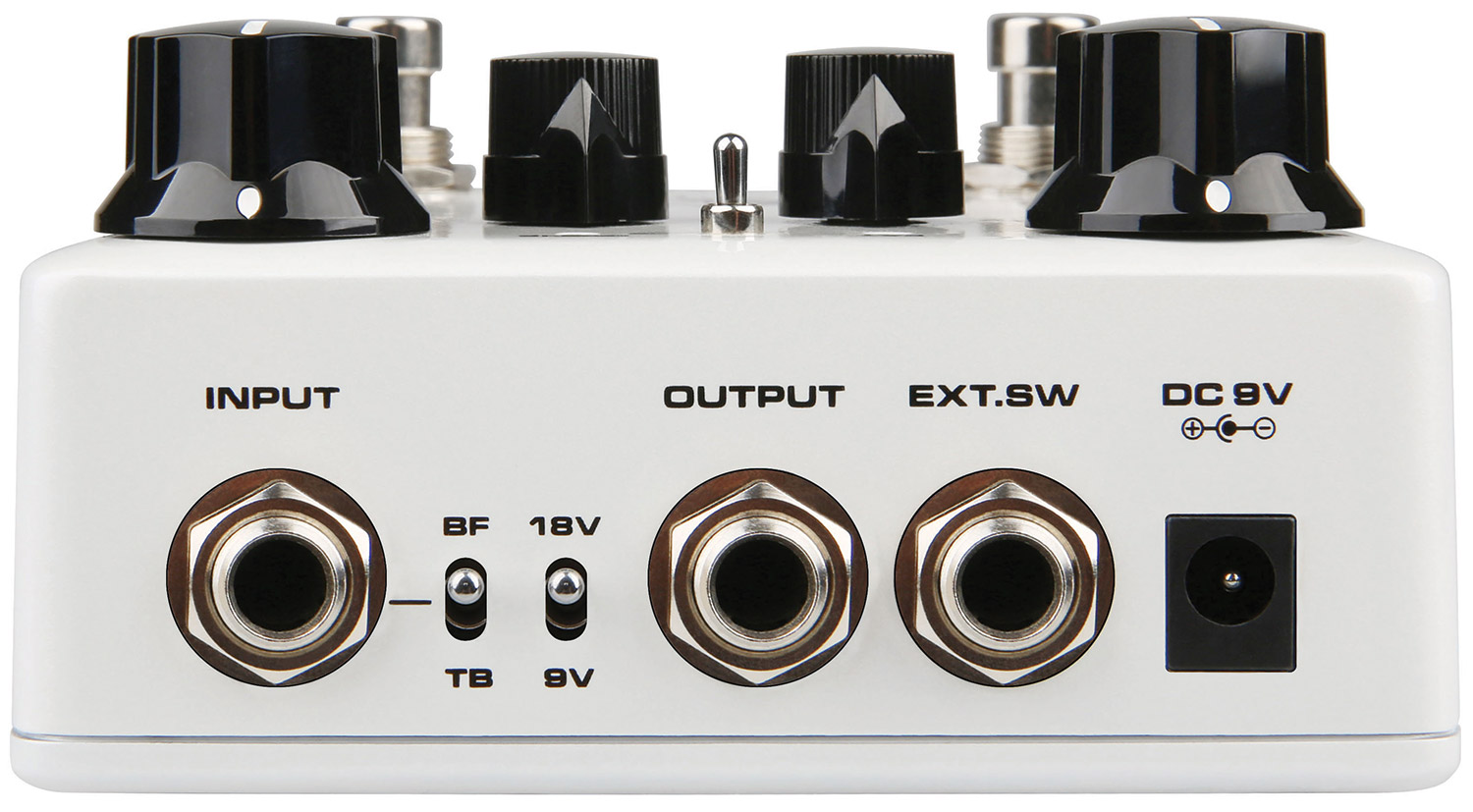

  • Switch selectors Buffered or true bypass, internal 9V-18V and stacking mode
  • Dimensions 115 x 105 x 58mm
  • Weight 440g

In the box

The box for this item contains :

  • NU-X Ace of Tone overdrive pedal

Downloads

UK Declaration of conformity
For 173.376UK (243KB)
EU Declaration of conformity
For 173.376UK (234KB)
