B-6 Wireless Saxophone Microphone System 2.4GHz

173.385UK B-6

B-6 is a 2.4GHz wireless microphone system specifically designed for saxophone players. The clip-on transmitter adjusts to attach to the bell of any standard saxophone. A flexible gooseneck microph...

  • License-free, dynamic 2.4GHz operation
  • High definition, low latency digital audio
  • Supplied in rechargeable power case
Description Version Packed
173.385UK
B-6 Wireless Saxophone System 2.4GHz
B-6 Gift Box

B-6 Wireless Saxophone Microphone System 2.4GHz

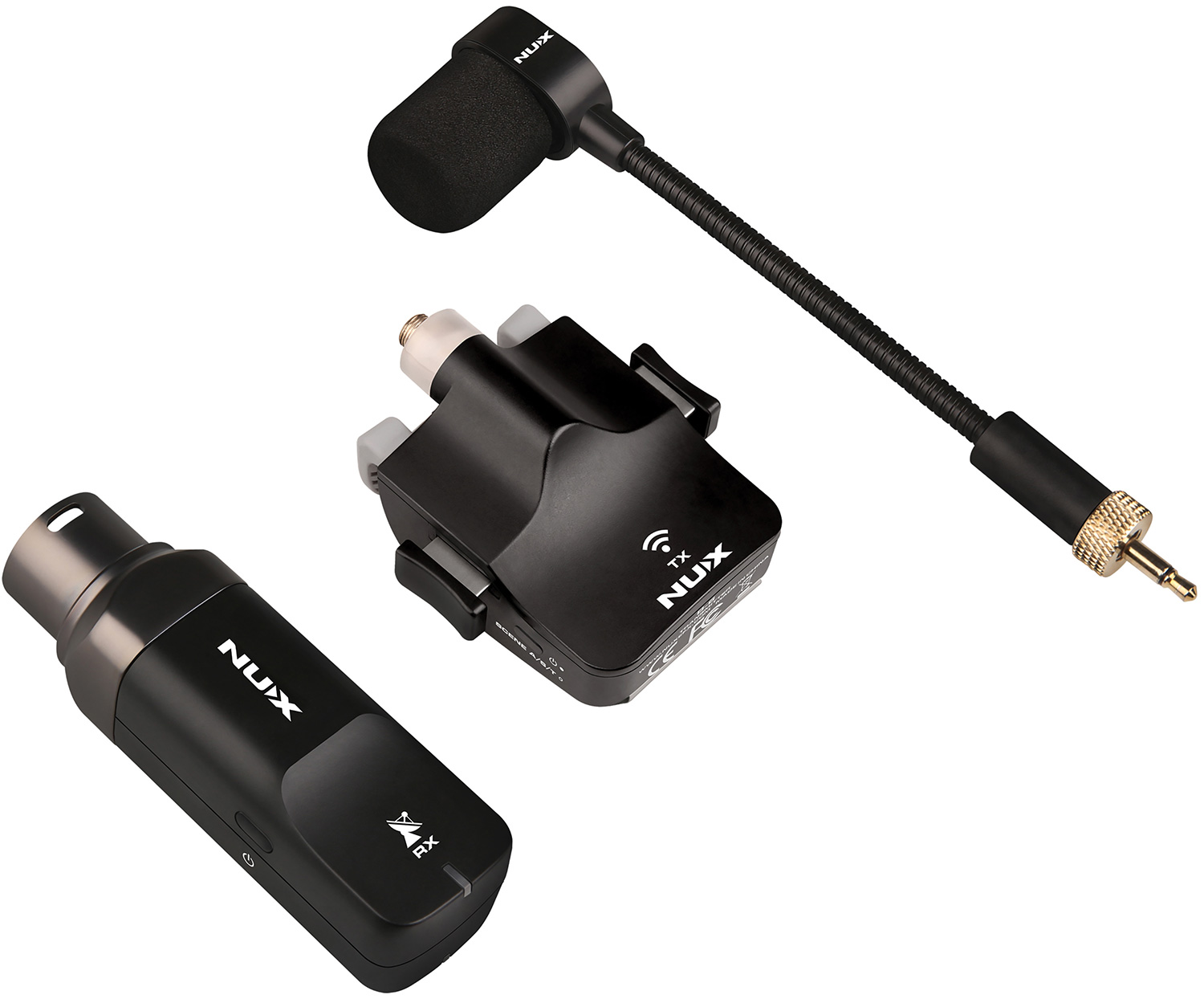

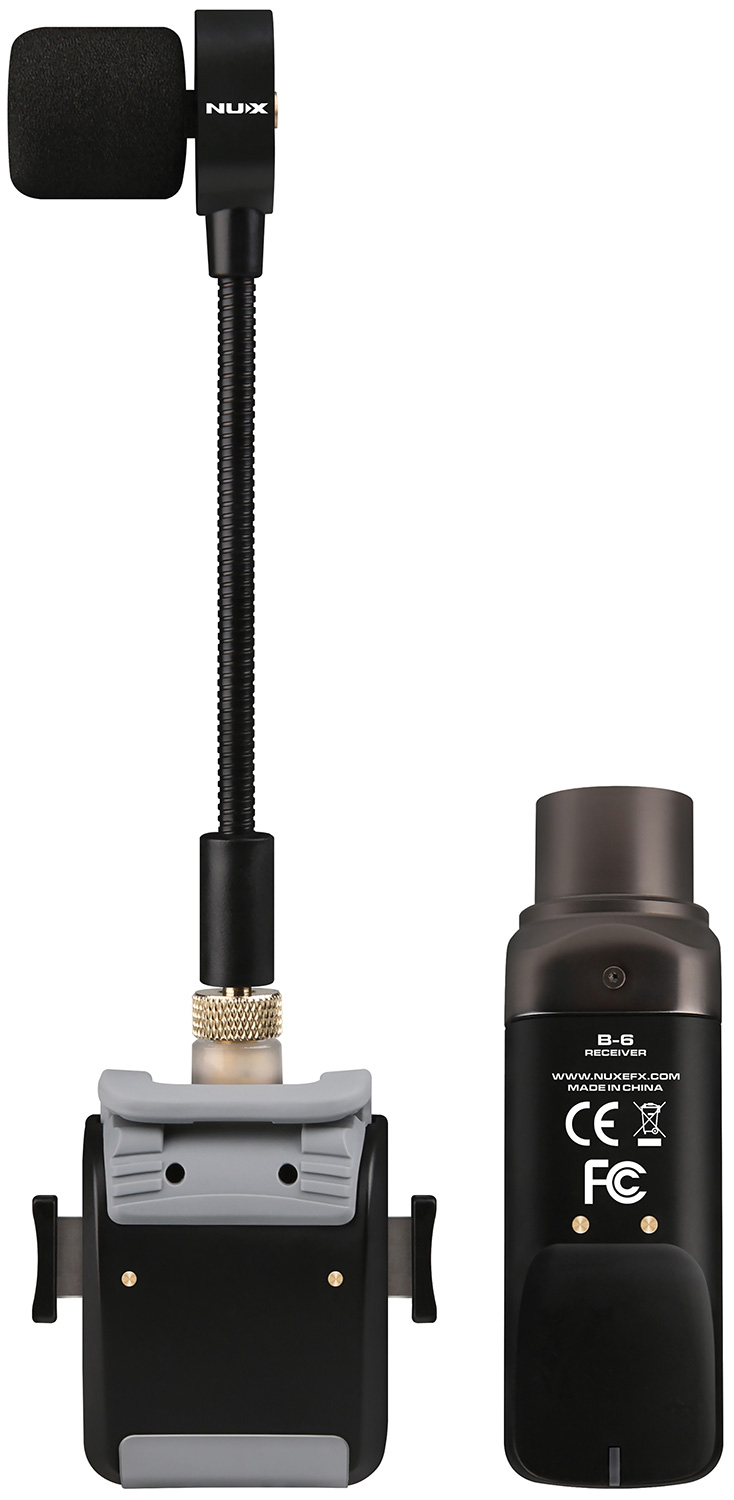

B-6 is a 2.4GHz wireless microphone system specifically designed for saxophone players. The clip-on transmitter adjusts to attach to the bell of any standard saxophone. A flexible gooseneck microphone connects to the transmitter and locks in place to be directed for optimum sound pickup. The microphone is a ustom designed electret condenser capsule with special tuning and precision suspension to avoid keying noise and unwanted resonant frequencies. 3 voicing modes are available to delilver the best sound performance for Tenor, Alto and Soprano instruments. The receiver is a convenient XLRM plug-in type for connection to a microphone input on a mixing console or amplifier. The system will auto-pair when powered up and seek the best carrier to maintain a stable connection. Both transmitter and receiver are rechargeable and are supplied in a power case, which re-charges both when stored and can recharge itself via a standard USB type-C port. B-6 is the designed to provide freedom, convenience and no-fuss operation for saxophone players that don't want to be tied to the mic stand.

  • License-free, dynamic 2.4GHz operation
  • High definition, low latency digital audio
  • Supplied in rechargeable power case
  • Voicing scenes for Tenor, Alto or Soprano saxophone
  • Auto-pairing and battery saving mode
  • Power supply Rechargeable via 5V USB or power case
  • Batteries 3.7Vdc 500mAh RX/TX, 3000mAh power case
  • Battery life Up to 7 hours playing time
  • Carrier frequency 2.4GHz license-free band
  • Wireless range Up to 20m line-of-sight
  • Audio format Digitally encoded 24-bit, 44.1kHz
  • Latency <4ms
  • Frequency response 20Hz - 20kHz
  • THD +N Less than 0.2% 1kHz @-10dbFS
  • Capsule Custom voiced electret condenser
  • Dimensions : transmitter 60 x 53 x 31mm
  • Dimensions : receiver 80 x 25 x 25mm
  • Dimensions 153 x 113 x 55mm (in power case)
  • Weight 389g (in power case)

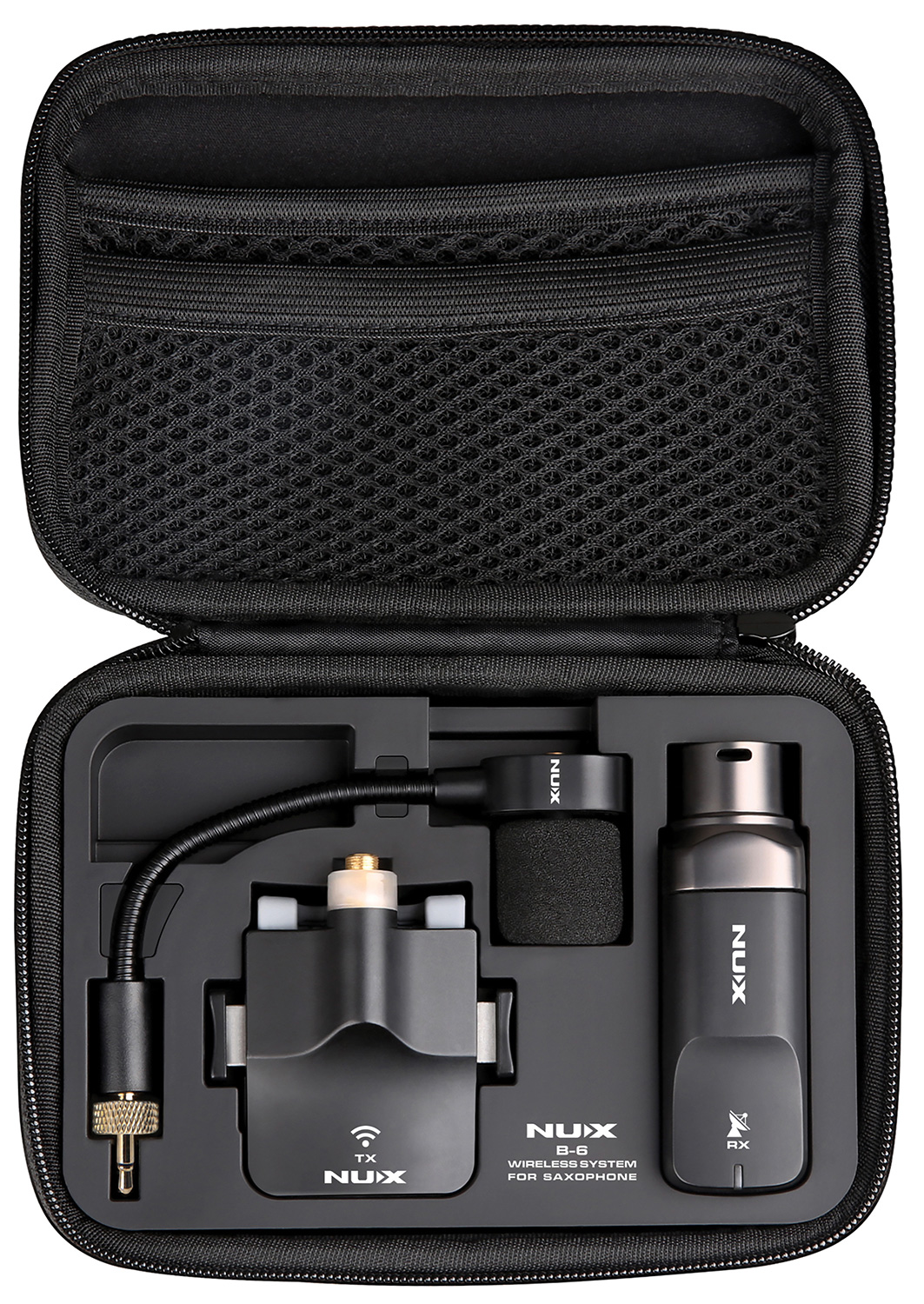

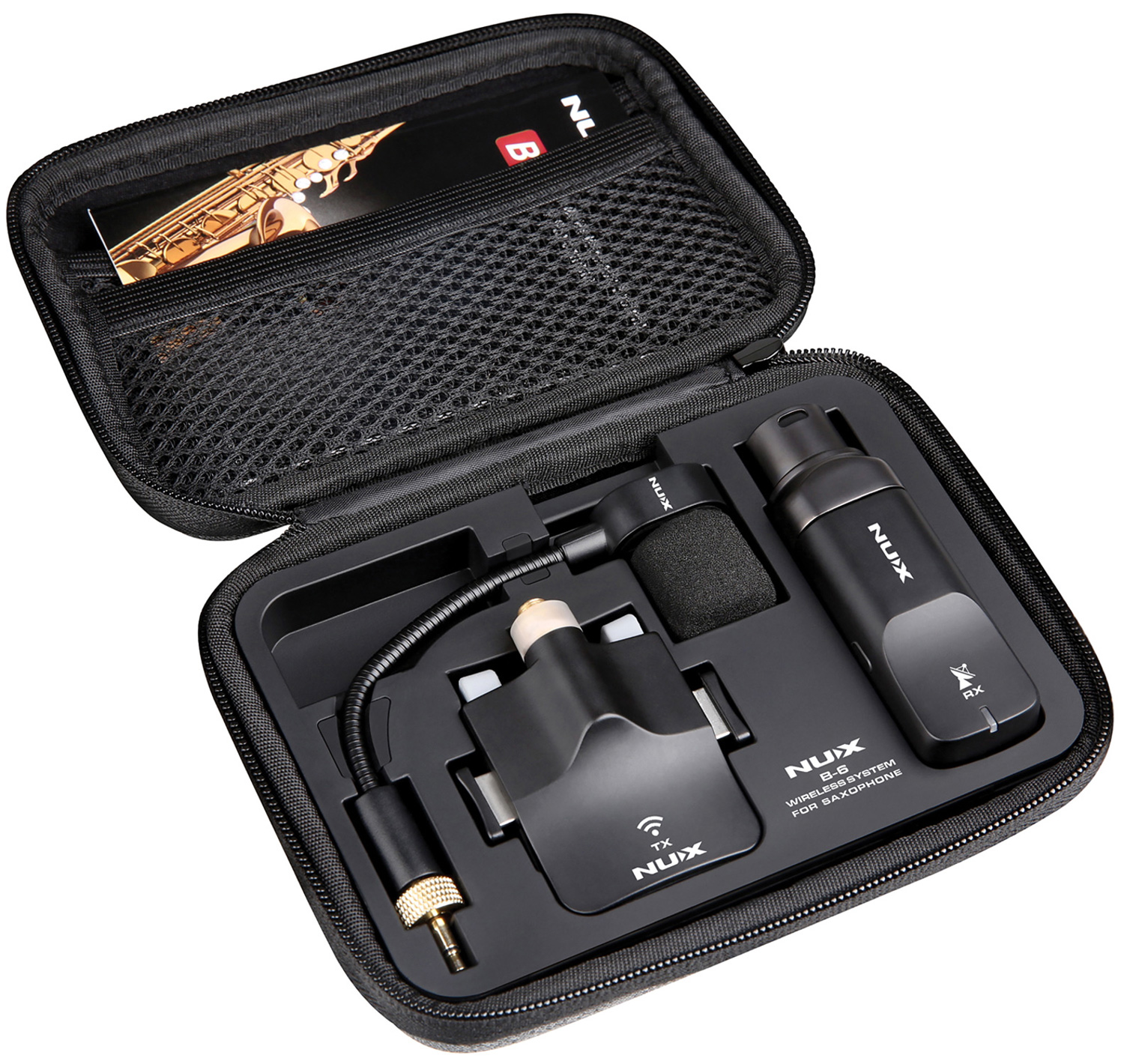

In the box

The box for this item contains :

  • Custom gooseneck condenser microphone
  • Clip-on rechargeable transmitter
  • XLRM plug-in receiver

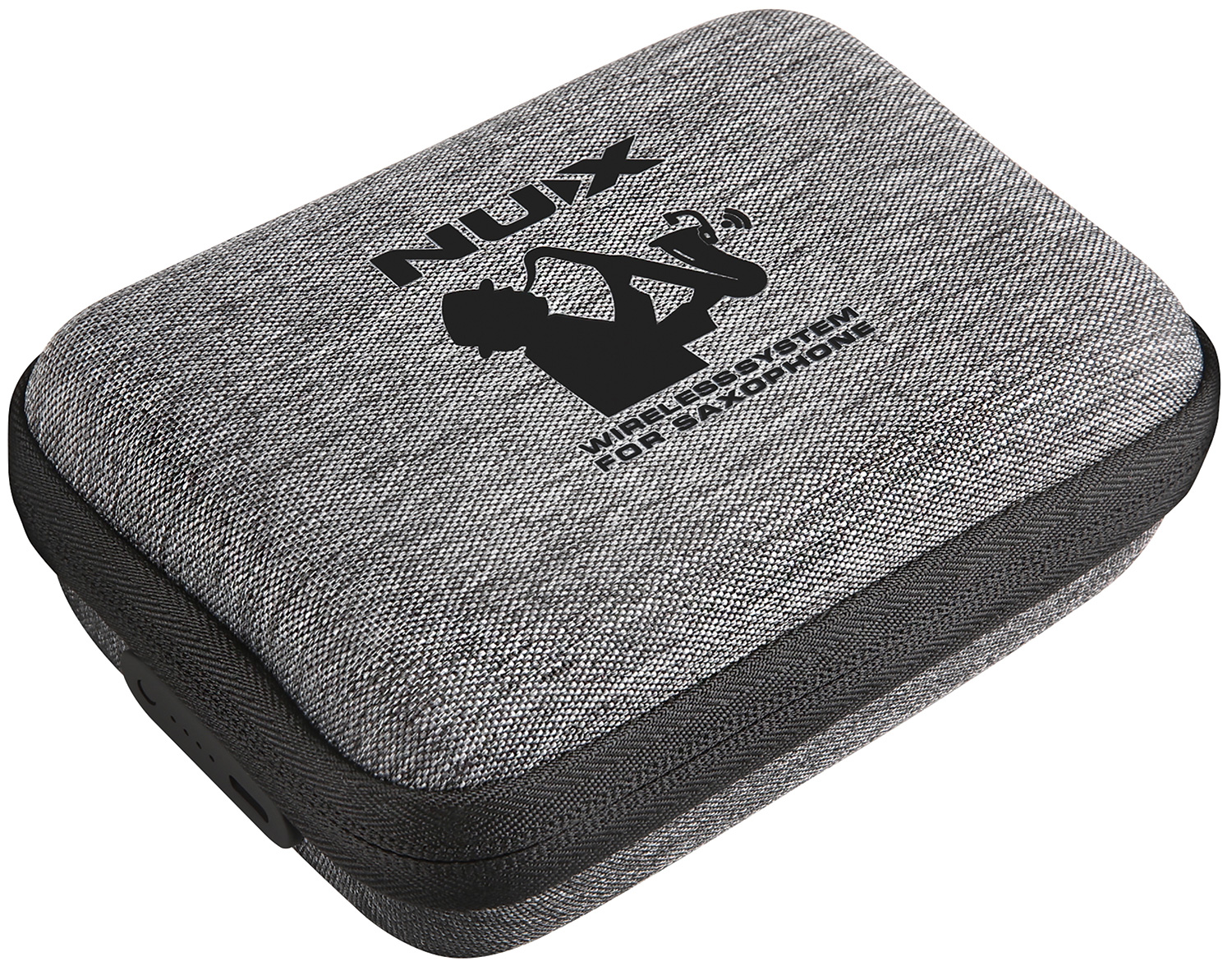

  • Rechargeable power case
  • Y-splitter USB type-C charging lead

Downloads

Instruction manual
For 173.385UK (4.9MB)
UK Declaration of conformity
For 173.385UK (253KB)
EU Declaration of conformity
For 173.385UK (243KB)
