DM-310H Digital Drum Kit

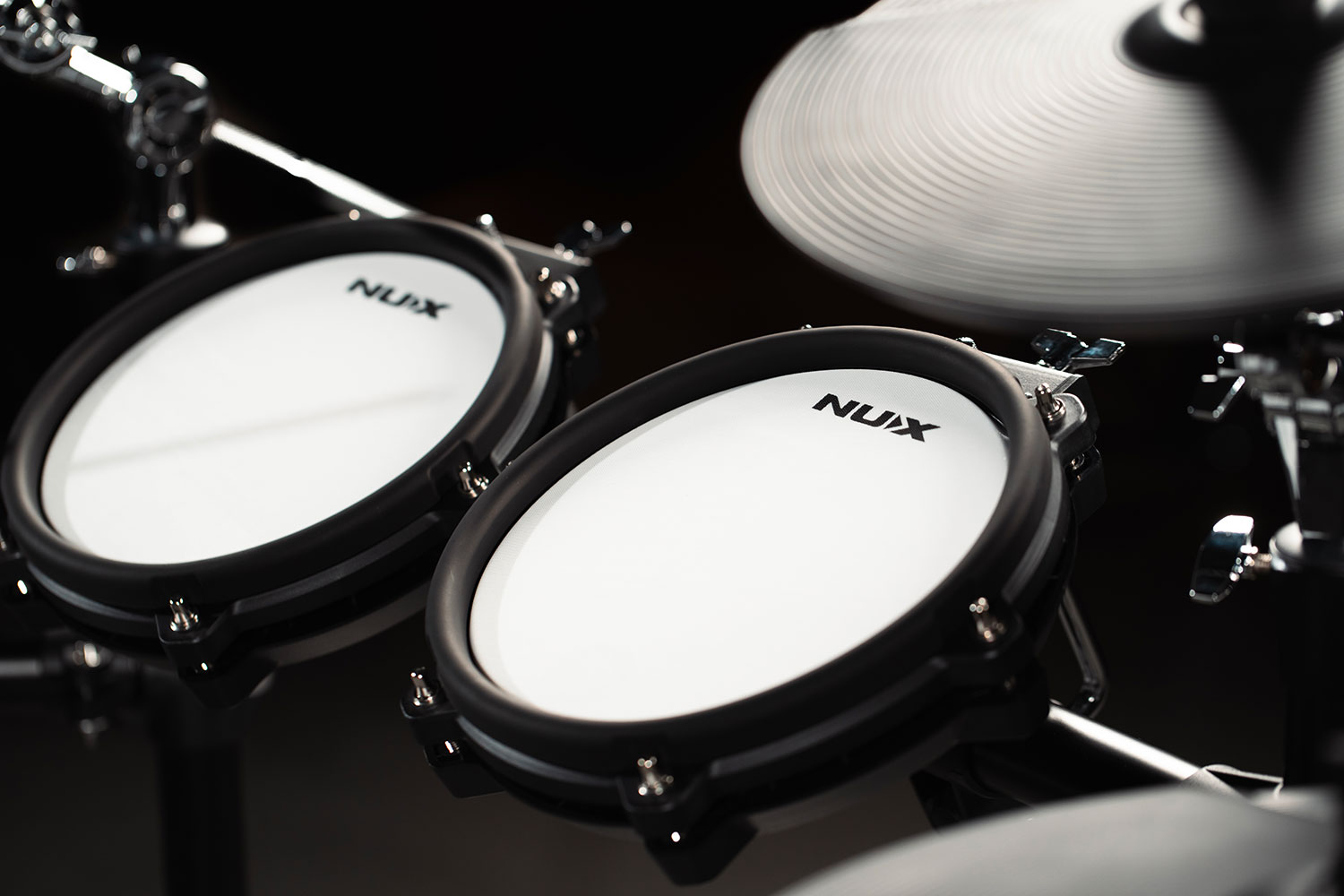

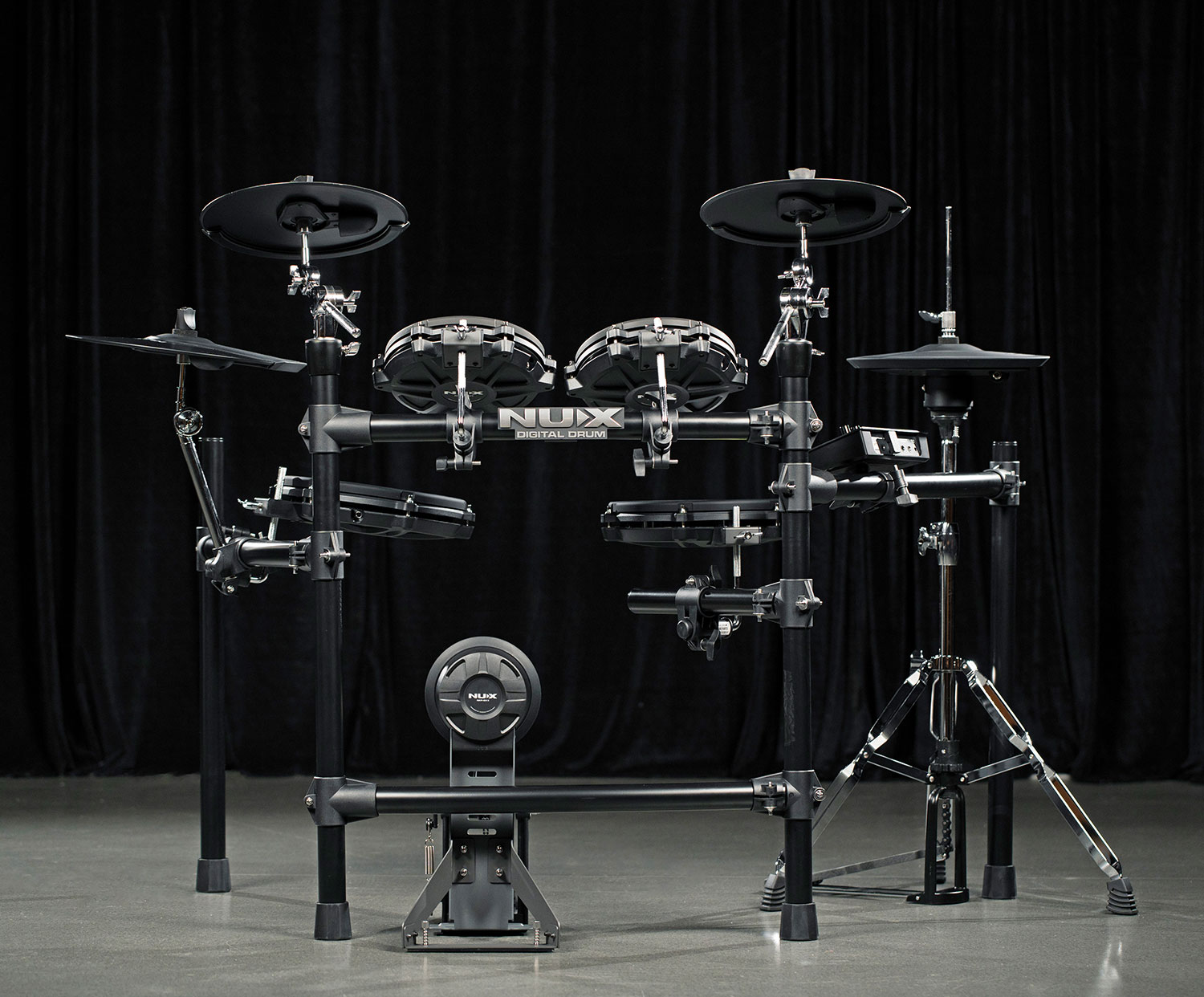

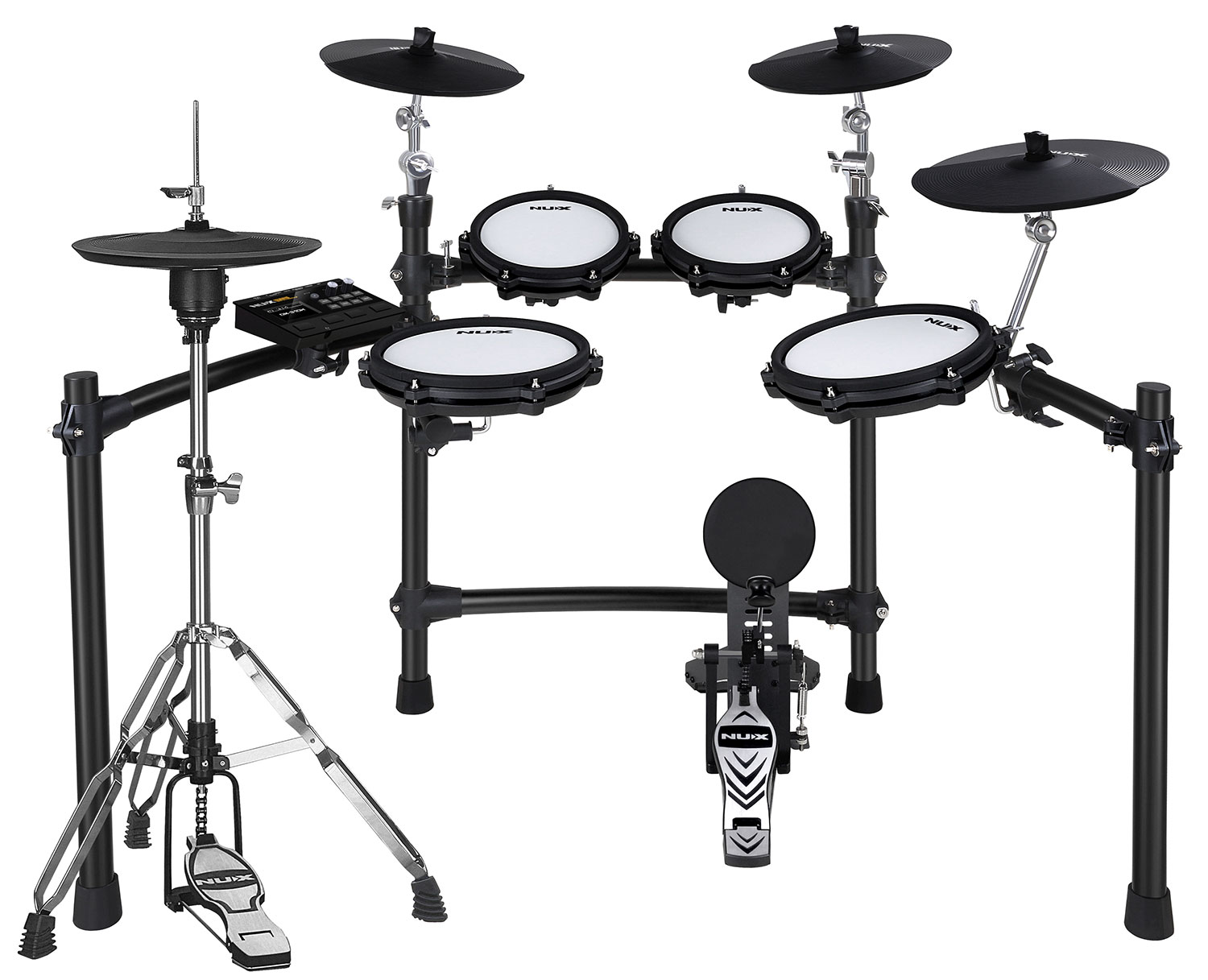

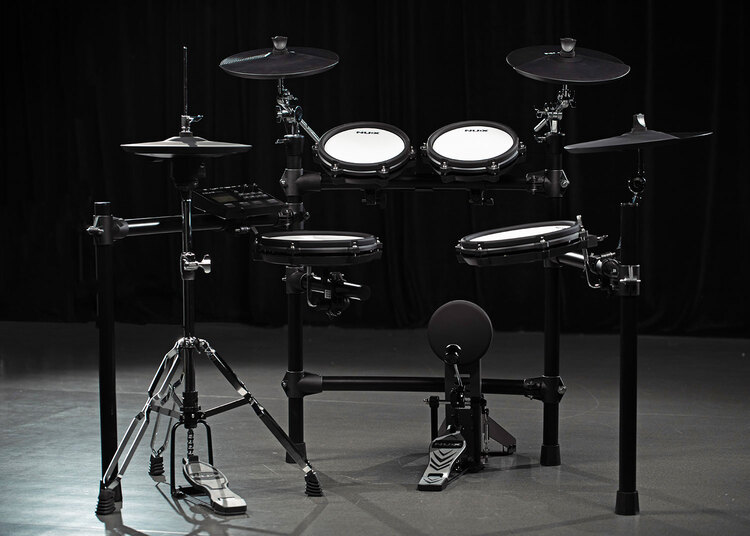

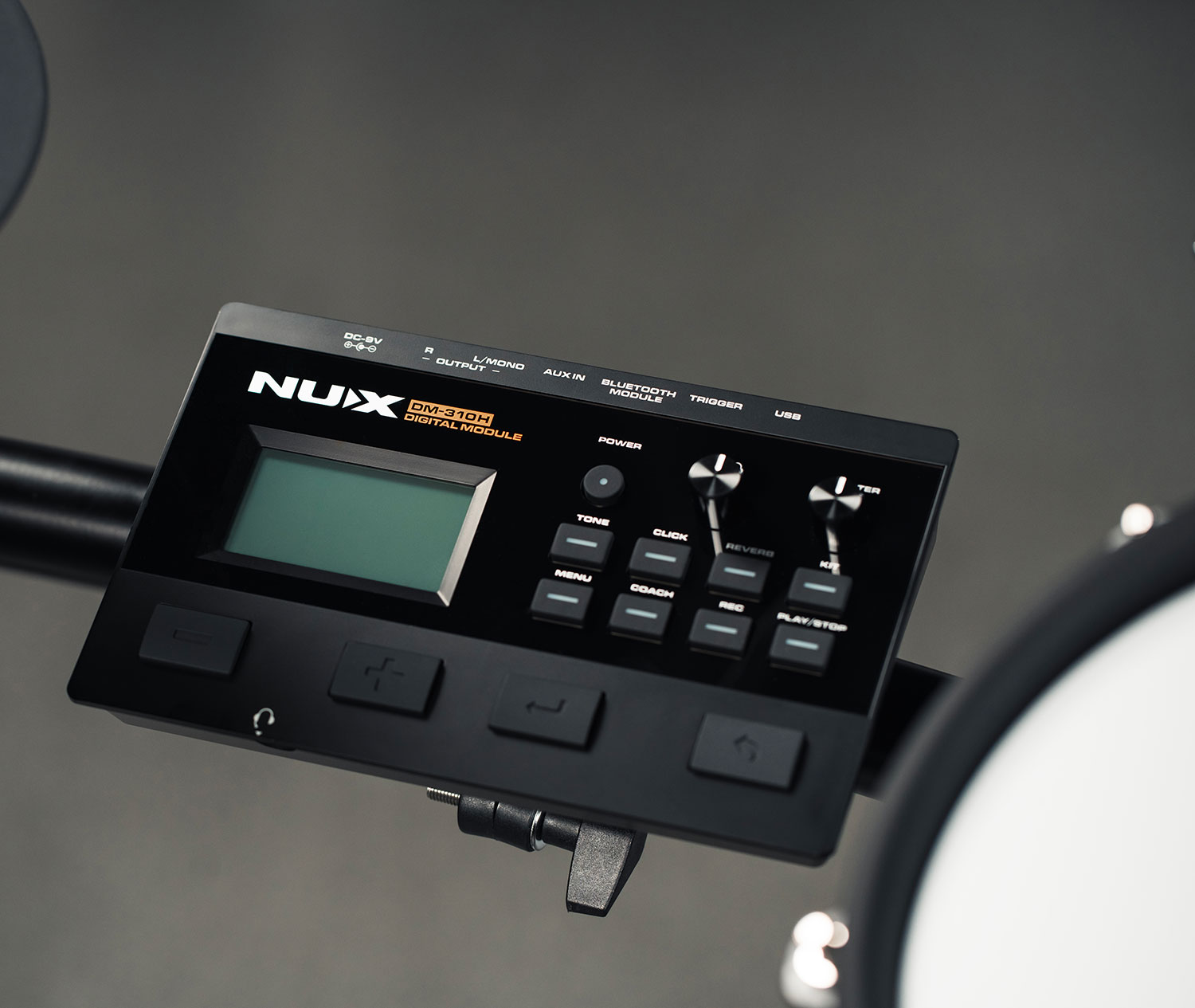

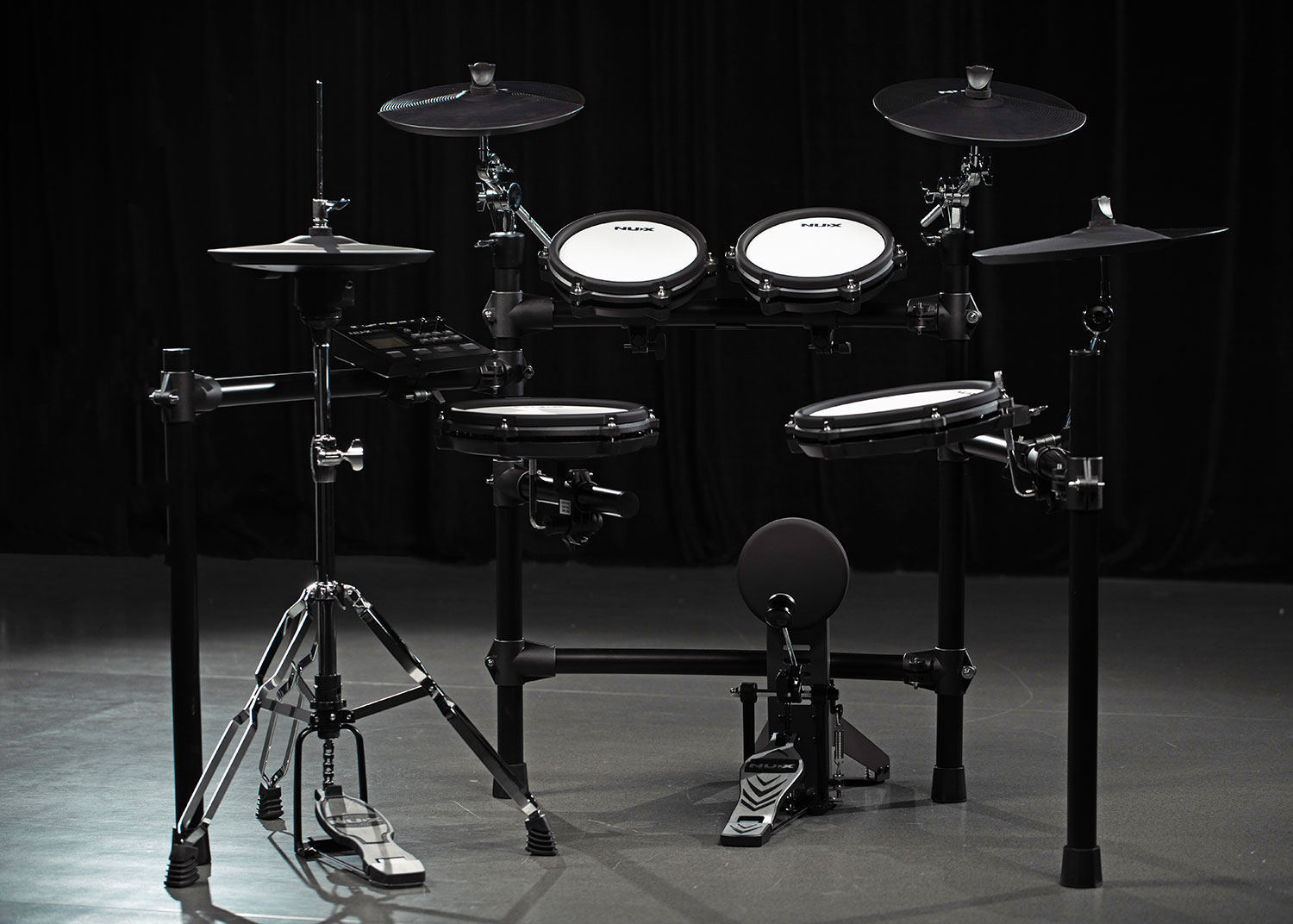

Complete digital drum outfit with dual-layer mesh drum pads mounted to an adjustable rack stand. Snare and floor tom pads are both 10" and are accompanied by a pair of 8" tom pads. Each pad has dual triggers for side-stick and rim-shot effects. Hi-hat, crash and ride pads each have edge and bow-shot zones and can respond to hand chokes for realistic muting. The hi-hat is mounted to a real stand with pedal trigger for a more natural playing experience. A pressure-sensitive remote pedal performs gradual closing of the hi-hats. A separate kick pad and pedal assembly provide a natural feeling bass drum trigger. All triggers are wired back to the main sound module, which has a large accessible control surface and backlit display. A total of 18 presets are included with master EQ & compression, individual overdrive and reverb effects. Proprietary Varitone™ system detects subtle changes in striking position to trigger responsive samples for the ultimate in realism. Output to a mixing console or drum amplifier can be either mono or stereo via 6.3mm jack and a separate 3.5mm TRRS jack is provided for headphone monitoring or 2-way connection to a smart-phone for live streaming. A built-in drum coach function is useful for improving technique from novice to professional standard. DM-310H is also supplied with the NBT-1 Bluetooth adaptor for wireless pairing with a smart phone for backing tracks to play along with. An inbuilt record function is also added to check back on your own playing. For morein-depth studio recording work, the rear panel USB port connects to a PC or Mac computer for both MIDI and audio streaming, enabling control and external sound source to integrate with a DAW recording suite. Far beyond the humble beginnings of electronic percussion, the DM-310H offers a natural feeling and playable kit with a full toolkit of features for drummers of any level and genre.

• All triggers adjustable for sensitivity, crosstalk and gain
• USB PC/Mac audio & MIDI interface
• Supplied with NBT-1 Bluetooth adaptor
• Dual zone triggering on snare, tom and cymbal pads
• Proprietary Varitone™ multi-triggering algorithm
• Optional additional cymbal trigger 176.303UK

• Power supply 9Vdc, 200mA (mains adaptor supplied)
• Inputs 3.5mm TRRS jack, Bluetooth (NBT-1), extension cymbal trigger input
• Outputs 2 x 6.3mm jack, 3.5mm TRRS jack, USB type-B
• Dimensions (assembled) 1300 x 1100 x 1000mm
• Dimensions (packed) 945 x 440 x 385mm
• Pack weight 24.255kg
