CAB Series Active Cabinets With BT Link
178.012UK
CAB-12L
Active PA speakers with BT wireless connection and stereo link capability, housed in a compact and lightweight moulded PP enclosure. Custom designed low and high frequency drivers are powered by a ...
- Bluetooth receiver with stereo link capability
- Digital amplifier for lightweight & efficient performance
- Integral top and side carry handles
CAB Series Active Cabinets With BT Link

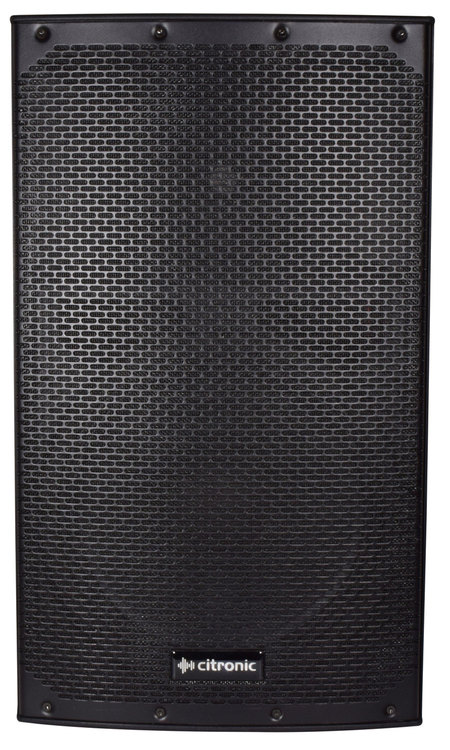

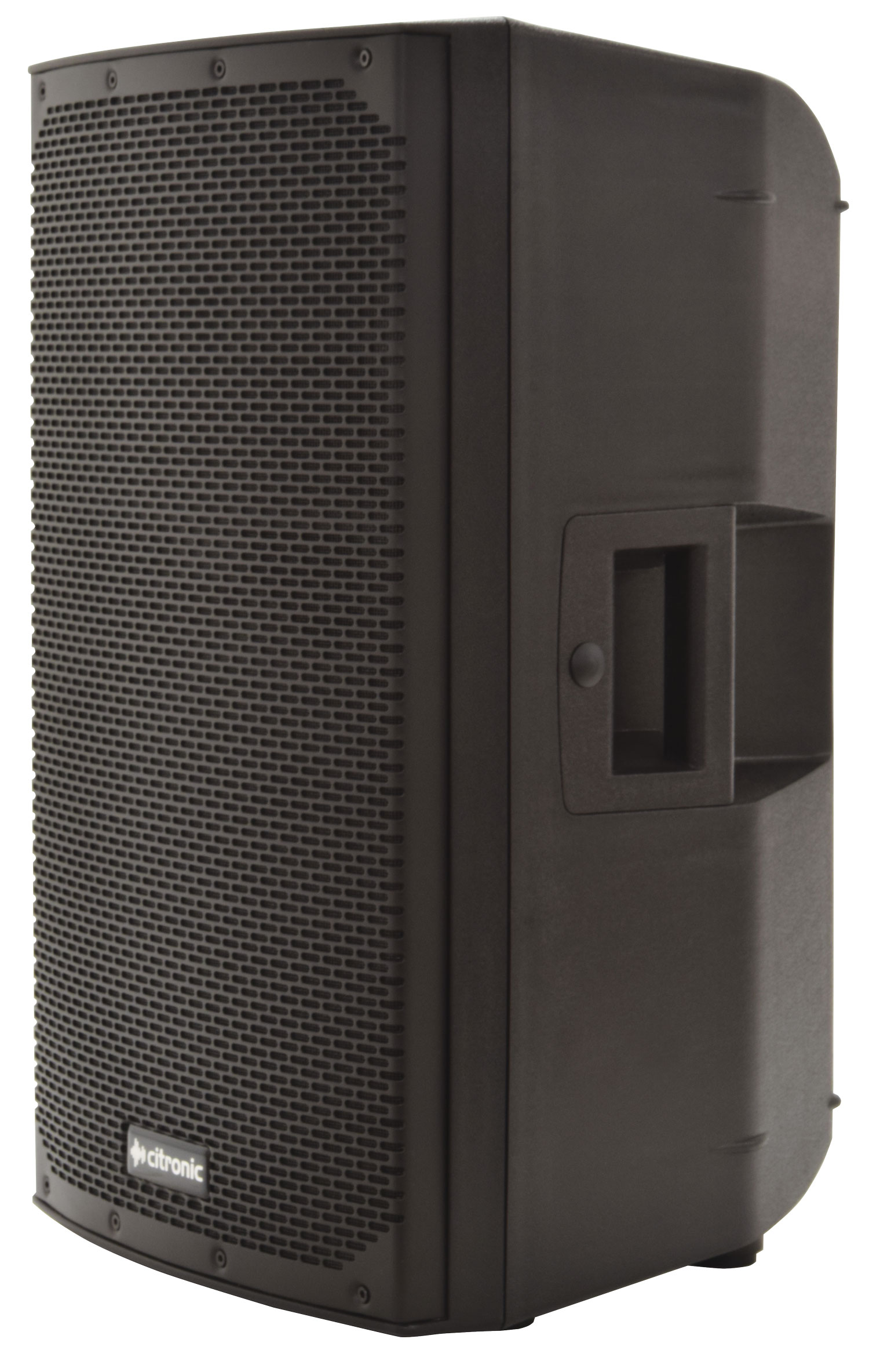

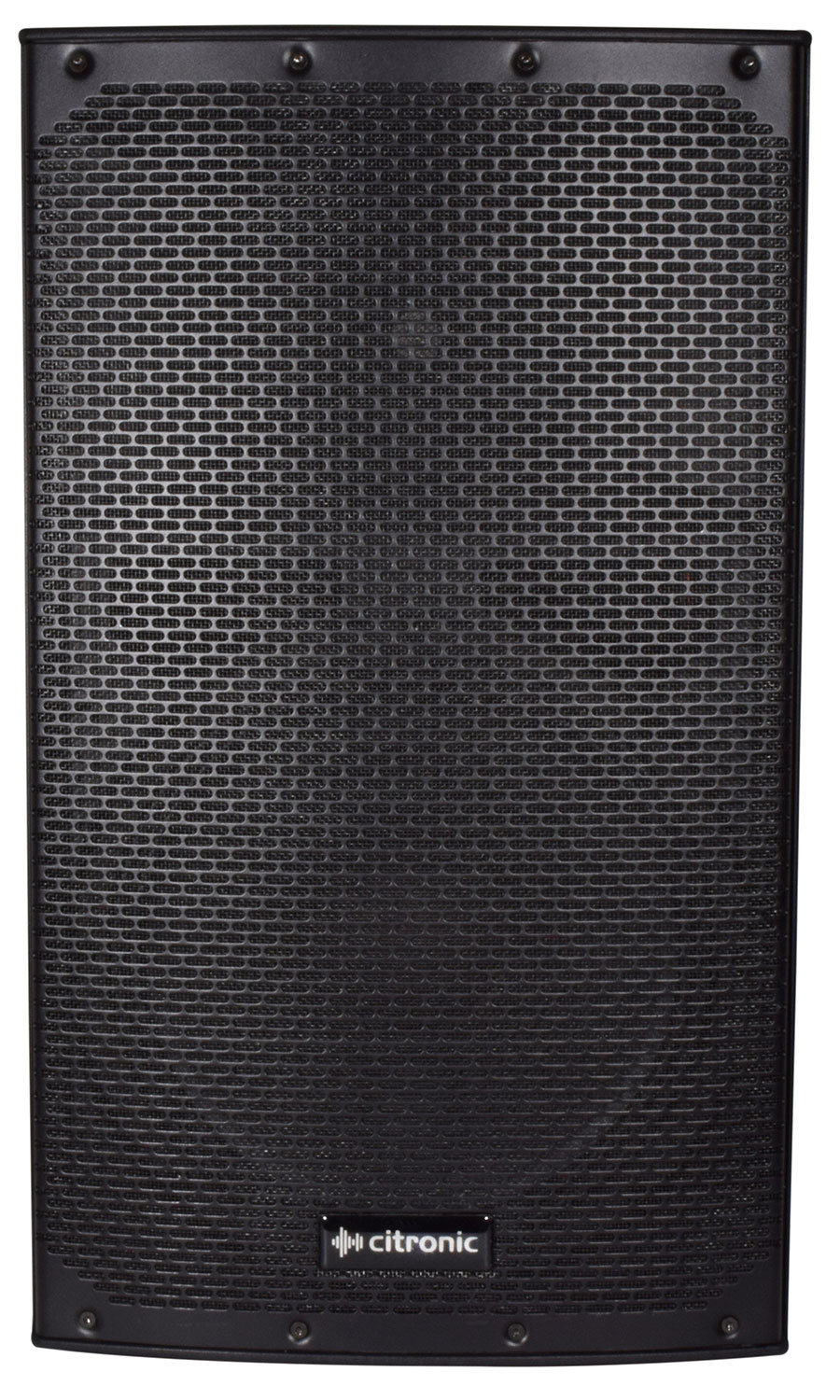

Active PA speakers with BT wireless connection and stereo link capability, housed in a compact and lightweight moulded PP enclosure. Custom designed low and high frequency drivers are powered by a digital amplifier circuit for powerful and energy-efficient performance. A switchable Mic/Line input and separate Line input are provided along with a Bluetooth receiver for playback from a smart phone or tablet. The BT section also has a link function which allows wireless connection to another CAB series speaker to form a stereo pair (Bluetooth signal only). Maximum sound output with minimal size, weight and setup time.
- Bluetooth receiver with stereo link capability
- Digital amplifier for lightweight & efficient performance

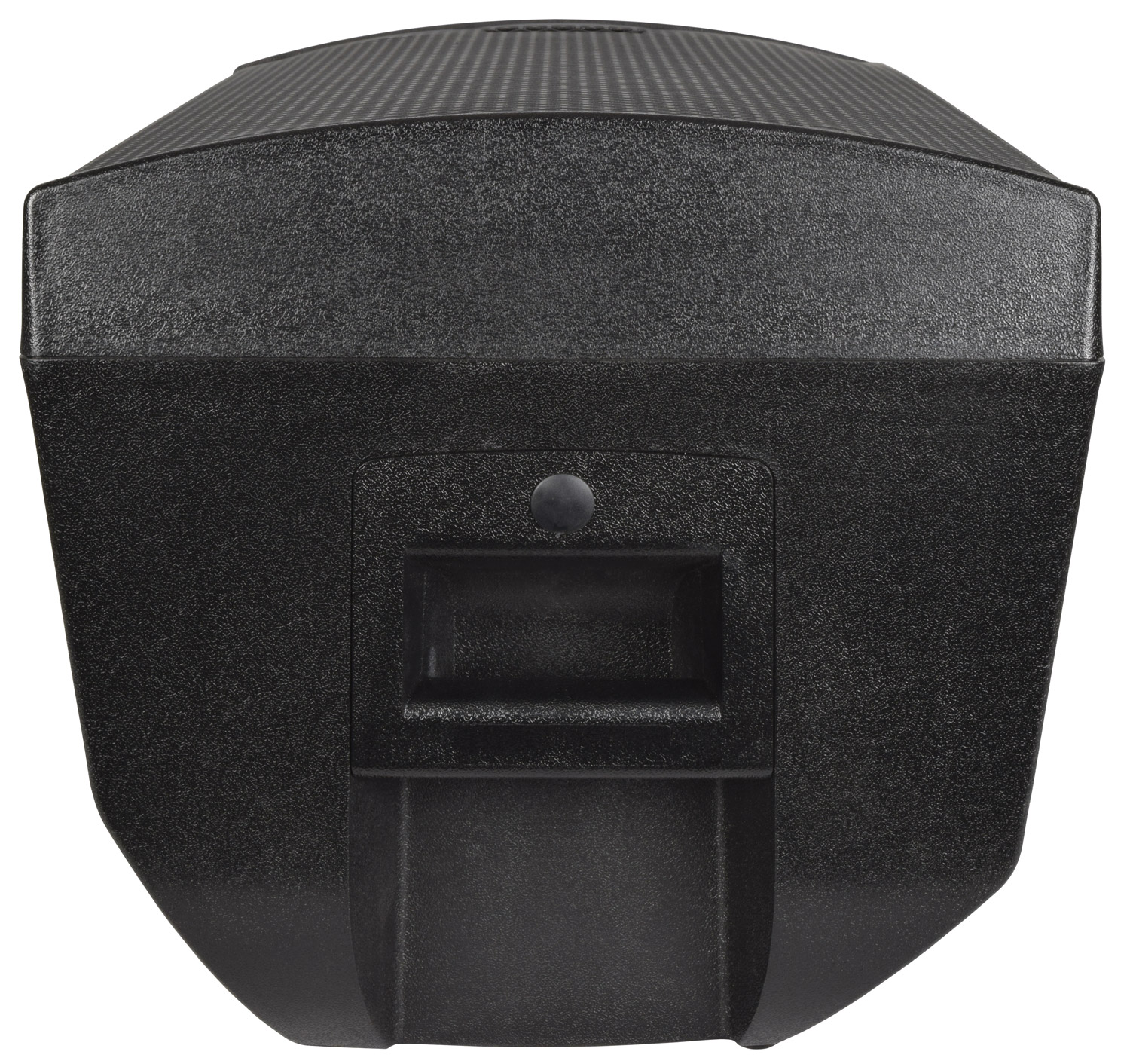

- Integral top and side carry handles
- 2 inputs with separate volume control

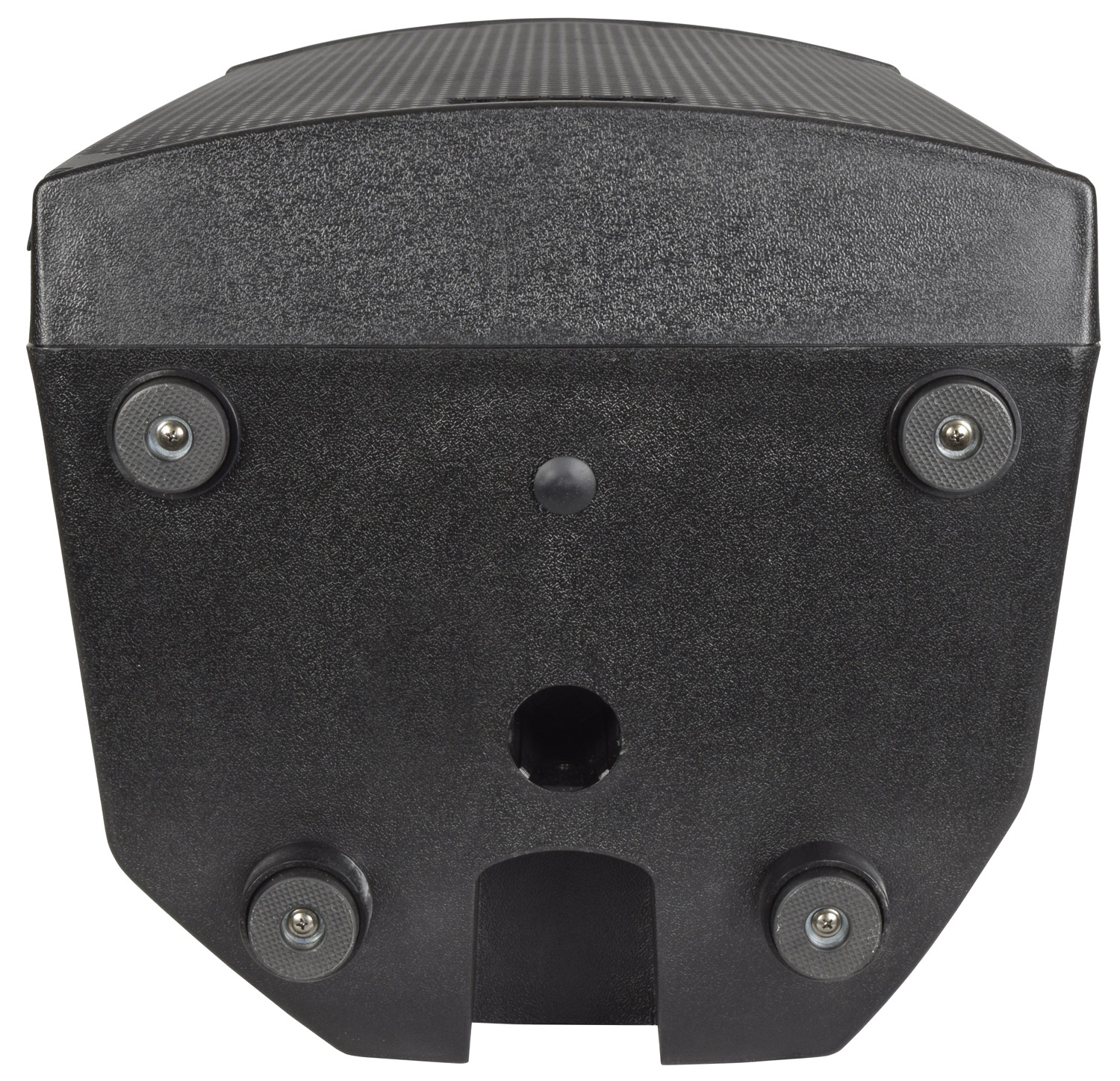

- 35mm pole mount
- Power supply 220-240Vac, 50Hz (IEC)
- Housing material Injection moulded polypropylene
- Amplifier : construction Class D + Class AB
- HF driver 35mmØ (1.35") Ti compression driver
- Dispersion 90° x 60°

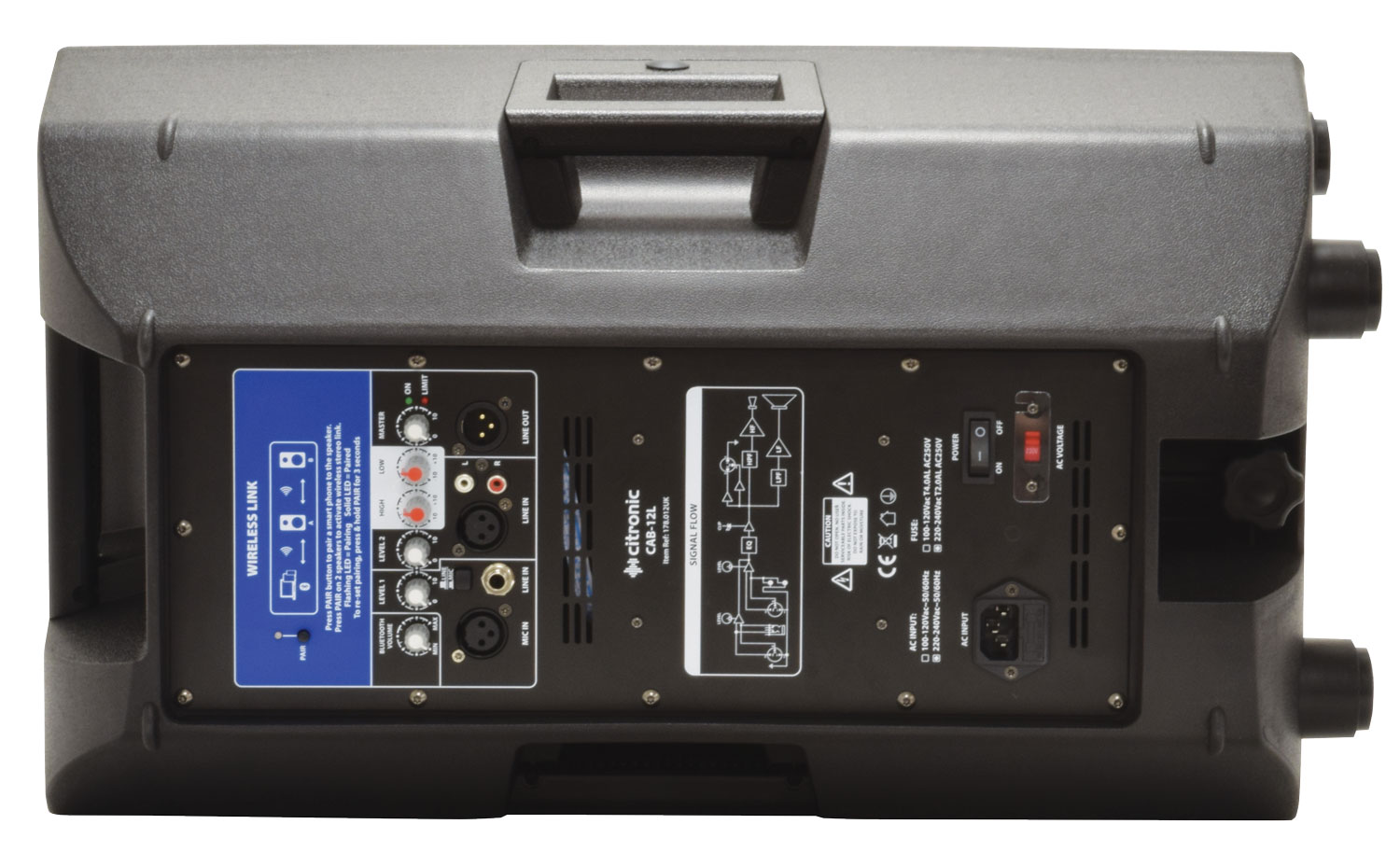

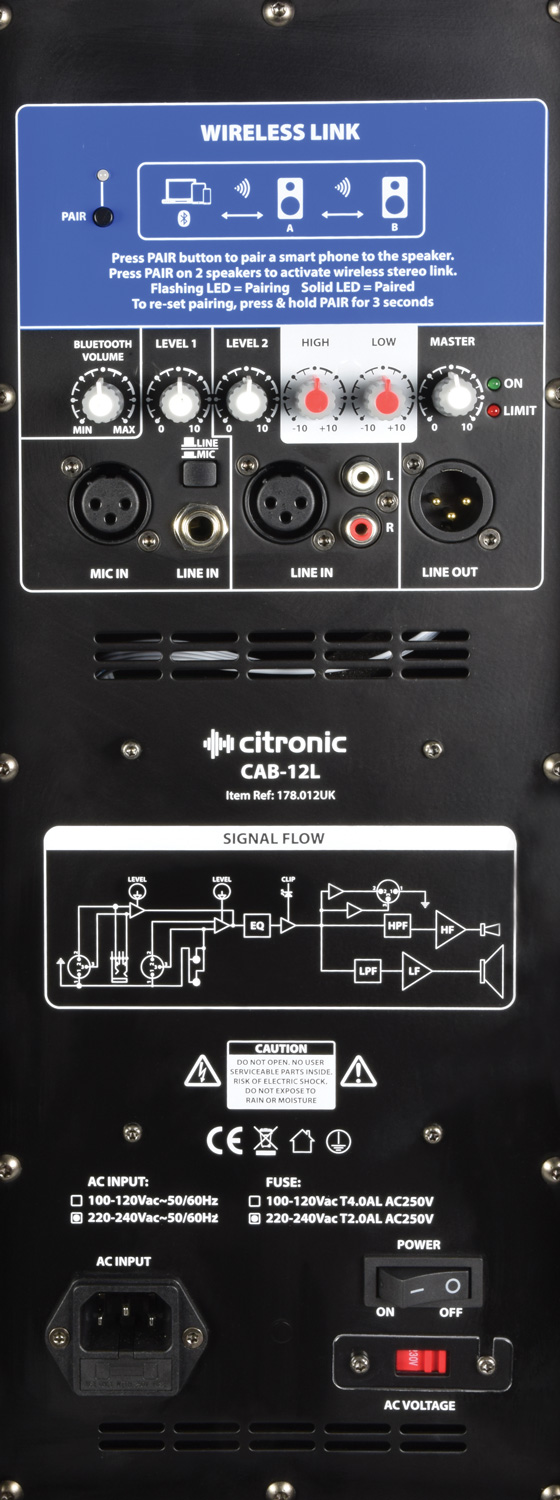

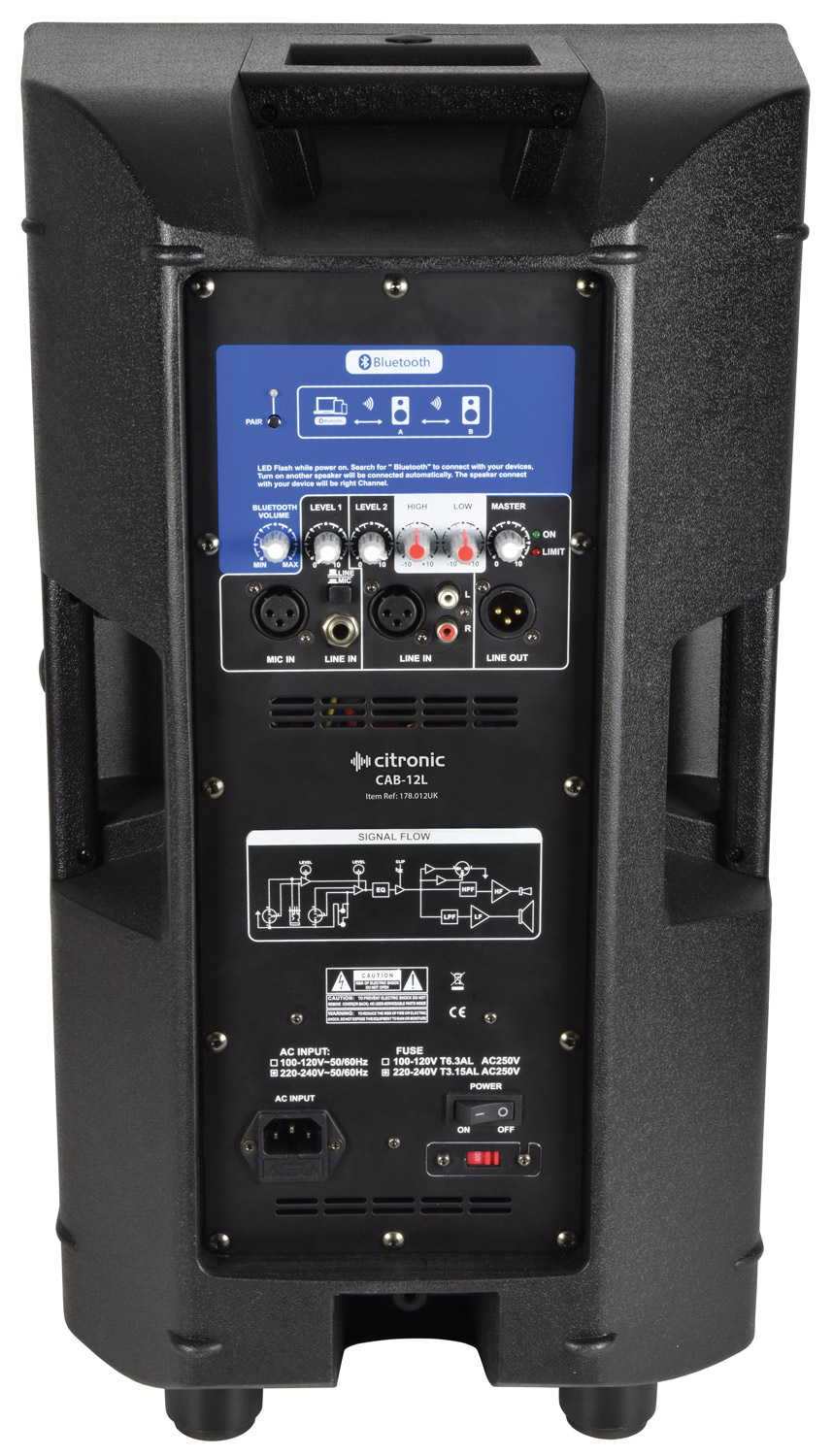

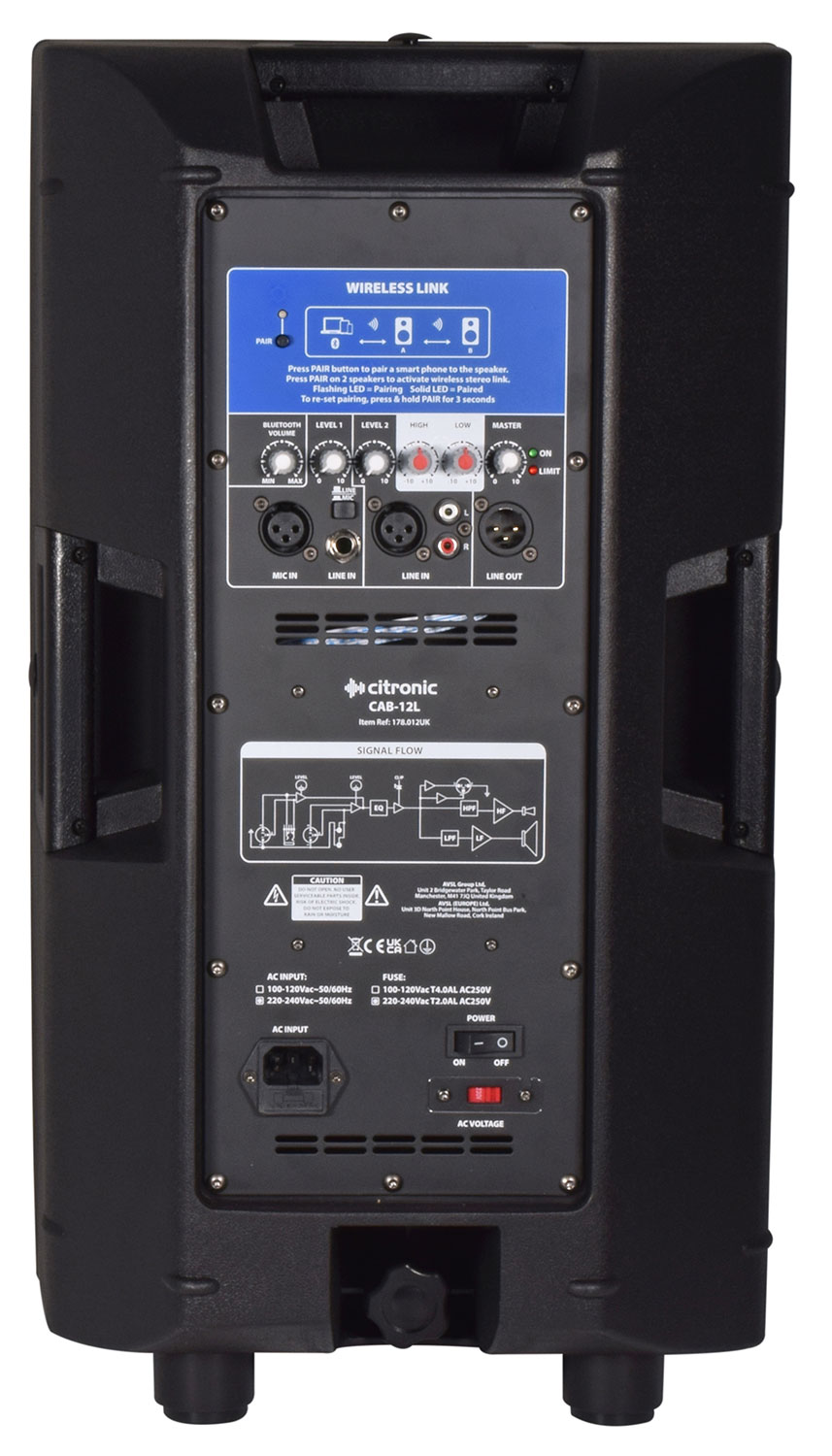

- Inputs Mic/Line XLR or jack, Line XLR or RCA, Bluetooth
- Indicators Power on, Limit & Bluetooth link LEDs
- Line output XLR
Versions
| 178.010UK | 178.012UK | 178.015UK | |
|---|---|---|---|
| Frequency response | 58Hz - 19kHz | 53Hz - 19kHz | 46Hz - 19kHz |
| Output power : rms | 220W | 300W | 350W |
| Output power peak | 880W | 1200W | 1400W |
| Max. SPL | 132dB | 134dB | 134dB |
| Main driver | 250mmØ (10") woofer | 300mmØ (12") woofer | 380mmØ (15") woofer |
| Voice coil | 38mmØ (1.5") | 50mmØ (2") | 60mmØ (2.36") |
| Crossover frequency | 3.2kHz | 2.8kHz | 2.6kHz |
| Dimensions | 530 x 310 x 300mm | 603 x 355 x 350mm | 695 x 420 x 390mm |
| Weight | 11.2kg | 14.2kg | 17.6kg |
Support : articles
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
Amplifier Classes
There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
Wireless Audio
A description of various wireless technologies available to musicians, presenters and performers
In the box
The box for this item contains :
- CAB series active PA cabinet

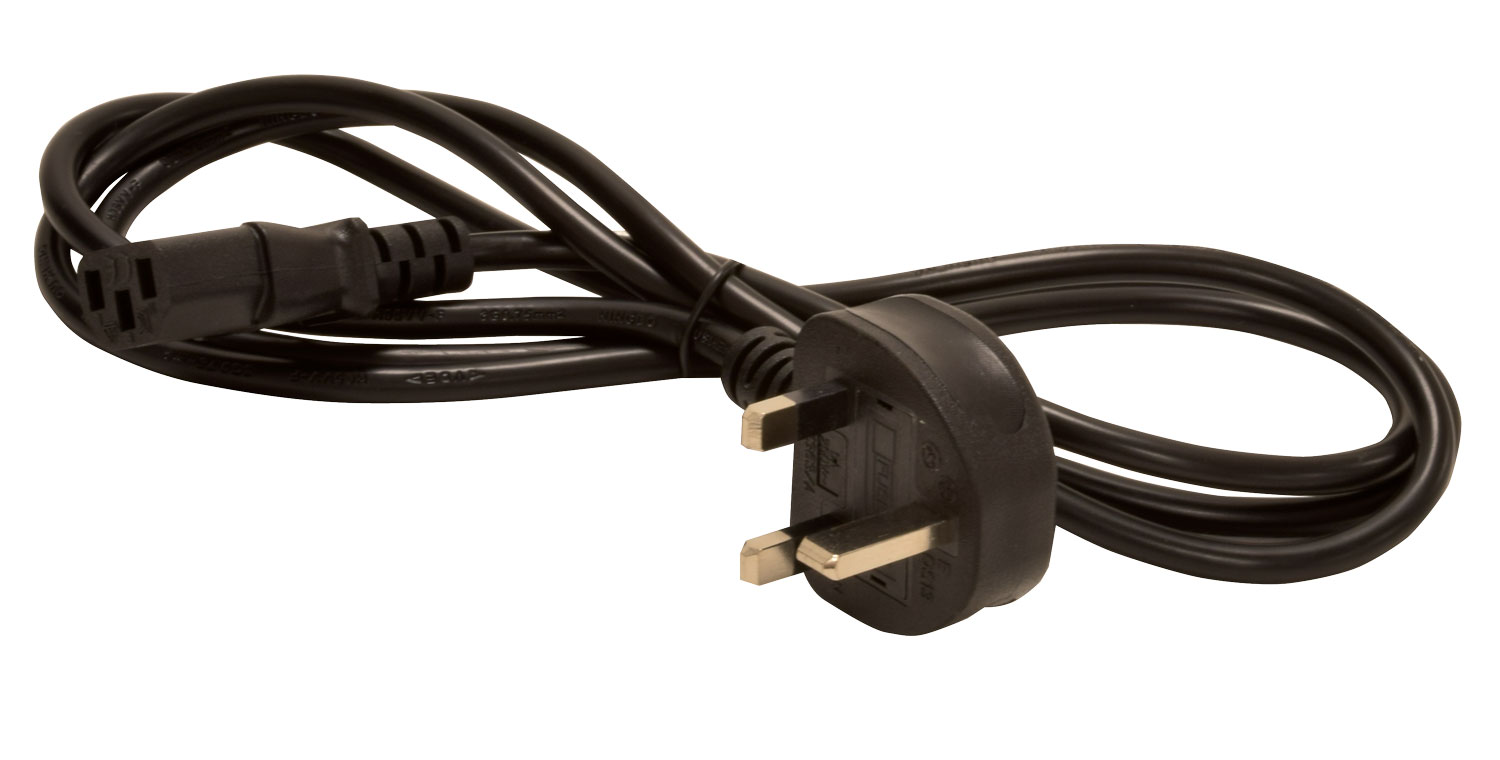

- IEC power lead
