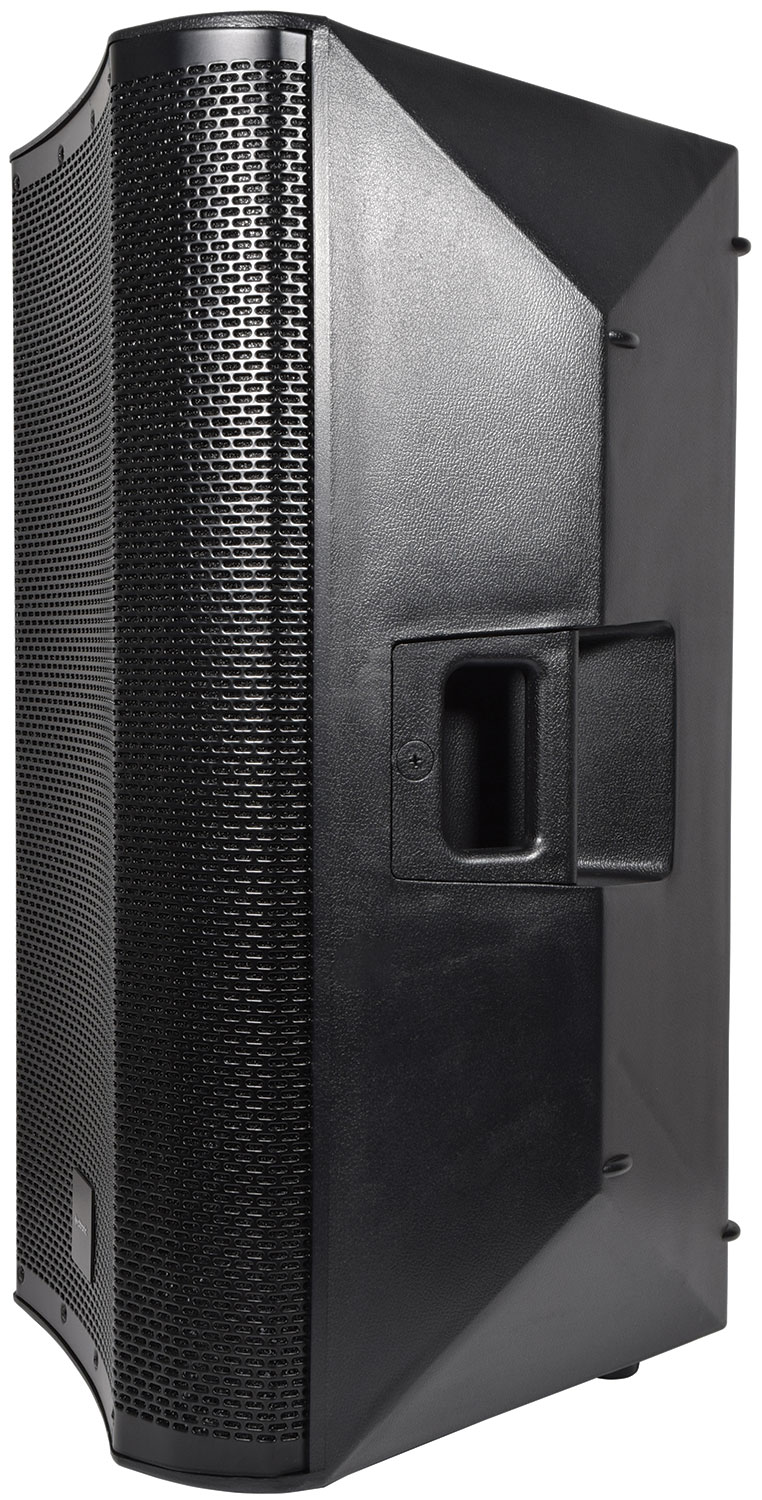

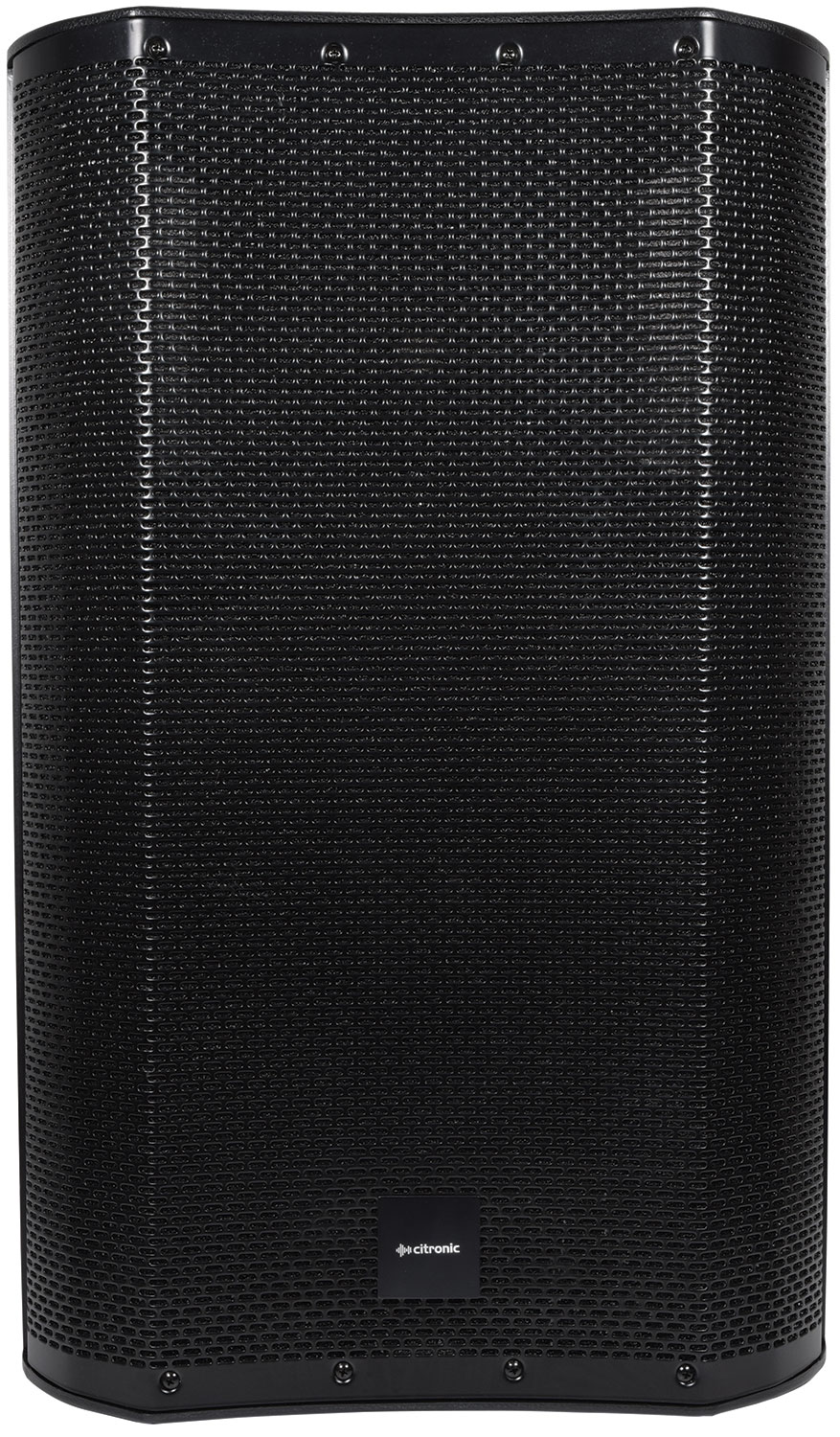

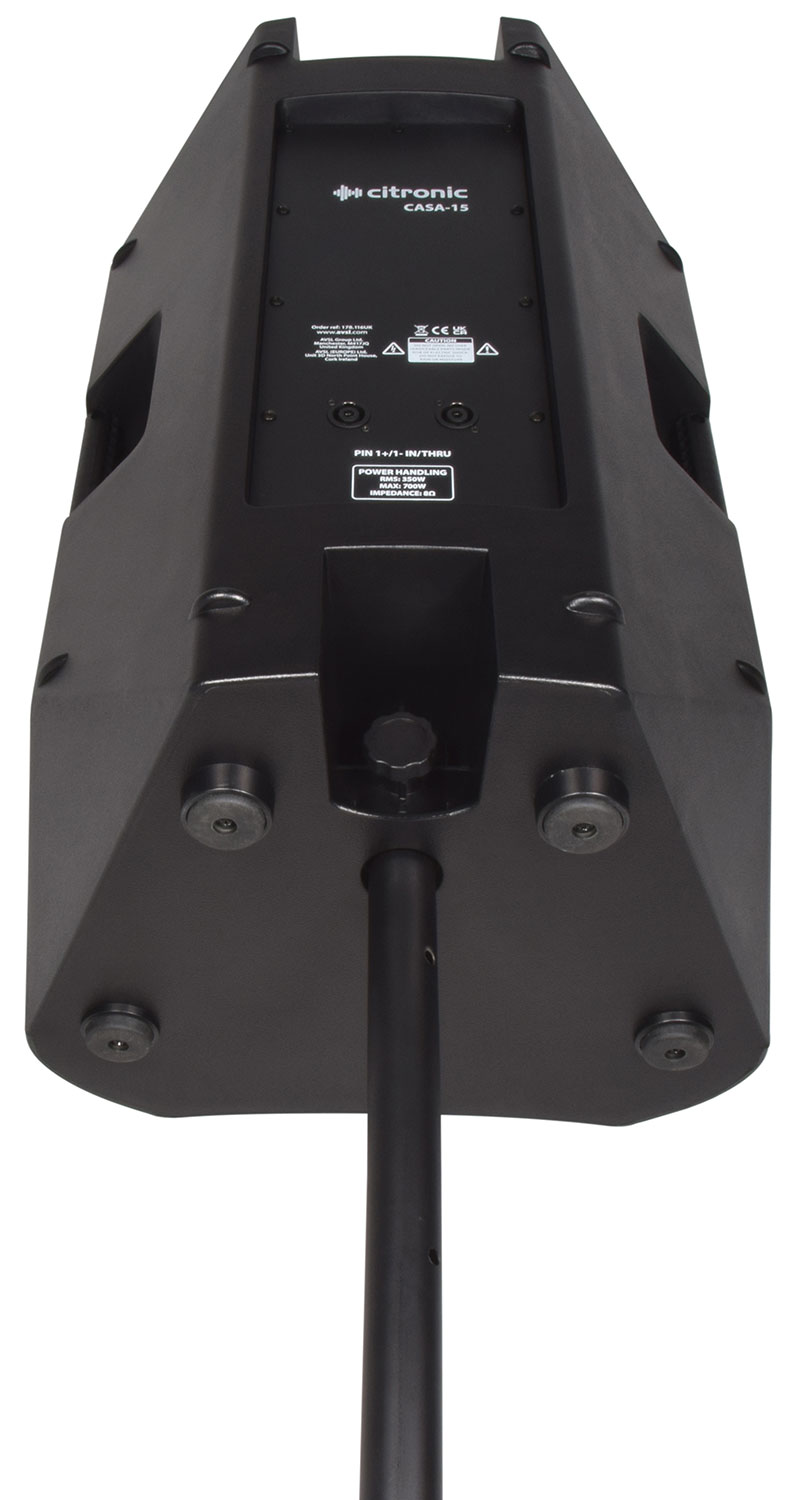

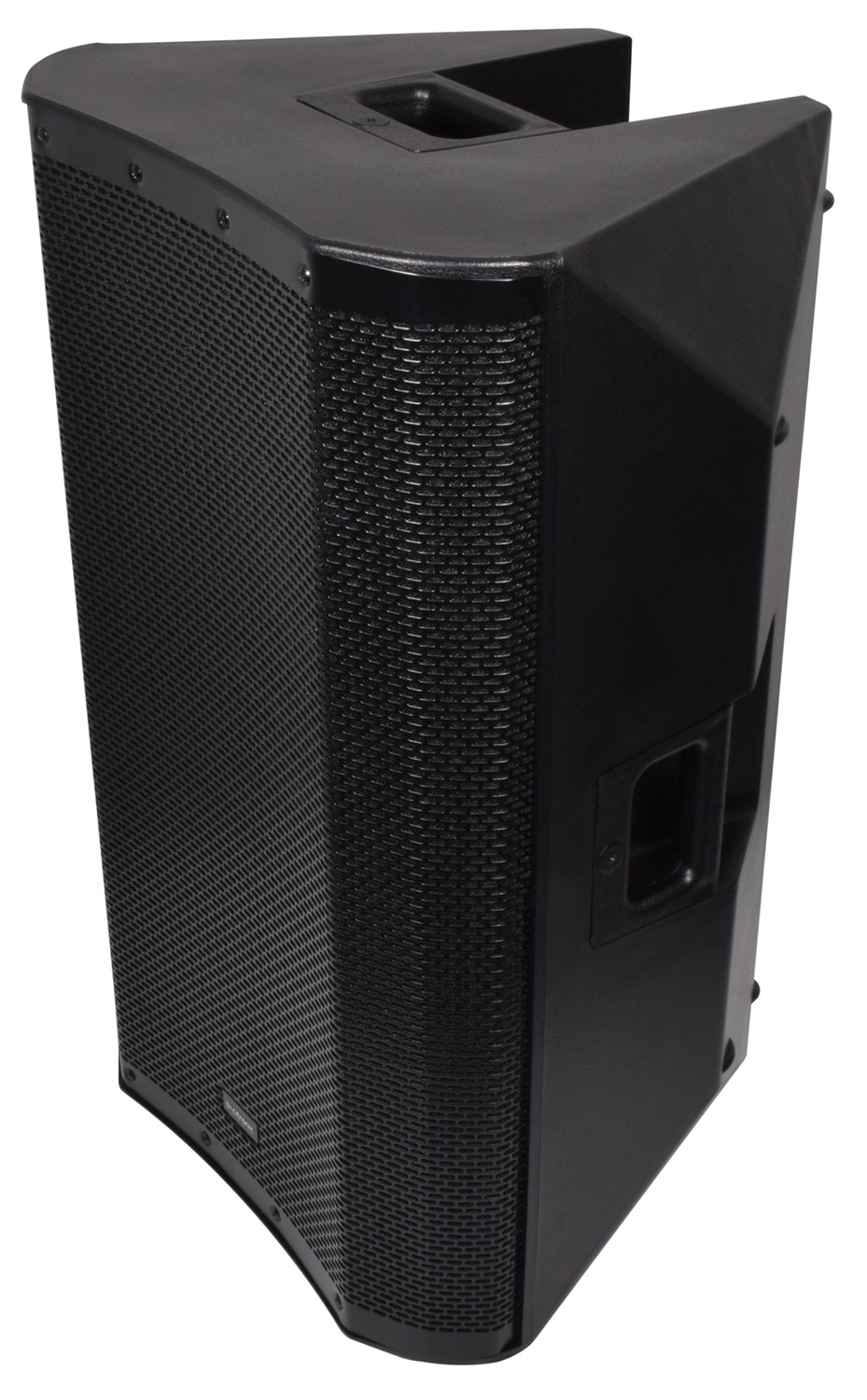

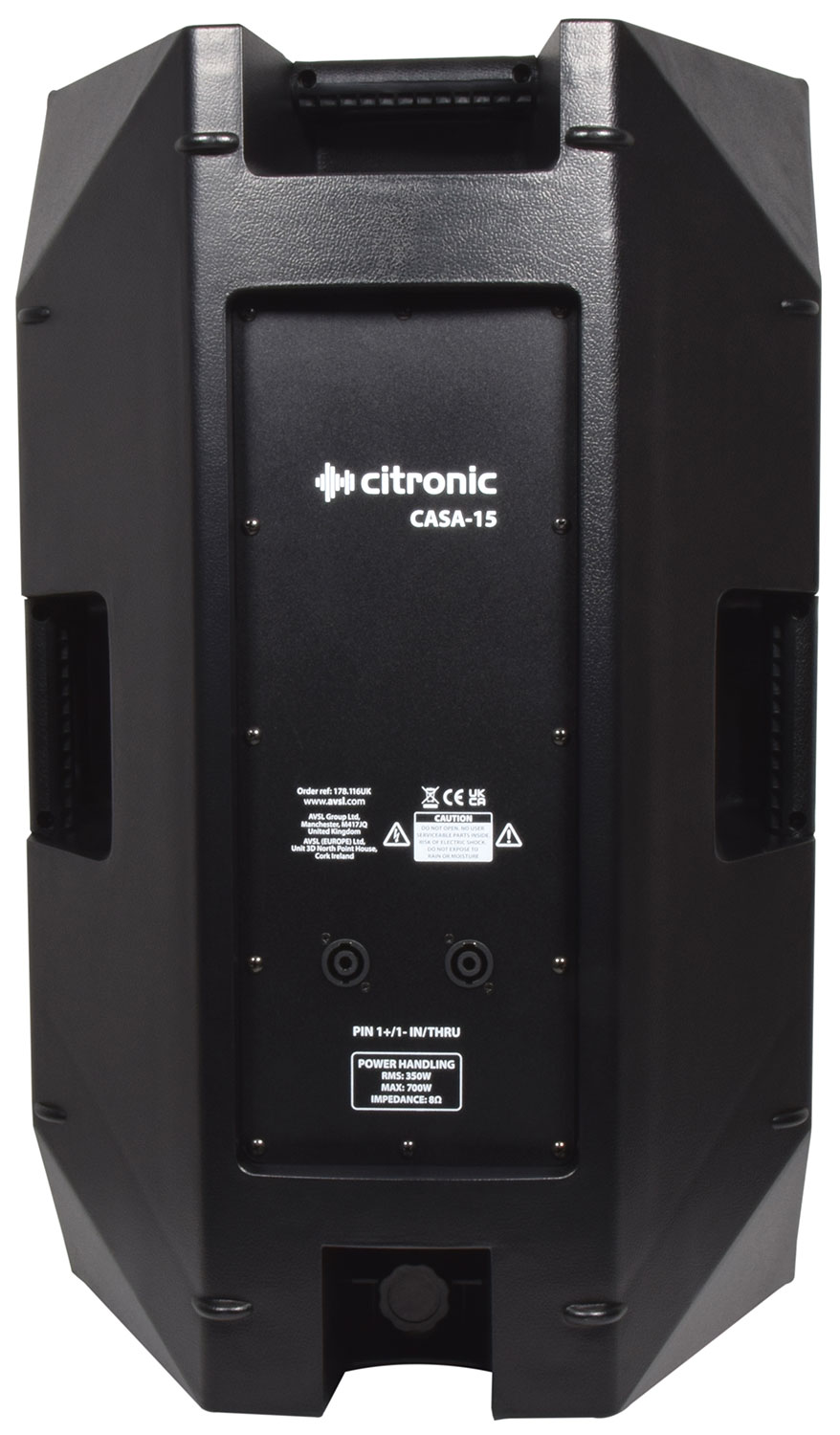

Full-range passive PA cabinets with high-efficiency drivers loaded into a compact impact-resistant moulded cabinet. Fitted with 2 side handles and a top carrying handle for easy portability or moun...
Full-range passive PA cabinets with high-efficiency drivers loaded into a compact impact-resistant moulded cabinet. Fitted with 2 side handles and a top carrying handle for easy portability or mounting via the integral 35mm pole-mount socket. These cabinets pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.
| 178.109UK | 178.111UK | 178.113UK | 178.116UK | |
|---|---|---|---|---|
| Main driver | 200mmØ (8") | 250mmØ (10") | 300mmØ (12") | 380mmØ (15") |
| Voice coil | 50mmØ (2") | 50mmØ (2") | 75mmØ (3") | 75mmØ (3") |
| HF driver | 25mmØ (1") Ti compression driver | 25mmØ (1") Ti compression driver | 35mmØ (1.35") Ti compression driver | 44mmØ (1.75") Ti compression driver |
| Power handling : rms | 150W | 200W | 300W | 400W |
| Power handling : max | 300W | 400W | 600W | 800W |
| Sensitivity | 94dB | 95dB | 96dB | 97dB |
| SPL max. | 120.0dB | 121.0dB | 123.0dB | 124.5dB |
| Dimensions | 435 x 278 x 245mm | 500 x 310 x 260mm | 610 x 375 x 340mm | 705 x 430 x 375mm |
| Weight | 8.1kg | 9.7kg | 11.0kg | 20.0kg |
Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
A summary explaining the key differences between RMS, Max and Peak power ratings.
The box for this item contains :
