CASA-28B Passive Sub 300Wrms
CASA-28B
Compact slim profile dual driver passive subwoofer cabinet for mobile PA and fixed installations. Connection from an amplifier is to either of a pair of twist-lock SPK sockets at the rear. The… more
- Dual 200mmØ (8") sub drivers
- Switchable low pass filter or full-range input
- 35mm pole mount socket
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
178.229UK
CASA-28B Passive Sub Cabinet 300Wrms |
CASA-28B | Box Label |
CASA-28B Passive Sub 300Wrms

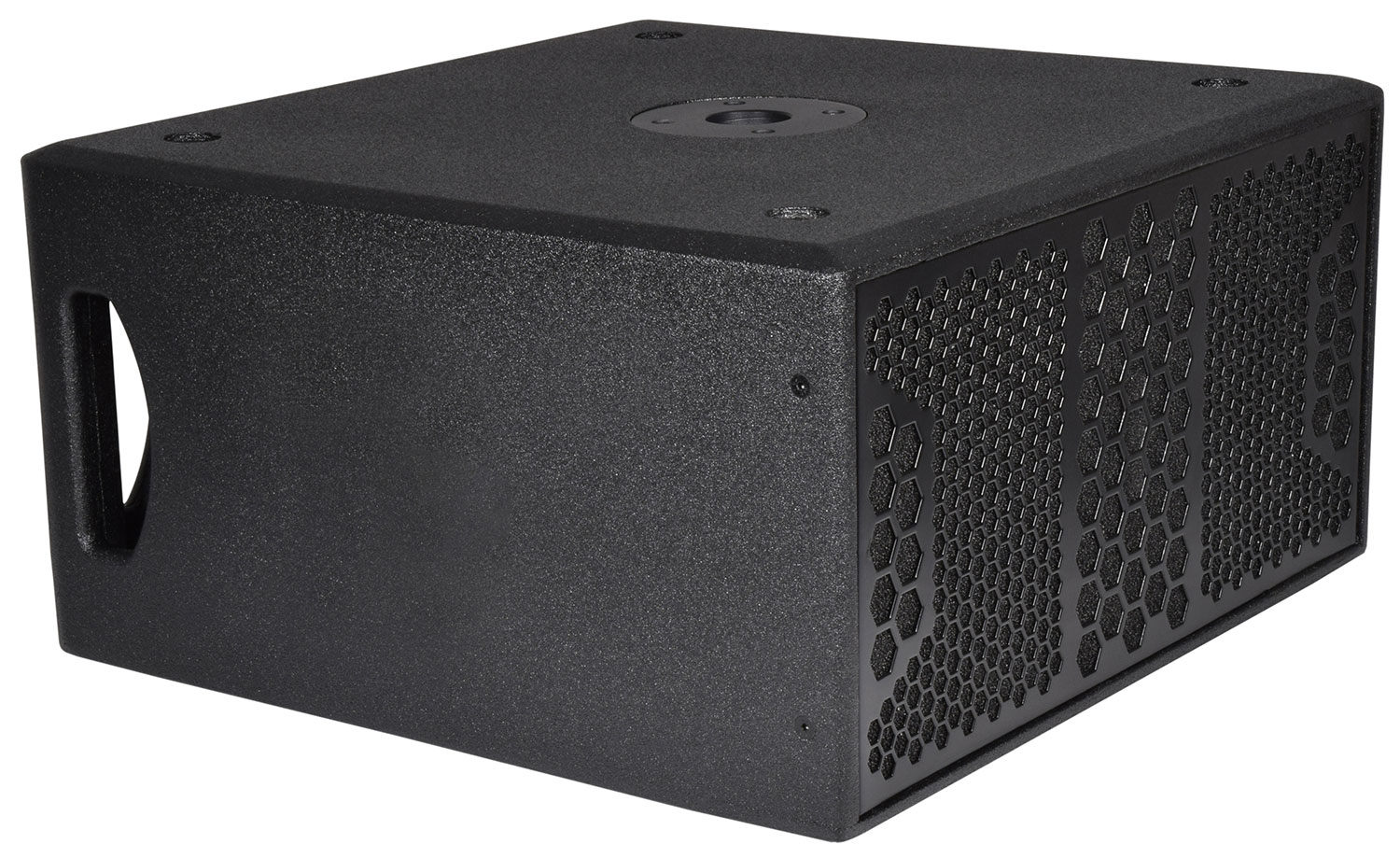

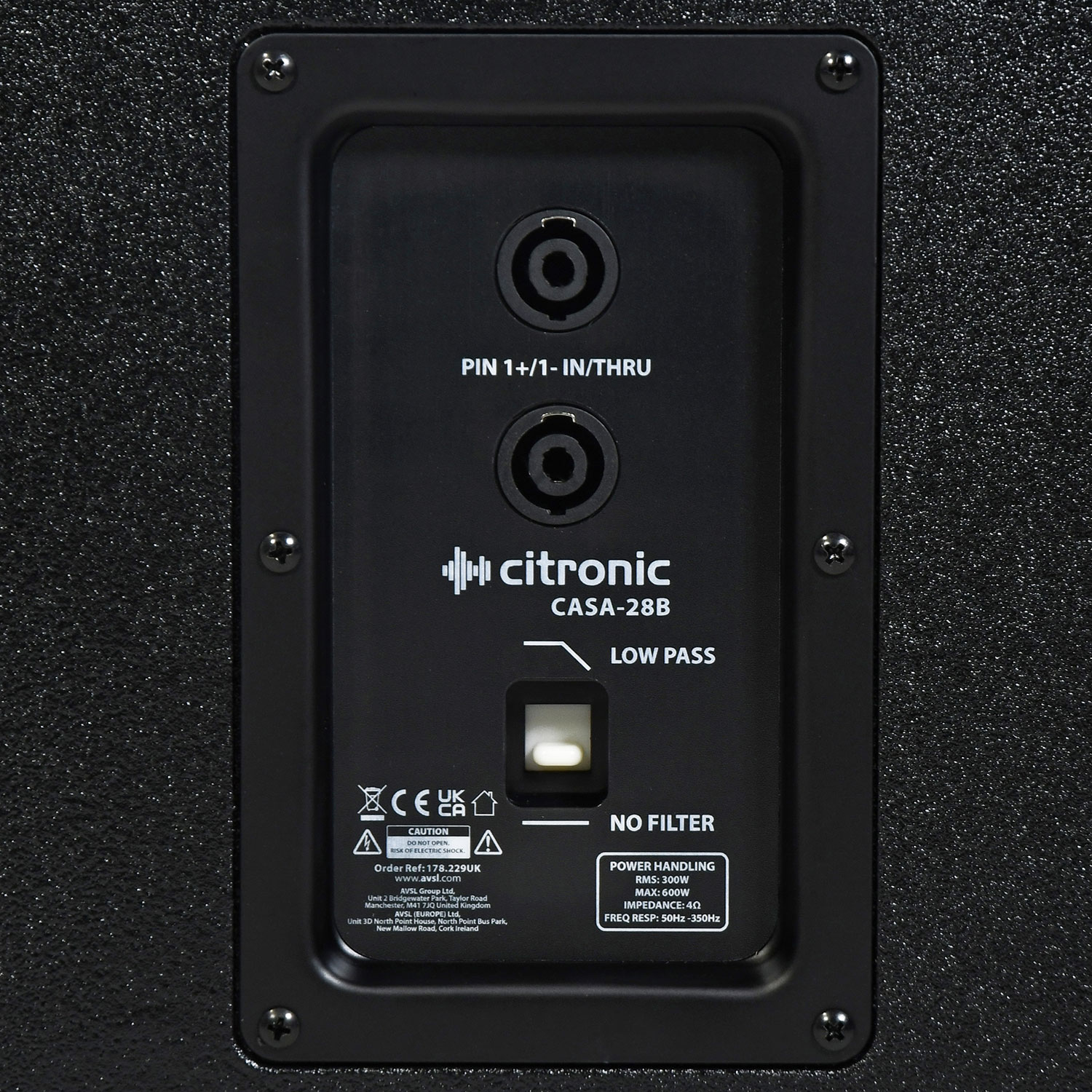

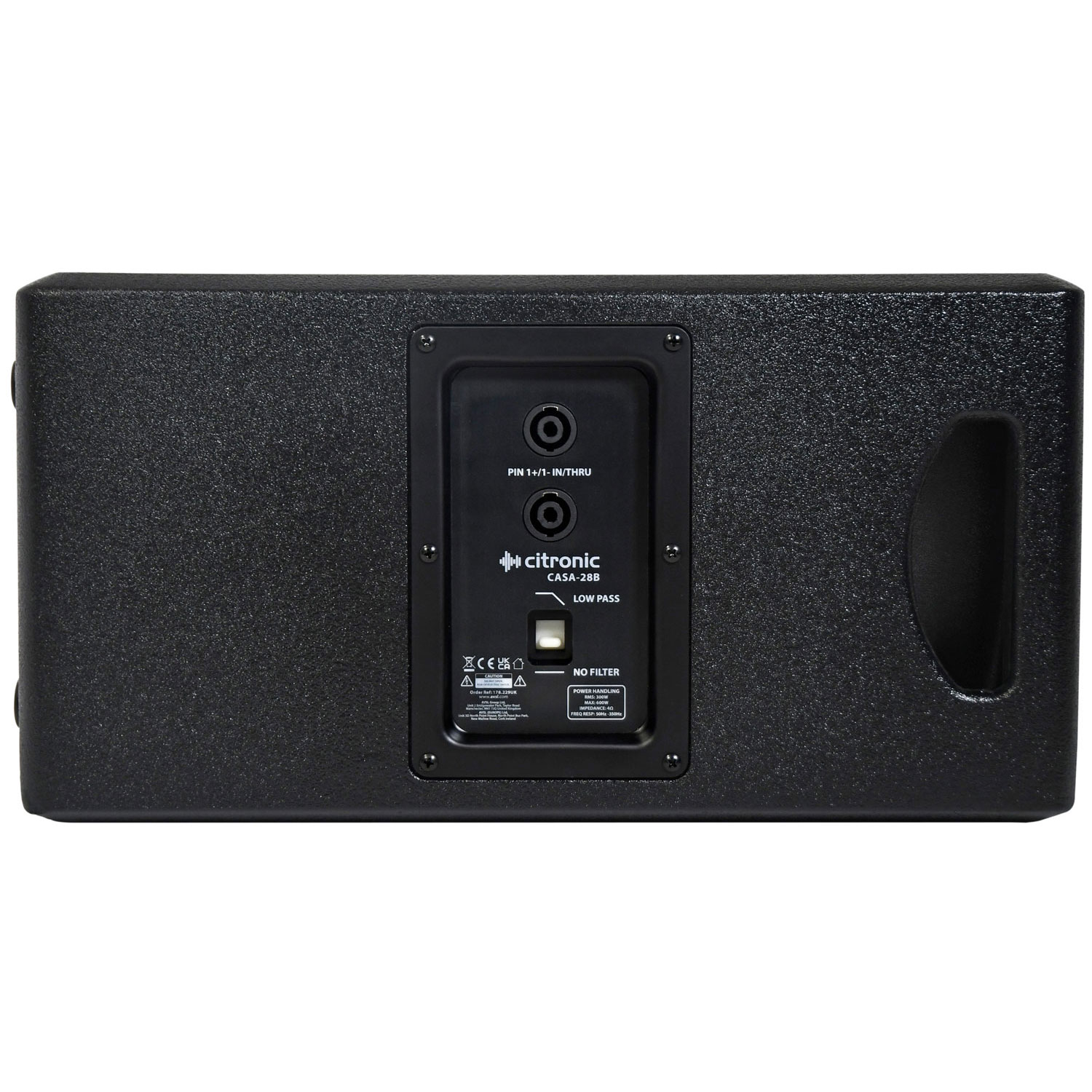

Compact slim profile dual driver passive subwoofer cabinet for mobile PA and fixed installations. Connection from an amplifier is to either of a pair of twist-lock SPK sockets at the rear. The remaining SPK connector may be used to connect onto a further passive top or sub cabinet in parallel. This sub unit can be postitioned flat to accept a 35mm pole to mount a full-range speaker or upright for a smaller footprint. The compact dimensions also make this a perfect option for hiding behind or underneath furnishsings in an installation.
- Dual 200mmØ (8") sub drivers
- Switchable low pass filter or full-range input
- 35mm pole mount socket
- Construction 15mm MDF with durable polyurea finish
- Hardware Integral carry handle & 35mm pole mount socket
- Drivers 2 x 200mmØ (8") woofers
- Impedance 4 Ohms total (8 Ohms each driver)
- Frequency response 55 - 150Hz
- Power handling : rms 300W
- Power handling : max 600W
- Filter type 120Hz low pass 12dB/oct
- Dimensions 475 x 450 x 250mm
- Weight 15.5kg
In the Box
- CASA-28B passive sub cabinet
