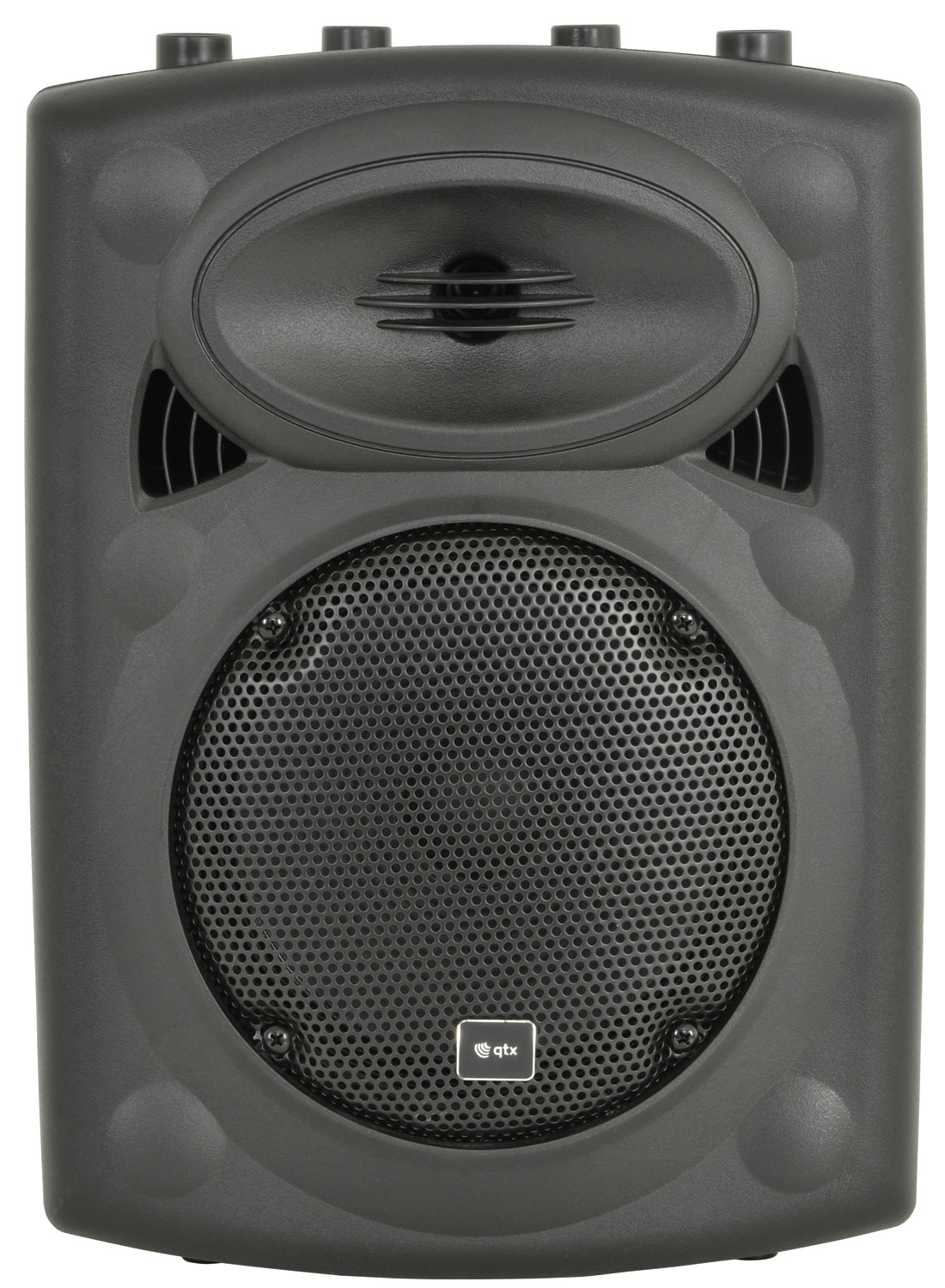

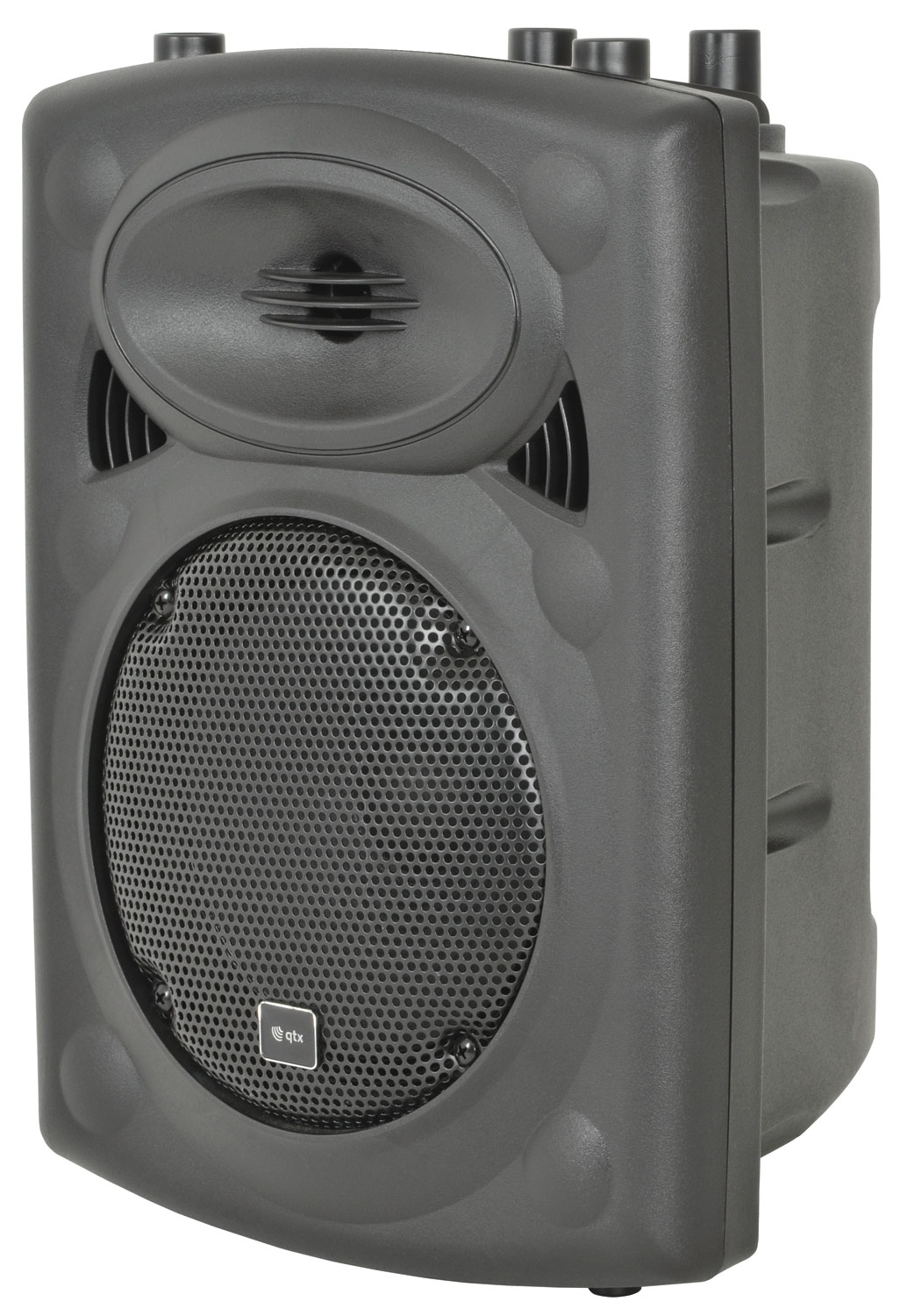

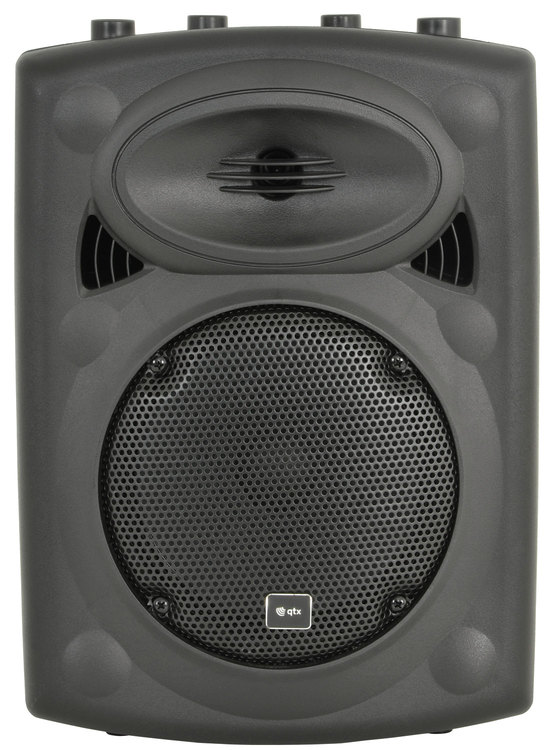

QRK Series Active Moulded Speaker Cabinets

178.310UK QR8K

Compact injection moulded speaker cabinets with built-in amplifier and input section. Independent mic and line channels make this range ideal for DJs, vocalists and karaoke setups.

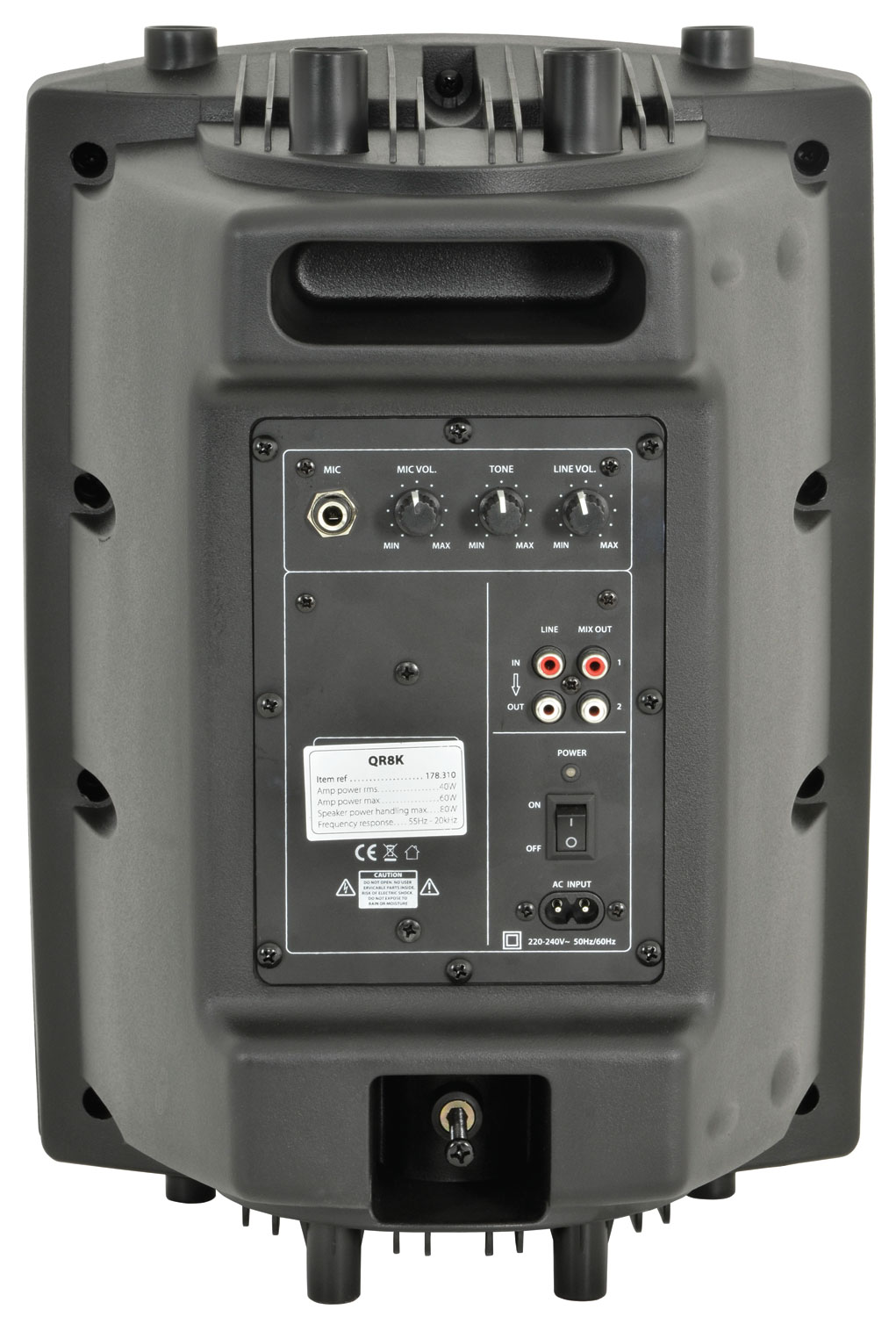

  • Microphone and line inputs with volume controls
  • Titanium HF compression driver
  • Compact moulded enclosure with carry handle
Description Version Packed
178.310UK
QR8K active moulded speaker cabinet - 80Wmax
8" Box Label
178.311UK
QR10K active moulded speaker cabinet - 200Wmax
10" Box Label
178.313UK
QR12K active moulded speaker cabinet - 300Wmax
12" Box Label
178.316UK
QR15K active moulded speaker cabinet - 400Wmax
15" Box Label

Accessories

Description Version Packed
127.083UK
QR8 slip cover for QR8 or QR8a speaker
QR8 / QR8A Poly Bag
902.528UK
4 Ohm 8" Driver for QR8A (178.202UK)
20cm (8"), 100Wrms Box Label

QRK Series Active Moulded Speaker Cabinets

Compact injection moulded speaker cabinets with built-in amplifier and input section. Independent mic and line channels make this range ideal for DJs, vocalists and karaoke setups.

  • Microphone and line inputs with volume controls
  • Titanium HF compression driver
  • Compact moulded enclosure with carry handle

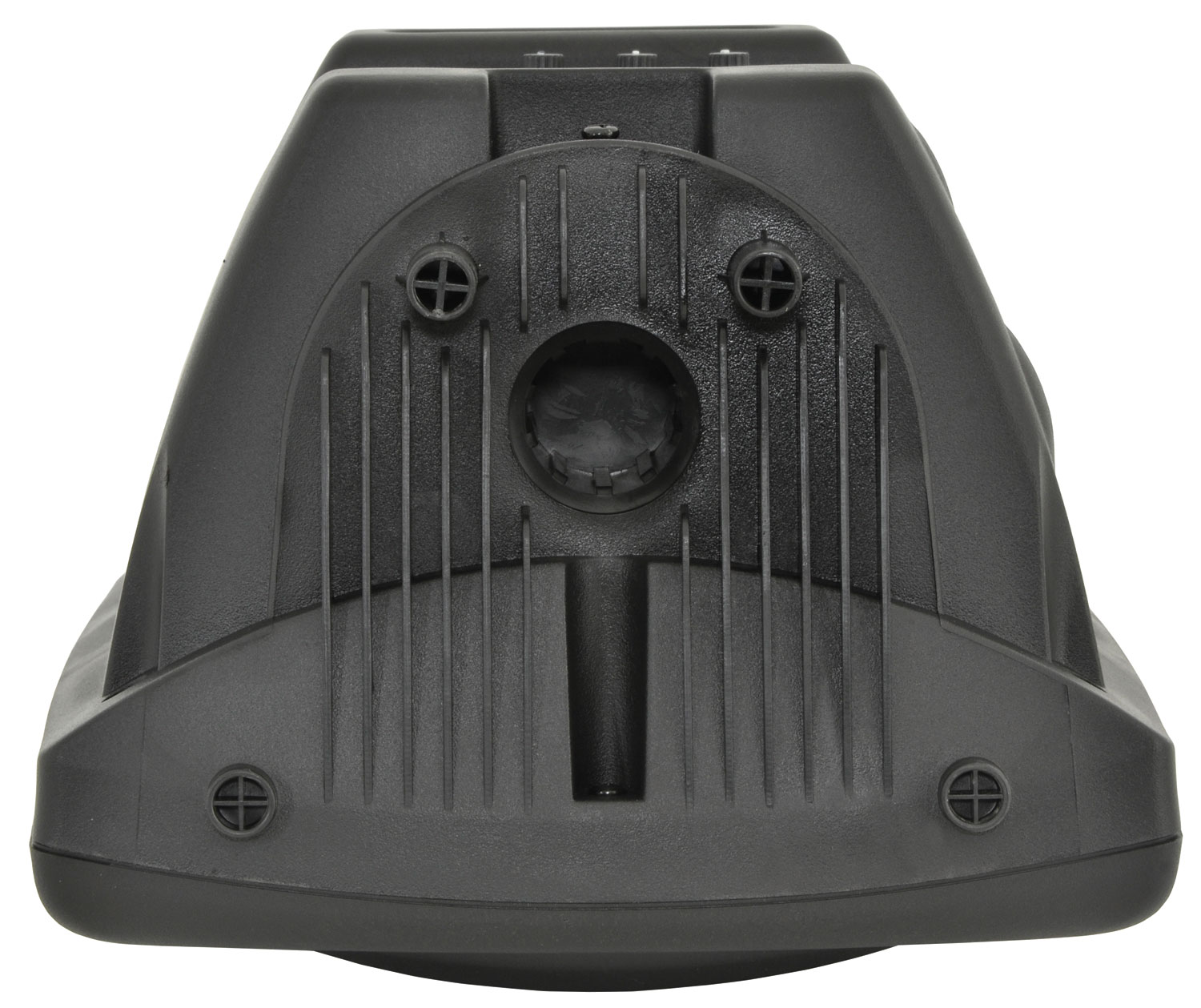

  • Integral flying points and 35mmØ pole mount
  • QR12K and QR15K models have additional echo effect and speaker output
  • Impedance 8 Ohms

Versions

  178.310UK 178.311UK 178.313UK 178.316UK
Model QR8K QR10K QR12K QR15K
Power supply 220-240Vac, 50/60Hz (fig.8) 220-240Vac, 50/60Hz (fig.8) 220-240Vac, 50/60Hz (IEC) 220-240Vac, 50/60Hz (IEC)
Woofer 200mm (8'') 250mm (10'') 300mm (12'') 380mm (15")
Amplifier : output power : rms 40W 40W 80W 80W
Amplifier : output power : max. 60W 60W 180W 180W
Power handling : speaker max. 80W 200W 300W 400W
Speaker : outputs N/A N/A 8 Ohms min, 90W max. 8 Ohms min, 90W max.
Frequency response 55Hz - 20kHz 48Hz - 20kHz 50Hz - 20kHz 45Hz - 20kHz
Dimensions : W(front/rear) x H x D 290/150 x 400 x 220mm 320/180 x 470 x 260mm 350/180 x 570 x 300mm 430/250 x 680 x 360mm
Weight 6.5kg 7.5kg 11.2kg 15.8kg
