CM-Series Active Wedge Monitors inc. Bluetooth®

178.690UK CM10A

Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium twee...

  • High power class-D bi-amplifier
  • Bluetooth receiver
  • 5 Profile DSP section
Description Version Packed
178.690UK
CM10A Active Wedge Speaker 250Wrms inc. BT
Active 10" 250W Box Label
178.692UK
CM12A Active Wedge Speaker 300Wrms inc. BT
Active 12" 300W Box Label
178.695UK
CM15A Active Wedge Speaker 350Wrms inc. BT
Active 15" 350W Box Label

CM-Series Active Wedge Monitors inc. Bluetooth®

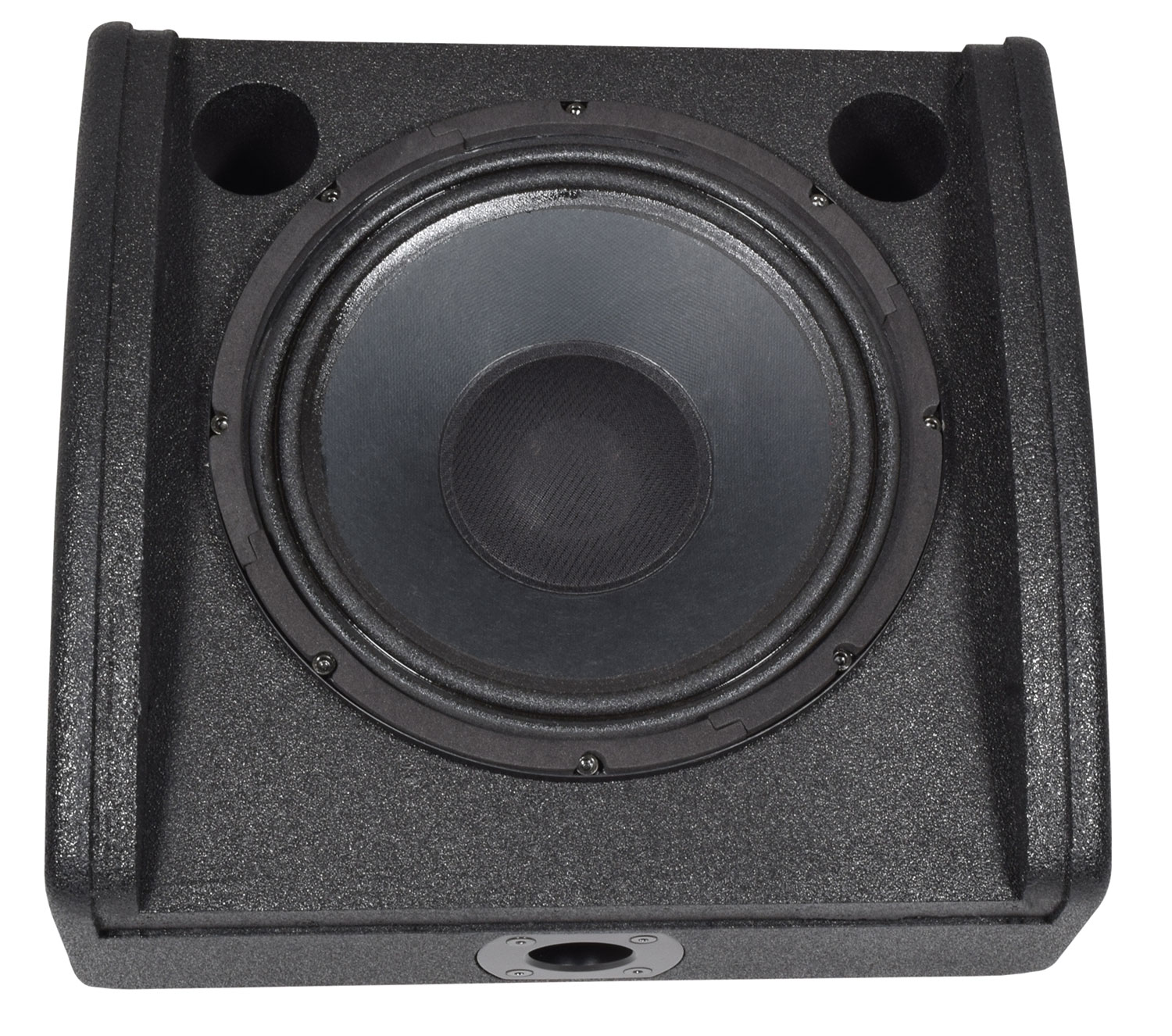

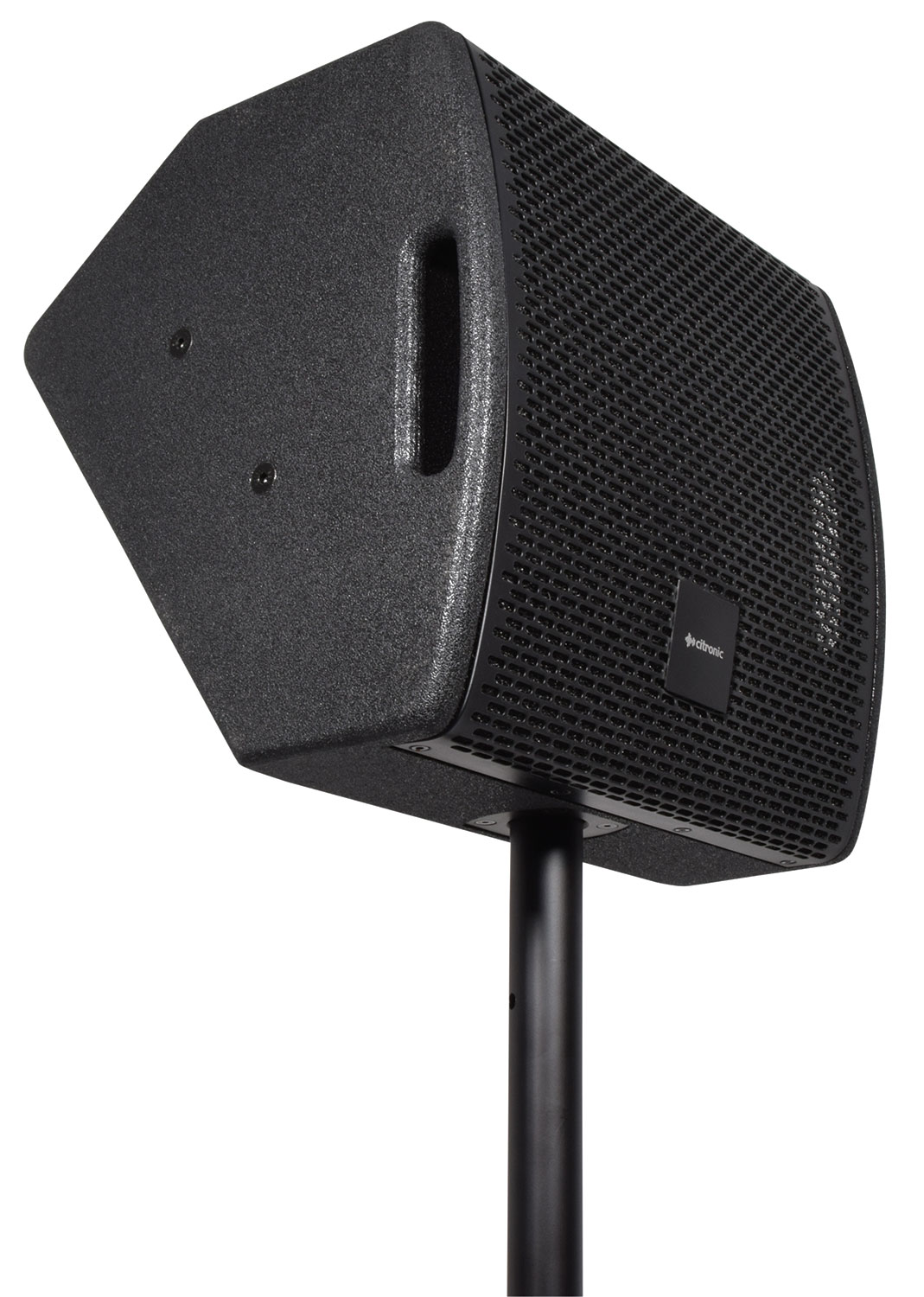

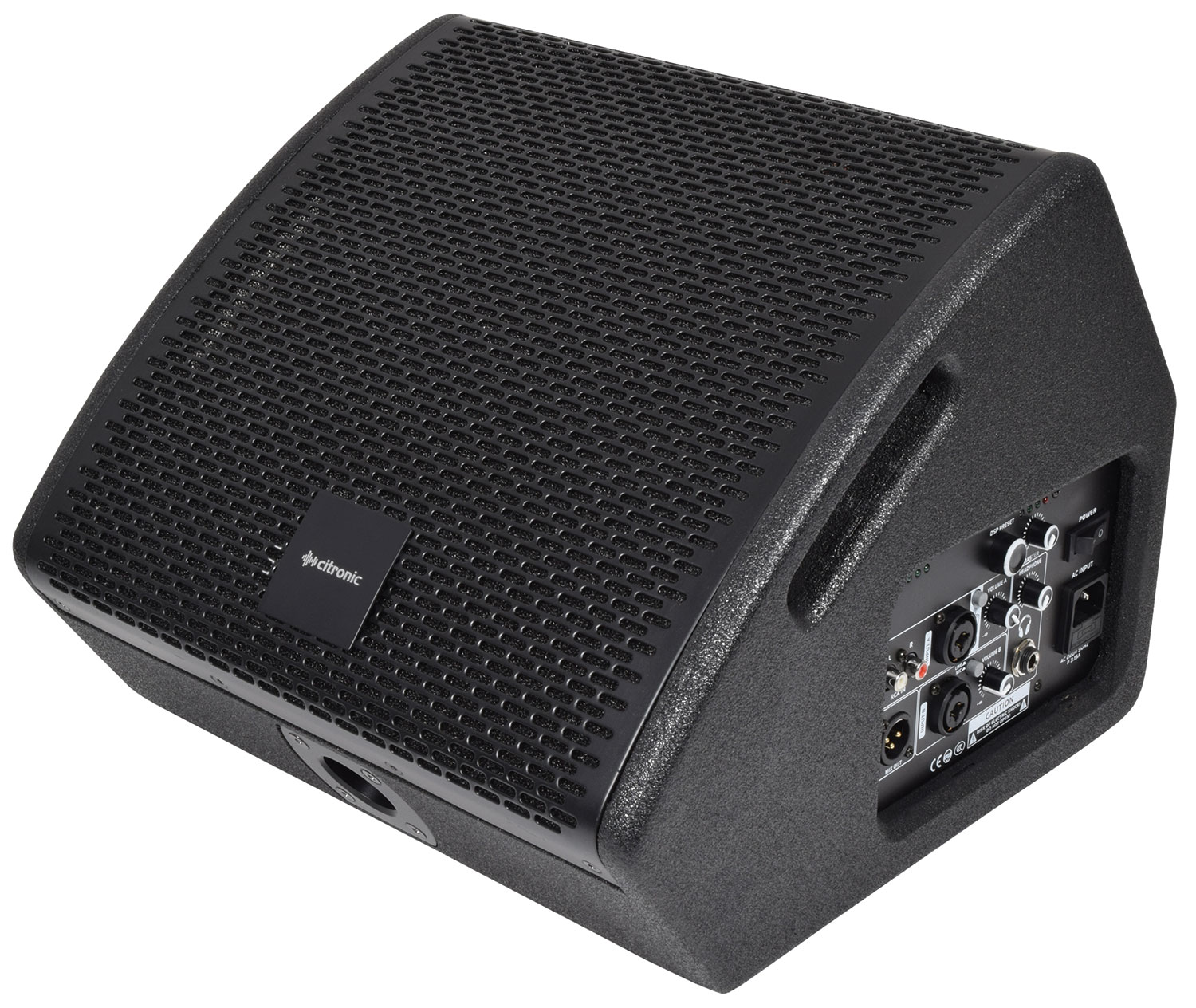

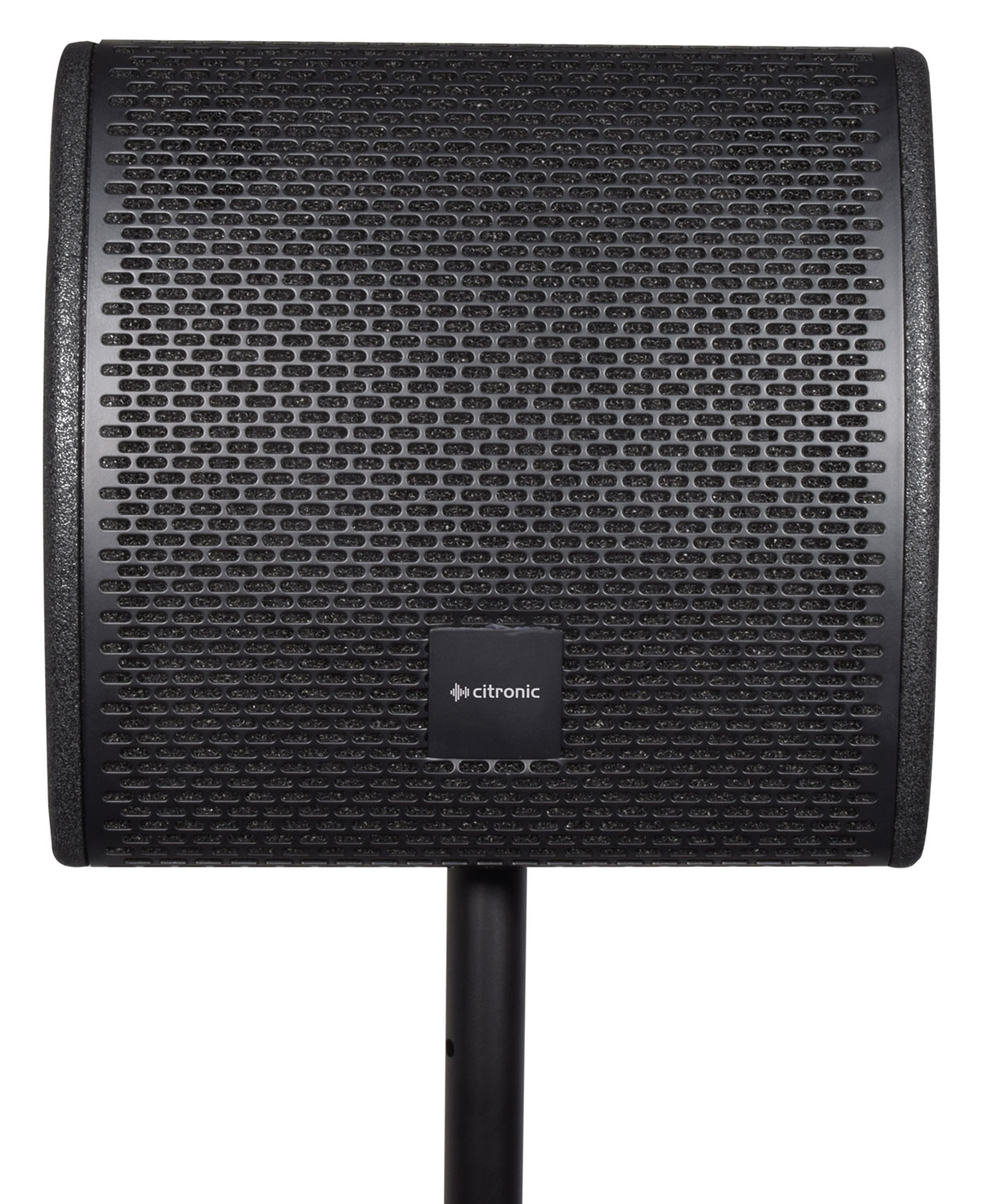

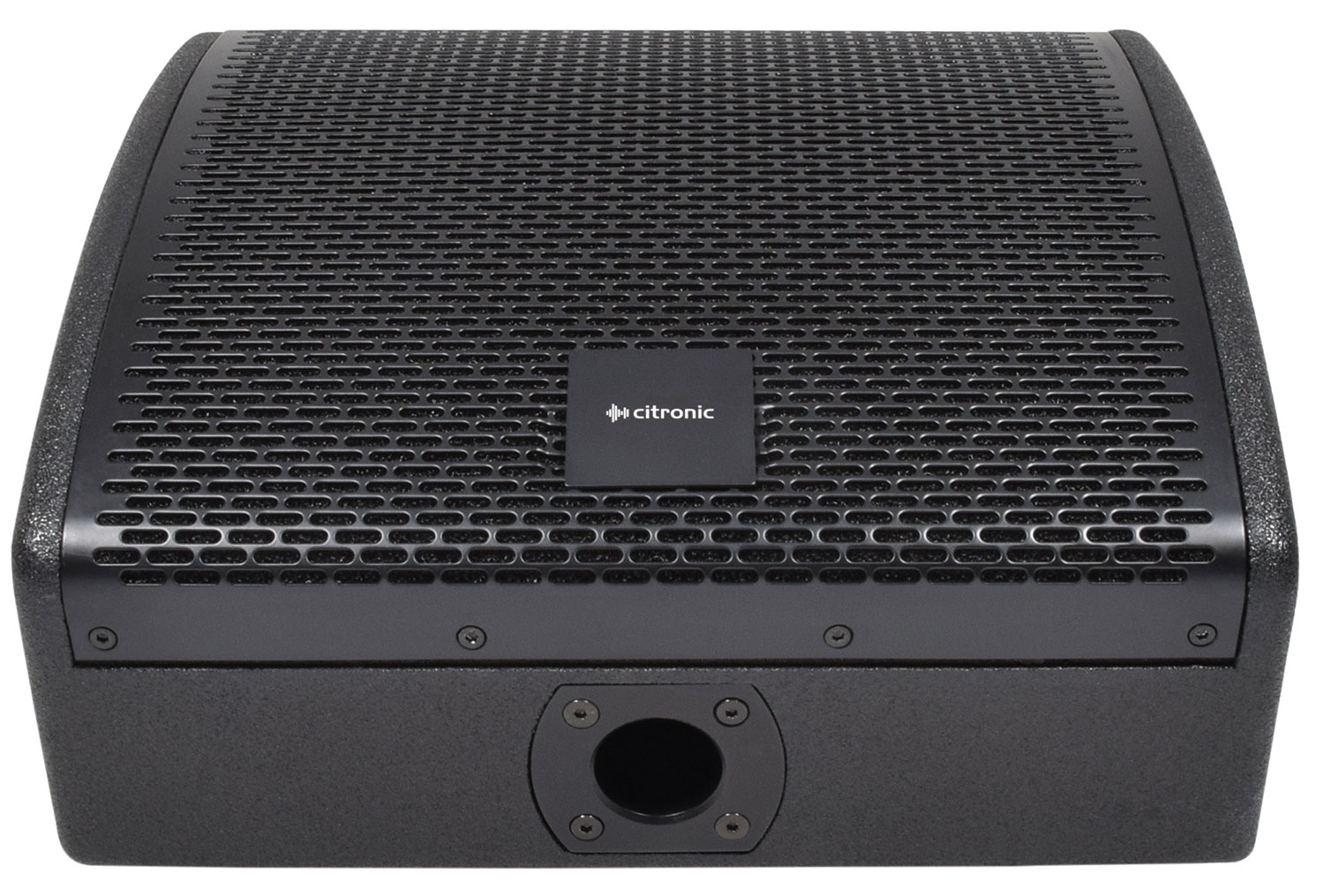

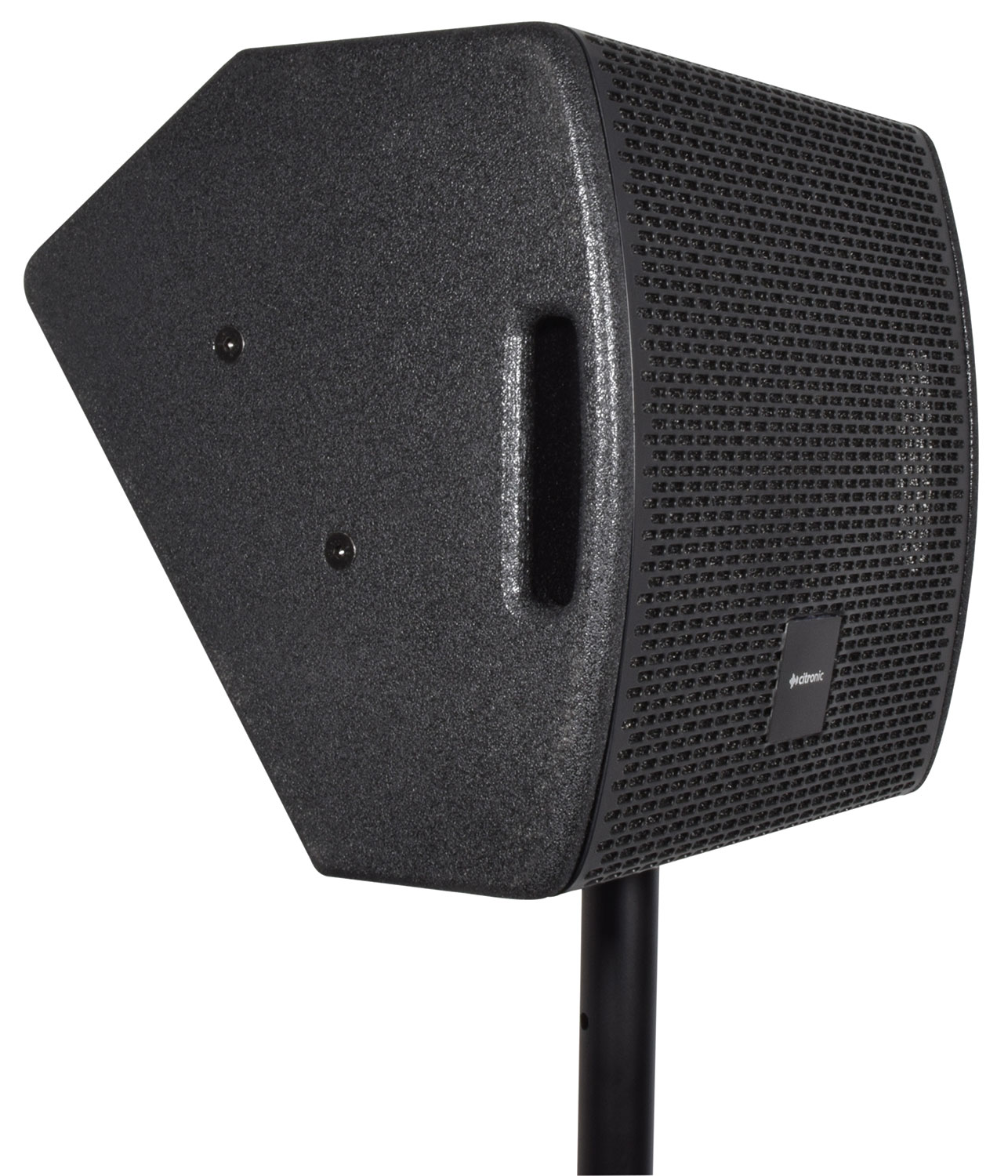

Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. Powered from its inbuilt class-D amplifier, each wedge has enough output to deliver clear sound quality in high SPL situations and is even serviceable independently as a compact PA cabinet, thanks to the 35mm pole mount socket and M8 flying points. A DSP section provides 5 different EQ profiles to accurately match the program material and sound environment. In addition to a mic/lin input and separate line input, the CM-series wedges also have a Bluetooth® receiver, which makes it ideal as a musician's practice amplifier. Surprisingly powerful in such a compact enclosure, this speaker offers high quality sound output with flexible options for stage foldback, keyboard and e-drum amplification.

  • High power class-D bi-amplifier
  • Bluetooth receiver
  • 5 Profile DSP section
  • Concentric HF driver
  • Amplifier : construction Class-D
  • Impedance 4 Ohms
  • HF driver 44mmØ (1.75") Ti compression driver

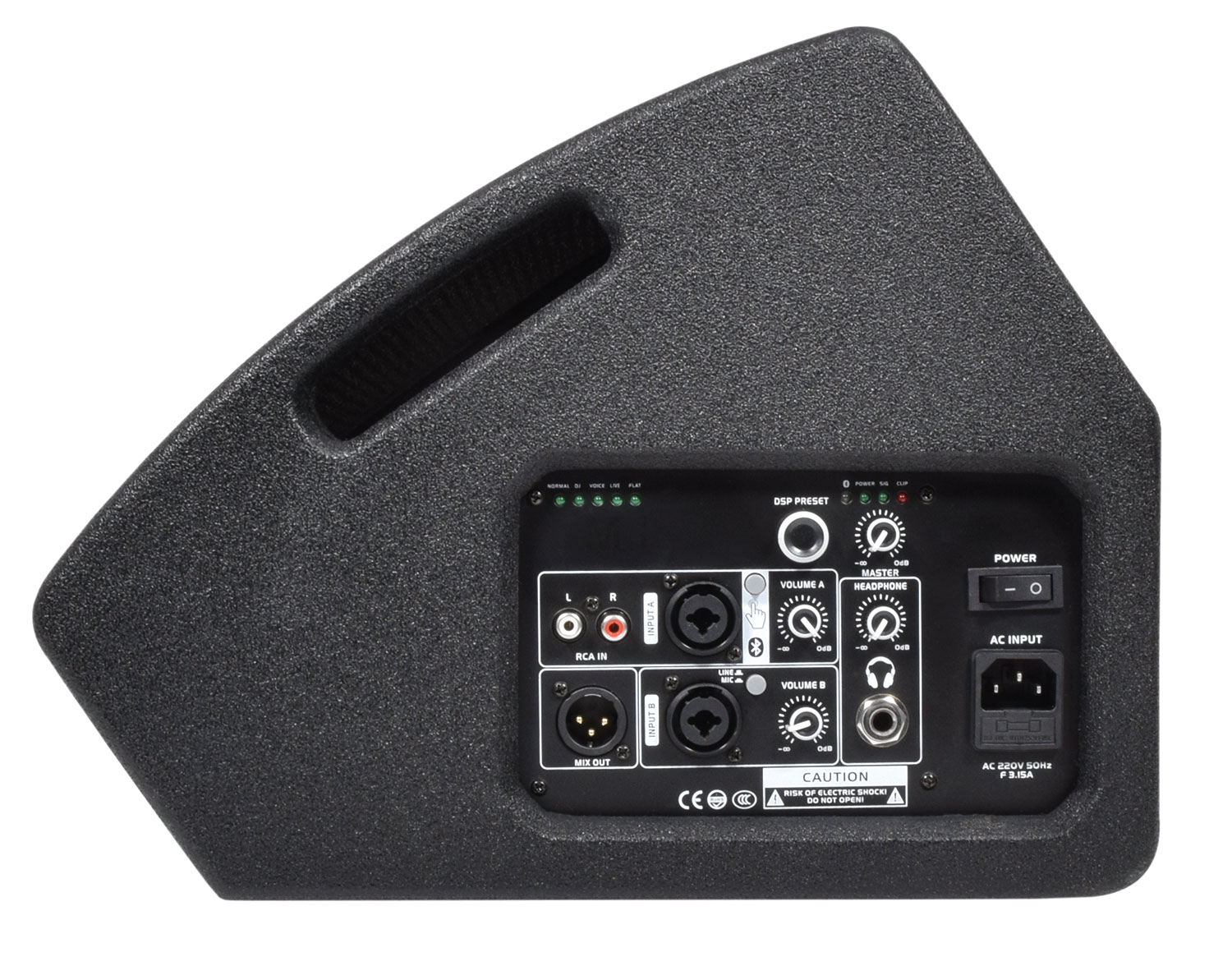

  • Inputs Mic/Line (XLR/jack), Line (XLR/jack/RCA), Bluetooth®
  • Outputs Headphones (6.35mm jack), Mix out (XLRM)
  • DSP settings Normal, DJ. Voice, Live, Flat
  • Weight 9.87kg

Versions

  178.690UK 178.692UK 178.695UK
Main driver 250mmØ (10") with concentric tweeter 300mmØ (12") with concentric tweeter 380mmØ (15") with concentric tweeter
Voice coil 50mmØ (2") 75mmØ (2.5") 75mmØ (2.5")
Magnet weight 1.13kg (40oz) 1.50kg (53oz) 1.50kg (53oz)
Output power rms 250Wrms 300Wrms 350Wrms
Output power peak 400W 600W 700W
Frequency response 65Hz - 20kHz 55Hz - 20kHz 45Hz - 20kHz
Sensitivity 95dB 96dB 97dB
Dimensions 355 x 350 x 275mm 445 x 410 x 335mm 528 x 504 x 382mm
Weight 9.87kg 12.10kg 15.00kg

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

Wireless Audio

A description of various wireless technologies available to musicians, presenters and performers

Thursday, 2nd March 2023

In the box

The box for this item contains :

  • CM-series wedge monitor
  • IEC mains lead
