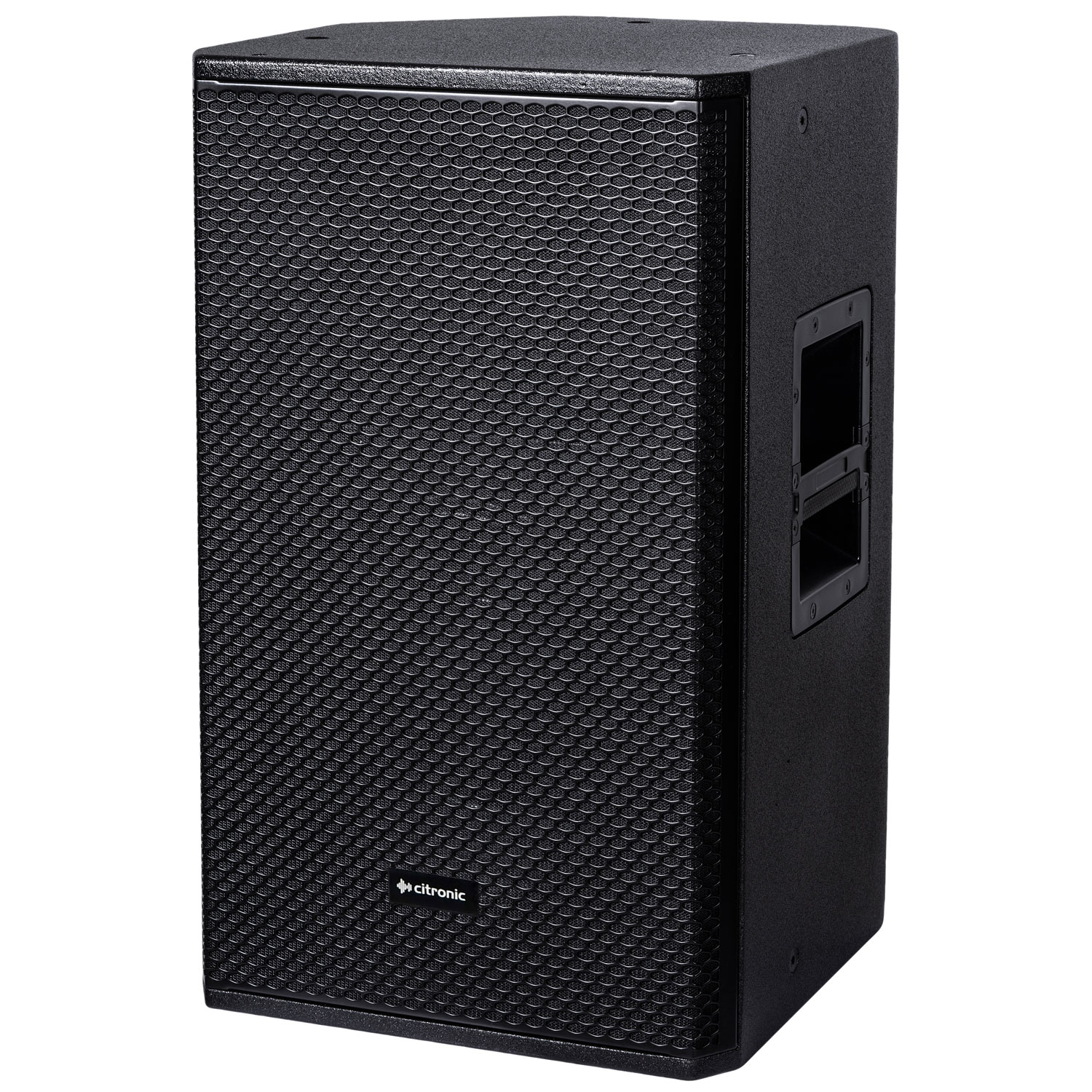

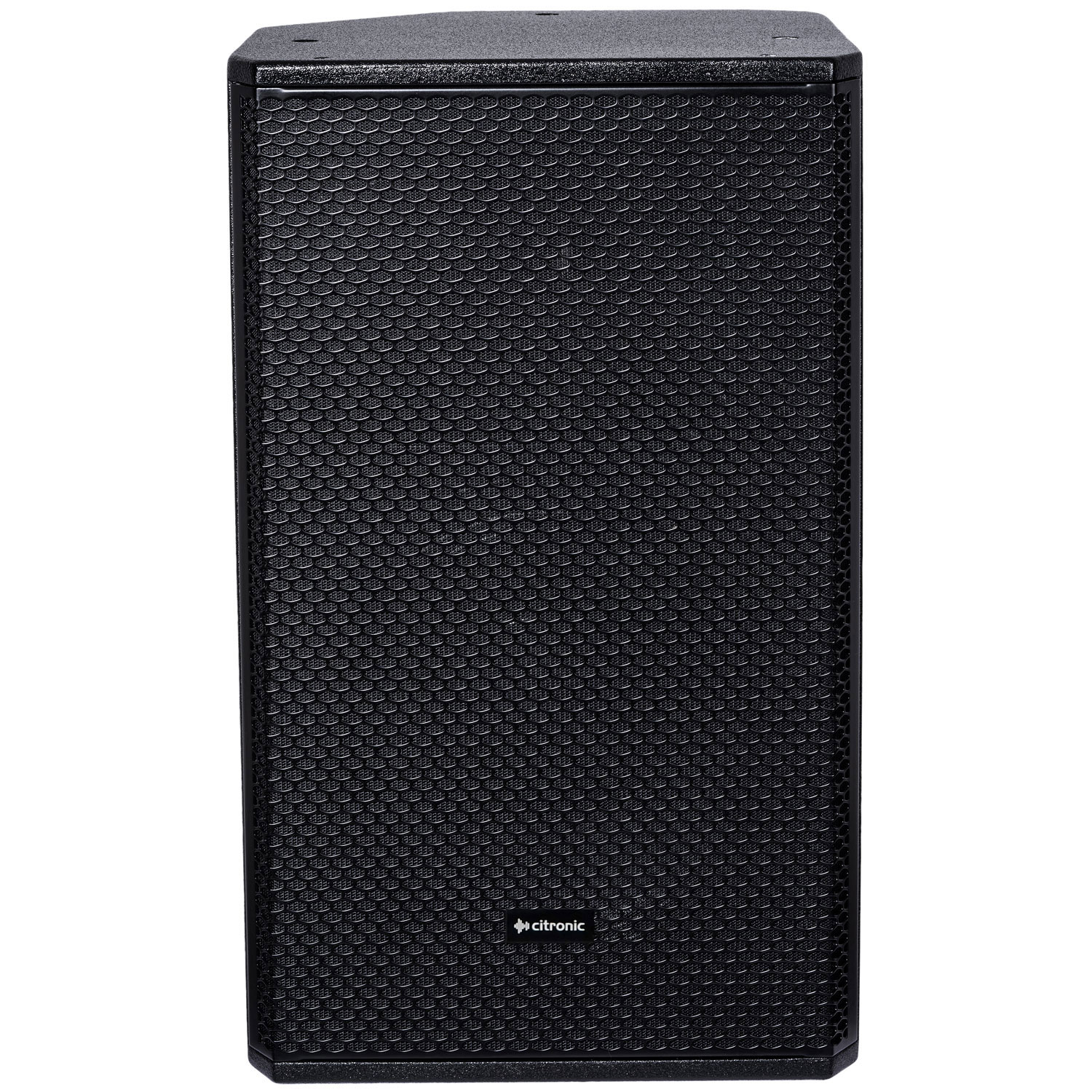

CORVA High Power Passive Full-Range PA Cabinets

CORVA series passive cabinets offer high power handling for larger installations and events, where high sound pressure levels are needed with clear and accurate reproduction. Designed for stacking or pole mounting, these cabinets can equally be deployed at height, using the 12 x M8 flying points. Each enclosure is loaded with specially designed heavy duty drivers to handle the output of high energy amplifiers. For larger sound reinforcement applications, CORVA passive cabinets combined with high power amplification can deliver concert-level sound without compromising sound quality or reliabilty.

• Specially developed heavy duty driver components
• Sturdy plywood enclosure with polyurea finish
• Integral handles, pole-mount socket and flying points

• Main driver 300mmØ (12") with 100mm voice coil
• HF driver 75mmØ (3") Ti compression driver
• Power handling : rms 700W
• Power handling : max 1400W
• Frequency response 50Hz - 20kHz
• Sensitivity @ 1W/1m 99dB
• SPL max. 130dB
• Dimensions 640 x 380 x 370mm
• Weight 25.0kg
• Construction 15mm MDF with polyurea finish
• Input 2 x parallel SPK socket
• Impedance 8 ohms (nominal)
• Flying points 12 x M8
