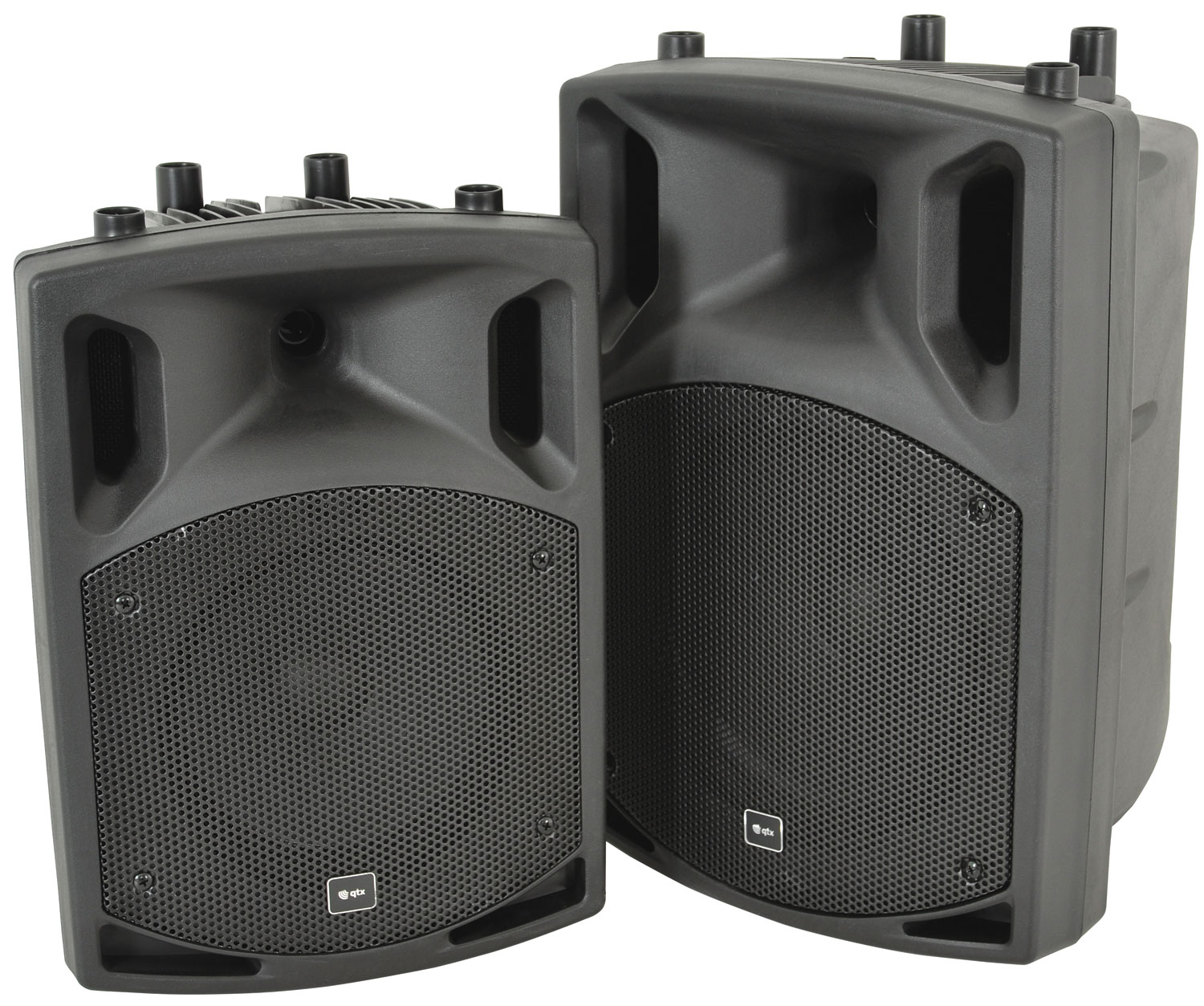

QX Series Active Moulded Speakers with Bluetooth

178.752UK QX8BT

Active PA speaker units in a contemporary styled moulded cabinet with integral carry handle and a constant directivity horn. The built-in mixer section includes mic, line and Bluetooth connection. ...

  • Bluetooth connectivity
  • High output built-in amplifier

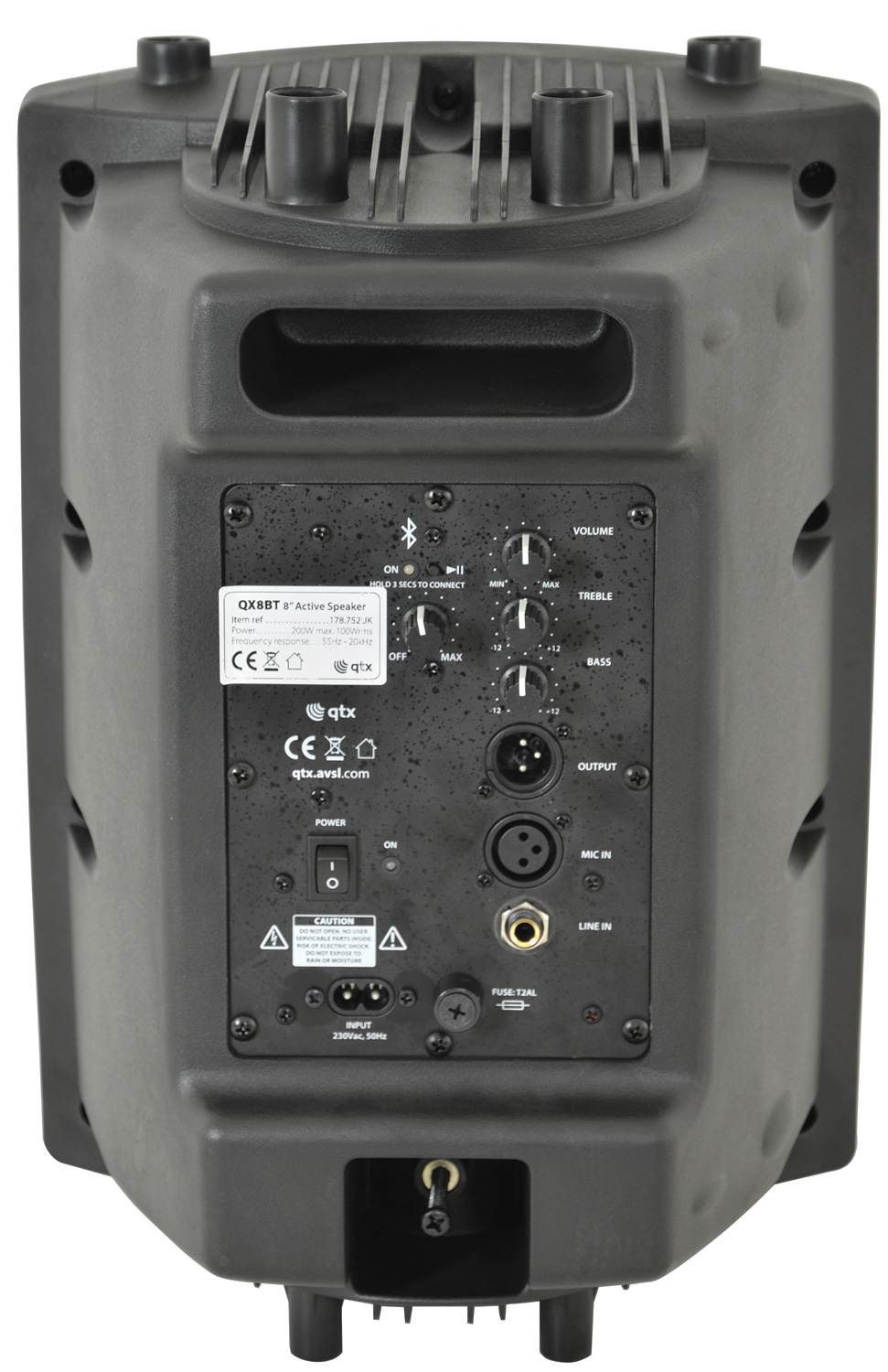

  • Individual microphone and line input sections
Description Version Packed
178.752UK
QX8BT Active Speaker
8 Inch Box Printed
178.753UK
QX10BT Active Speaker
10 Inch Box Printed

QX Series Active Moulded Speakers with Bluetooth

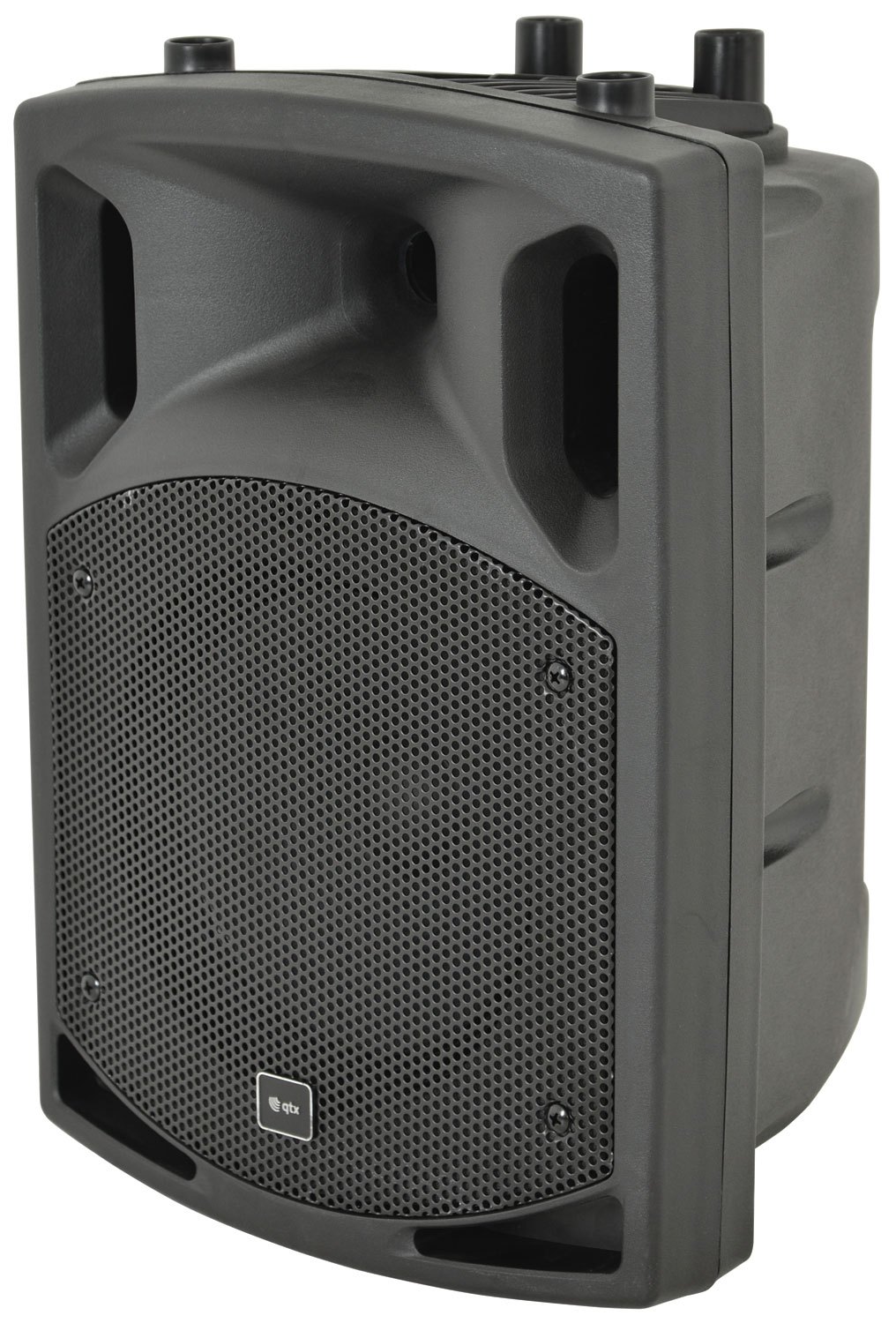

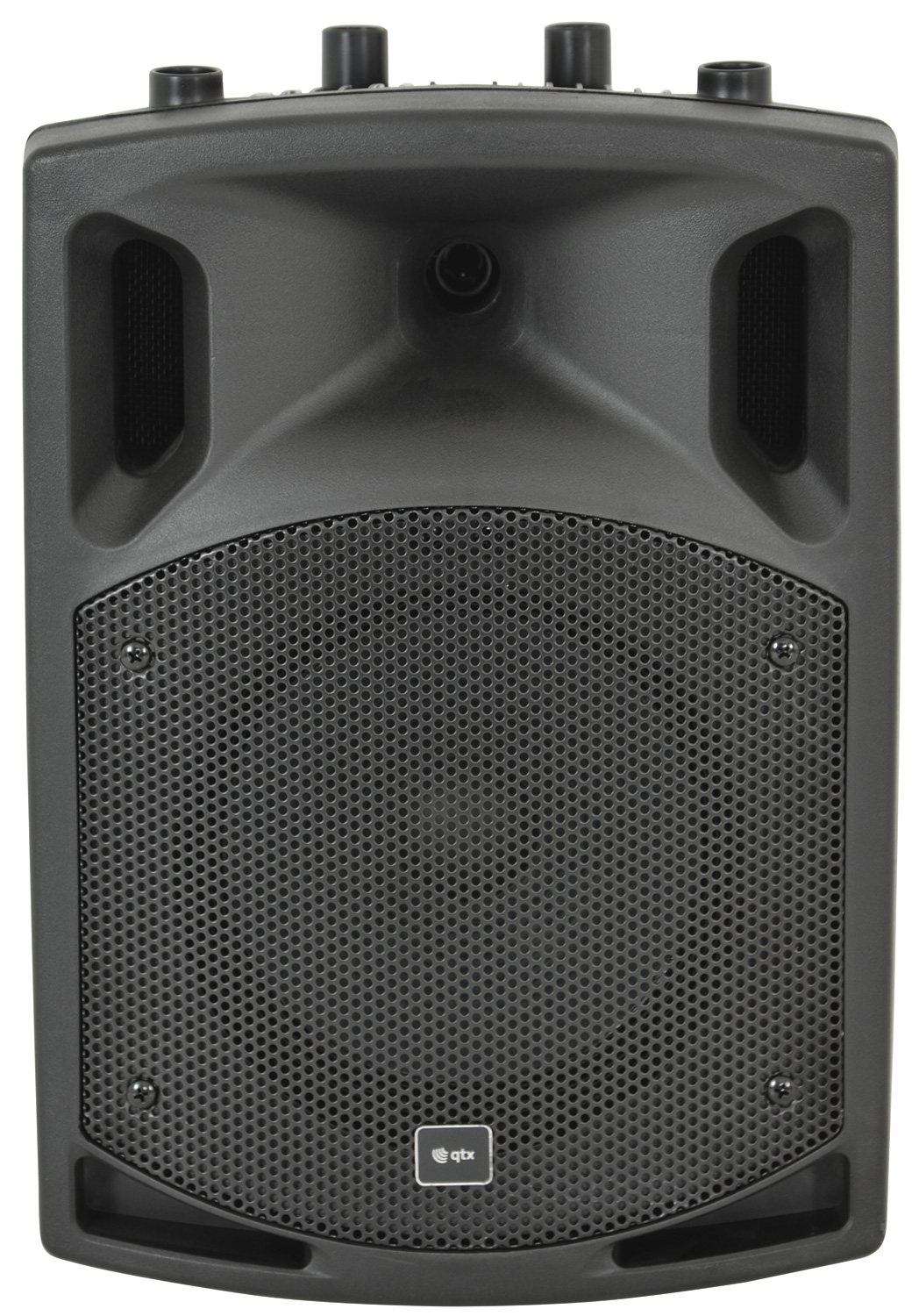

Active PA speaker units in a contemporary styled moulded cabinet with integral carry handle and a constant directivity horn. The built-in mixer section includes mic, line and Bluetooth connection. A powerful built-in amplifier completes the feature set of this flexible and very capable cabinet.

  • Bluetooth connectivity
  • High output built-in amplifier
  • Individual microphone and line input sections
  • Titanium compression driver

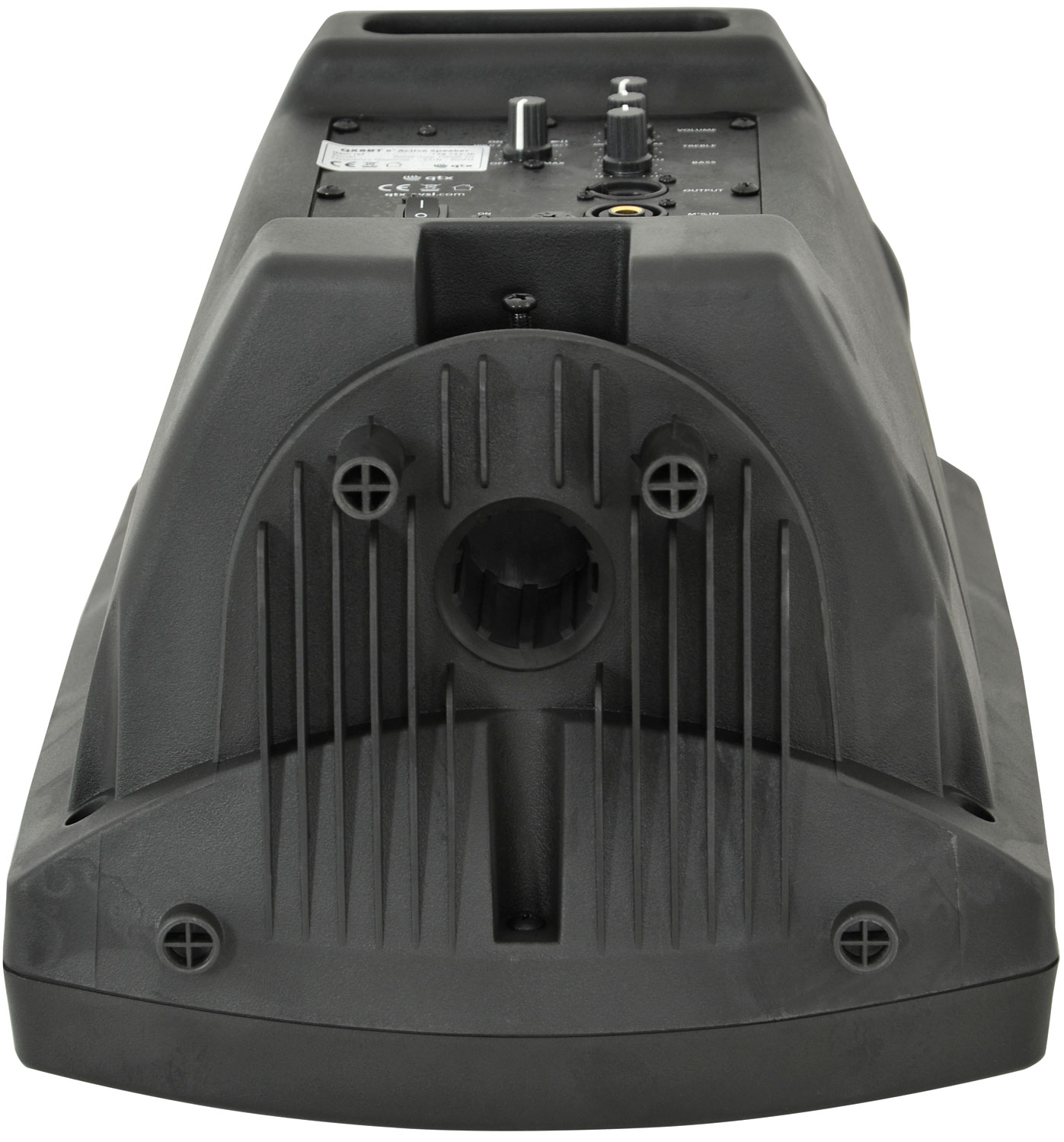

  • 35mmØ internal top hat pole mount
  • Power supply 230Vac, 50Hz (FIg.8)
  • Bluetooth version 4.0
  • SNR 87dB
  • THD 0.1%
  • Dispersion 90° x 60° (H x V)
  • Impedance 4 Ohms

Versions

  178.752UK 178.753UK
Inputs Line (XLR, Jack) Line (XLR, Jack)
Power max. 200W 300W
Power rms 100W 150W
SPL @ 1W/1m 94dB 97dB
LF driver 200mm (8") 250mm (10")
LF driver : coil size 35mmØ 52mmØ
HF driver 25mm Ti compression driver 25mm Ti compression driver
HF driver : coil size 25mmØ 25mmØ
Frequency response 55Hz - 20kHz 48Hz - 20kHz
Max. SPL 117dB 121dB
Crossover frequency 4kHz 4kHz
Dimensions 290 x 400 x 225mm 320 x 470 x 270mm
Weight 6.8kg 8kg

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Amplifier Classes

There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.

Friday, 28th February 2020

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • QX series active moulded speaker

Downloads

Instruction manual
For 178.752UK (228KB)
UK Declaration of conformity
For 178.752UK (252KB)
EU Declaration of conformity
For 178.752UK (243KB)
