Active speakers
Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

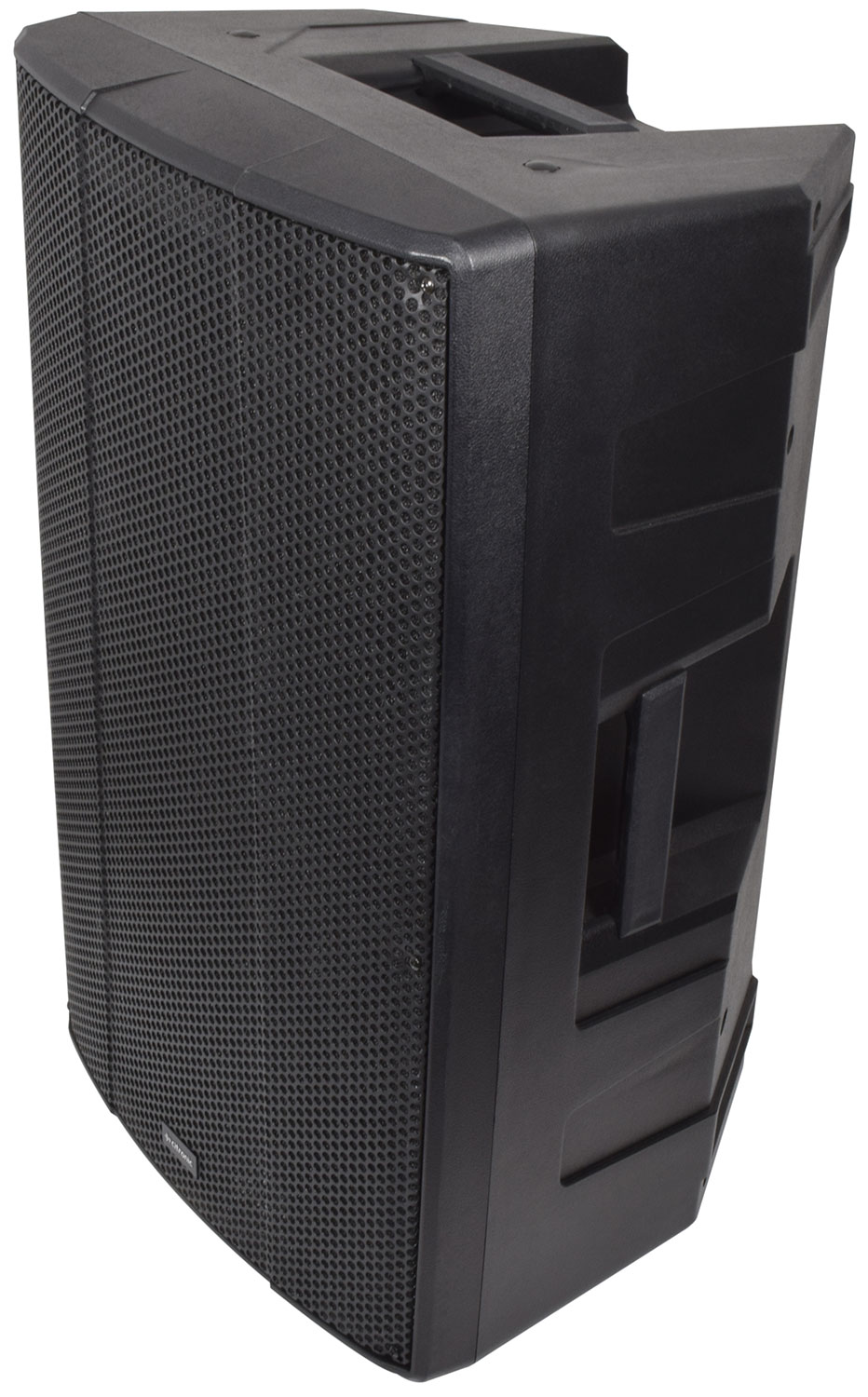

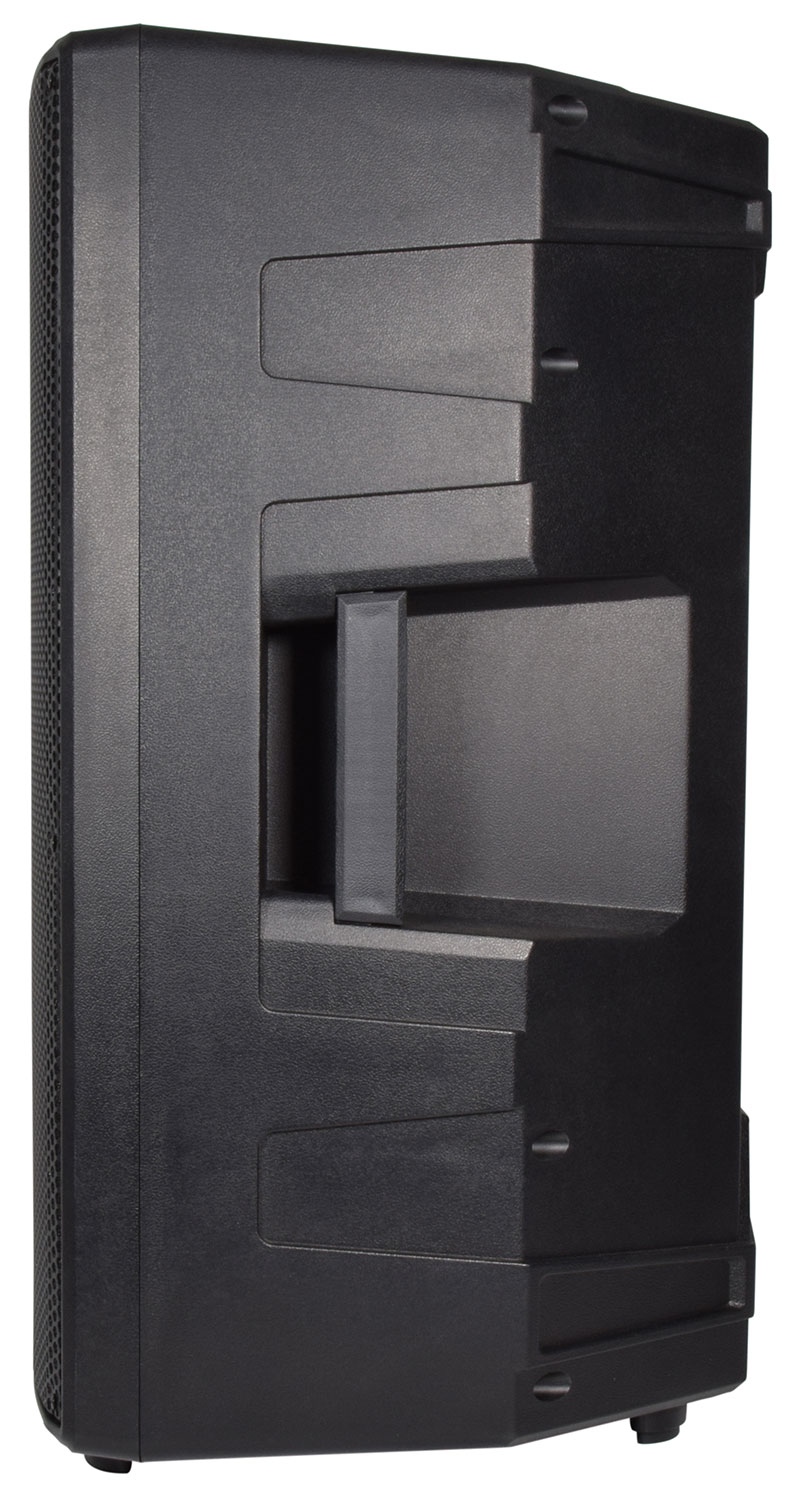

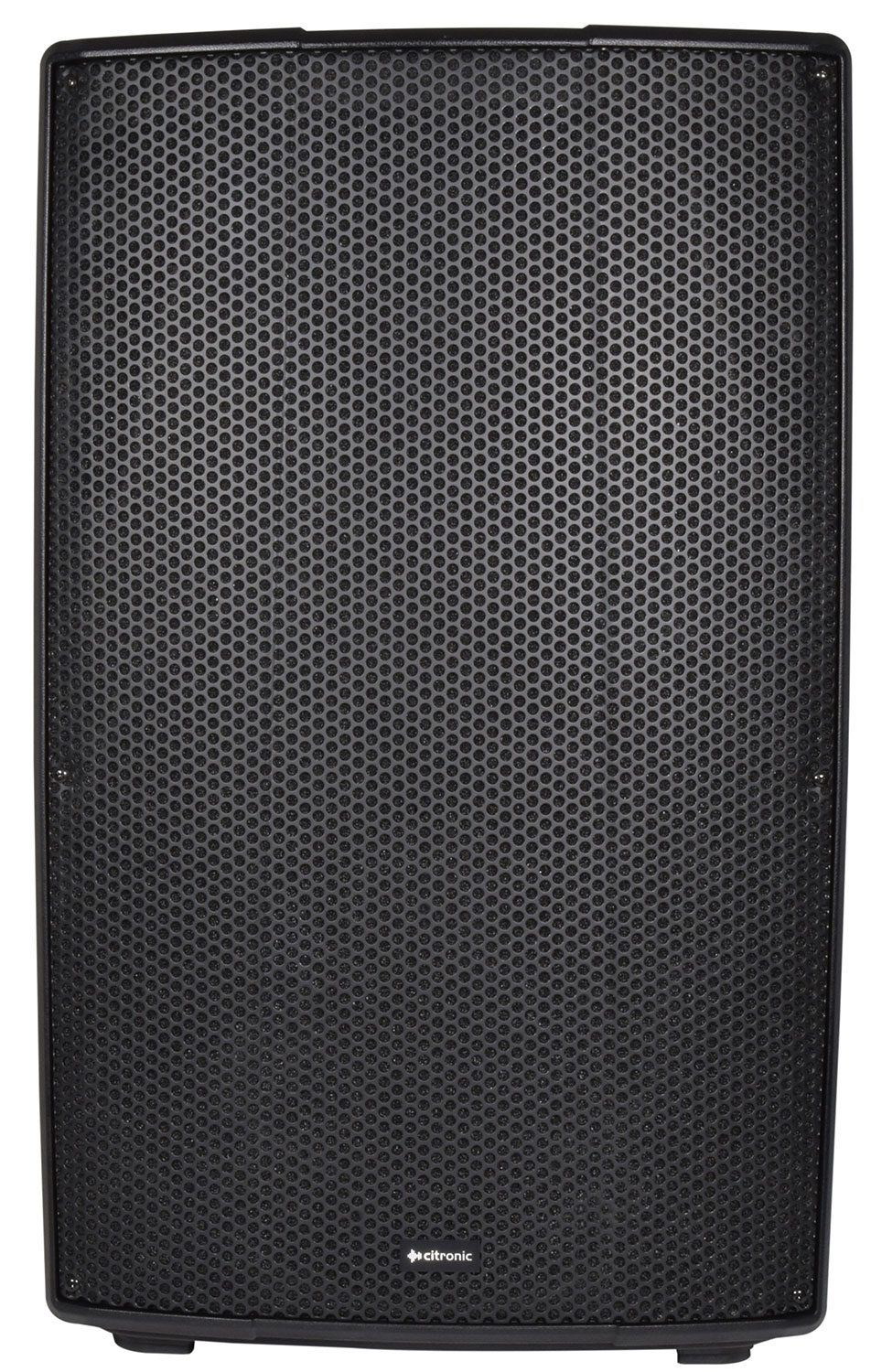

Active sound-reinforcement speakers with polypropylene enclosures and built-in class-D amplifier modules. Each cabinet is equipped with an extended frequency main driver and a titanium compression ...

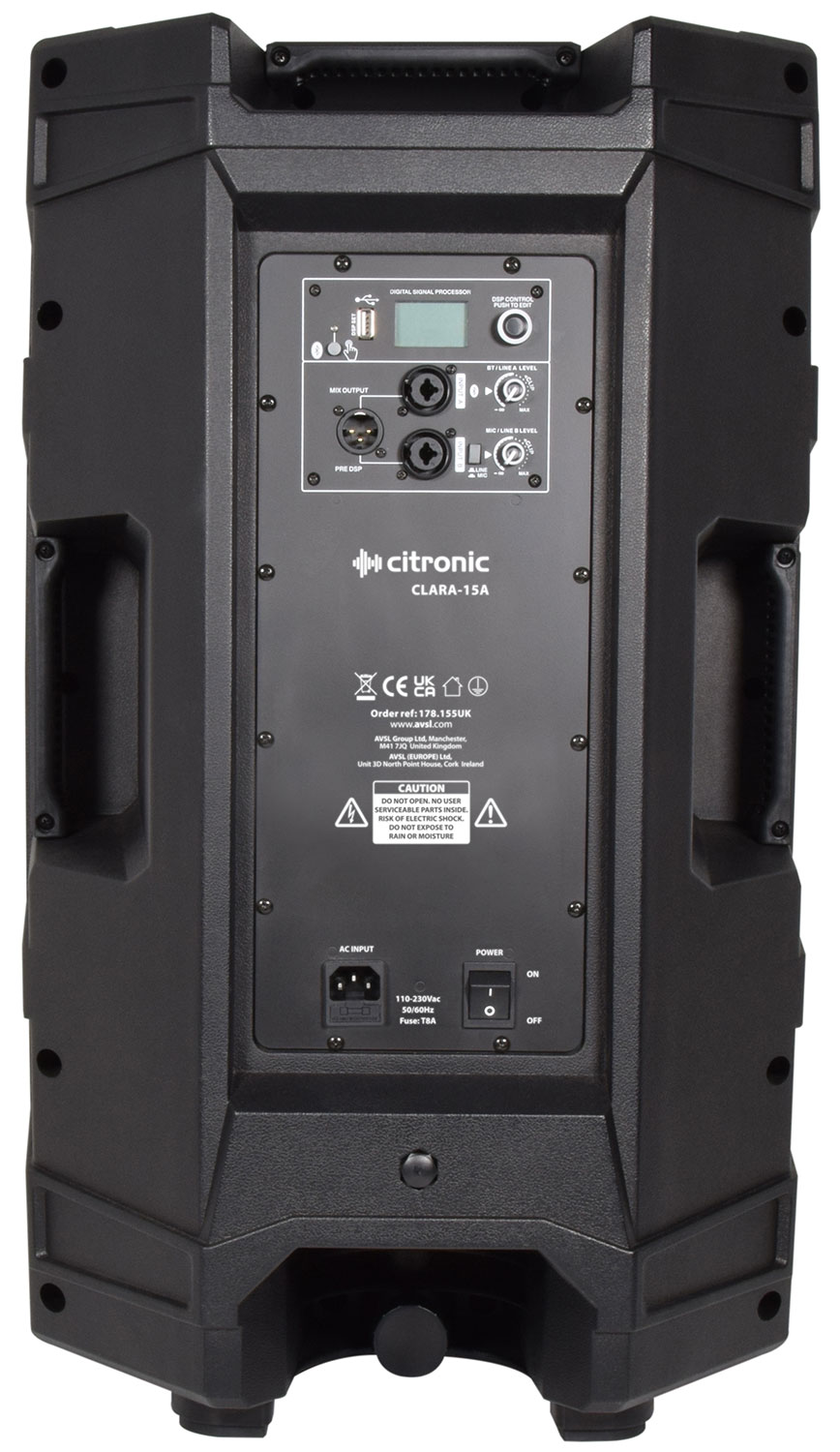

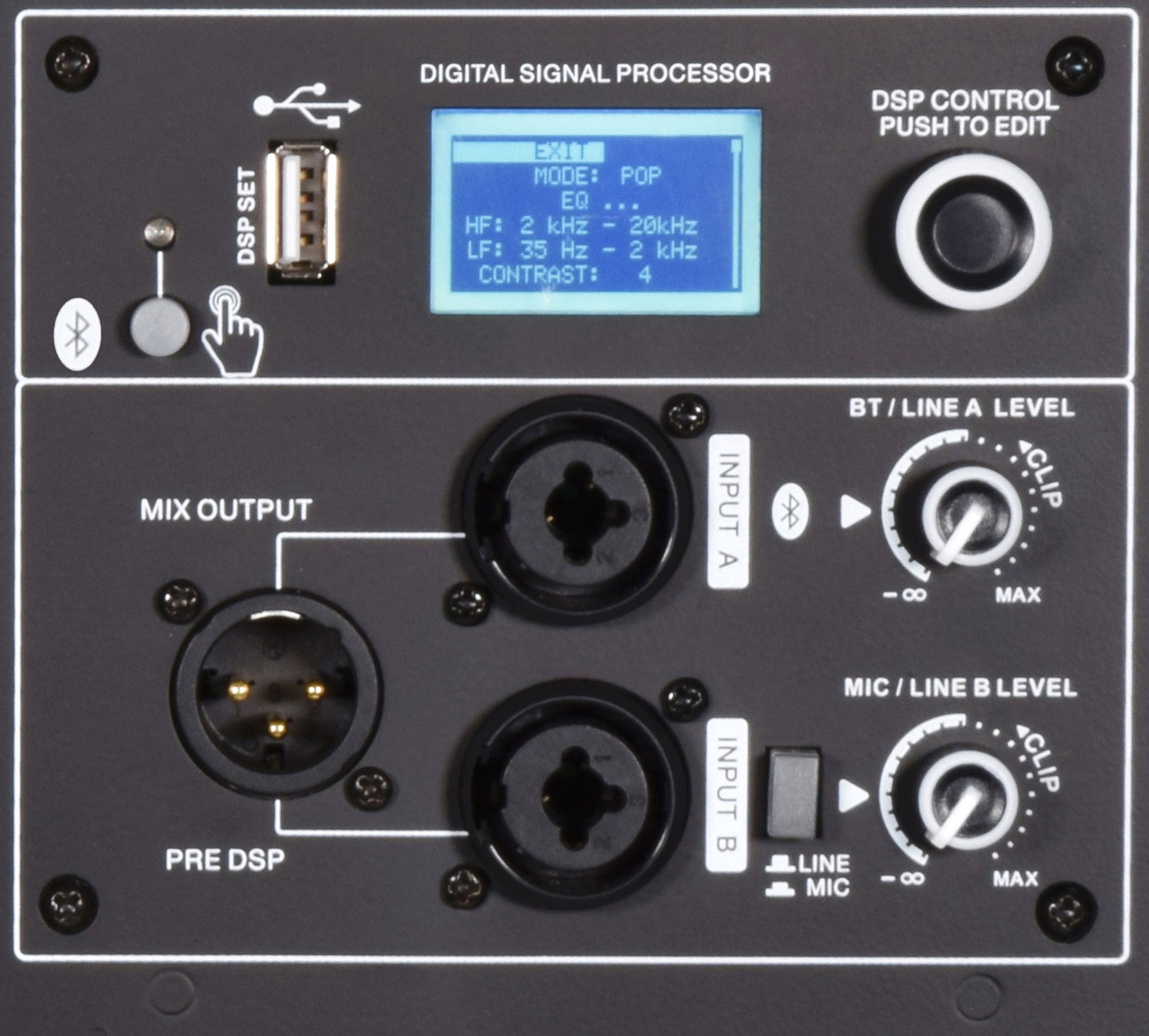

Active sound-reinforcement speakers with polypropylene enclosures and built-in class-D amplifier modules. Each cabinet is equipped with an extended frequency main driver and a titanium compression driver for optimum clarity. Power from the internal bi-amplifier is controlled from an internal DSP section, offering pre-set profiles with crossover, EQ and dynamics processing to suit the program material. Custom settings can be created via the onboard rotary encoder and backlit display or by connecting the CLARA unit to a PC or laptop via USB and editing using the free-to-download ADU software application. 2 combo inputs on the rear panel can accept balanced or unbalanced line level audio with 6.3mm jack or XLR connection. An integral Bluetooth® receiver can be paired to a smart phone and audio can be streamed wirelessly through input A. In addition to a line level input for input B, there is a mic/line level switch to enable direct connection of a microphone. Maximum sound impact from a lightweight and easy to manage cabinet.
178.152UK | 178.155UK | |
---|---|---|
Frequency response | 50Hz-19kHz | 45Hz-19kHz |
LF driver | 300mmØ (12") woofer | 380mmØ (15") woofer |
Voice coil | 63mmØ (2.5") LF driver | 63mmØ (2.5") LF driver |
HF driver | 34mmØ (1.35") Ti compression driver | 44mmØ (1.75") Ti compression driver |
Output power : rms | 350 + 50W (LF + HF) | 400 + 70W (LF + HF) |
Output power : max. | 800W | 1000W |
SPL max. | 125dB | 126dB |
Dimensions | 610 x 380 x 350mm | 710 x 435 x 385mm |
Weight | 16.5kg | 20.5kg |
Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.
A summary explaining the key differences between RMS, Max and Peak power ratings.
The box for this item contains :
