CORVA High Power Active PA Cabinets

Introducing a milestone in Citronic’s commitment to high-quality sound, the CORVA High Power Active PA Cabinet is engineered for high SPL output and serious sound performance. It delivers more than twice the power of our CUBA range, and is designed for outdoor events, fixed installations, and large scale professional hire. Housed in a rugged plywood enclosure and fitted with heavy-duty drivers, the CORVA Series ensures long-term reliability and durability. 12 x M8 flying points are included for easy rigging, plus a 35mm socket for pole mounting and stacking. Each high-powered Class-D amplifier is DSP-controlled, with a color display for quick access to EQ, dynamics, and gain settings. For advanced editing a USB connection enables precise adjustment, testing, and saving of custom DSP profiles via PC. Built for large-scale sound reinforcement, CORVA delivers powerful, flexible performance on demand.

• Specially developed heavy duty driver components
• Inbuilt high power class-D amplifiers

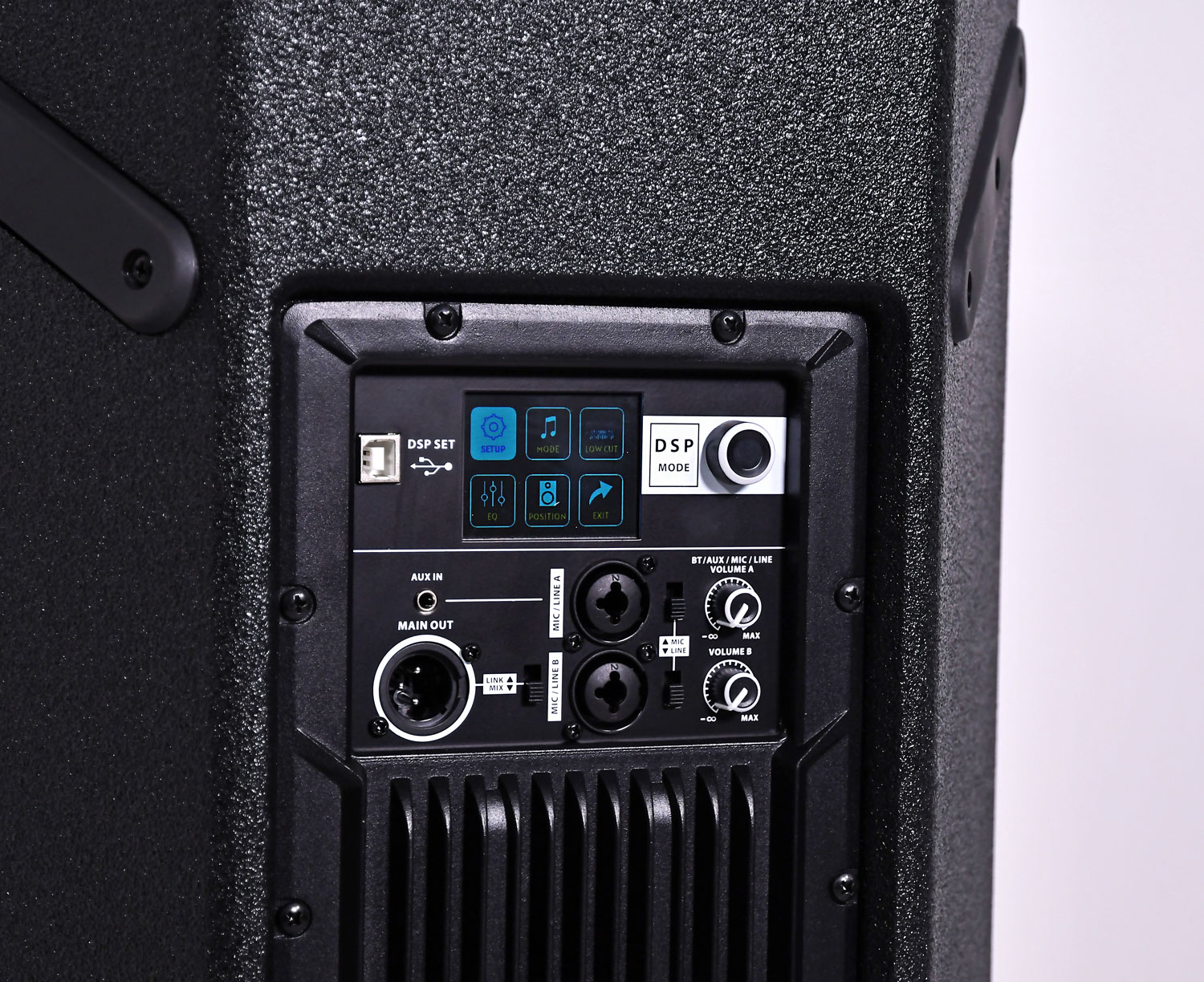

• Menu driven DSP with colour display and USB-PC interface
• Sturdy plywood enclosure with polyurea finish

• Weight 33.0kg
• Dimensions 715 x 440 x 410mm
• SPL max. 132dB
• Sensitivity @ 1W/1m 100dB
• Frequency response 45Hz - 20kHz
• Output power : max. 1800W
• Output power : rms 900W
• HF driver 75mmØ (3") Ti compression driver
• Main driver 380mmØ (15") with 100mm voice coil
• Fuse rating T10AL
• Power supply 100-240Vac, 50/60Hz (Powercon)
• Inputs 2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm)
• Line output XLR
• Amplifier : construction Class-D, DSP controlled
• Impedance 8 ohms (main driver and HF driver)
