CM-series Passive Wedge Monitors

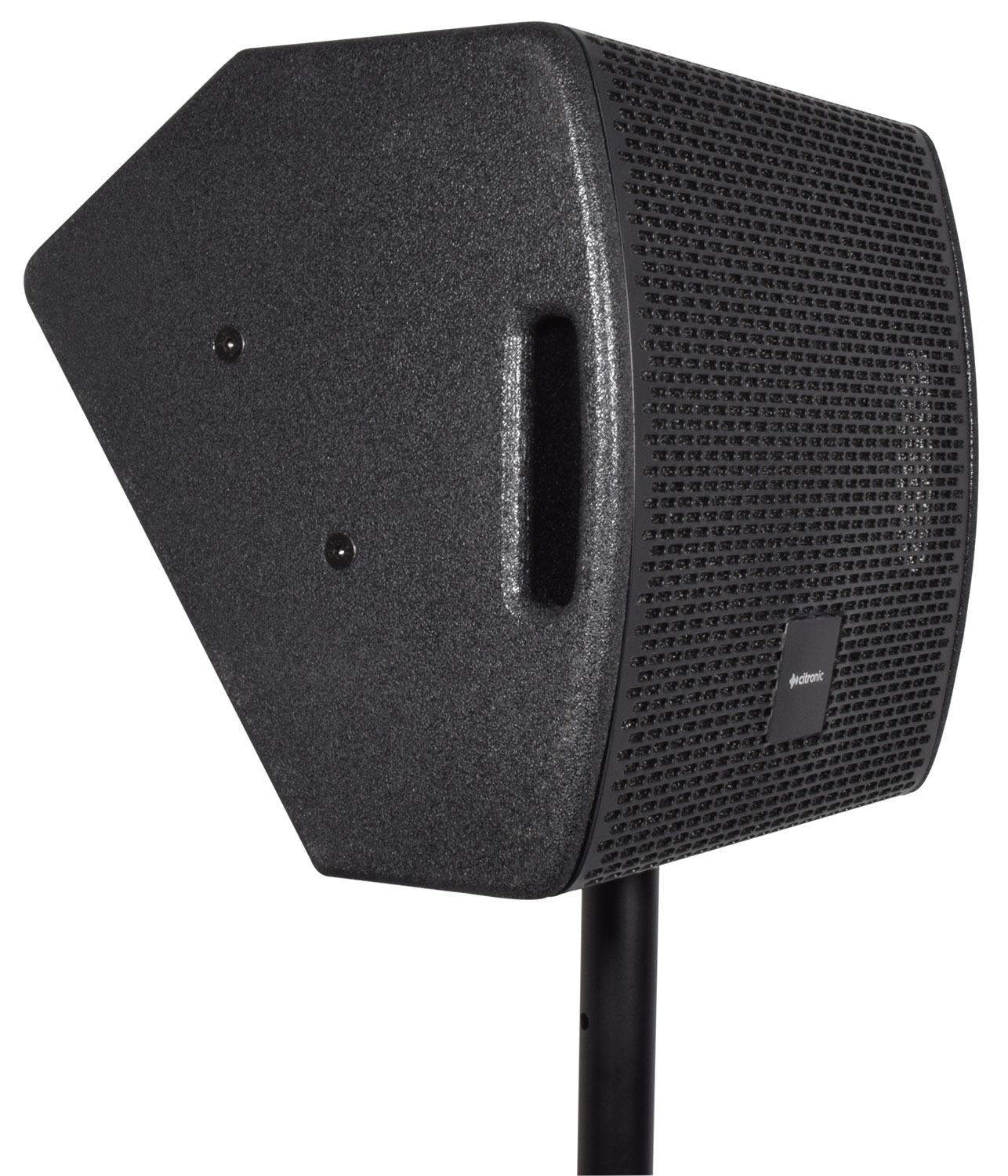

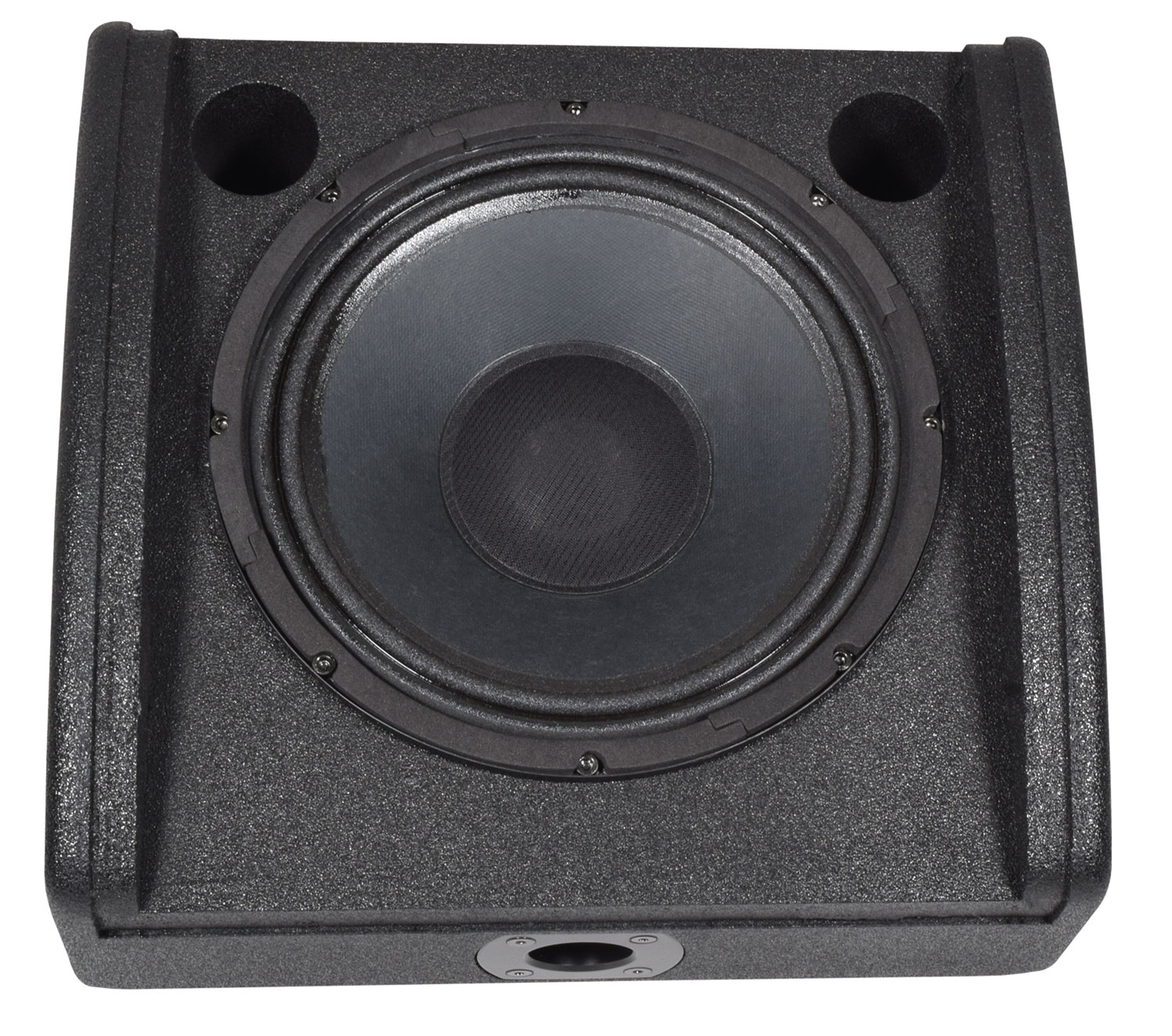

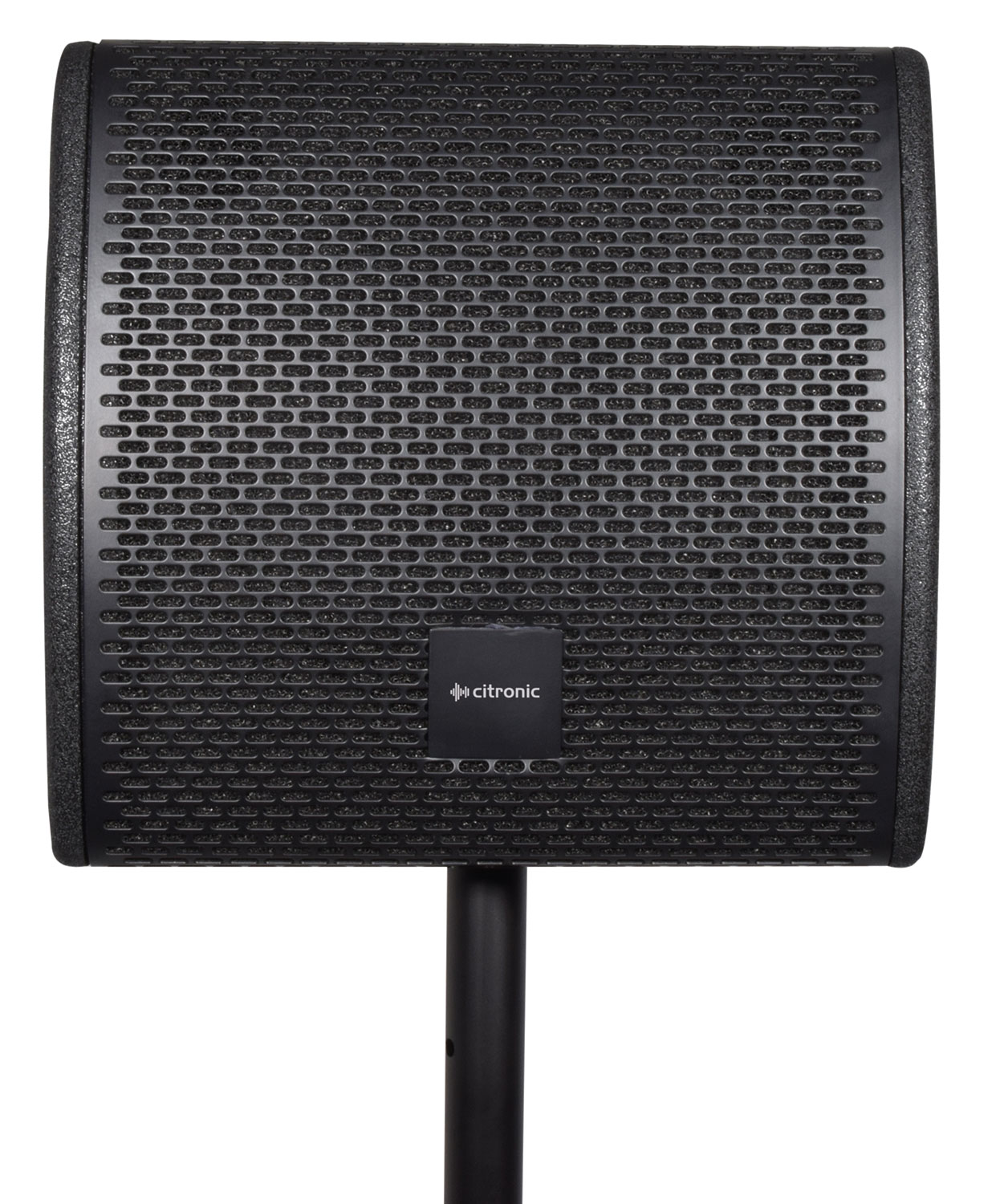

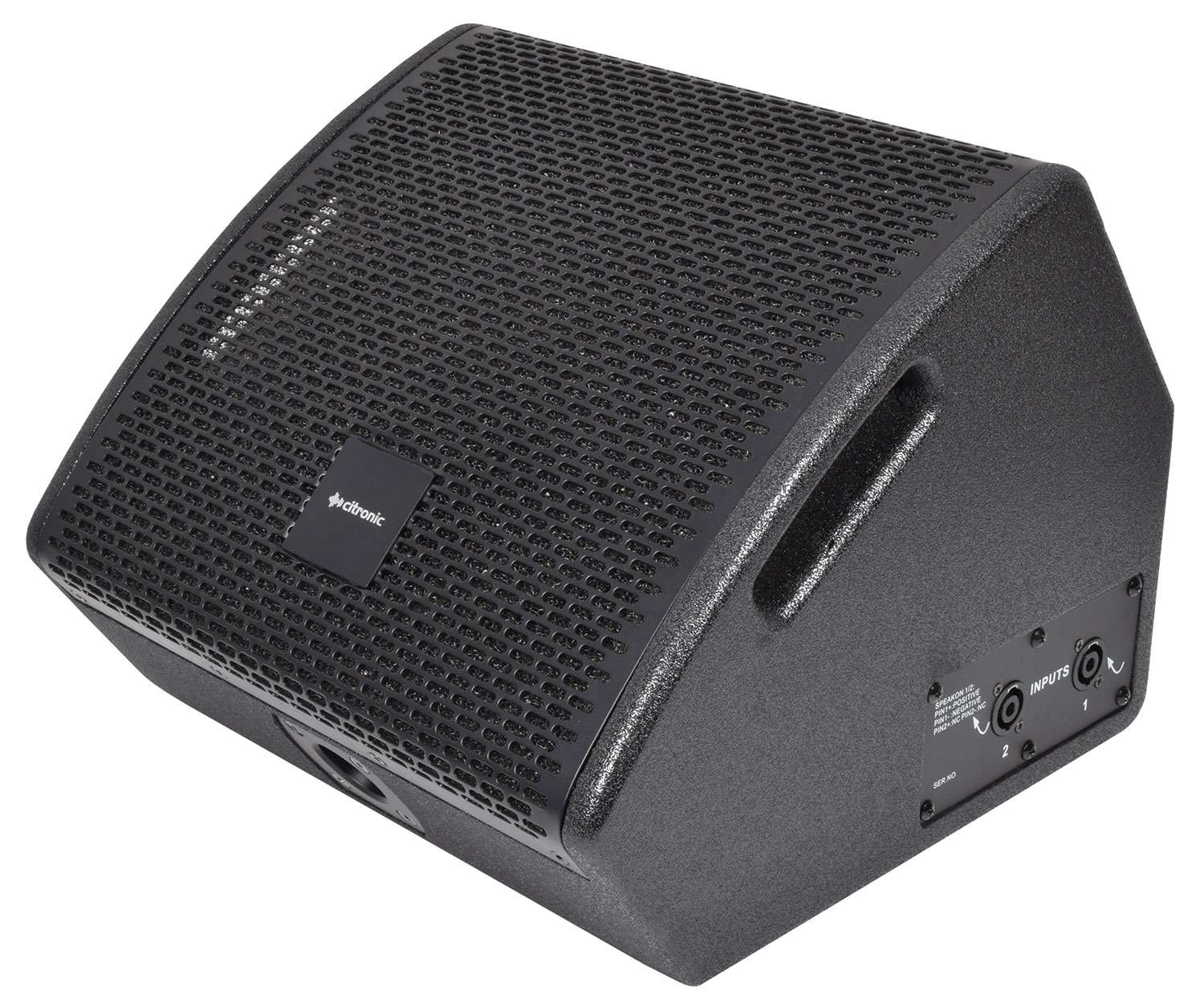

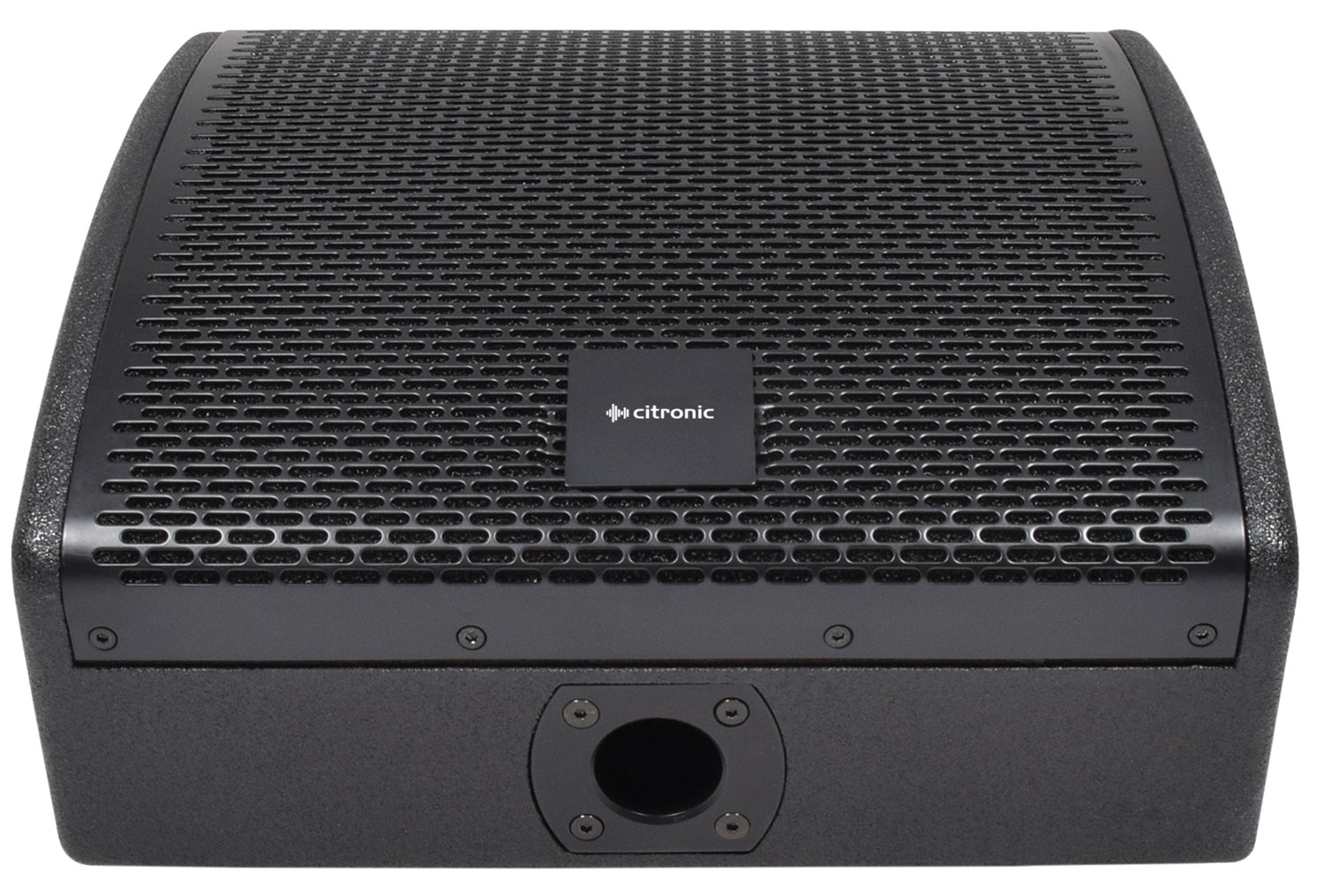

Passive wedge speaker in a durable, texture coated plywood cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. A pair of twist-lock SPK connectors are wired in parallel to accept input from an amplifier and enable connection onto a further passive speaker or monitor if required. The compact size and high power handling means that this is a very capable unit for stage foldback but can equally serve as a compact PA speaker, thanks to its 35mm pole-mount socket and M8 flying points.

• Concentric HF driver
• Compact cabinet with minimal footprint

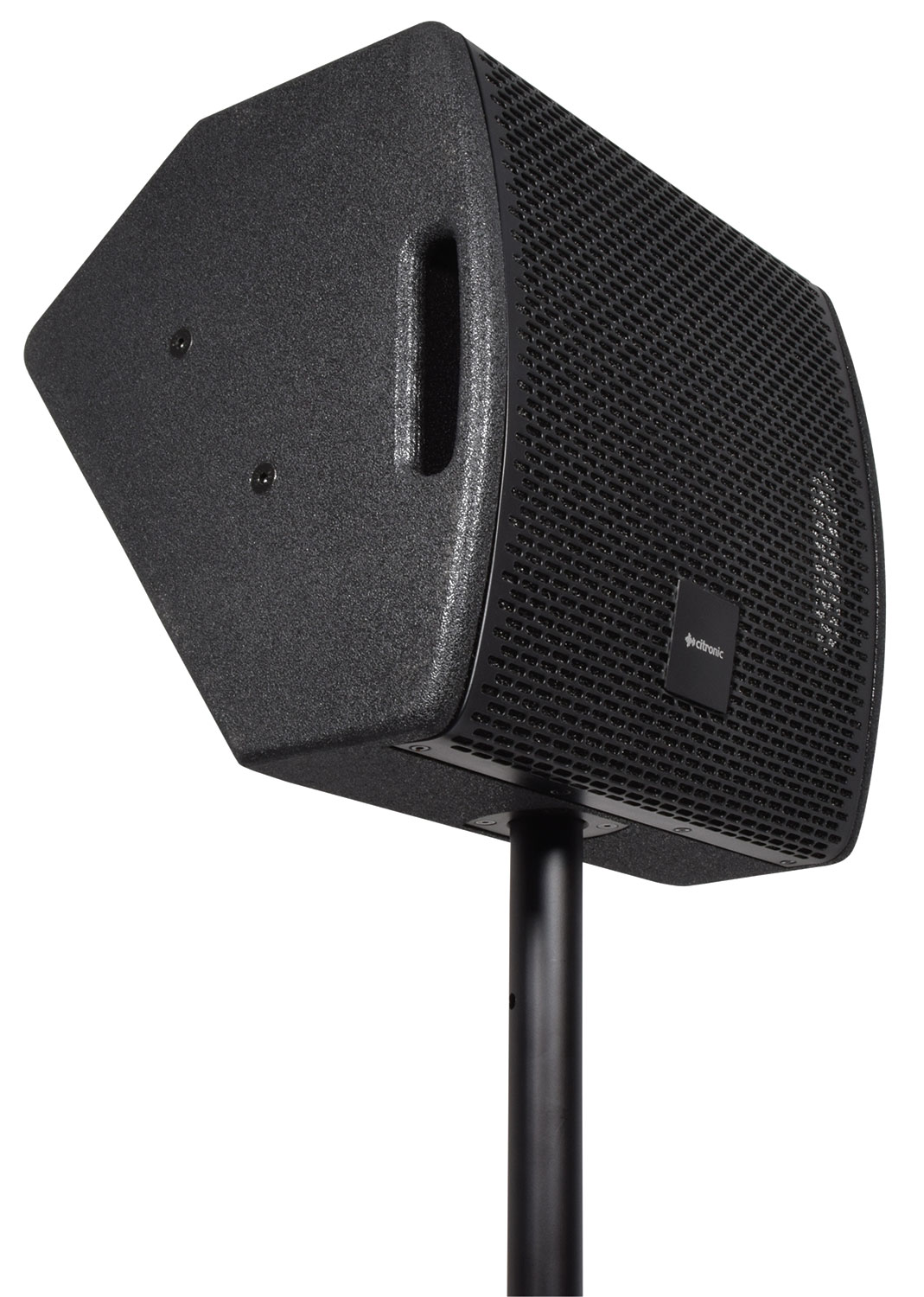

• 2 side handles and 35mm pole-mount socket

• Weight 8.64kg
• Sensitivity 95dB
• Dimensions 355 x 350 x 275mm
• Frequency response 65Hz - 20kHz
• Power handling : peak 450W
• Power handling : rms 250W
• Magnet weight 1.13kg (40oz)
• Voice coil 50mmØ (2")
• Main driver 250mmØ (10") with concentric tweeter
• Main driver 250mmØ (10")
• Impedance 8 Ohms

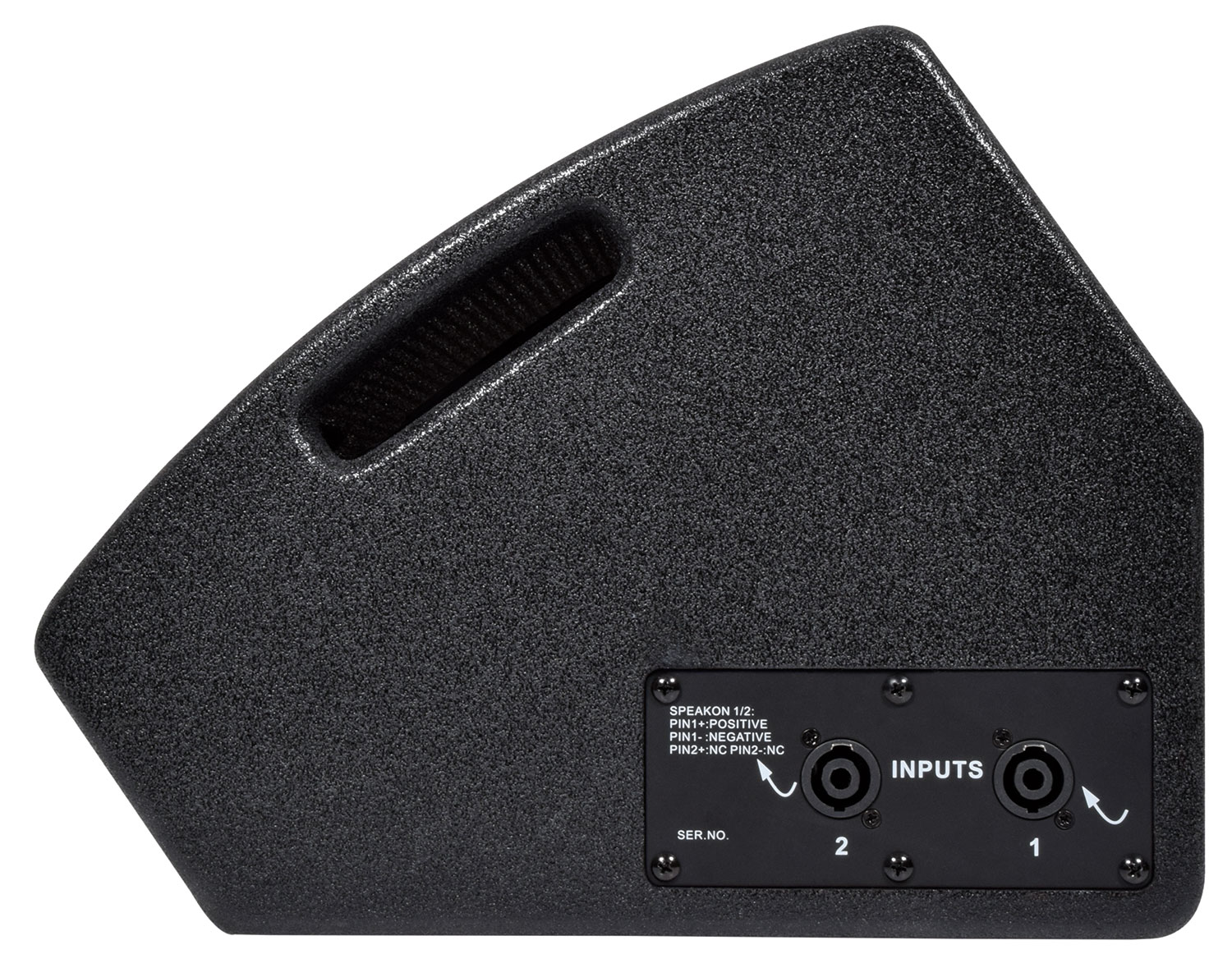

• Inputs 2 x SPK connectors (parallel pins 1±)
• HF driver 44mmØ (1.75") titanium driver
