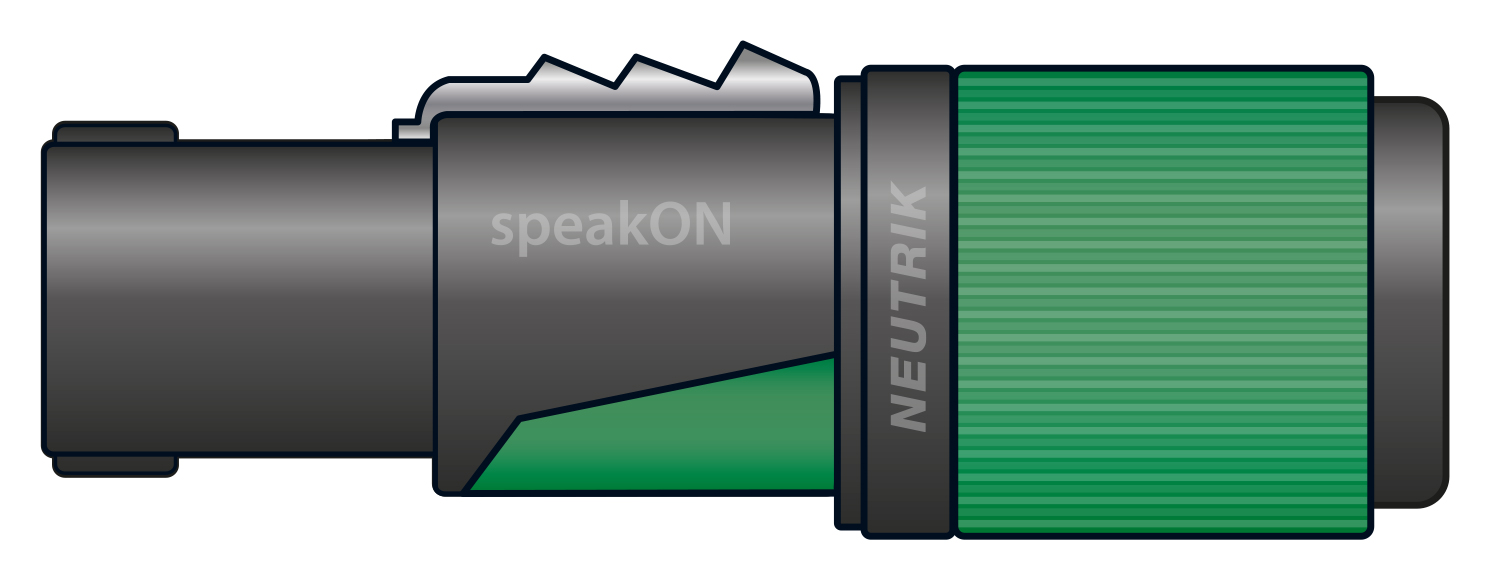

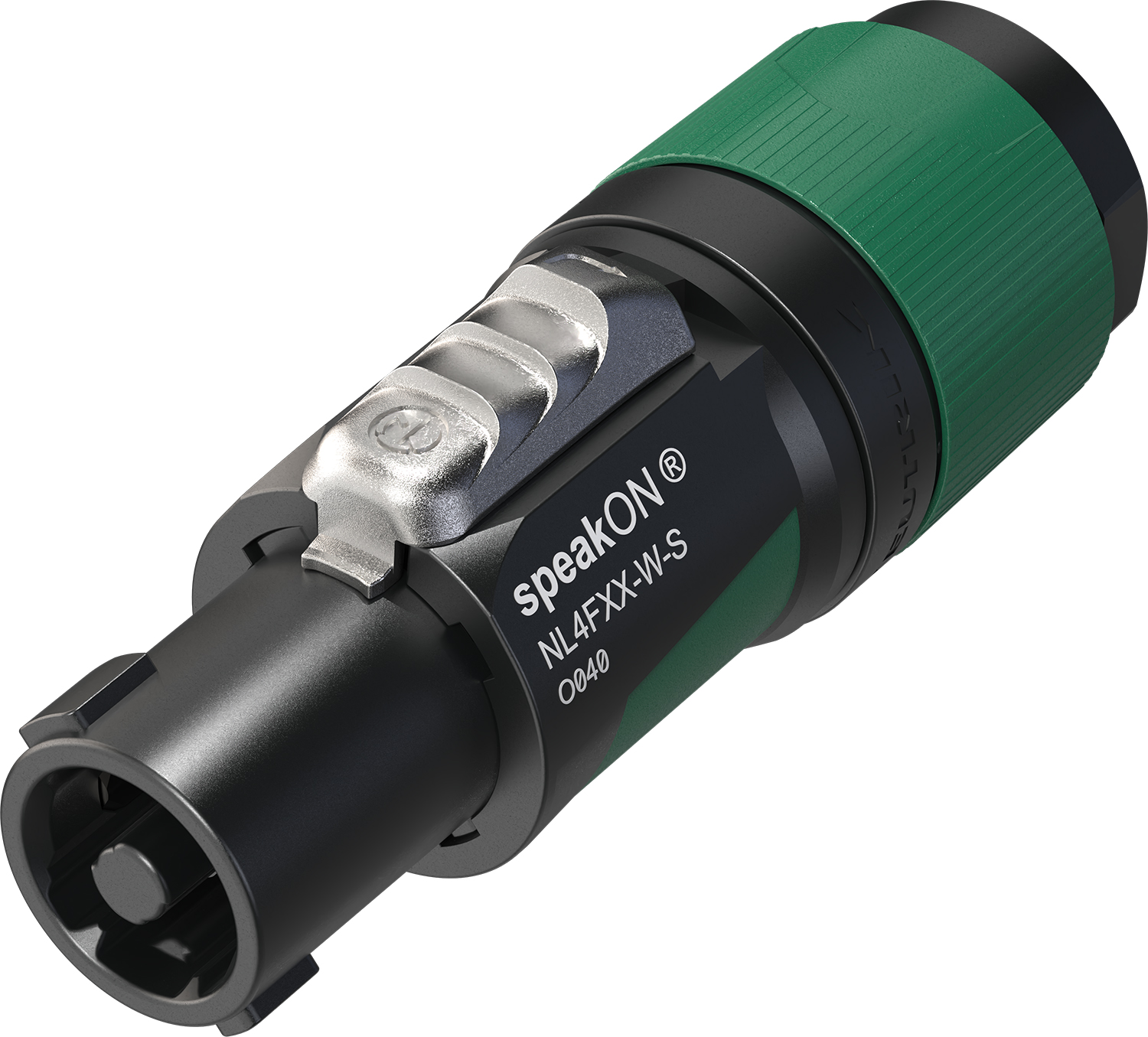

Neutrik® NL4FXX Speakon Cable Connectors

763.481UK

4 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm Speakon connectors are the industry-standard for loudspeaker connecti...

  • Up to 37 A rms current rating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Ergonomic design with slip-proof two-component molded housing
Description Version Packed
763.481UK
NL4FXX-W-S Speakon 4 Pole Plug
6-12mm Poly Bag
763.482UK
NL4FXX-W-L Speakon 4 Pole Plug
10-16mm Poly Bag

Neutrik® NL4FXX Speakon Cable Connectors

4 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. Speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

  • Up to 37 A rms current rating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Ergonomic design with slip-proof two-component molded housing
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing
  • Contact resistance ? 2 m?
  • Lifetime Typically 5’000 mating cycles
  • Terminals Screw type
  • Temperature range -33 °C to +80 °C
  • IP rating IP20

Versions

  763.481UK 763.482UK
Cable : dimensions 6 -12mm 10-16mm

Downloads

UK Declaration of conformity
For 763.481UK (244KB)
EU Declaration of conformity
For 763.481UK (235KB)
