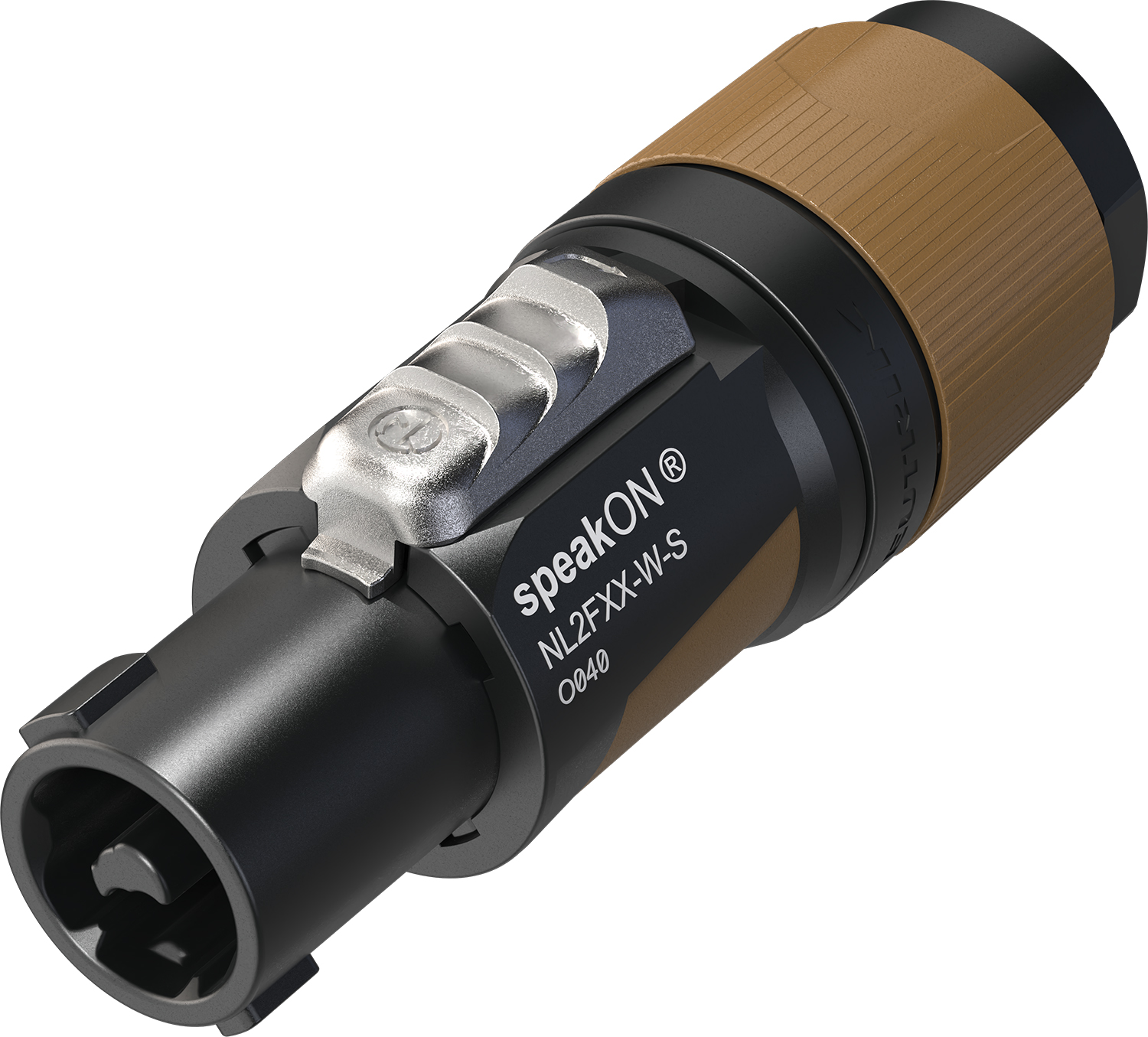

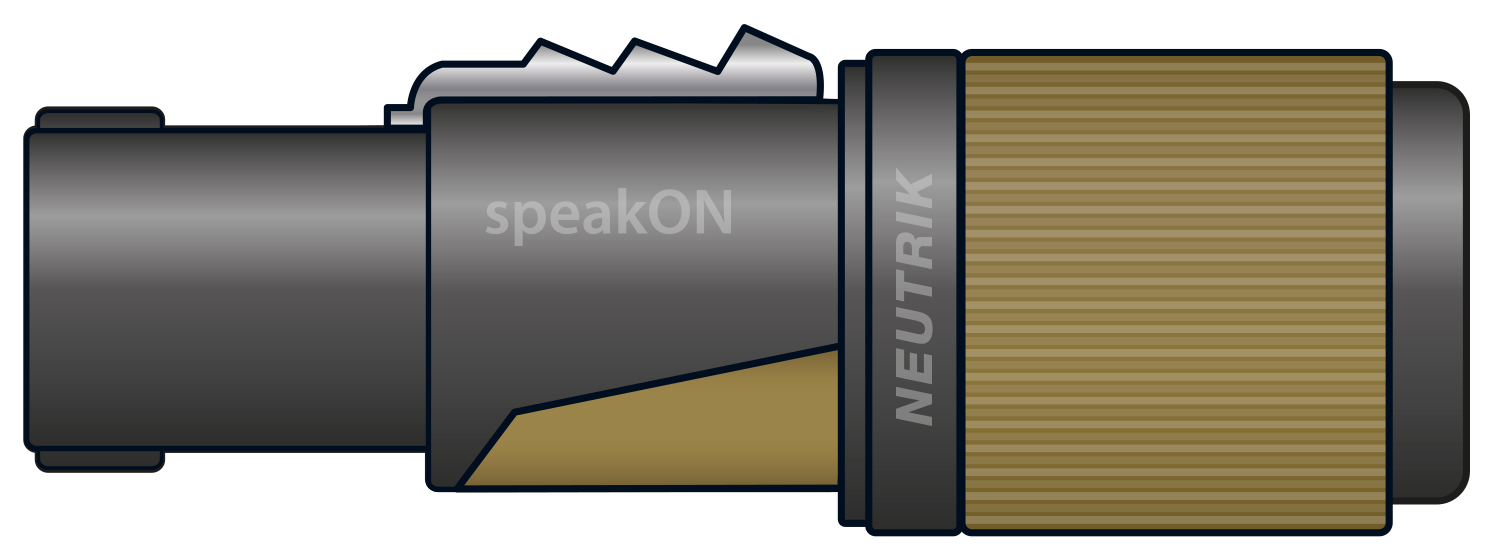

Neutrik® NL2FXX Speakon Cable Connectors
763.483UK
2 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm. Speakon connectors are the industry-standard for loudspeaker connections. This ...
- Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
- Up to 37 A rms current rating
- Easy and reliable twist lock system
| Description | |
|---|---|
|
763.483UK
NL2FXX-W-S Speakon 2 Pole Plug |
Neutrik® NL2FXX Speakon Cable Connectors
2 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm. Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection
- Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
- Up to 37 A rms current rating
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
- Ergonomic design with slip-proof two-component molded housing
- Contact resistance ? 2 m?
- Cable : diameter 6-12mm
- Lifetime Typically 5’000 mating cycles
- Terminals Screw type
- Temperature range -33 °C to +80 °C
- IP rating IP20
