AVSL : Product : Cable (Reels) : Loudspeaker : CCA : 801.880UK

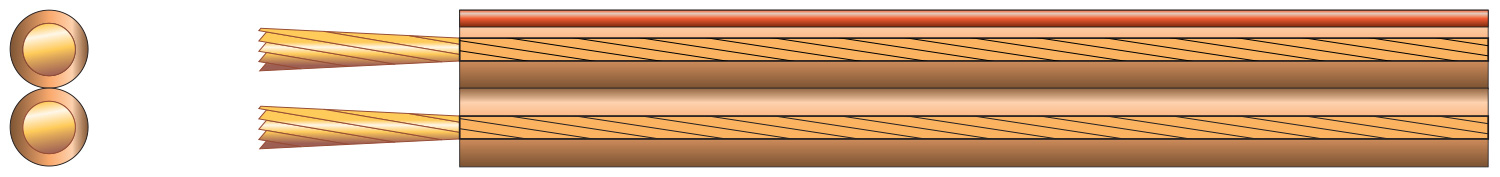

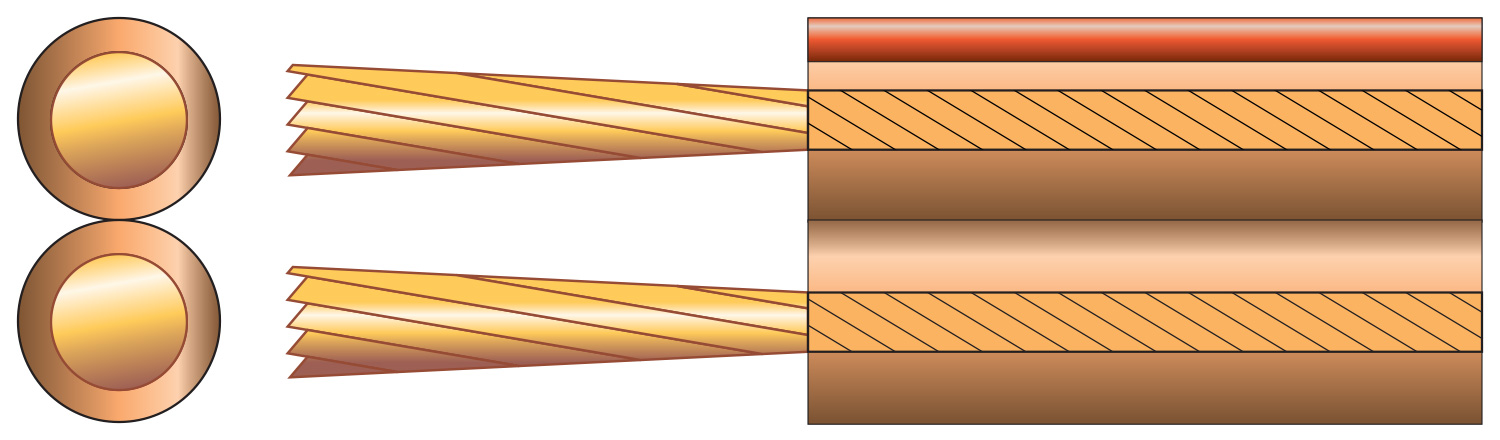

Heavy Duty Transparent Speaker Cable

801.880UK

High quality 2 core flexible speaker cable in transparent sheath. Stranded conductors. Red polarity indicator.

Full description Find retailer

	Description	Version	Packed
	801.880UK Heavy Duty Transparent Speaker Cable, 2 x (80 x 0.12mmØ)	2x80 Clear 100m	Reel
	801.881UK Heavy Duty Transparent Speaker Cable, 2 x (123 x 0.10mmØ)	2x123 Clear 100m	Reel
	801.882UK Heavy Duty Transparent Speaker Cable, 2 x (196 x 0.10mmØ)	2x196 Clear 100m	Reel

Heavy Duty Transparent Speaker Cable

High quality 2 core flexible speaker cable in transparent sheath. Stranded conductors. Red polarity indicator.

Conductor Copper/Copper Clad Aluminium
Sheath Clear
Polarity Red
Length 100m

Versions

	801.880UK	801.881UK	801.882UK
CSA	0.94mm²	1.17mm²	1.85mm²
Strands	2 x (20 x 0.12mmØCu + 60 x 0.12mmØCCA)	2 x (3 x (21 x 0.10mmØCu + 20 x 0.12mmØCCA))	2 x (7 x (15 x 0.10mmØCu + 13 x 0.12mmØCCA))
Dimensions	4.2 x 8.2mm	4.5 x 9.0mm	4.8 x 9.6mm
Current	6A max.	10A max.	15A max.
Packed quantity	8 reels	4 reels	4 reels

Downloads

UK Declaration of conformity
For 801.880UK (243KB)

EU Declaration of conformity
For 801.880UK (234KB)
