Figure 8 Power/Speaker Cable Red/Black
2x24 Red/Black 100m
802.459UK
Standard 2 core stranded power cable for automotive and other applications. A mix of solid copper and CCA stranded conductors in red and black PVC outer sheath. more
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
802.368UK
Fig 8 Power/Speaker Cable, 2 x (14 x 0.18mmØ) |
2x14 Red/Black 100m | Reel |
![]() |
802.459UK
Fig 8 Power/Speaker Cable, 2 x (24 x 0.18mmØ) |
2x24 Red/Black 100m | Reel |
![]() |
802.520UK
Fig 8 Power/Speaker Cable, 2 x (32 x 0.18mmØ) |
2x32 Red/Black 100m | Reel |
![]() |
802.673UK
Fig 8 Power/Speaker Cable, 2 x (45 x 0.18mmØ) |
2x45 Red/Black 100m | Reel |
![]() |
802.703UK
Fig 8 Power/Speaker Cable, 2 x (79 x 0.18mmØ) |
2x79 Red/Black 100m | Reel |
![]() |
802.764UK
Fig 8 Power/Speaker Cable, 2 x (130 x 0.18mmØ, 50m reel) |
2x130 Red/Black 50m | Reel |

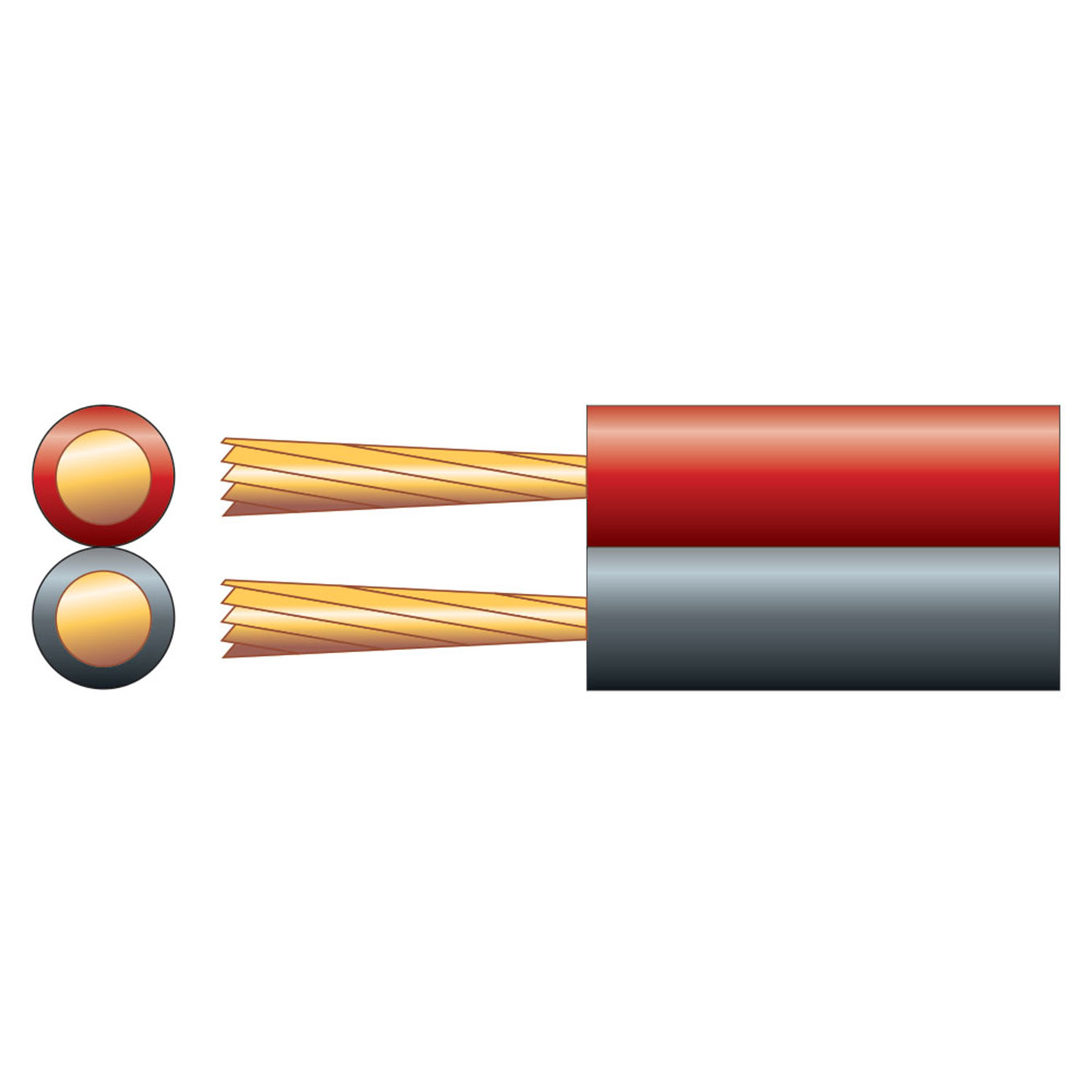

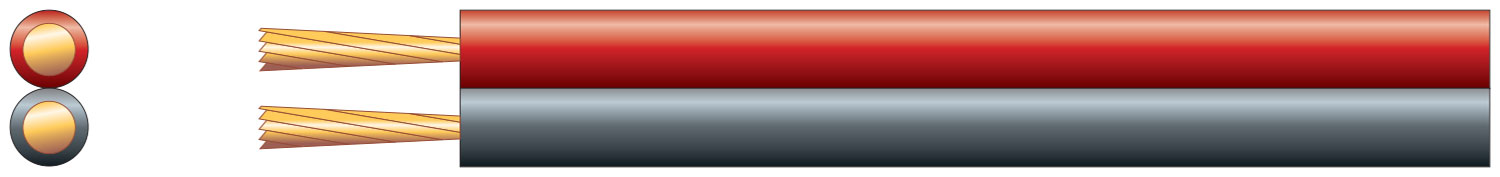

Figure 8 Power/Speaker Cable Red/Black
Standard 2 core stranded power cable for automotive and other applications. A mix of solid copper and CCA stranded conductors in red and black PVC outer sheath.
- Packed quantity 4 reels
- Length 100m
- Current 6A max.
- Dimensions 2.8 x 5.6mm
- CSA 0.61mm²
- Strands 2 x (12 x 0.18mmØCu + 12 x 0.18mmØCCA)
- Conductor Copper/Copper Clad Aluminium
- Sheath Red/Black
