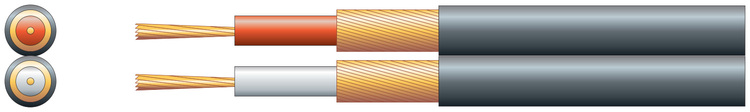

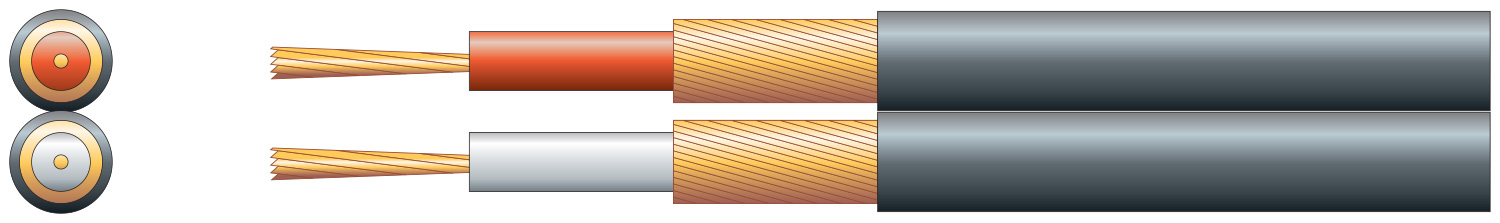

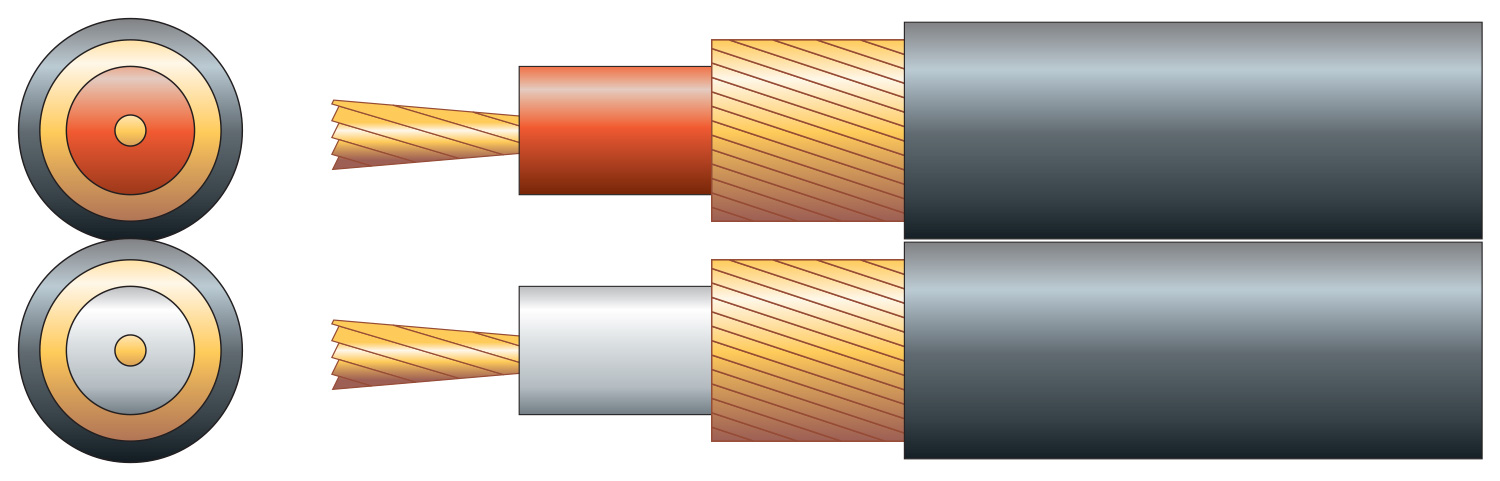

Standard 2 Core Figure 8 Individual Lap Screened Cables

803.436UK

2 core figure 8 screened audio cable. Highly flexible PVC sheath which is easy to strip and separate. Supplied on strong reels in 100m lengths.

Full description Find retailer
Description Version Packed
803.405UK
2 core individual lap screen, 2 x 13/0.1mm, 2 x 32/0.1mm, Grey, 100m 		2x13 Grey 100m Reel
803.436UK
2 core individual lap screen, 2 x 13/0.1mm, 2 x 32/0.1mm, Black, 100m 		2x13 Black 100m Reel

Standard 2 Core Figure 8 Individual Lap Screened Cables

2 core figure 8 screened audio cable. Highly flexible PVC sheath which is easy to strip and separate. Supplied on strong reels in 100m lengths.

  • Length 100m

Versions

  803.405UK 803.436UK
CSA 0.10mm² 0.10mm²
Strands 2 x 13/0.1mmØ 2 x 13/0.1mmØ
Screen 2 x 32/0.1mmØ 2 x 32/0.1mmØ
Dimensions 2.7 x 5.4mm 2.7 x 5.4mm
Packed 8 reels 8 reels
Colour Grey Black

Downloads

UK Declaration of conformity
For 803.436UK (242KB)
EU Declaration of conformity
For 803.436UK (231KB)
