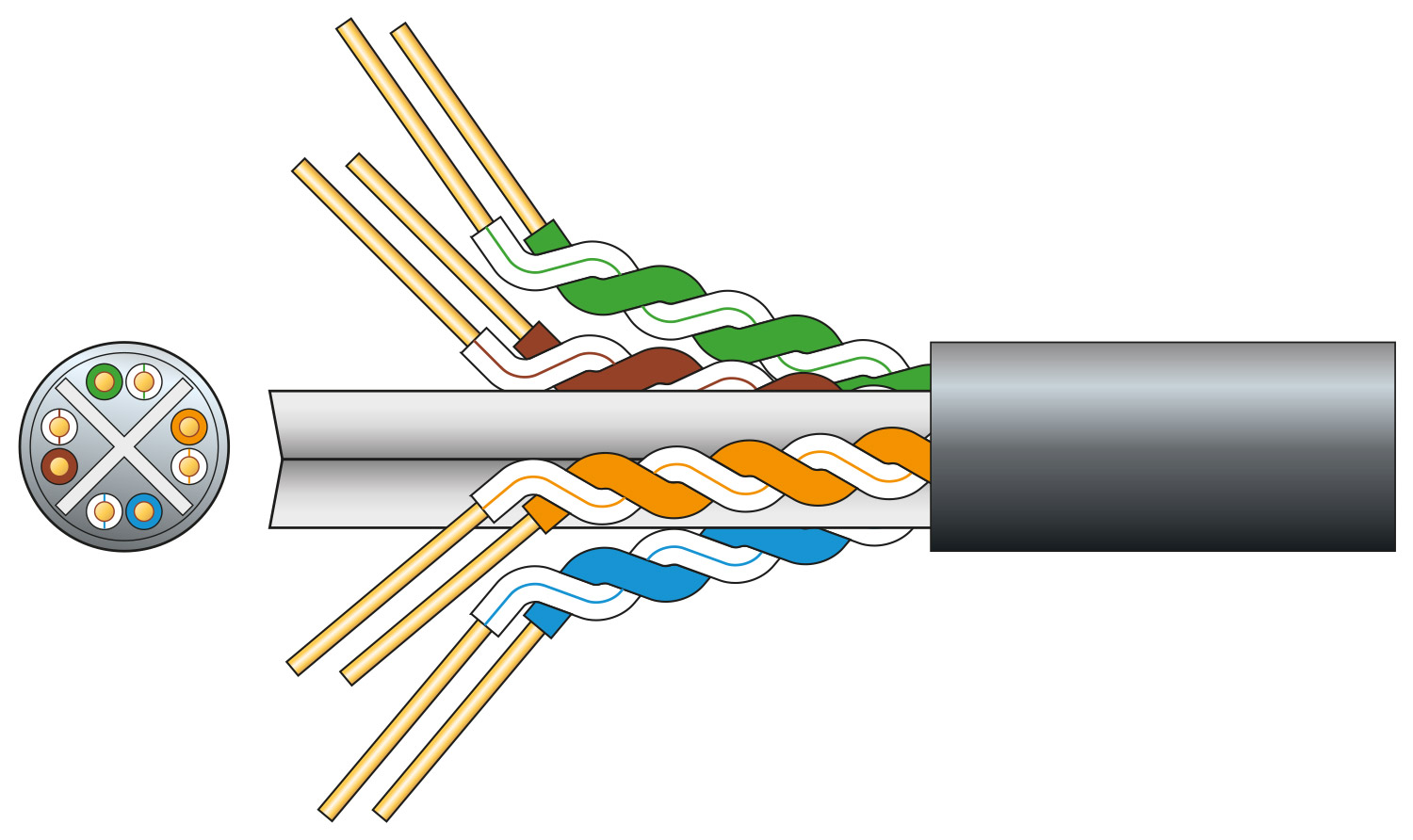

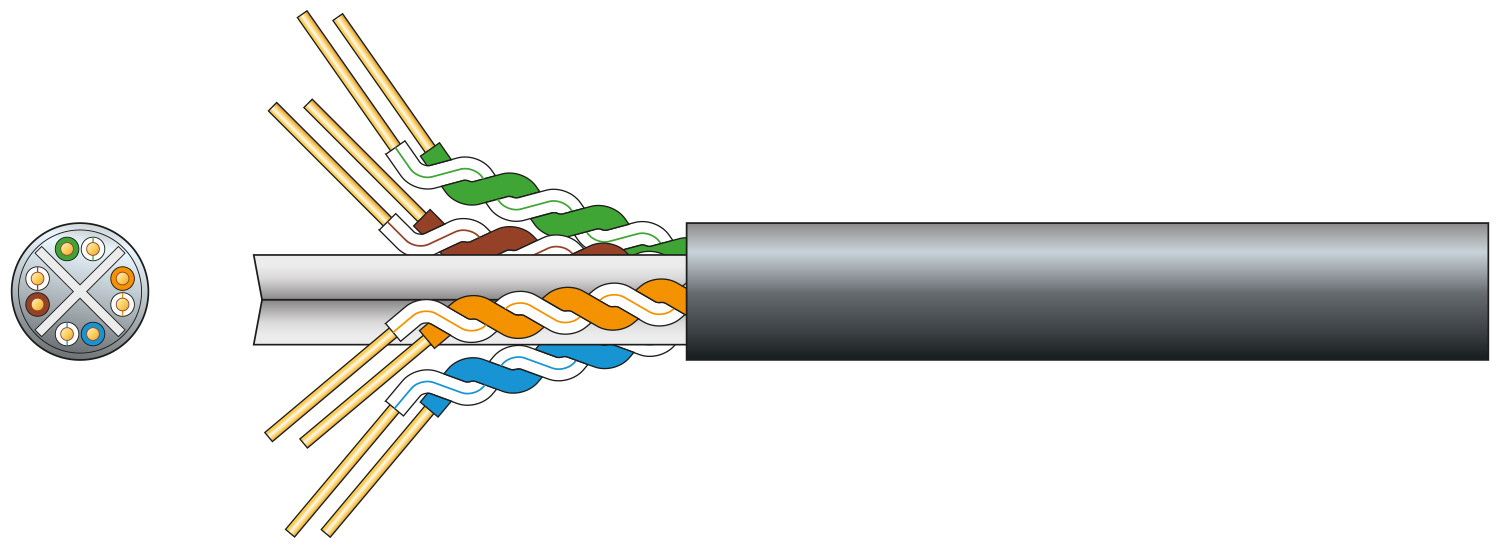

Cat6 U/UTP Outdoor Network Cable

808.040UK

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit...

  • Oxygen free solid copper conductor
  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
Description Version Packed
808.040UK
Cat6 U/UTP Outdoor Network Cable 100m Black
Black 100m Outdoor Box Label
808.041UK
Cat6 U/UTP Outdoor Network Cable 305m Black
Black 305m Outdoor Box Label

Cat6 U/UTP Outdoor Network Cable

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.

  • Oxygen free solid copper conductor
  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • Conductor Solid OFC
  • Strands 8 x 0.53mmØ ±2%
  • Cable : diameter 6.0±0.05mm
  • Insulation HDPE 0.93±0.05mm
  • Sheath LDPE 0.55±0.05mm thickness
  • DC resistance @ 20°C <9.38 ohms/100m
  • Impedance (100 to 250MHz) 100±15 ohms
  • Return loss >20.1dB @ 100MHz
  • Attenuation >19.8dB @ 100MHz
  • NEXT >44.3dB @ 100MHz
  • Phase delay >537.60ns @ 100MHz
  • PSNEXT >42.3dB @ 100MHz
  • ELFEXT >27.8dB @ 100MHz
  • PSELFEXT >24.8dB @ 100MHz
  • Cable colour Black

Versions

  808.040UK 808.041UK
Cable : length 100±0.5m 305±1.5m
Weight 4.3kg 12.7kg

Downloads

UK Declaration of conformity
For 808.040UK (242KB)
EU Declaration of conformity
For 808.040UK (231KB)
DoP Certification
In relation to the new CPR regulations 1st July 2017
DoP Certification
In relation to the new CPR regulations 1st July 2017
