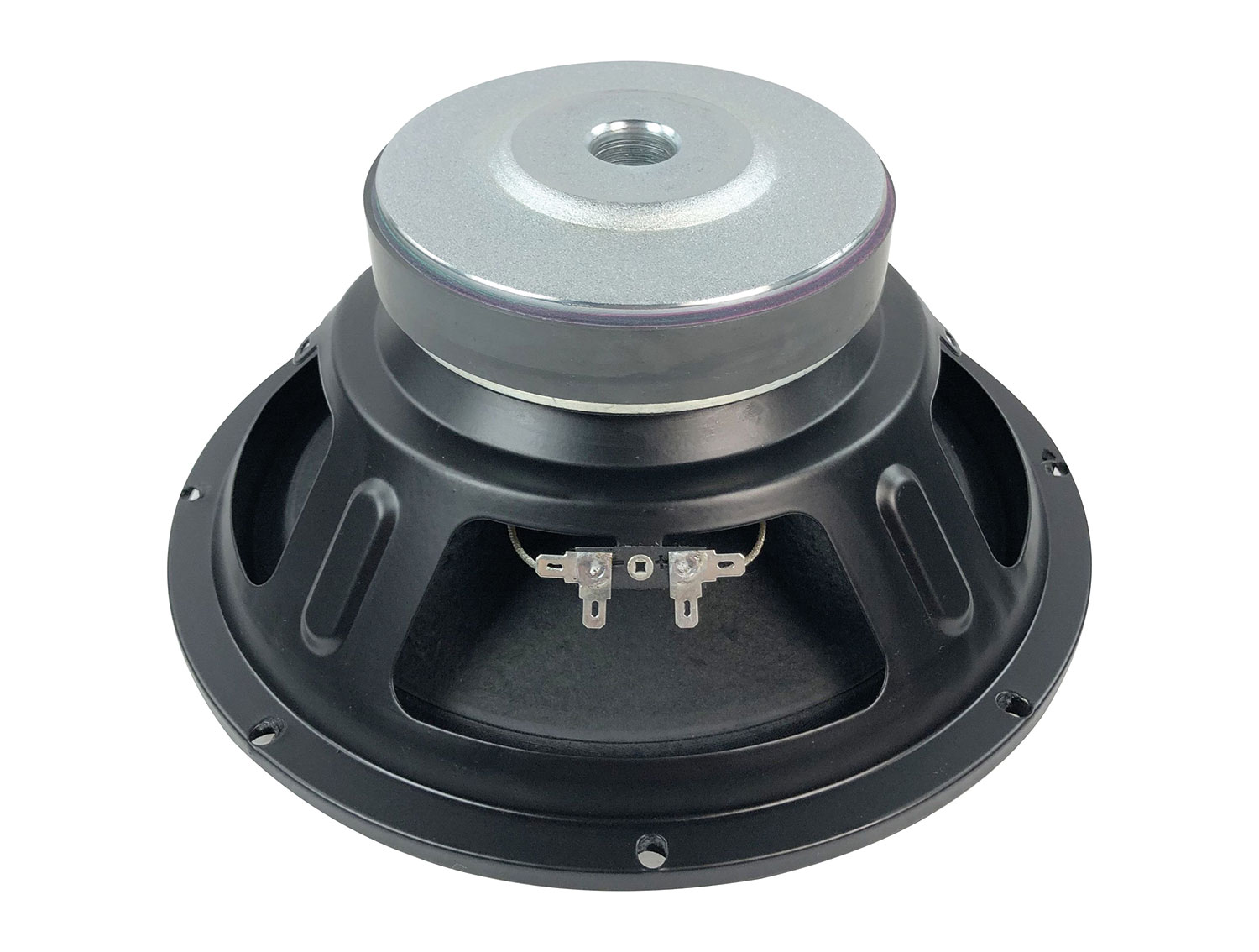

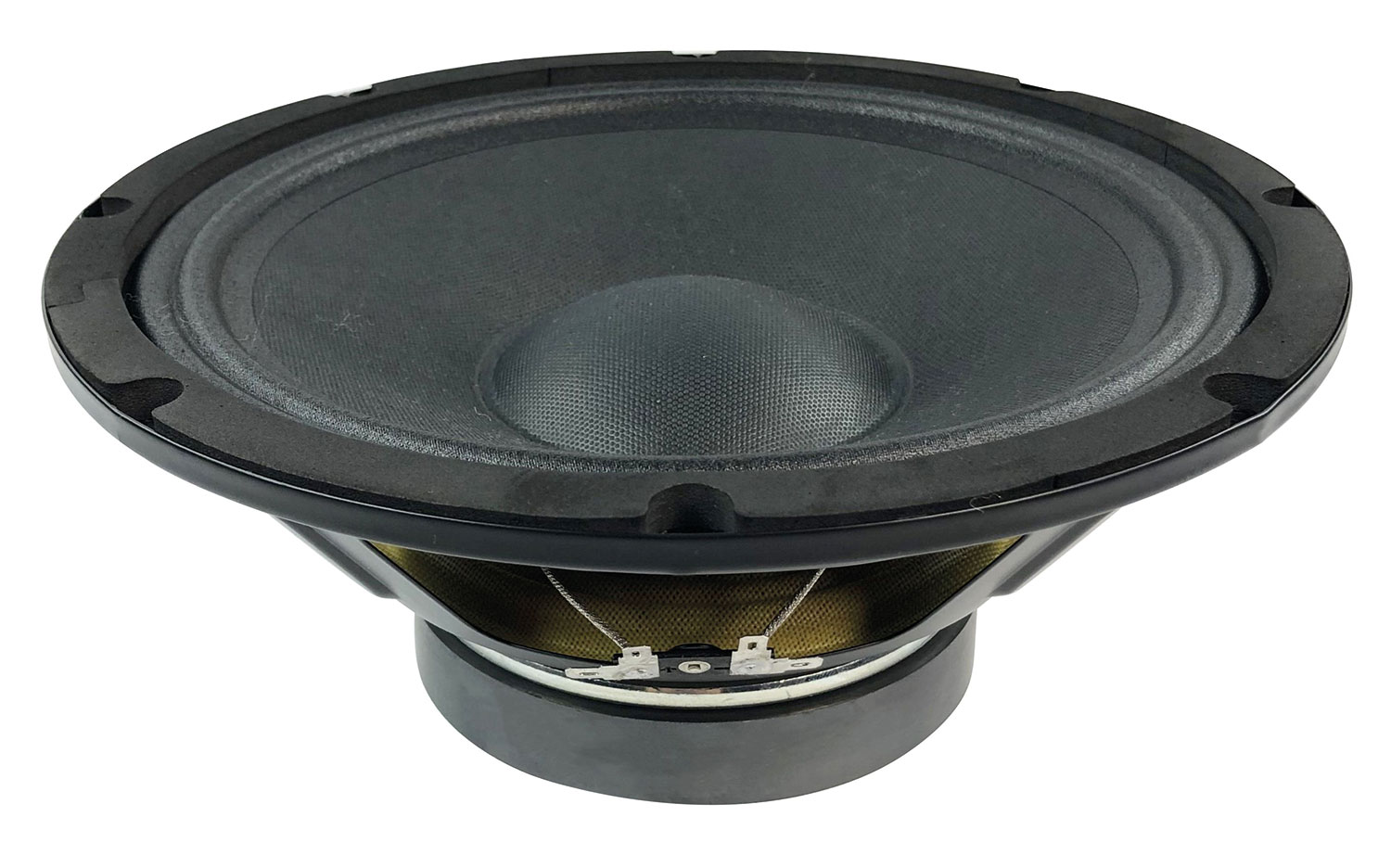

4 Ohm Woofers for Citronic Active PA Cabinets

902.110UK LFCASA-10A

Replacement low frequency main drivers as used in Citronic CASA, CUBA and CLARA series active cabinets.

  • Direct replacements for CASA, CUBA or CLARA series full range active cabinets
Full description Find retailer
Description Version Packed
902.108UK
8" Driver 4 Ohm 200W for CASA-8A and CUBA-8A 		8" 4ohm 200W Box Label
902.110UK
10" Driver 4 Ohm 250W for CASA-10A and CUBA-10A 		10" 4ohm 250W Box Label
902.112UK
12" Driver 4 Ohm 300W for CASA-12A 		12" 4ohm 300W Box Label
902.102UK
12" Driver 4 Ohm 350W for CUBA-12A and CLARA-12A 		12" 4ohm 350W Box Label
902.115UK
15" Driver 4 Ohm 400W for CASA-15A, CUBA-15A and CLARA -15A 		15" 4ohm 400W Box Label

4 Ohm Woofers for Citronic Active PA Cabinets

Replacement low frequency main drivers as used in Citronic CASA, CUBA and CLARA series active cabinets.

  • Direct replacements for CASA, CUBA or CLARA series full range active cabinets
  • Construction Reinforced paper cone with steel frame basket
  • Impedance 4 Ohms

Versions

  902.102UK 902.108UK 902.110UK 902.112UK 902.115UK
Power handling : rms 350W 150W 250W 300W 400W
Power handling : max 700W 300W 500W 600W 800W
Frequency response 45Hz - 3kHz 60Hz - 3kHz 55Hz - 3kHz 50Hz - 3kHz 30Hz - 3kHz
Voice coil 64mmØ (2.5") 34mmØ (1.35") 50mmØ (2") 64mmØ (2.5") 64mmØ (2.5")
Magnet 1.70kg (60oz) 0.85kg (30oz) 1.13kg (40oz) 1.42kg (50oz) 1.70kg (60oz)
Sensitivity 96dB 94dB 95dB 96dB 97dB
Dimensions 160 x 310mmØ 110 x 210mmØ 130 x 257mmØ 160 x 310mmØ 210 x 385mmØ
Weight 4.96kg 1.82kg 2.60kg 4.80kg 5.35kg

In the box

The box for this item contains :

  • 4 Ohm low frequency driver for CASA series cabinet

Downloads

UK Declaration of conformity
For 902.110UK (243KB)
EU Declaration of conformity
For 902.110UK (231KB)
