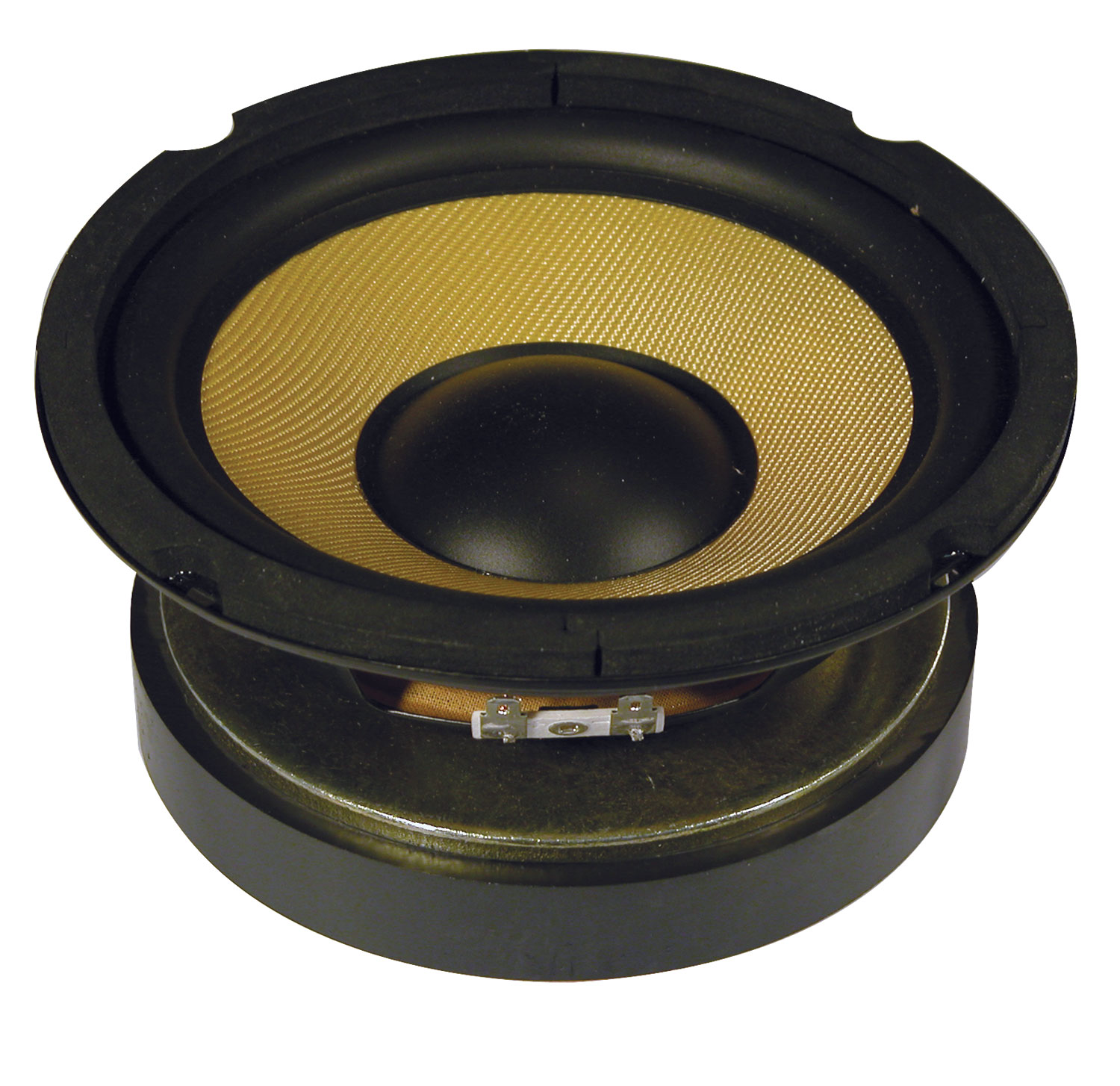

High Power Woofers with Aramid Fibre Cone
902.423UK
QXW6
A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power pea...
- Aramid fibre cone
- Rubber surround
- Vented magnet
High Power Woofers with Aramid Fibre Cone
A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power peaks, yet produce a smooth sound that will please any Hi-Fi enthusiast.
- Aramid fibre cone
- Rubber surround
- Vented magnet
- 4 layer voice coil
- Black metal chassis
- Spade terminals
Specification : Common
- Impedance 8 ohms
- Voice coil 4 layer
Specification : Versions
| 902.420UK | 902.423UK | 902.426UK | |
|---|---|---|---|
| Power max. | 200W | 250W | 500W |
| Power rms | 100W | 125W | 250W |
| Overall depth | 80mm | 90mm | 95mm |
| Magnet diameter | 100mmØ | 120mmØ | 140mmØ |
| Mounting centres | 122mmØ | 157mmØ | 194mmØ |
| Diameter | 130mm (5.25") | 165mm (6.5") | 200mm (8") |
| Frequency response | 40Hz - 10kHz | 35Hz - 8kHz | 27Hz - 6kHz |
| Magnet weight | 600g (20oz) | 900g (30oz) | 1.1kg (40oz) |
| SPL @ 1W/1m | 84.8dB | 88dB | 85.5dB |
| Weight | 1.27kg | 1.92kg | 2.76kg |
Trade information
| 902.420UK | 902.423UK | 902.426UK | |
|---|---|---|---|
| Barcode / EAN | 5015972053317 | 5015972053324 | 5015972053331 |
| Tariff code | 8518210000 | 8518210000 | 8518210000 |
| Country of Origin | CN | CN | CN |
| Package type | Gift Box | Gift Box | Gift Box |
| Package dimensions | 141 x 152 x 100mm | 174 x 185 x 112mm | 213 x 224 x 120mm |
| Package weight | 1.50kg | 2.00kg | 3.00kg |
| Package quantity | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 340 x 500 x 300mm | 370 x 385 x 260mm | 230 x 470 x 280mm |
| Carton weight | 27.07kg | 16.00kg | 12.00kg |
| Carton quantity | 18 packages | 8 packages | 4 packages |
| Pack paper weight | 0.16kg | 0.12kg | 0.33kg |
| Pack plastic weight | 0.00kg | 0.00kg | 0.62kg |
Support
Thiele small parameters
Complete list of the thiele small parameters for this range of chassis speakers in Adobe Acrobat (.pdf) format
Complete list of the thiele small parameters for this range of chassis speakers in Adobe Acrobat (.pdf) format
