2.25" Square Dome Tweeter

902.310UK

Square dome tweeter fitted with a mylar dome. Suitable for use in new builds or as a replacement.

  • Mylar dome
Full description Find retailer
Description Version Packed
902.310UK
Square dome tweeter, 2.25", 20W rms, 8 Ohm 		Box Label

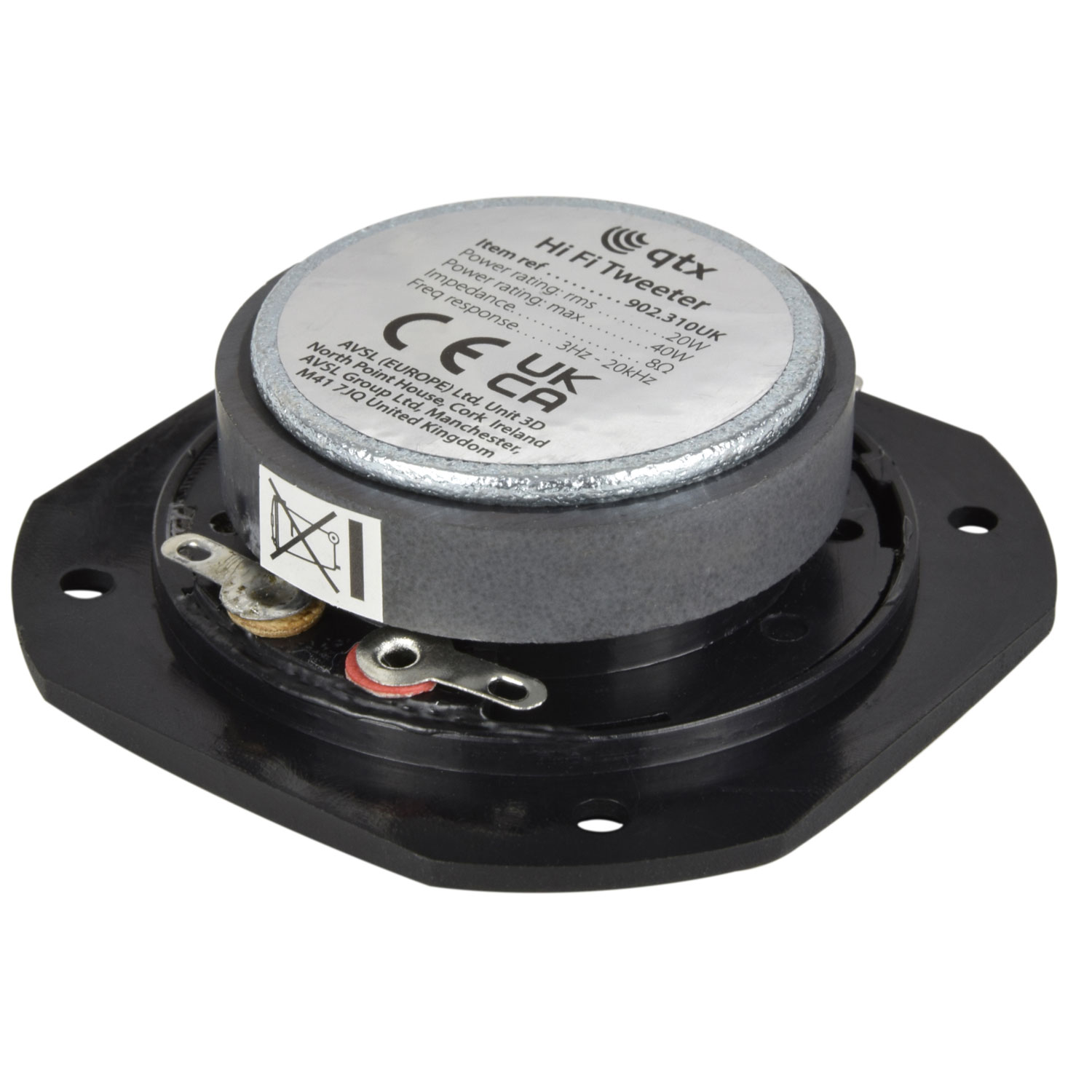

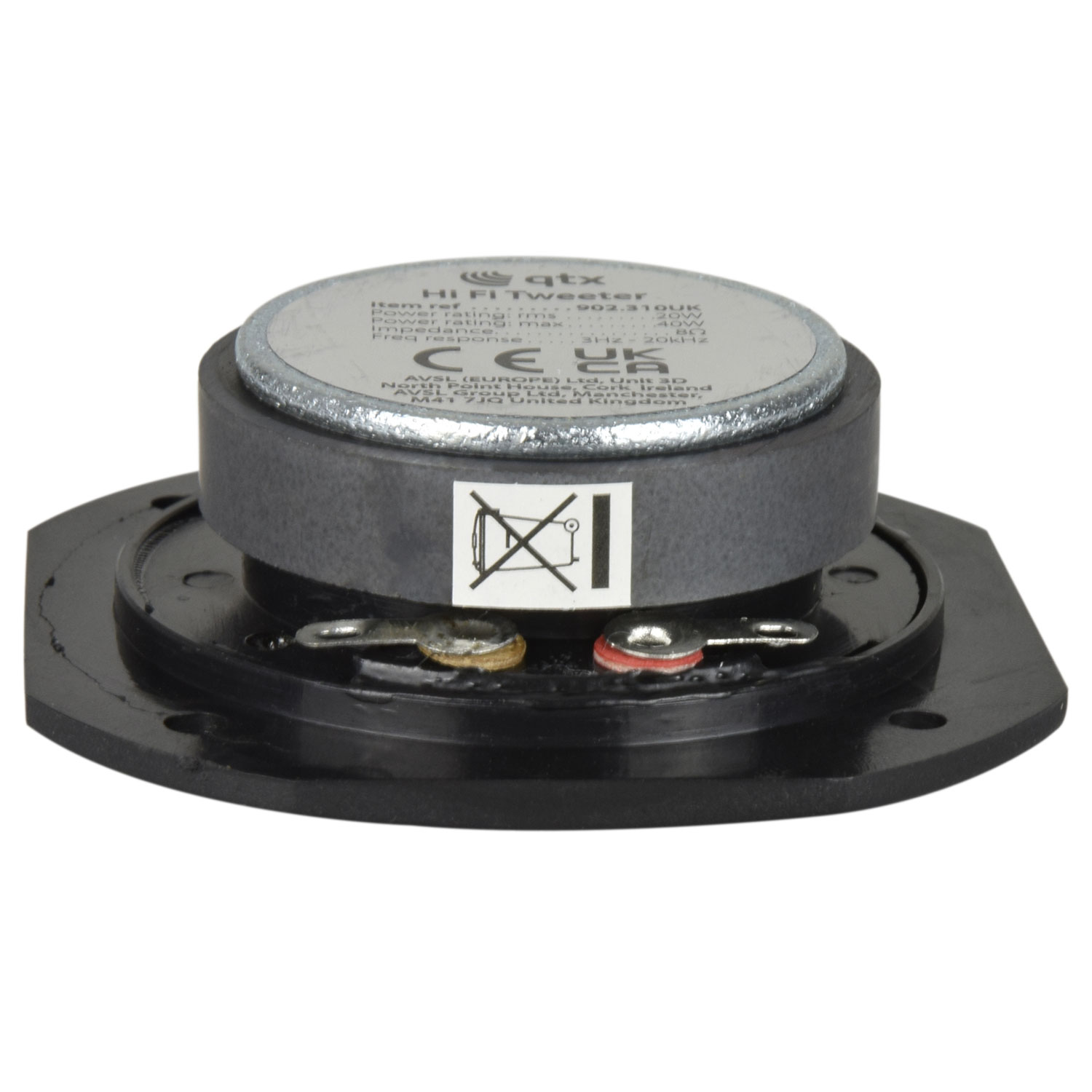

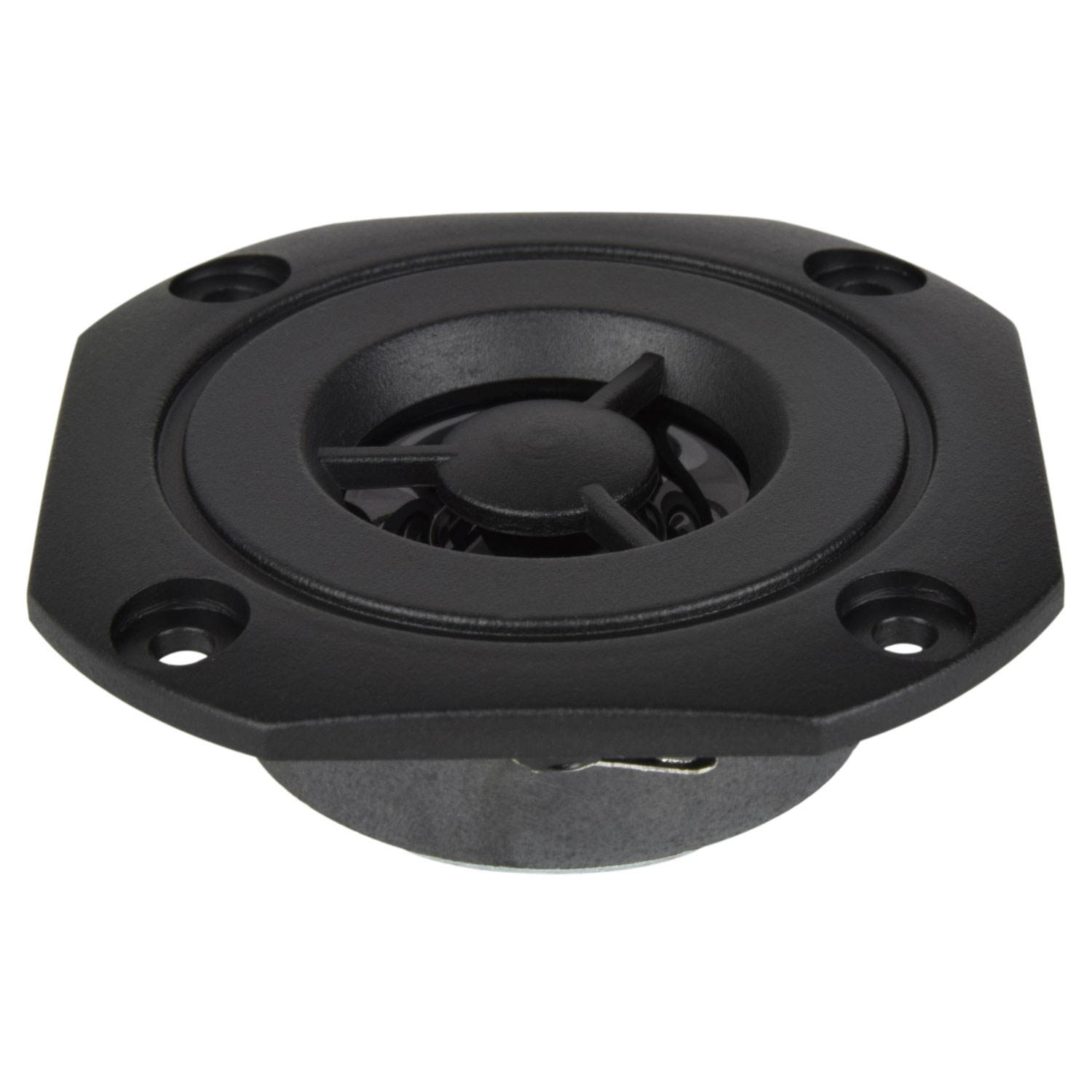

2.25" Square Dome Tweeter

Square dome tweeter fitted with a mylar dome. Suitable for use in new builds or as a replacement.

  • Mylar dome
  • Power max. 40W
  • Power rms 20W
  • Frequency response 3kHz - 20kHz
  • Impedance 8 Ohms
  • Magnet weight 28g (1 oz)
  • SPL @ 1W/1m 91dB
  • Voice coil 12.5mm (0.5")
  • Dimensions 59 x 59mm (2.25" x 2.25")

Downloads

UK Declaration of conformity
For 902.310UK (242KB)
EU Declaration of conformity
For 902.310UK (231KB)
