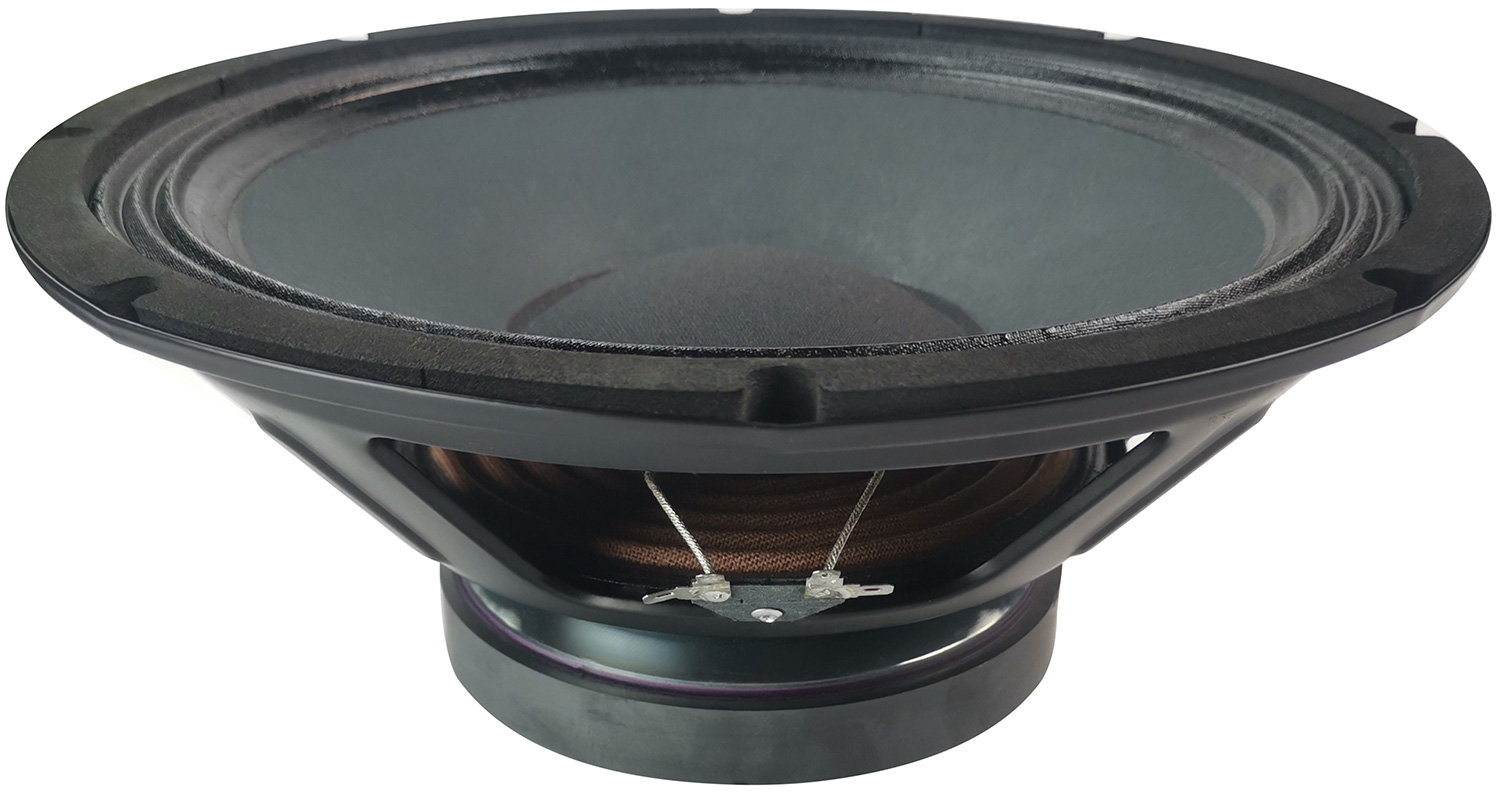

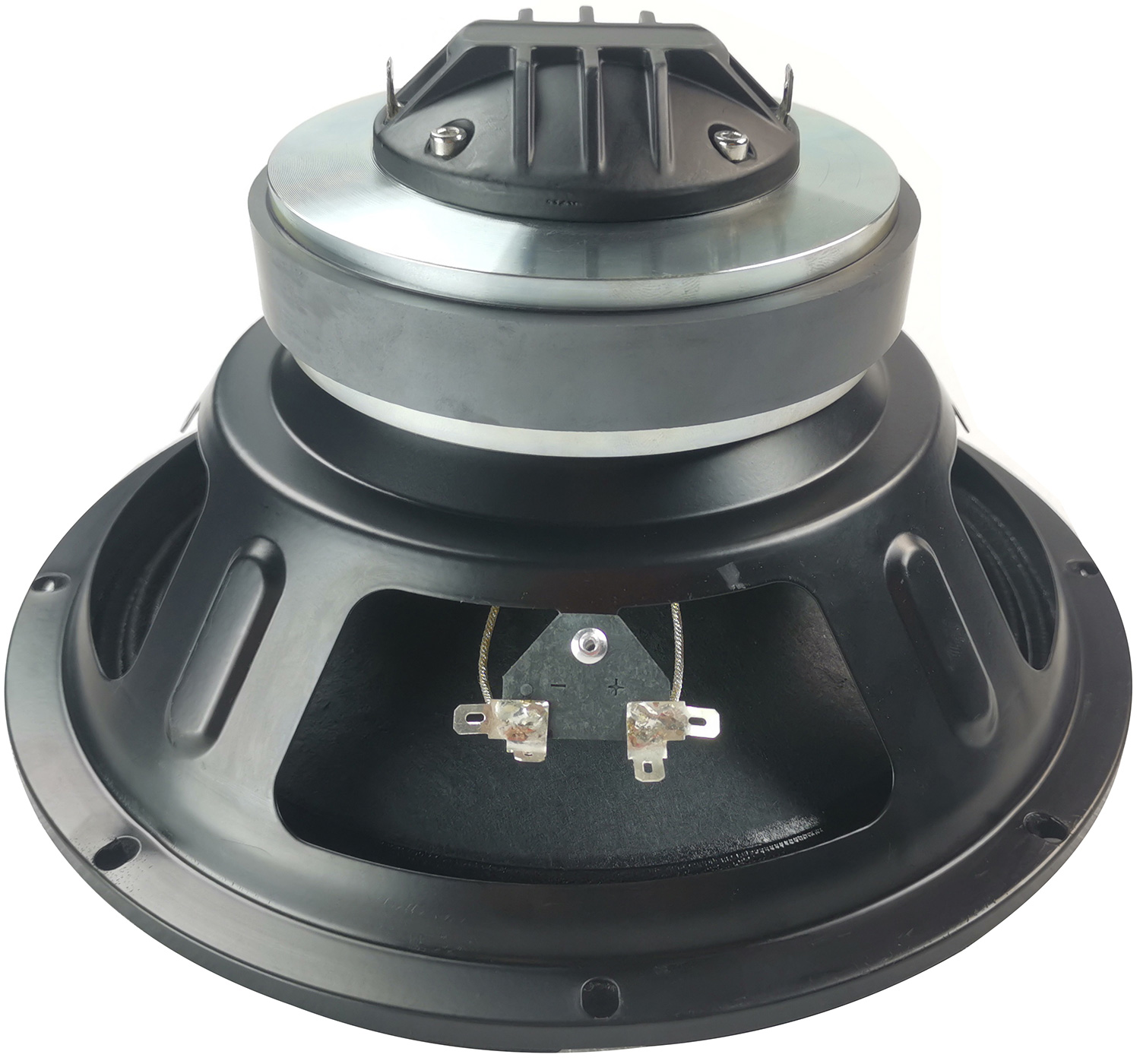

Coaxial LF+HF Driver for Full Range Cabinets
10" 250W 8ohm
902.691UK
LHF-CM10
Dual coaxial driver comprising a high power main woofer with a concentric tweeter driver covered by a mesh dust cap. Provides full range output with phase alignment for foldback or PA applications. A… more
- High power woofer with coaxial HF driver
- 4ohm for CM active, 8ohm for CM passive
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
902.690UK
Coaxial 10in LF+HF Driver 250W 4ohm |
10" 250W 4ohm | Box Label |
|
902.691UK
Coaxial 10in LF+HF Driver 250W 8ohm |
10" 250W 8ohm | Box Label |
|
902.692UK
Coaxial 12in LF+HF Driver 300W 4ohm |
12" 300W 4ohm | Box Label |
|
902.693UK
Coaxial 12in LF+HF Driver 300W 8ohm |
12" 300W 8ohm | Box Label |
|
902.695UK
Coaxial 15in LF+HF Driver 350W 4ohm |
15" 350W 4ohm | Box Label |
|
902.696UK
Coaxial 15in LF+HF Driver 350W 8ohm |
15" 350W 8ohm | Box Label |
Coaxial LF+HF Driver for Full Range Cabinets
Dual coaxial driver comprising a high power main woofer with a concentric tweeter driver covered by a mesh dust cap. Provides full range output with phase alignment for foldback or PA applications. A direct replacement for the CM-series active and passive wedge monitors.
- High power woofer with coaxial HF driver
- 4ohm for CM active, 8ohm for CM passive
- Weight 1.8kg
- Dimensions 165 x 250mmØ
- Frequency response 50Hz-20kHz
- Sensitivity 94dB (LF), 106dB (HF)
- Power handling max. 500W (LF), 80W (HF)
- Power handling RMS 250W (LF), 40W (HF)
- Impedance 8 ohms
- HF driver 44mmØ (1.75") Ti compression driver
- LF driver 250mmØ (10") reinforced paper cone
- Construction Reinforced paper cone, Ti HF diaphragm, ferrite magnet, steel basket
In the Box
- Coaxial LF+HF driver
