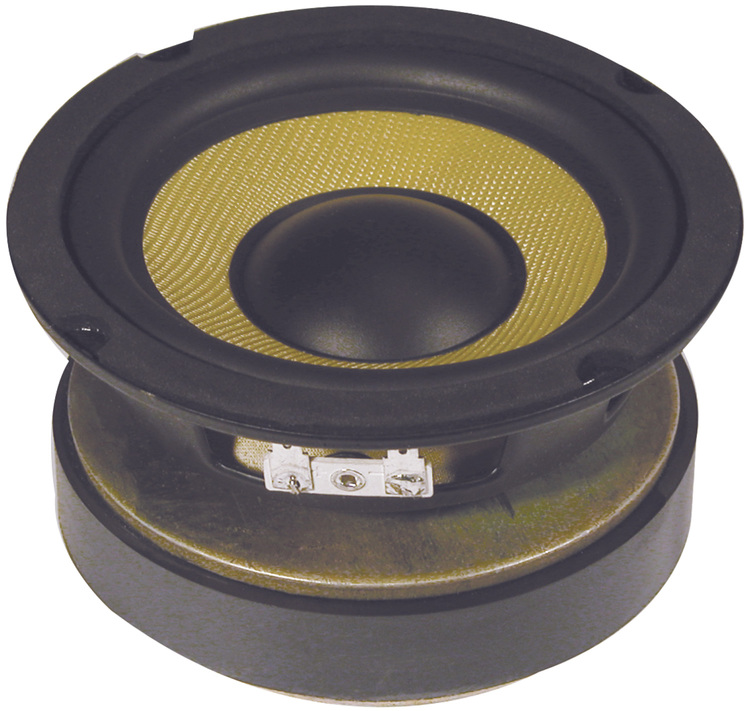

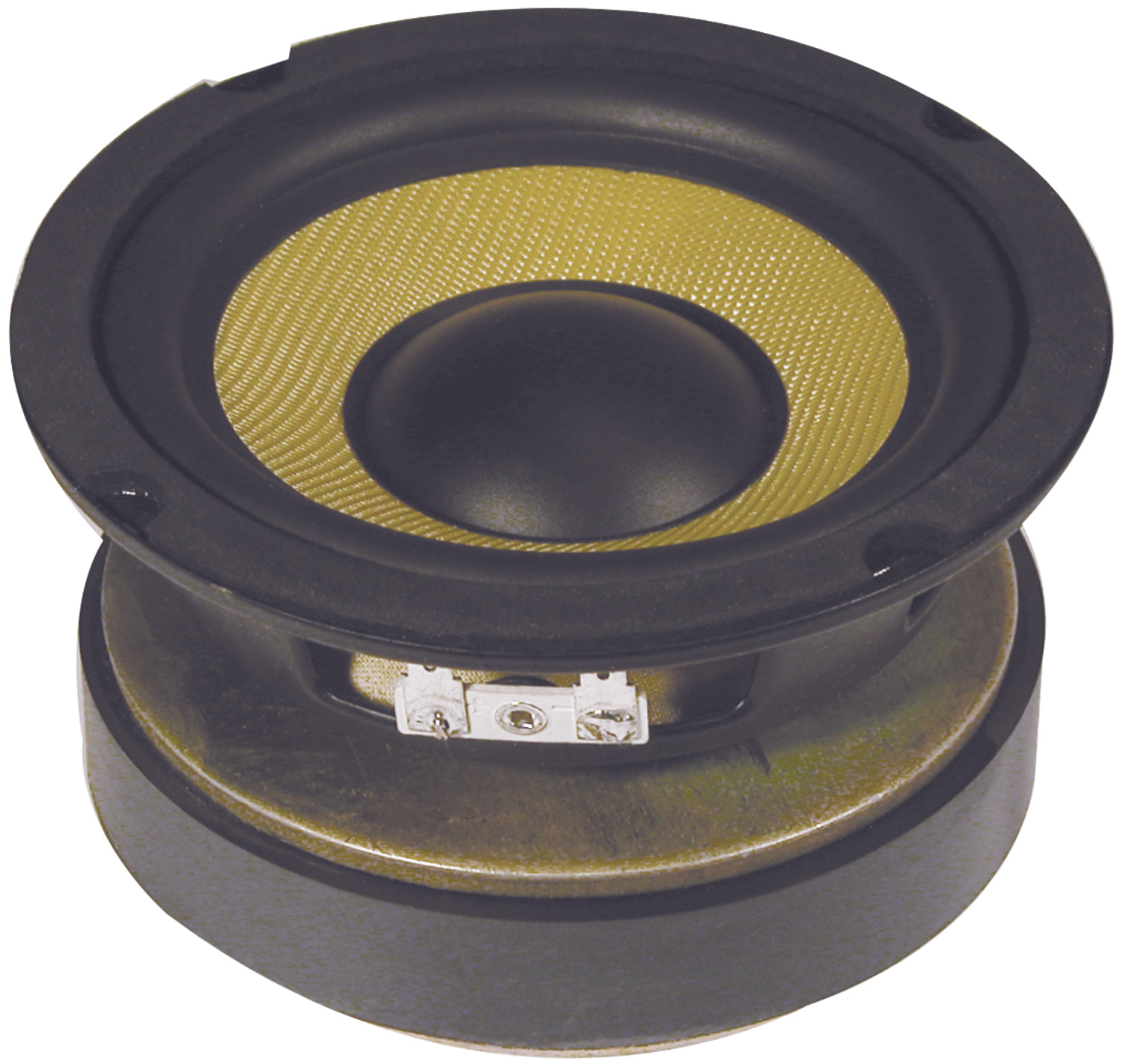

High Power Woofers with Aramid Fibre Cone

902.420UK QXW5

A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power pea...

  • Aramid fibre cone
  • Rubber surround
  • Vented magnet
Description Version Packed
902.420UK
5.25" Woofer with Aramid fibre cone

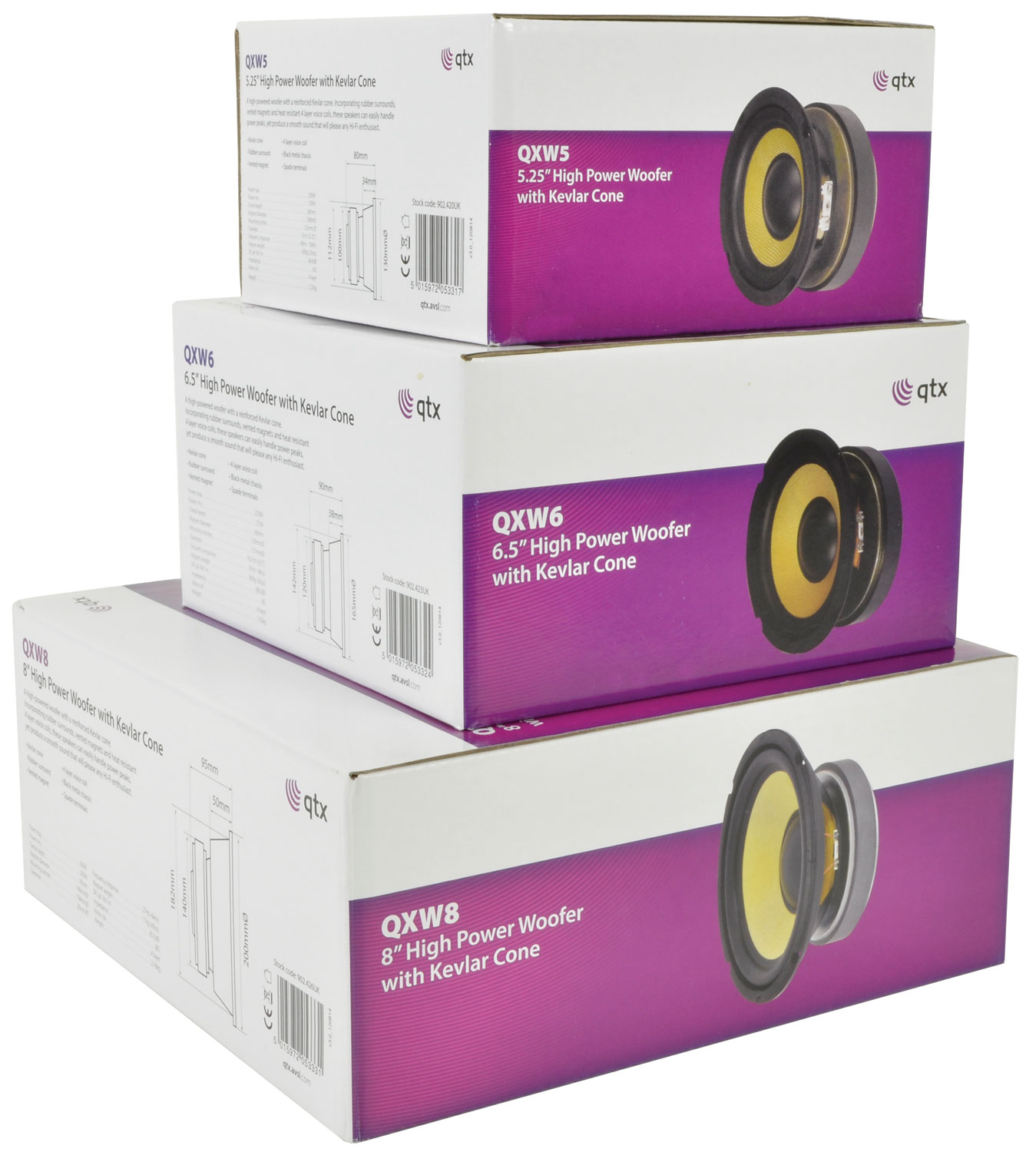

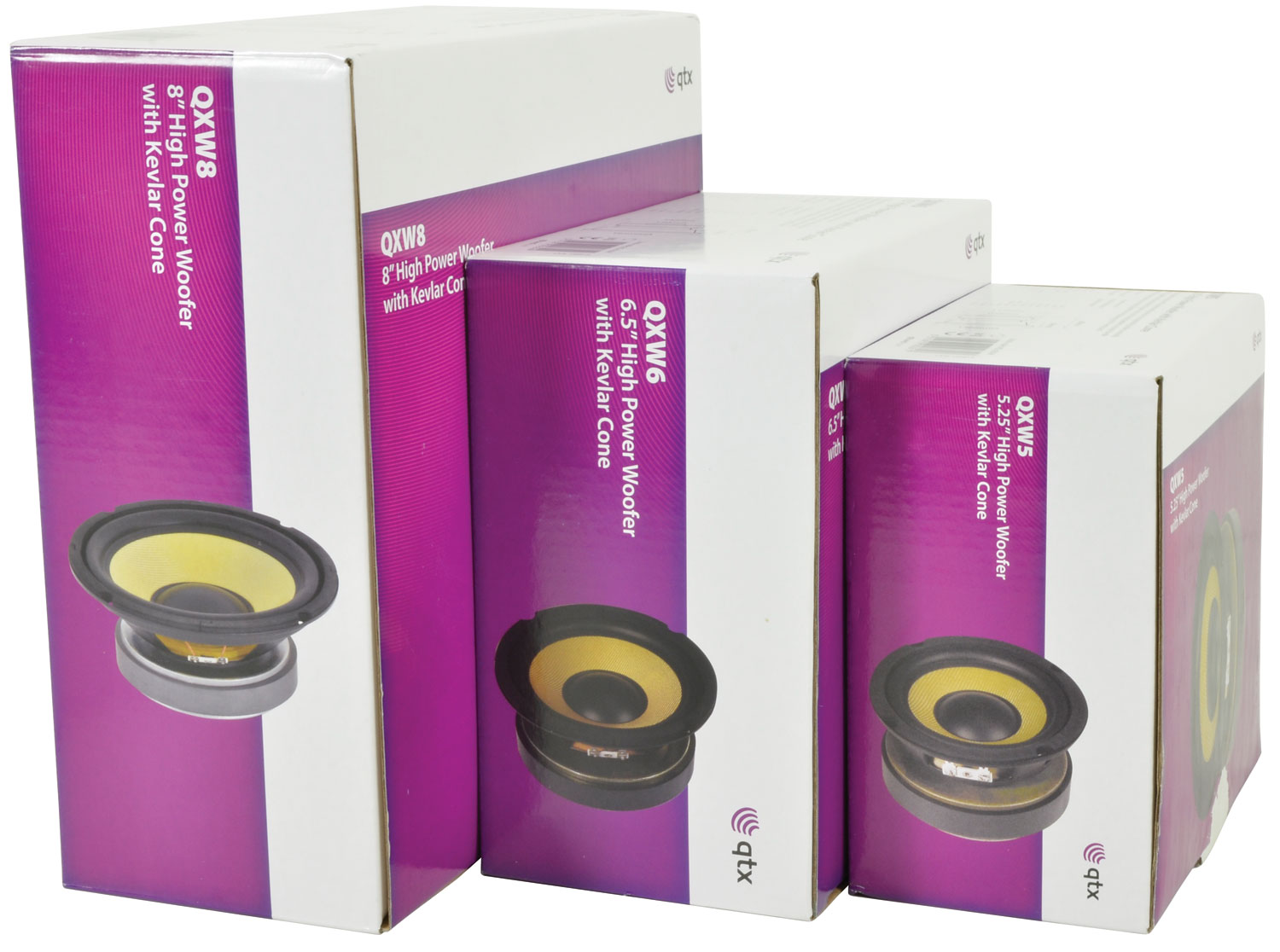

5.25" Box Label
902.423UK
6.5" Woofer with Aramid Fibre cone
6.5" Box Label
902.426UK
8" Woofer with Aramid Fibre cone
8" Box Label

High Power Woofers with Aramid Fibre Cone

A range of high-powered woofers with reinforced aramid fibre cones. Incorporating rubber surrounds, vented magnets and heat resistant 4 layer voice coils, these speakers can easily handle power peaks, yet produce a smooth sound that will please any Hi-Fi enthusiast.

  • Aramid fibre cone
  • Rubber surround
  • Vented magnet
  • 4 layer voice coil
  • Black metal chassis
  • Spade terminals
  • Impedance 8 ohms
  • Voice coil 4 layer

Versions

  902.420UK 902.423UK 902.426UK
Power max. 200W 250W 500W
Power rms 100W 125W 250W
Overall depth 80mm 90mm 95mm
Magnet diameter 100mmØ 120mmØ 140mmØ
Mounting centres 122mmØ 157mmØ 194mmØ
Diameter 130mm (5.25") 165mm (6.5") 200mm (8")
Frequency response 40Hz - 10kHz 35Hz - 8kHz 27Hz - 6kHz
Magnet weight 600g (20oz) 900g (30oz) 1.1kg (40oz)
SPL @ 1W/1m 84.8dB 88dB 85.5dB
Weight 1.27kg 1.92kg 2.76kg

Downloads

UK Declaration of conformity
For 902.420UK (243KB)
EU Declaration of conformity
For 902.420UK (232KB)
Thiele small parameters
Complete list of the thiele small parameters for this range of chassis speakers in Adobe Acrobat (.pdf) format
