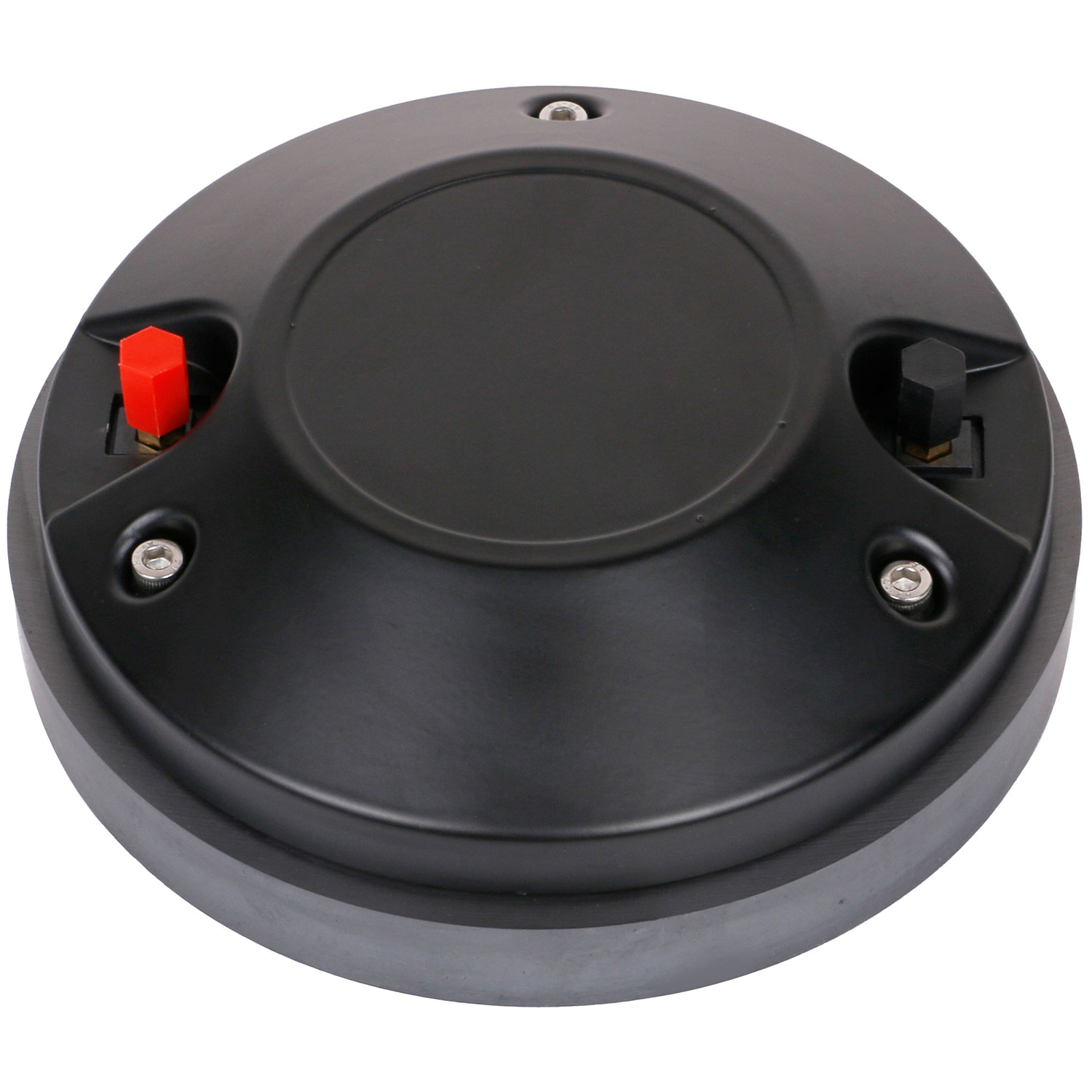

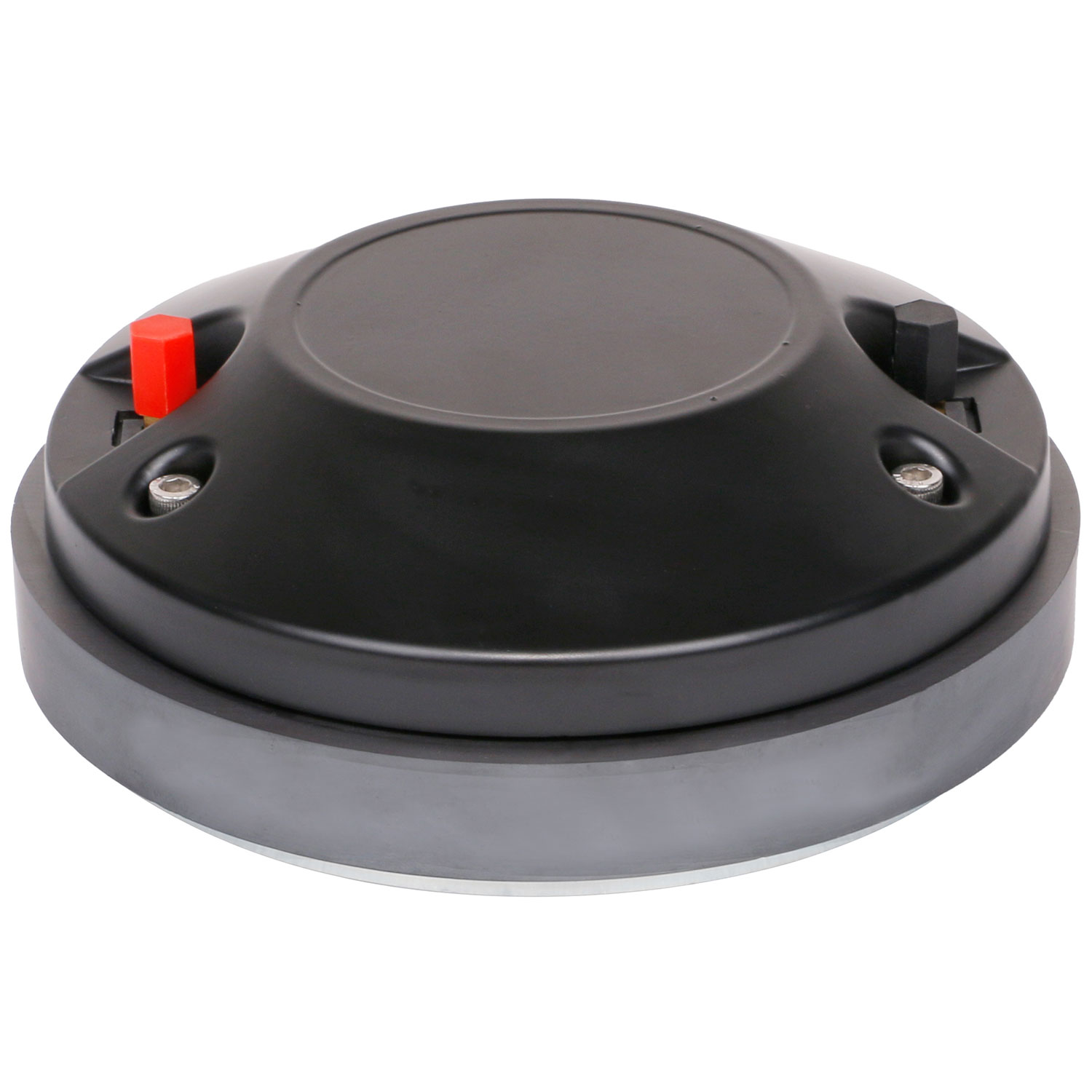

High Frequency Driver Unit - CORVA Series
50mmØ 150Wrms 8ohm
902.917UK
HFCORVA-1215
High frequency compression unit for driving the horn flare of a high power PA cabinet. The voice coil is mated to a 50mmØ Titanium diaphragm, handling up to 150Wrms of high frequency top produce the… more
- Up to 150Wrms power handling
- Accurate and efficient Titanium diaphragm
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
902.917UK
50mmØ (2") HF Driver 150Wrms 8ohm - CORVA-12 CORVA-15 |
50mmØ 150Wrms 8ohm | Box Label |
High Frequency Driver Unit - CORVA Series
High frequency compression unit for driving the horn flare of a high power PA cabinet. The voice coil is mated to a 50mmØ Titanium diaphragm, handling up to 150Wrms of high frequency top produce the very high SPLs of upper frequencies needed in commercial sound reinforcement enclosures. A direct replacement for CORVA-12 and CORVA-15 active or passive PA cabinets.
- Up to 150Wrms power handling
- Accurate and efficient Titanium diaphragm
- Impedance 8 ohms
- Power handling : rms 150W
- Power handling : max. 300W
- Frequency response 800Hz - 20kHz
- Sensitivity 105dB/mW
- Voice coil 75mmØ (3") Kapton
- Magnet Ceramic 1.75kg (62oz)
- Throat 50mmØ (2")
- Dimensions 125 x 225mmØ
- Weight 4.5kg
In the Box
- CORVA 12/15 HF compression driver
