Compact Active Weatherproof Horn Speaker 15W

952.103UK AH15

Compact format active horn speaker with built-in amplifier for indoor or outdoor use. Constructed from high impact ABS material with IP66 protection for reliable operation in all environments. Fitt...

  • Inbuilt amplifier circuit
  • Power from 12Vdc 1.2A (not supplied)
  • Power and line level input on a single cable
Description Version Packed
952.103UK
AH15 Active Weatherproof Horn Speaker
AH15 Gift Box

Compact Active Weatherproof Horn Speaker 15W

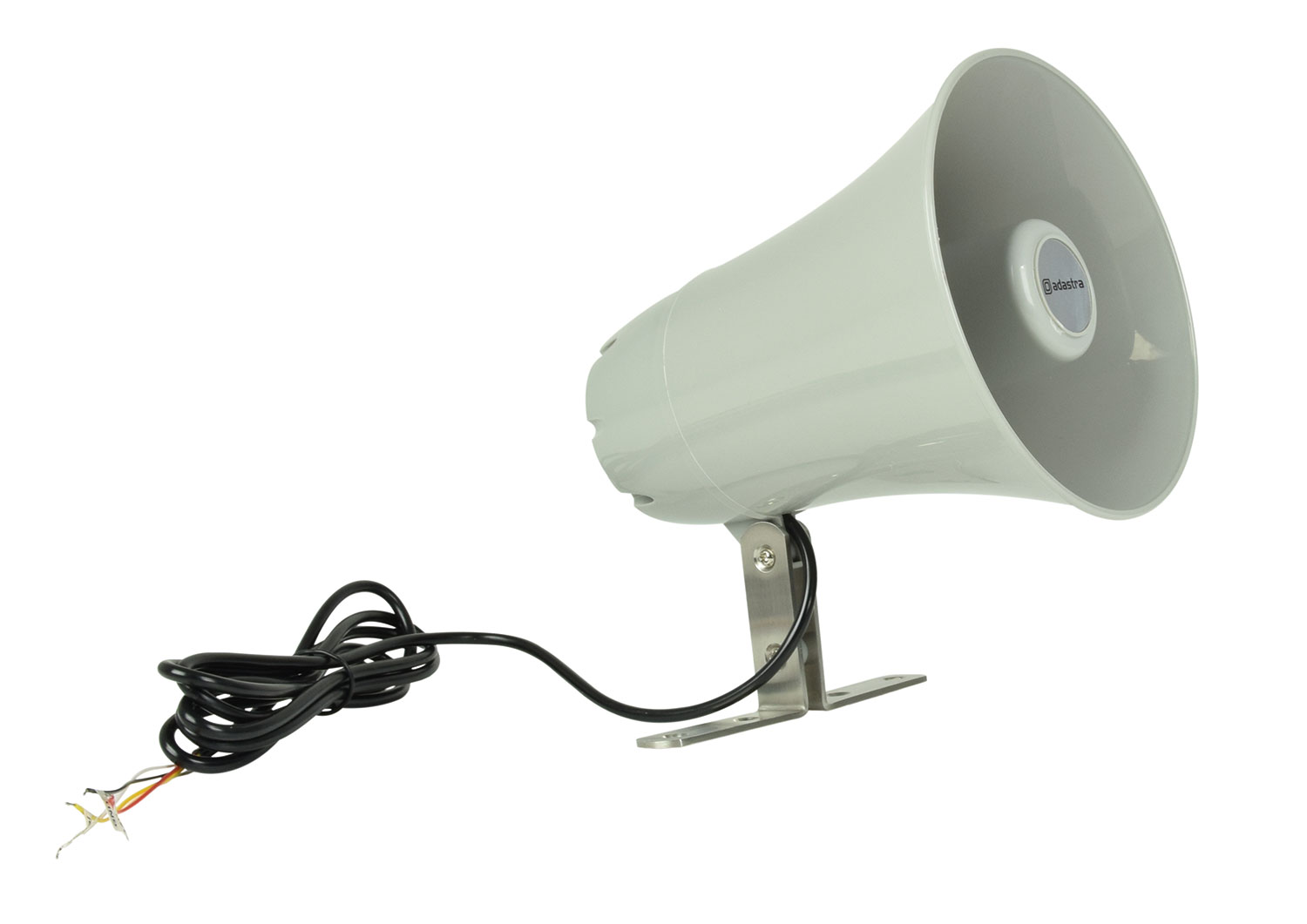

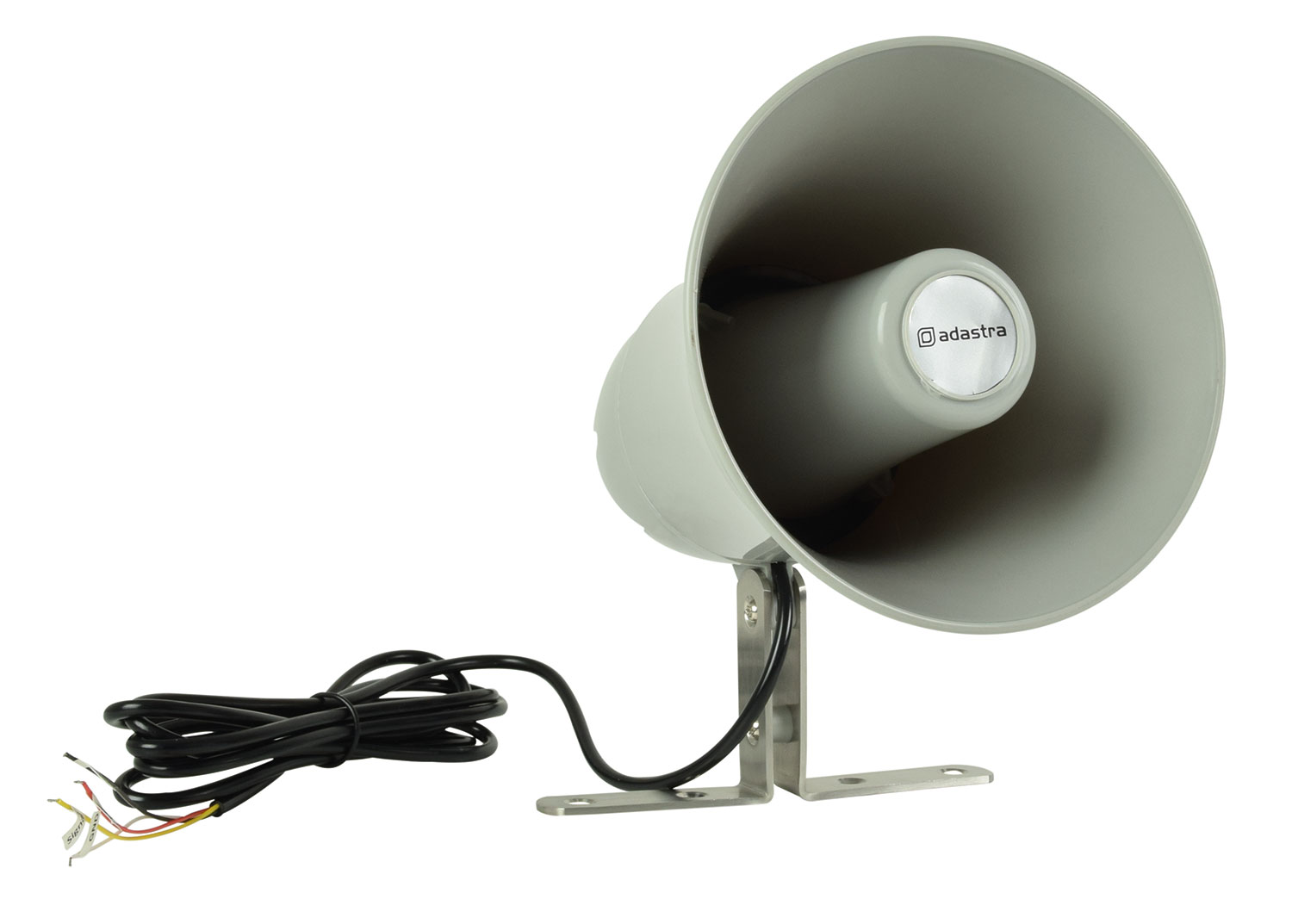

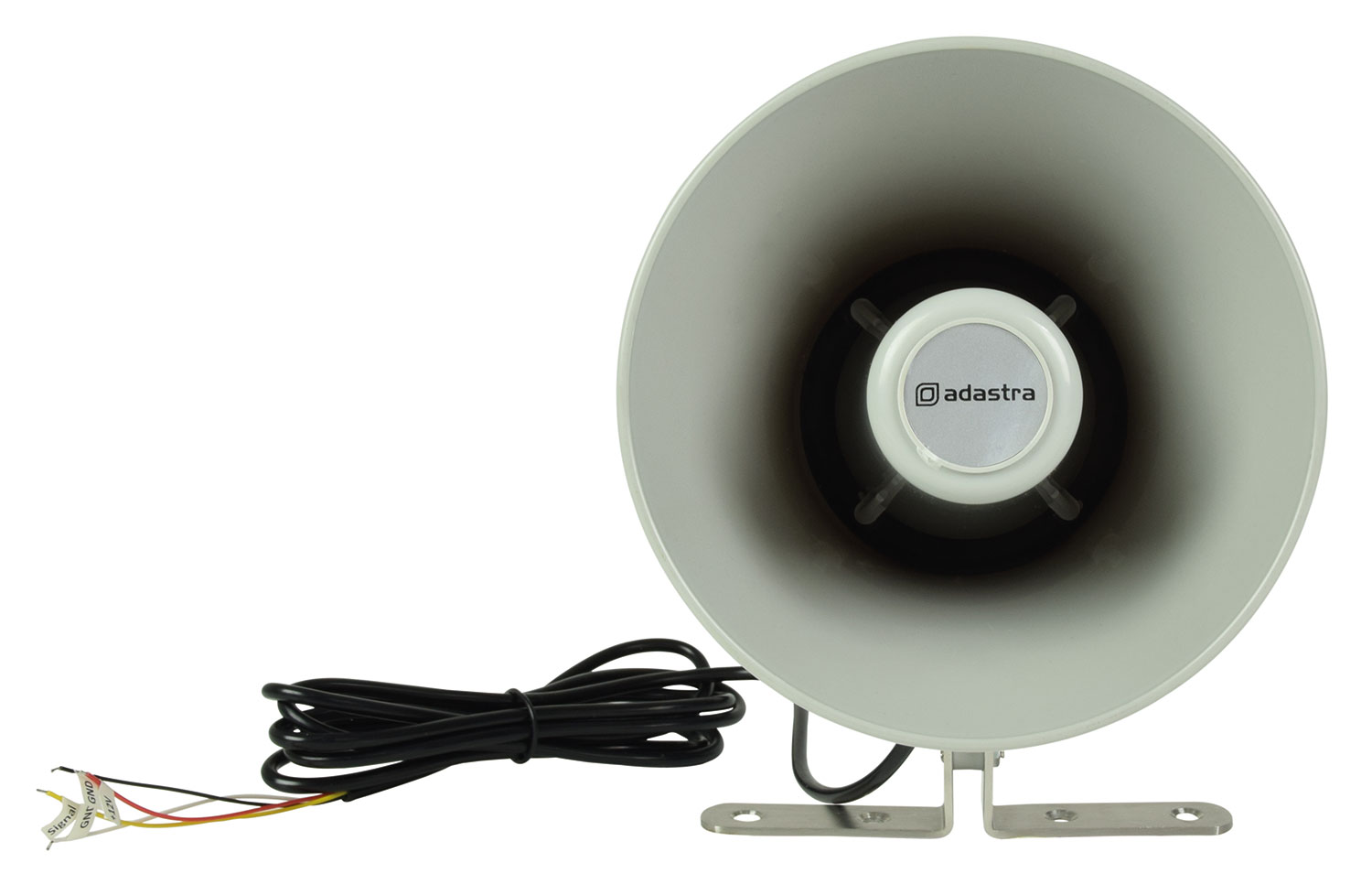

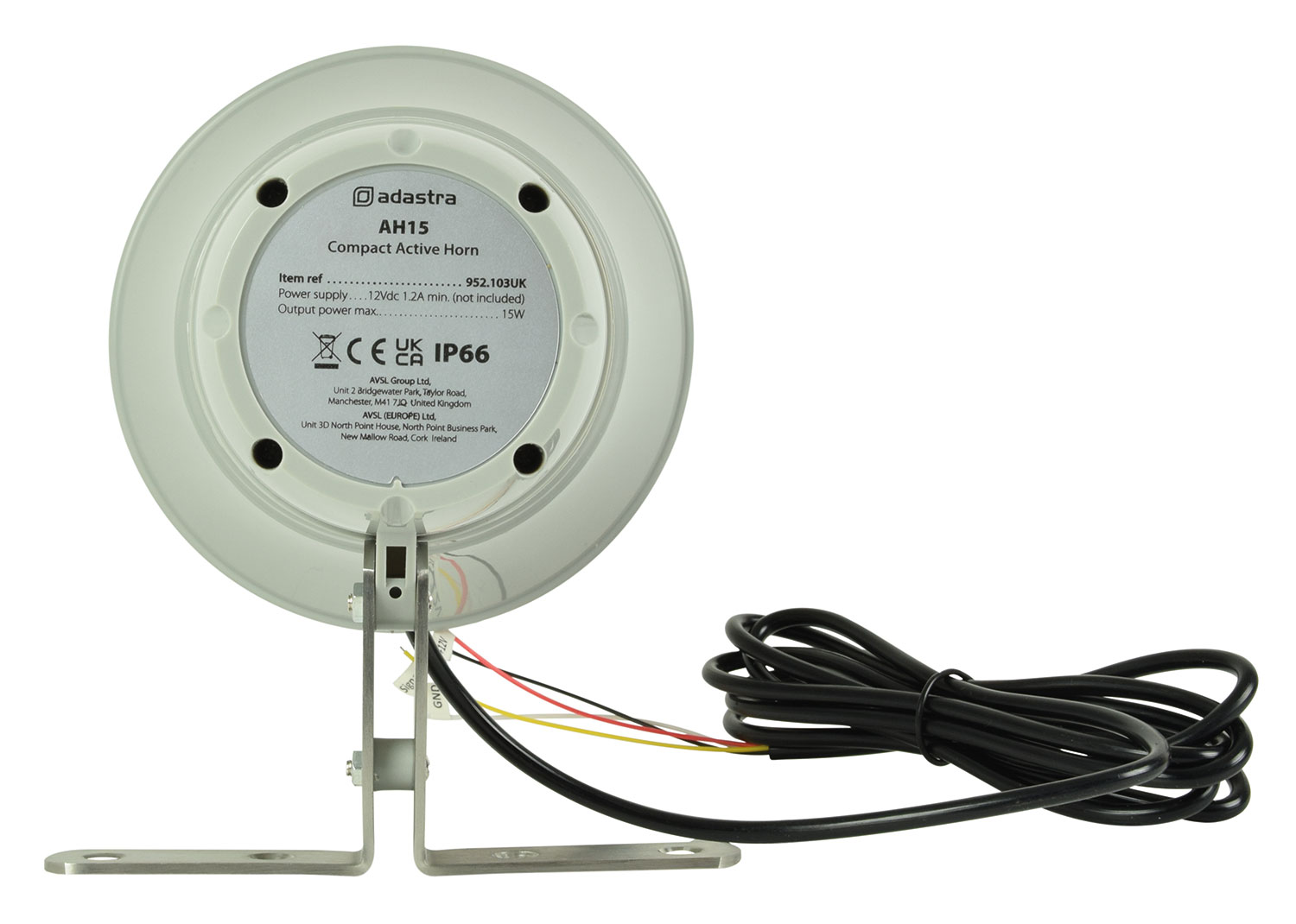

Compact format active horn speaker with built-in amplifier for indoor or outdoor use. Constructed from high impact ABS material with IP66 protection for reliable operation in all environments. Fitted with an angle-adjustable bracket for convenient installation onto a wall or ceiling. Low voltage power and line level audio are connected via a single 4-core cable for simplified cable feed and connection. Designed for voice alerts in CCTV and security systems or as a self-contained add-on for existing public address installations.

  • Inbuilt amplifier circuit
  • Power from 12Vdc 1.2A (not supplied)
  • Power and line level input on a single cable
  • IP66 weatherproof
  • Recommended power supply: 660.451UK

Specification

  • Power supply 12Vdc 1.2A min. (not included)
  • Construction ABS moulded body, stainless steel bracket
  • Connection Hard-wired cable (power + line in)
  • Output power max. 15W
  • IP rating IP66
  • Dimensions 165 x 140mmØ
  • Weight 446g

Trade information

  952.103UK
Barcode / EAN 5015972218921
Tariff code 8518210000
Country of Origin CN
Package type Gift Box
Package dimensions 140 x 170 x 140mm
Package weight 0.80kg
Package quantity 1 unit
Carton dimensions 680 x 700 x 280mm
Carton weight 18.00kg
Carton quantity 20 packages

In the box

The box for this item contains :

  • Compact active horn speaker
  • Adjustable stainless steel bracket

Support

Instruction manual
For 952.103UK (91KB)

Support : articles

Low impedance speakers

Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020
